Partition Parts
Robert Brooke & Associates is a leading commercial bathroom stall hardware parts provider with over 35 years of experience in the stalls and toilet partition hardware industry. We have worked with various organizations throughout the years to provide them with everything they need for their commercial restrooms including bathroom partition hardware. We have had the pleasure of distributing bathroom stall hardware for schools, churches, athletic centers and other facilities with heavy restroom traffic.
We sell a variety of bathroom stall hardware including but not limited to brackets, coat hooks, door pulls, hinges, latches, keepers and stoppers. For high-quality, affordable commercial bathroom stall hardware, look no further than Robert Brooke & Associates.
Restroom Stall Parts Manufacturers
If you like to purchase bathroom stall hardware and equipment from reputable brands, you’ll be pleased to know that we carry hardware from some of the most trusted restroom stall hardware manufacturers in the industry. You can be confident when placing your order with us knowing that we only sell restroom stall parts from highly respected brands.
The manufacturers that we distribute parts from produce strong and durable bathroom stall hardware that lasts for a long time. These are United States and Canadian companies whose main focus is manufacturing quality-made restroom stall hardware for consumers. A few of these restroom stall hardware brands also have an extended inventory that includes washroom accessories.
As suppliers of the Grade A products that these brands create, we are used to seeing satisfied customers who order bathroom stall hardware from our online store. Let us know if you come up with any questions about one of the restroom stall parts brands and we will assist you promptly.
Our Bathroom Stall Parts Supply
We have many parts to choose from in our supply of bathroom partition hardware. Be sure to choose the correct bathroom stall hardware before you place your order.
A specific brand of bathroom stall door hardware might only be of good use on that specific brand of stall, so check the name tag on your toilet stalls before shopping for your parts. For example, you will only be able to use an Accurate Bolt Latch Slide Pin on metal stalls that were manufactured by the Accurate brand.
We also sell other bathroom stall door hardware that will only work on stalls made out of a specific material. The Flush Metal Top Hinge Pin ⅜ inch X 3-¼ inch is one example of restroom stall hardware that was made to be used on laminate stalls. You will find that some of the other bathroom partition hardware we carry should only be used on laminate stalls.
There are some bathroom stall parts that we sell that will work with more than one brand of partitions. For example, the Cast Stainless Steel Slide Bolt Latch that is 1-½ inch W X 3-¼ inch L, 2-¾ inch between screws is a piece of stainless steel bathroom stall hardware that can be used on both Accurate and Global stalls.
We have pages and pages of bathroom stall hardware to look through. If you already know exactly what restroom stall hardware you need, then you might want to make it easier by narrowing your search in our Search Bar. To get more information on our supply of bathroom stall parts, please visit our RBA Partitions and Parts Catalog.
Questions About Bathroom Stall Hardware
Please direct your bathroom stall hardware related inquiries to our main office by phone call or email. The team at Robert Brooke & Associates is ready to answer your questions about the bathroom stall door hardware that we carry.
Please contact us during business hours so that we can help you out if you get stuck on something while shopping our bathroom stall door hardware selection. Call our phone at 1 (800) 642-2403 or send an email to one of our professionals at Sales@RobertBrooke.com.
-
-
-
Comtec 8 inch Wrap Around Hinge Set
Comtec Toilet Partition 8" Wrap Around Hinge Set. Clear anodized aluminum for 1" panel and 1" door. Used by every Bathroom Toilet Stall manufacture on Solid Plastic Toilet Partitions Doors. Sometimes known as part numbers, 7978, 7988, 8974, 8984. These hinges are reversible by taking the 3 pieces apart and reconfiguring the opposite swing.
9HHGB -
Comtec Aluminum 6" Inswing Strike And Keeper For 1" Post
Comtec Toilet Partition Aluminum 6" Inswing Strike And Keeper For 1" Post Or Pilaster
Clear Anodized aluminum construction. Strike and Keeper is 6" high by 1-15/16" wide. The three mounting screws are 2" on center apart. The slot is 3/8" deep by 1-1/2" high. Also known as a Bathroom Stall Strike and Keeper Inswing 1". Used mostly on Solid Plastic (HDPE) Toilet Parttions. Some manufacture part #'s are 5778, HSISA, and 650-2873.
Shipped with mounting screws.
9HSISA -
Comtec Aluminum 6" Outswing Keeper Bumper For 1"
Comtec Toilet Partition Aluminum 6" Outswing Strike And Keeper For 1" Post Or Pilaster
Clear Anodized aluminum construction. Strike and Keeper is 6" high by 1-15/16" wide. The three mounting screws are 2" on center apart. Also known as a Bathroom Stall Strike and Keeper outswing1". Used mostly on Solid Plastic (HDPE) Toilet Parttions. Known as 5878.
Shipped with mounting screws.
9HSOSA -
Knickerbocker Top Hinge
Knickerbocker Partitions Top Hinge
Chrome plated Zamac die cast construction. The wrap around dimension is 1-1/4" wide by 1-3/4" high and 11-16" deep.The hole spacing is 1-1/8" on center. The lug projects out 1-3/8" to center hole with a 1/4" bushing diameter. Also known as a Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3910.
a=1-11/16"
9K0240 -
Mills Slide Bolt Latch Concealed
Mills Partitions ADA Concealed Slide Bolt Latch Concealed Chrome Plated
Covers are polished chrome plated. Latch cover plates are 1-3/4" wide by 1-3/8" high. The latch switch is 1-15/32" wide. The latch bolt is 3/8" diameter. The spacing between the cover and the latch 1-1-32". This is a one of a kind latch. Also known as a Bathroom Stall Concealed Latch. Manufacture part # 4230, HDWT T290.
90T290 -
Sanymetal Keeper 2 Between Screws
Sanymetal Partition Keeper 2" Between Screws Inswing Flat
Polished chrome plated Zamac construction. Keeper base is 3" high by 1-1/16" wide with a 2" hole spacing. Strike is 3" tall by 7/8" deep. The material 1/8" thick. The slot is 1-1/8" high by 1/4". Also known as a Bathroom Stall Keeper Inswing Flat. Manufacture part # 5130.Shipped with mounting screws.
9S2401 -
Chrome Plated Angle Bracket 1 3/4" X 1 3/4"
Toilet Partition Angle Bracket Chrome Plated 1 3/4" X 1 3/4"
Constructed of stainless polished finish with chrome plated zamac die casting. Base is 1-3/4" x 1-3/8", projects out 1-3/4". Two screw holes are 1/4" diameter, and are located 1-1/4" from opposing face. Sometimes called Bathroom Stall Angle Bracket. Sold individually, and shipped with required screws. Manufacturer part number 2011.
9A0160 -
Chrome Two Ear Bracket For 1" X 1-1/2" X 2-1/2"L
If your toilet partition (bathroom stall) wall bracket is stamped 1750, then chances are you have the Two Ear Wall Bracket for 1″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-15-16″ long with 3″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket.
9A0175 -
Chrome Plated One Ear Bracket For 1-1/4" X 1-1/2" x 2-1/2"
If your toilet partition (bathroom stall) wall bracket is cast 1840, then you have the One Ear Wall Bracket for 1-1/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2-3/4″ long with 1-1/2″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.
9A0184 -
Chrome Plated "U" Bracket For 7/8" X 1-1/2" X 1-3/8
Chrome Plated "U" Bracket For 7/8" X 1-1/2" X 1-3/8. If your toilet partition or bathroom stall wall bracket is cast with the number 1900 on the back, then you have the “U” Wall Bracket for 7/8″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-5/32″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.
9A0190 -
Aluminum Continuous U Bracket 1" X 1-3/8" X 57-1/2"
Toilet Partition Continuous U Wall Bracket For 1" Thick Panels Aluminum
Constructed of extruded anodized aluminum. Base is 1-5/16" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 1-3/8" with the thru hole at 1" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous U Wall Bracket. The manufacturers part numbers are 2364, 650-1968-58, and U Channel 1 x 57. These brackets are shipped with all the needed fasteners.9A0191C -
Headrail Bracket for 1" Headrail
Partition Headrail Bracket for 1" Headrail
Chrome plate Zamac die cast construction. The overall measurements of the bracket are 2-3/4" wide by 1-19/32" high by 1" deep with a hole spacing of 2". The spread for the headrail is 1-1/8" by 1-19/32" deep. Also known as a Bathroom Stall Headrail Bracket. Manufacture part # 2150.
Shipped with screws.
9A0215 -
Chrome Plated One Ear Urinal Bracket For 1" Panel 1-1/2" X 3-1/2
The bracket is a zamac die cast material that is then polished chrome plated. The base measures 1-1/2" wide x 2-21/32" long with two mounting holes 1-1/2" on centers. The bracket projects out 3-1/2" with the legs 1" apart, it is used for mounting a 1" thick panel. The mounting holes are located 3-1/8" from the base of the the bracket, and all the holes are 1/4" diameter. The bracket is sometimes called a Toilet Partition One Ear Bracket, Bathroom Stall One Ear Bracket, 1270 wall bracket, 650-6407 wall bracket or sometimes One Wing Bracket.
9A1270 -

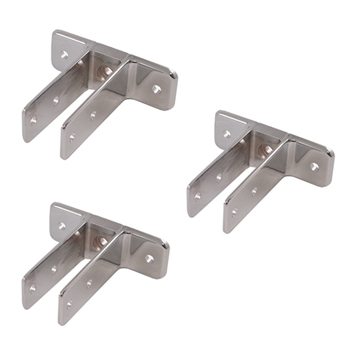

Chrome Plated Two Ear Urinal Bracket For 1" X 1-1/2" X 3-1/2
Chrome Plated Two Ear Urinal Bracket For 1" X 1-1/2" X 3-1/2
This bracket is usually used on Urinal Screens, which are the walls between men's urinals, to hold the partitions to the wall. The bracket is made of a zamac casting that is then chrome plated. The bracket base measures 1-1/2" x 4", with a 3" center to center hole spacing. The bracket projects out 3-1/2", with the mounting holes at 2-1/8" and 3-1/8" from the base. The holes used to mount the bracket to the wall and to the urinal are 1/4" diameter. The 1280 Bracket is sometimes called a Bathroom Stall Bracket, Toilet Partition Bracket, Two Wing Bracket, or Urinal Screen Bracket.
For 1" thick panels
9A1280 -
Cast SS Two Ear Urinal Screen Bracket For 1" Panel 1-1/2" x 3-1/2
Toilet Partition Two Ear X- Long Urinal Wall Bracket For 1" Panel Cast Stainless Steel
Cast stainless steel construction. Base is 1-1/2" x 4" with 3" centers on the mounting holes. The bracket legs project out 3-1/2" with the thru hole at 3-1/8" from the back of the base. Walls are 1/8" thick. Also know as a Bathroom Stall Partition Urinal Screen Bracket - Two Ear Extra Long 1". Manufacture part # 1283.
Ships with mounting screws.
9A1283 -
Chrome Plated Urinal Screen Bracket, Any Thickness, 1-1/2" X 3-1/2"
Toilet Partition Urinal Screen Bracket Chrome Plated
This bracket is for any thickness panel. The bracket is 2 separate pieces. The base is 1-1/2" x 1-1/2". The base mounting hole is 1" from the inside face of the leg face. The bracket projects out 3-1/2", and the holes are at 3-1/8" and 2-1/8" from the mounting face. The brackets are made of a zamac die cast material and polished chrome plated. This bracket is also known as a Two Piece Bracket - X-long Two Holes, Toilet Partition Bracket, or Bathroom Stall Extra Long Bracket. The manufacturers part number is 1320 or 650-6434. The bracket is shipped as two pieces plus all of the fasteners.
9A1320 -
Chrome Plated Two Ear Urinal Bracket For 1-1/4" X 1-1/2" X 3-1/2
Chrome Plated Two Ear Urinal Bracket For 1-1/4" X 1-1/2" X 3-1/2
This bracket is constructed of zamac die cast material that is then polished chrome plated. The base is 1-1/2" wide x 4" long, with two screws 3" on center. The legs project out 3-1/2" with the thru screws at 3-1/8" and 2-1/8" from the base. The 6 holes are 1/4" diameter. This bracket is also known as a Toilet Partiton Bracket, Bathroom Stall Bracket, Two Ear Extra Long Bracket, Two Wing Bracket, Urinal Screen Bracket X-Long. The manufacturers part # are 1330, and 650-6449. The bracket includes all the fasteners.
This bracket is for a 1-1/4" thick panel
9A1330 -
Cast SS One Ear Bracket 3/4" Panel, 1-1/2" X 2-1/2"
Toilet Partition One Ear Wall Bracket For 3/4" Panel Cast Stainless Steel
Cast stainless steel construction. Base of the bracket is 2" x 1-1/2", with 1-1/8" hole spacing. Bracket legs project out 2-1/2" with the screws at 2-1/8" on center from the base. The four holes are 1/4" diameter. Also known as a Bathroom Stall One Ear Wall Bracket or One Ear 3/4". Manufacture part # 1643.
Shipped with mounting screws.
9A1643 -
Stamped SS One Ear Bracket 3/4" Panel 1-1/2" X 2-1/2"
Stamped SS One Ear Bracket 3/4" Panel 1-1/2" X 2-1/2"
14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-5/32" with the mounting screws are 1-11/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1649.
Shipped with screws
9A1649 -
Cast SS One Ear Bracket For 7/8" Panel, 1-1/2" X 2-1/2"
Toilet Partition One Ear Wall Bracket For 7/8" Panel Cast Stainless Steel
Cast stainless steel construction. Base of the bracket is 2" x 1-1/2", with 1-1/8" hole spacing. Bracket legs project out 2-1/2" with the screws at 2-1/8" on center from the base. The four holes are 1/4" diameter. Also known as a Bathroom Stall One Ear Wall Bracket or One Ear 7/8". Manufacture part # 1653.
Shipped with mounting screws.
9A1653
