Alcove Bracket Kits

All alcove bracket kits for toilet partition panels available in chrome plated finish or cast stainless steel. These kits include all the necessary hardware for installation. The alcove clips are an 1/8" off set for each piece, when put together there is a 1/4" difference. Partition panels are usually 1" thick and the post is 1-1/4". Alcove pack kits are easy to purchase and are easy to install.

View as Grid List

12 Items

per page
Set Descending Direction
  1. Alcove Channel #4 Brushed Aluminum

    Toilet partition Alcove Channel for Powder Coated Steel or Stainless Steel partitions. Constructed of extruded aluminum with #4 brushed finish(similar to stainless steel). Typically used with new construction but can be used on existing partitions. Designed to join a Pilaster and Panel in-line to eliminate sightline gaps to provide additional privacy. The indented rounded curve is where the Pilaster(1-1/4" Thickness) will attach, while the open end of channel is where the panel(1" Thickness) with attach. Comes with screws for attaching to pilaster and panel. Alcove channel is not pre-drilled so you will have the flexibility to place screws where needed. Provides the ability to space the panel inside the alcove channel as close as 1/4" to about 3/4". The Alcove Channels are for Hadrian's Standard(58" Ht Panels), Elite(64" Ht Panels) and Elite Plus(72" Ht Panels) Series of restroom partitions. Could be used on different manufacturers partitions as well. Manufactuered by Hadrian Partitions, known as 560157-990, 560170-900 and 560172-900.



    9A5601
    $54.00
  2. Alcove Two Ear Bracket Panel Kit for 1/2" to 3/4" Post

    Alcove Two Ear Bracket Panel Kit for 1/2" Panel to 3/4" Post. Wall brackets and alcove clips are chrome plated zamac. Security screws included. Also known as 615350.

    9A615350
    $30.36
  3. SS Alcove Two Ear Bracket Panel Kit for 1/2" to 3/4" Post

    Alcove Two Ear Bracket Panel Kit for 1/2" Panel to 3/4" Post. Wall brackets and alcove clips are cast stainless steel construction. Security screws included. Also known as 615353.

    9A615353
    $125.24
  4. SS Alcove Two Ear Bracket Panel Kit for 3/4" to 1" Post

    Alcove Two Ear Bracket Panel Kit for 3/4" Panel to 1" Post. Wall brackets and alcove clips are cast stainless steel construction. Security screws included. Also known as 615313.

    9A615313
    $120.18

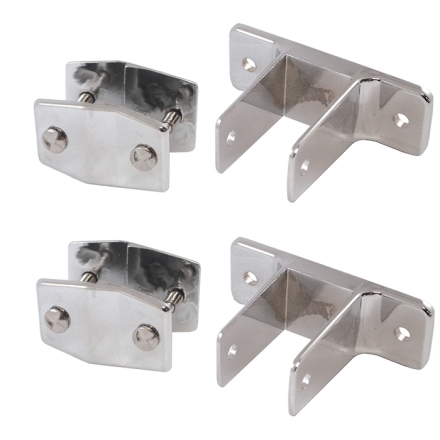

  5. Alcove Two Ear Bracket Panel Kit for 3/4" to 1" Post

    Alcove Two Ear Bracket Panel Kit for 3/4" Panel to 1" Post. Wall brackets and alcove clips are chrome plated zamac. Security screws included. Also known as 615310.

    9A615310
    $35.42

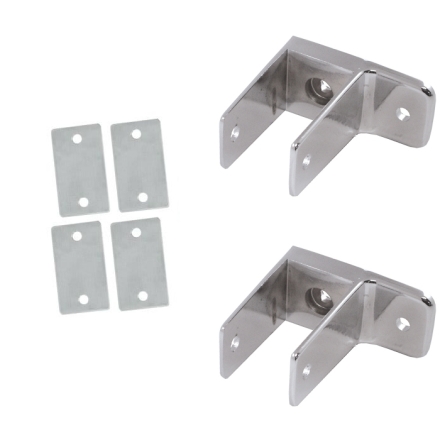

  6. Alcove One Ear Bracket Panel Kit for 3/4"

    Alcove One Ear Bracket Panel Kit for 3/4". This kit is used for 3/4" panel to 3/4" pilaster. Wall brackets and alcove clips are chrome plated zamac. Security screws included. Also known as 615400.

    9A615400
    $32.89

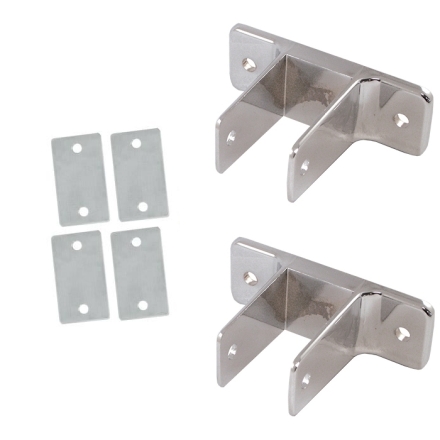

  7. Alcove Two Ear Bracket Panel Kit for 3/4"

    Alcove Two Ear Bracket Panel Kit for 3/4". This kit is used for 3/4" panel to 3/4" pilaster. Wall brackets and alcove clips are chrome plated. Security screws included. Also known as 615660.

    9A615660
    $30.36

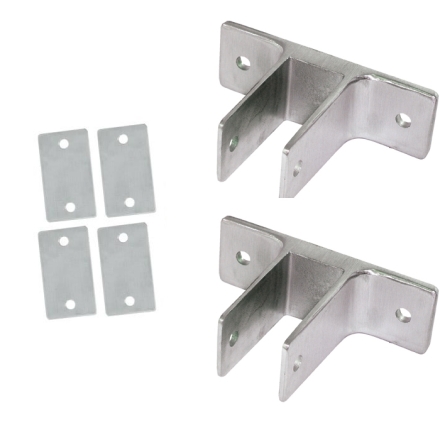

  8. Stainless Alcove Two Ear Bracket Panel Kit for 3/4"

    Stainless Alcove Two Ear Bracket Panel Kit for 3/4". This kit is used for 3/4" panel to 3/4" pilaster. Wall brackets and alcove clips are cast stainless steel. Security screws included. Also known as 615663.

    9A615663
    $73.37

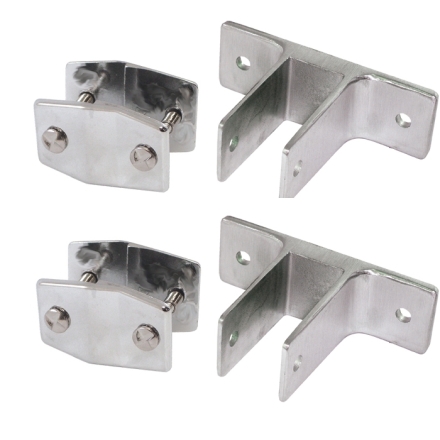

  9. Stainless Alcove Two Ear Bracket Panel Kit for 1/4" Offset

    Stainless Alcove Two Ear Bracket Panel Kit for 1/4" Offset. This kit is used for panel to pilaster 1/4" offset and for 1" panel to wall bracket cast stainless steel plated. Security screws included. Also known as 615333.

    9A615333
    $132.82

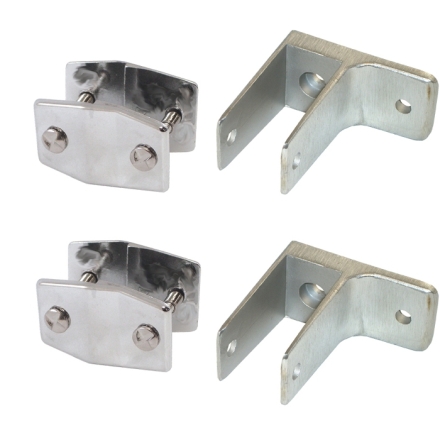

  10. Stainless Alcove One Ear Bracket Panel Kit for 1/4" Offset

    Alcove One Ear Bracket Panel Kit for 1/4" Offset. This kit is used for panel to pilaster 1/4" offset and for 1" panel to wall bracket cast stainless steel plated. Security screws included. Also known as 615363.

    9A615363
    $120.18

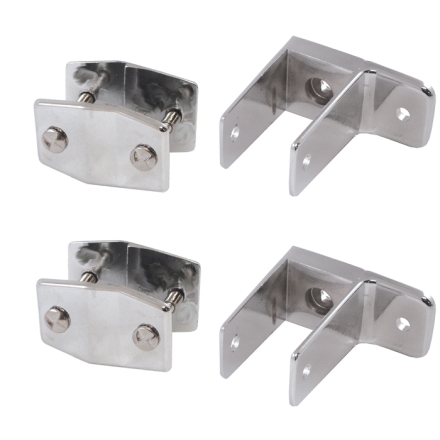

  11. Alcove One Ear Bracket Panel Kit for 1/4" Offset

    Alcove One Ear Bracket Panel Kit for 1/4" Offset. This kit is used for panel to pilaster 1/4" offset and for 1" panel to wall bracket chrome plated. Security screws included. Also known as 615360.

    9A615360
    $32.89
  12. Alcove Two Ear Bracket Panel Kit for 1/4" Offset

    Alcove Two Ear Bracket Panel Kit for 1/4" Offset. This kit is used for panel to pilaster 1/4" offset and for 1" panel to wall bracket chrome plated. Security screws included. Also known as 615330.

    9A615330
    $30.36
