Corbin Russwin Panic Devices

Corbin Russwin ED5400 Exit Device

Handing
Device is handed but easily field reversible.
Lever trim is handed.
Bar Length
Easily field cut to size.
Standard: 36" (914mm) bar fits 30"- 36" door.
Door Thickness
1-3/4" (44mm) standard.
Stile
Minimum width 4-1/2" (114mm).
Door Height
Standard top rod for 7' door.

Replacement parts are also available

3/16" Dog (hex) Key, used on Corbin Russwin Exit devices

3/16" Hex Key

2-1/4" overall length

Corbin Russwin Tenion Sub Assy

Corbin Russwin part #378F74

ED6200-3700 PARTS BREAK DOWN

Corbin Russwin ED4000/5000 Series End Cap

Corbin Russwin part # ECK7 or 704F66

Newer impact resistant end cap. Shown in stainless steel.

Corbin Russwin ED8200 Rim Strike

Corbin Russwin part # 386F45

This strike was used on the ED8200, 29, and 372.

Corbin Russwin ED6000 Cross Bar Screw

ED6200-3700 Parts Break Down

Corbin Russwin ED4000/5000 Rim Strike

Standard strike for the ED4200 and ED5200 Rim Panic Devices.

Corbin Russwin part # 650F29

Corbin Russwin ED8200 Active Head Assembly

This active head is used on the Corbin Russwin ED8200, Russwin 372, and the Corbin 29 Rim Exit Devices. The springs usually wear or break on this item over years of use.

Corbin Russwin Part # 552F36-8, or the old number 438F40

Corbin Russwin ED8000 Dogging Assembly 491F57

Used on the Corbin Russwin ED8000 Series, ED8200 and ED8400 to lock the Panic Bar in the down, or locked open position. As a side note, we have been told by Corbin Russwin that this dogging assembly is the same one used on the older 9000 Series also.

Corbin Russwin Part # 491F57-8, old number 491F56

Corbin Russwin ED4000/ED5000 Dogging Assembly

Used on Corbin Russian ED4000 and ED5000 Non Fire Rated Exit Devices.  The plate measures 2” x 1-7/16”, the shaft measures 1-7/16” long by 1/2” diameter.

Corbin Russwin # 650F52-8

Corbin Russwin ED4000/ED5000 Lever Spring

Same part as the Corbin Russwin Lever Trim Spring. Used on Yale and Corbin Russwin LHR or RH Doors. The spring has an 1-1/4" diameter.

Yale Part # 60-7000-1225-999
Corbin Russwin # 651F61

Corbin Russwin ED4000/ED5000 Blue Lever Spring

Same part as the Corbin Russwin Lever Trim Spring. Used on Yale and Corbin Russwin RHR or LH Doors. The spring has an 1-1/4" diameter.

Yale Part # 60-7000-1224-999
Corbin Russwin # 651F62

Corbin Russwin ED5400 / ED4400 Top Latch

The Corbin Russwin ED5400 / ED4400 Top Latch is used on the Non Fire Rated ED5400 and ED4400 Exit Devices.

Corbin Russwin Part # 650F55-8

Corbin Russwin ED4400/5400 Latch Cover

This latch cover is used on the Corbin Russwin ED4400/5400  Surface Vertical Rod Devices.  We stock these in Brushed Stainless Steel, other finishes will take longer.

Corbin Russwin Part # 650F64

Corbin Russwin ED5200(A) Rim Strike

This strike is used on the ED5200(A).

Manufacture part # 650F30-8

Corbin Russwin 677F08-5 Spring Retainer Hub, this is also known as the Yale 60-7000-6217-082 Hub, Lever.

Corbin Russwin 677F08-5 Spring Retainer Hub, this is also known as the Yale 60-7000-6217-082 Hub, Lever.

The Yale 7000 Cylinder Dogging Sub Assembly is used on non Fire Rated Yale and Corbin Russwin panic devices.   Like the Hex Key Sub Assembly, this one is for use with a Key Cylinder.

Yale Part # 60-7000-0407-999
Corbin Russwin Part # 650F968

Corbin Russwin ED4200 Narrow Stile Exit Device
This device is designed for use with a narrow framed glass door, and is recommend for use in high traffic, abusive areas.

Device
non-handed.
Trim handed.
Easily field cut to size.
Standard: 36" bar fits 30"- 36"
914mm) door.

Stile
Minimum width 2" (51mm).

Replacement parts are also available

Corbin Russwin ED5200 Exit Device

Handing
Device is non-handed.
Lever trim is handed.
Bar Length
Easily field cut to size.
Standard: 36" (914mm) bar fits 30"- 36" door.
Stile
Minimum width 4-1/2" (114mm).

Replacement parts are also available

Corbin Russwin ED8400 Exit Device

Handing
Handed; specify hand. Handing diagram
Bar Length
Easily field cut to size.
Standard: 36" bar fits 31"- 36" door.
Optional: 30" bar fits 28" - 30" door; specify W030.
Optional: 42" bar fits 37" - 42" door; specify W042.
Optional: 48" bar fits 43" - 48" door; specify W048.
Door Thickness
1-3/4" (44mm) standard.

Door Height
All top rods easily field cut to size.
Standard on ED8400 devices: top rod for 7'6" door.

Replacement parts are also available

Corbin Russwin ED8200, also know as the Corbin 29EO or 29 series, and 372 Russwin series exit device.

Handing
Non-handed.
Bar Length
Easily field cut to size.
Standard: 36" bar fits 31" - 36" door.
Optional: 30" bar fits 28" - 30" door; specify W030.
Optional: 42" bar fits 37" - 42" door; specify W042.
Optional: 48" bar fits 43" - 48" door; specify W048.
Door Thickness
1-3/4" (44mm) standard.
Backset
2-3/4" (70mm). Device and trim cover
standard ANSI A115.2 (Type 161)
cylindrical lock preparation. (Backset
changes when mullion is used.)
Stile
Minimum width 5" (127mm).
Projection
2-1/2" (64mm) low profile for barrier-free
access.

Replacement parts are also available

Corbin Russwin ED8000 N6 Trim

Passage -Entrance by knob or lever. Door is always unlocked.
Classroom-Entrance by knob or lever. Key locks or unlocks knob or lever.

Corbin Russwin ED8000 A6 Trim

Classroom-Entrance by knob or lever. Key locks or unlocks knob or lever.

Corbin Russwin ED8000 G10 Trim

Passage -Entrance by knob or lever. Door is always unlocked.
Classroom-Entrance by knob or lever. Key locks or unlocks knob or lever.

Corbin Russwin ED4000/5000 A9 Trim

Passage -Entrance by knob or lever. Door is always unlocked.
Classroom-Entrance by knob or lever. Key locks or unlocks knob or lever.

Corbin Russwin ED4000/5000 N9 Trim

Passage -Entrance by knob or lever. Door is always unlocked.
Classroom-Entrance by knob or lever. Key locks or unlocks knob or lever.

Corbin Russwin ED4000/5000 L9 Trim

Passage -Entrance by knob or lever. Door is always unlocked.
Classroom-Entrance by knob or lever. Key locks or unlocks knob or lever.

Corbin Russwin ED4000/5000 C9 Trim

Passage -Entrance by knob or lever. Door is always unlocked.
Classroom-Entrance by knob or lever. Key locks or unlocks knob or lever.

Corbin Russwin ED5200A Active Head

Used on the Corbin Russwin ED5000 Rim Devices, for fire rated doors. For non fire rated doors, order the G650F35-8. A fire rated door is a door were you can NOT use your allen wrench to dog, or lock, the door in the open position during business hours.

Corbin Russwin part # 650F36-8

Corbin Russwin ED4200 Active Head

Used on the Corbin Russwin ED4000 Rim Devices, for non fire rated doors. A non fire rated door is a door were you can use your allen wrench to dog, or lock, the door in the open position during business hours.

Corbin Russwin part # 650F37-8

Corbin Russwin ED5200 Active Head

Used on the Corbin Russwin ED5000 Rim Devices, for non fire rated doors. For fire rated doors, order the G650F36-8. A non fire rated door is a door were you can use your allen wrench to dog, or lock, the door in the open position during business hours.

Corbin Russwin part # 650F35-8

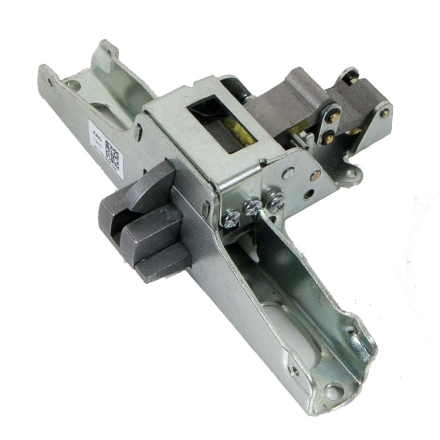

Corbin Russwin ED4200S Latch Assembly

The Corbin Russwin ED4200S 681F618 Latch Assembly is used on the Narrow Stile SecureBolt Exit Device.  The difference between the ED5200S and ED4200S Latch Assembly is the location of the Hub.  Hub on the ED4200S Latch Assembly is located on the center line of the Assembly Mounting Screws.

Corbin Russwin Part # 651F618
