Stainless Steel

Partition Slide Latch 3/8" Bar To Door, 2-3/4" Between Screws Stainless Steel

Cast stainless steel construction. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/4" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 3/8" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5033.

Shipped with mounting screws.

Toilet Partition Surface Mounted Ada Slide Latch Set W/ Indicator

Stamped stainless steel construction. Slide lock measures 4-3/16" long by 1-1/8" tall by 15/32" thick. The mounting plate has mounting screws 1-1/4" on center and is 2-15/32" long. The lock projects out 1-3/16" from the face of the door. The indicator is 2" in diameter and 13/32" thick. The keeper is 3/4" wide by 1-7/16" tall by 1/16" thick. Commonly known as a Bathroom Stall Surface Mounted ADA Slide Lock and Toilet Partition Locks. Manufacturer part # 6069. For 1" thick doors.

Shipped with mounting screws.

Toilet Partition Surface Mounted Ada Slide Bolt Latch Inswing Latch & Keeper Stainless Steel

Stamped stainless steel construction. Latch is 2" wide by 2-7/8" tall. Latch bolt is 2-3/4" long by 13/16" wide by 1/8" thick and has a throw of 25/32". The keeper is 1-1/2" by 1-1/2" by .075" thick, and projects out 7/16". Commonly called a Bathroom Stall Latch for inswinging doors and Toilet Partition Locks. Manufacture part # 6409 and 6539.

Shipped with mounting screws.

Partition Surface Mounted Stainless Steel Slide Bolt Latch 1-7/8" Screws. Stamped stainless steel construction. Base is 2-7/8" high by 1-3/8" wide by 5/32" thick. Latch bolt is 2-1/4" long x 13/16" wide x 1/8" thick, and the slide distance is 25/32". Also known as a Bathroom Stall Stainless Steel Slide Latch and Toilet Partition Locks. Manufacture part # 6309. Shipped with mounting screws.

ADA Partition Slide Latch with Occupied Symbol. Stainless steel door lock surface mounted for 1" doors, this can be used for doors less than 1" if the rod is cut down between the two pieces. All hardware included for installation. This manufactures part number is 50553. Hole spacing is 3-1/2".

Stainless Steel global slide latch with indicator and emergency access. Overall dimension 2-3/4" x 1-1/2" with 2-1/4" hole spacing. Used with new style doors 10/1/21 to current. Used with a 1 inch door. Security screws included. Manufactures part number 40-8263010.

Toilet Partition Surface Mounted Ada Slide Bolt Latch And Keeper Stainless Steel

Stamped stainless steel construction. Slide lock measures 4-3/16" long by 1-1/8" tall by 15/32" thick. The mounting plate has mounting screws 1-1/4" on center and is 2-15/32" long. The lock projects out 1-3/16" from the face of the door. The keeper is 1-1/2" wide by 1-1/8" tall by 3/32" thick. Commonly known as a Bathroom Stall Surface Mounted ADA Slide Lock and Toilet Partition Locks. Manufacturer part # 6049, 1002927.

Shipped with mounting screws. For 1" thick doors.

Cast S.S. Slide Bolt Latch 5/8" Bar To Door, 3-1/2" Between Screws. Cast stainless steel construction. Base is 4-1/2" tall with a hole spacing of 3-1/2" on center. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick and has a throw of 15/16". The latch projects out 1-9/16". The distance from the back of the base to the underside of the latch bolt is 9/16". Also known as a Bathroom Stall Slide Latch and Toilet Partition Locks. Manufacture part #5053. Shipped with screws. Used by accurate and global.

Partition Slide Latch, Cast Stainless Steel With Hole Spacing 1-3/4" X 1-1/2"

Cast stainless steel construction. The latch base is 2-31/32" wide by 1-15/16" high and projects 1-1/8" high. The hole spacing is 1-3/4" wide by 1-1/2" high. The four mounting holes have a diameter of 1/4". The Slide Latch base is 1/4" thick. The latch bolt is 7/8" wide by 3-7/16" long. This toilet stall latch is used on Accurate and Mills Partitions. Also known as a Bathroom Stall Slide Latch. Manufacture part # 6983.

Shipped with mounting screws.

Bobrick slide latch for surface mounting on doors. Most common with Bobrick's doors. Also known as 1040-42, includes latch track, latch cover, set screw that uses a 5/64" allen wrench and flathead latch screw.

Current style Global stainless steel door catch includes screws for mounting. This is used with the 9g700 latch in ss. Product part number is 8262360. This part has a 3/8" gap for the catch and is 2-1/8" in length, 1-5/8" hole spacing and is 3/4" wide.

Toilet Partition Slide Bolt Latch Stainless Steel

Cast stainless steel construction. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5023.

Shipped with mounting screws.

also known as 9F0302SS

Occupancy Indicator Handle Set, European Design, Stainless Steel Construction. This product offers the European style with a sleek and modern feel. Features the capability of being installed on partitions with thickness of either 3/4" or 1", Built-In Handle, and Emergency unlatching access on front face of indicator, make this an extremely versatile option for restroom partitions. Traditionally these are designed for partitions that have routed edges to create a no-sightline system but can be used with non-routed edge partitions with addition hardware under related products.

Surface Mounted Partition Slide Bolt Latch Stainless Steel 3/8" Bar To Door Clearance

Cast stainless steel construction. Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 5/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5063.

Shipped with mounting screws.

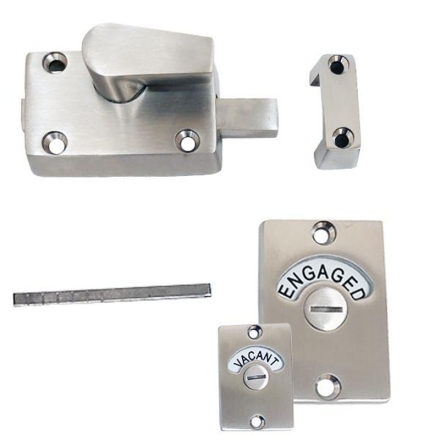

Cast Stainless Steel Slide Bolt Latch W/Indicator. For 3/4" or 1" Door, 2-3/4" between screws. Also known as 8563009. This latch is Ada approved. There is no exact replacement available.

Sorry no longer available, see links for options

https://www.robertbrooke.com/bathroom/partition-parts/latches/chrome-plated.html

https://www.robertbrooke.com/bathroom/partition-parts/latches/cast-stamped-stainless-steel.html

Cast Stainless Steel Slide Bolt Latch 1-1/2"W X 3-1/4"L, 2-3/4" Between Screws. Used on Accurate and Global Toilet Partitions. Cast stainless steel, also known as 40-256300, 40-8562899, 8698. This latch is Ada approved.
