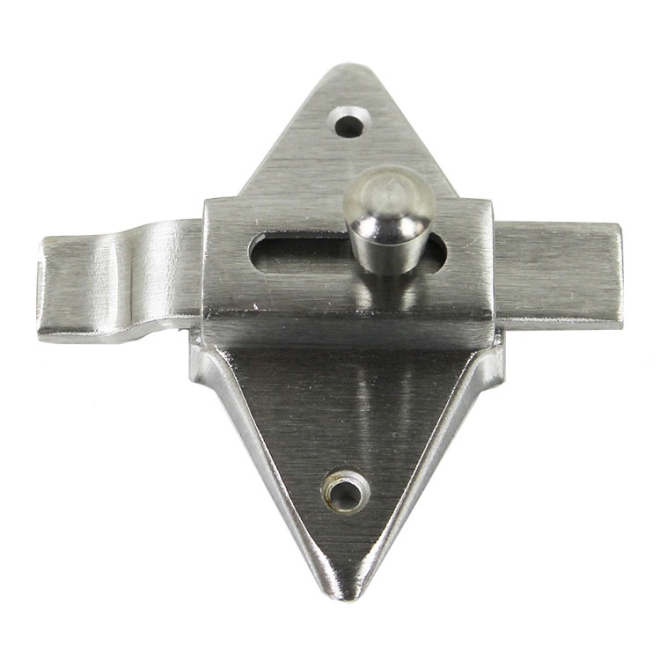

S.S. Slide Bolt Latch 3/8" Bar To Door, 2-3/4" Screws
Partition Slide Latch 3/8" Bar To Door, 2-3/4" Between Screws Stainless Steel
Cast stainless steel construction. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/4" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 3/8" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5033.
Shipped with mounting screws.
Partition Slide Latch 3/8" Bar To Door, 2-3/4" Between Screws Stainless Steel
Cast stainless steel construction. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/4" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 3/8" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5033.
Shipped with mounting screws.
| Part # | 9A5033 |
|---|---|
| Availability | In Stock |
| Manufacturer | Generic |
| Short Description | Partition Slide Latch 3/8" Bar To Door, 2-3/4" Between Screws Stainless Steel Cast stainless steel construction. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/4" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 3/8" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5033. Shipped with mounting screws. |
| Description | Partition Slide Latch 3/8" Bar To Door, 2-3/4" Between Screws Stainless Steel Cast stainless steel construction. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/4" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 3/8" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5033. Shipped with mounting screws. |
