Door Closer Arms

LCN Door Closer Fusible Link Arm

Adjustable nut allows door closer arm to lock when the preselect position is reached. Fusible Link will hold door until heat melts the "Link" and then the door will shut. Used on Fire Doors to control a spreading fire.

Specify your current closers model number when ordering.
Not all of the LCN closers have the same shape spindle on the door closer
cylinder. The LCN Part #'s on this Fusible Link Arm is: 4010-3049FL, 4020-3049FL, 4110-3049FL

LCN Door Closer Hold Open Arm

Adjustable nut allows door closer arm to lock when the preselect position is reached.

Specify your current closers model number when ordering.
Not all of the LCN closers have the same shape spindle on the door closer
cylinder. The LCN Part #'s on this Regular Arm is: 1260-3049, 1460-3049, 4010-3049, 4020-3049, 4040-3049

LCN Door Closer Regular Arm

Specify your current closers model number when ordering. Not all
of the LCN closers have the same shape spindle on the door closer
cylinder. The LCN Part #'s on this Regular Arm is: 1260-3077, 1460-3077, 4010-3077, 4020-3077, 4040-3077

LCN Door Closer Spring Cush Arm 3077SC

Optional, parallel arm for abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe.

LCN Door Closer Spring Cush Hold Open Arm 3049SC

Optional, parallel arm for abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe. Handle controls hold-open function.

LCN Sentronic Door Closer Arm - 4010SE-3077T

LCN part # 4010SE-3077T

This arm will only work on the 4010SE. If you have another LCN Sentronic Model, we can order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, ect..) and the hand of the door, see diagram. This arm is for a discontinued LCN Door Closer. We can not allow returns, each arm is special ordered.

The arm shown in the picture is a 4040SE arm, the 4110SE arm is the same, but the shaft hole is an oval.

LCN Sentronic Door Closer Arm - 4040SE-3077T

This arm will only work on the 4040SE. If you have another LCN Sentronic Model, we can special order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, ect..) and the hand of the door.

LCN Part # 4040SE-3077T

LCN Sentronic Door Closer Arm - 4110SE-3077T

LCN part # 4110SE-3077T

This arm will only work on the 4110SE. If you have another LCN Sentronic Model, we can order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, etc..) and the hand of the door, see diagram.

The arm shown in the picture is a 4040SE arm, the 4110SE arm is the same, but the shaft hole is an oval.

LCN 4310ME-3077SF is the Standard Arm used on the 4310ME Sentronic Closers.  The arm is handed, left and right, and comes in different colors.

The LCN 4410ME-3077 Arm is the standard arm shipped with the 4410ME Series.

Replacement LCN 4640 (4642) Door Closer Arm. Arm is Non handed and ships with screws.

LCN Part # 4640-3077

LCN 4630 replacement arm, LCN part # 4630-3077T

Norton / Yale Door Closer Arm Shoe Assembly

Replacement Shoe Assembly for Norton 1600, 9300, 7500 and 8000 series door closers. And Yale 50, 2300, 8000 and 4400 series.
Base measures 11/16" x 2-1/4" with 1-3/4" center to center screw hole mounting. Bracket projects out 15/16". The pin is 3/8" diameter.

Norton part # 7701AS or a Yale # 400-AS

Old Norton Part # 1620AS

Replacement arm works with the Norton 1600, 9300, 7500, and 8000 series, along with the Yale 50, 2300, 3000 and 4400 friction hold open arms closers. Norton and Yale use the same arm for there Friction Hold Open arms.

Norton Part # 7701-3
Old Norton Part # 1620-3
Yale Part # 400-3

Norton / Yale Door Closer Hold Open Parallel Bracket

Replacement bracket works with the Norton 1600, 9300, 7500, and 8000 series, along with the Yale 50, 3000, and 4400 series hold open closers.

Norton Part # 1628H
Yale Part # 588

Norton / Yale Door Closer Parallel Bracket

Replacement arm works with the 1600, 7500, and 8000 series closers.

Norton Part # 1618A
Yale Part # 289A

Norton / Yale Door Closer Regular Arm

Replacement arm works with the Norton Doors 9300, 1600, 7500, and 8000 series closers. And the Yale 2300, 50, 3000 and 4400 Door Closers

Norton Part # 1620-1 or 7701-1 and Yale 400-1

Norton 7700 Series Power Track Arm

Arm is shipped will all of the necessary hardware. This assembly includes the 7701ST-1AT Adjusting Head and Tube Assembly, and the 7701ST-1AR Adjusting Rod Assembly. The square shaft measures 7/16" x 7/16". The aluminum finish ships within 24 hours, dark bronze will take a little longer.

Norton Part # 7701ST-1A

The Norton 7700PT Arm Stud connects the arm to the slider in the track.  The Stud measures 1" overall length, including the stud head.

The Norton 7700PT Slider measures 2-1/16" long by 1-1/4" wide and 5/8" thick, excluding the metal clip on the back.

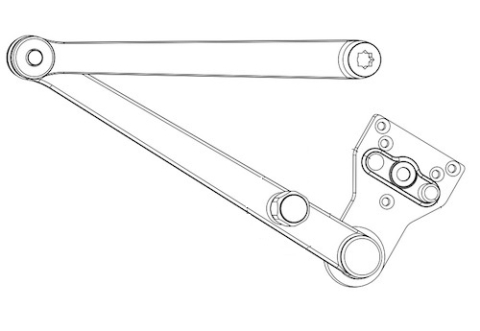

Norton CloserPlus Hold Open Arm

This heavy duty Parellel Arm can be used with the Norton 1600, 9300, 8000 and 7500 door closers. The knob on the main are locks and unlocks the arm to hold your door open.

Aluminum is in stock, Dark Bronze is 2-3 week lead time.
Norton Part # 6870T-8

Norton CloserPlus Non Hold Open Arm

This heavy duty Parallel Arm can be used with the Norton 1600, 9300, 8000 and 7500 door closers.

Aluminum is in stock, Dark Bronze is 2-3 week lead time.
Norton Part # 6770-5

Norton Door Closer Rod and Shoe

The Norton Rod and Shoe 7701-11 and 7701-11A come in two different lengths, 8-7/8" anc 12-1/2".  The length is measured from the end of the bar to the center of the eyelet.

Norton Part #'s:
8-7/8" Long  7701-11
12-1/2" Long 7701-11A

Norton Unitrol Hold Open Arm

Used on the Norton 1600, 8000 and 7500 door closers. Parallel Arm mounting only.

Norton # Door Size
6100-1 28-32"
6100-3 33-41"
6100-4 42-48"

Norton Unitrol Non Hold Open Arm

Used on the Norton 1600, 8000 and 7500 door closers. Parallel Arm mounting only.

Norton # Door Size
6100-11 28-32"
6100-13 33-41"
6100-14 42-48"

Sargent H.D. Holder Stop Arm

Sargent part #25-PSH

Sargent Hold Open Arm

Sargent part # 25-H

Sargent Hold Open Pa Bracket

Sargent part # 125-PH9

Sargent Pa Bracket

Sargent part # 125-P9

Sargent Regular Arm

Sargent Part # 25-0
