Ives Floor Mounted Door Stop FS434 Rubber Only

Replacement rubber shoe for the FS434.  Rubber measures 2-1/4" high by 1-7/16" wide by 5/8" thick.

Ives Part # 09-318

Ives Floor Mounted Door Stop FS434

Features:

• Burnished wrought steel.
• Soft, resilient gray rubber.
• For undercut doors up to 1-1/2".
• Packed with screws and plastic anchors.

Overall height 2-5/8"
Base size 1-1/2" W x 2-3/4" L

Kickdown Door Stop / Holder Rubber Shoe

Rubber Shoe for old style GJL444/555 and old style style GJ44's

1" base diameter
13/16" over all height
5/8" outside thread diameter

Ives Roller Latch RL32

The Ives Roller Latch RL32 is constructed of Brass and Plated to your desired finish.  The body measures 1-1/8" wide by 2-1/4" high and 2-1/4" deep.  The roller is constructed of Nylon, and has an adjustable projection up to 1/2".  Fits a standard heavy-duty cylindrical lock cutout.

Roller Bumper Straight Arm 4" RB471

Features:

• Constructed in heavy-duty cast brass.
• RB471 is ideal for use in situations where doors meet each

other at approximate right angles (back to back).

4" Kickdown Door Holder / Stop FS544

This is one of our most popular Kickdown Door Holder/Stop for the past 35 years.

Features:

• Units provide an economical method to hold open doors.
• Cast of durable iron.
• Non-marring rubber shoes have corrugated bottoms to provide secure grip. Rubber shoe is securely fastened with screw. When worn, shoes are easily replaced.
• FS544 for door-to-floor clearances of 2" or less.

Ives Sweep Lock07

The Ives Sweep Lock are made of solid brass and plated to your desired finish.   The base is 15/16" x 2-9/16", and the Strike is 5/8" x 2-9/16".  The center to center distance on the screws 1-15/16".

Ives Part # 07

Ives Wall Mounted Door Holder WS40

• Constructed of sturdy cast brass, or aluminum.
• Holder is mounted on wall and strike is mounted on door.
• Roller on holder rides up seats itself on strike, with a heavy duty bumper
  pad deadening the sound and shock.
• Universal screw pack accommodates all types wall construction.

Base Height: 2"
Base Width: 2-1/2"
Base Projection: 2-1/4"
Engaged Projection: 3-1/2"
Strike Height: 2-1/16"
Strike Width: 3/4"
Strike Projection: 2"

Wall Mounted Door Holder / Stop WS45

• Constructed of cast brass, bronze or aluminum.
• Spring loaded roller rides up the face of the strike, seating itself on the strike, holding the door firmly in the open position.
• A heavy rubber pad cushions the shock and absorbs the sound.
• With unit mounted on door and the strike on wall, vertical adjustment is available on body.
• The strike is adjustable 45 degrees left or right, both adjustments easily accomplished at time of installation or at a later date.

WS45 strike is furnished with wood screws for drywall mounting.

Ives Dome Door Stop 1" Height FS436

Features:

• For doors without threshold.
• Heavy-Duty Cast Dome Stops constructed of brass, bronze or aluminum.
• Gray, non-marring rubber bumper.

Overall hgt 1"
Base Hgt 3/16"
Base Diameter 1-3/4" x 2" Oval

Replacement Rubber Door Stop Tip

Grey rubber door stop tip.

Floor Mounted Door Stop FS18

Features:

• Security Door Stops designed for use in high vandalism areas.
• Molded from flame resistant, resilient material around a heavy-duty stud.
• Once grouted in concrete, leaves no exposed fasteners to be tampered with or removed.
• Ideal for jail or security cell areas where floor mounted stops are required.
• FS18L also ideal for concrete wall applications.
• Finish: Black, 2" Diameter

FS18S 1-1/2" Height
FS18L 3" Height

5" Kickdown Door Holder / Stop FS555

Features:

• Units provide an economical method to hold open doors.
• Cast of durable iron.
• Non-marring rubber shoes have corrugated bottoms to provide secure grip. Rubber shoe is securely fastened with screw. When worn, shoes are easily replaced.
• FS555 for door-to-floor clearances up to 3".

Made by H.B. Ives

Ives Roller Latch RL1130

The Ives Roller Latch RL1130 is a combination of the RL30 and an Angle Stop.  Tension is easy to adjust with the two tension screws on the face plate.

The Ives Decorative Floor Stop FS410 is constructed of cast brass.   It measures 1-1/2" high with a 1-1/4" diameter.  Manufacture part FS410 x Finish.

Ives 7212 Pivot Set

• Handed
• Top, header mount
• Bottom, jamb mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram

Door Stop / Holder Rubber Shoe

Replacement rubber shoe
1/2" insert diameter
1" base diameter
1" height

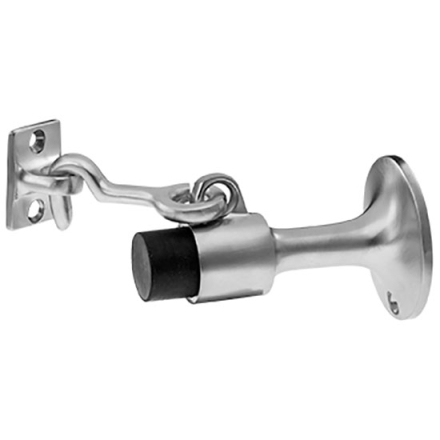

Wall Mounted Holder/Stop WS445

• Constructed in cast of brass or aluminum.
• Unit functions as a stop but serves as a Hold-Open device when hook is manually engaged in strike.
• Unit requires manual disengagement to release Hold-Open.
• Replaceable resilient, non-marring rubber tip.

WS445 is packed with expansion shield and lead shield for masonry type mounting.

Ives Wall Bumper Heavy Duty WS402CVX

Features:
• Constructed in heavy-duty cast brass or aluminum base.
• Special retainer cup makes rubber tamper resistant.
• The WS402CVX unit is designed with a convex rubber bumper packed with screw and
drywall anchor.

2-1/2" diameter with 1" projection

Crash Chain Door Stop CS115

• Specially designed for full-size exterior doors.
• Tear resistant, grey vinyl cover.
• Heavy duty compression spring assembled to both ends of chain
  and end brackets.
• Packed with sheet metal screws.
• Cast Brass brackets with solid, welded steel chain.

Available in 20-1/2", 25-1/2" and 30-1/2" lengths. Length is determined
by the location of your door closer

PART # LENGTH
GCC205 20-1/2"
GCC255 25-1/2"
GCC305 30-1/2"

The Ives Wall Bumper Stop WS407-CVX our economically price wall bumper.  The metal ring is a wrought stainless steel, otherwise known as stamping.  It features a concealed tamper-proof mounting, and is shipped pre-assembled to the back plate is reduce installation time.   Installation is easy, just insert the screw driver through the pin hole in the rubber and tighten.  The bumper is 2-1/2" in diameter and projects out 1".

• Handed
• Top, header mount
• Bottom, base plate mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram

Ives Wall Bumper Heavy Duty WS401CCV

Features:

• Special retainer cup makes rubber tamper resistant.
• Constructed in heavy-duty cast brass or aluminum base.
• The WS401CCV unit is designed with a concave rubber bumper which avoids damage to ocks with projecting buttons, packed with wood screw and plastic anchor.

2-1/2" diameter with a 1" projection

The Ives Wall Bumper Stop WS407-CCV our economically price wall bumper.  The metal ring is a wrought stainless steel, otherwise known as stamping.  It features a concealed tamper-proof mounting, and is shipped pre-assembled to the back plate is reduce installation time.   Installation is easy, just insert the screw driver through the pin hole in the rubber and tighten.  The bumper is 2-1/2" in diameter and projects out 1".

Wall Mounted Bumper WS11

• Constructed in heavy duty cast brass.
• Hexagon section on unit aids in fastening unit when expansion shield is used.
• Replaceable rubber bumpers features off-set shoulder and threaded shank
  that screws into body of unit.

Furnished with wood screws for drywall mounting.

Plunger Type Holder / Stop FS1153

This plunger type door holder manufactured by H.B. Ives features a contemporary yet economical method of positive Hold-Open.  It is constructed in sturdy cast aluminum for years of service.  The spring operated plunger activates with minimal pressure, releasing instantly with a light tap on the plat-form lever.  The plunger offers a 1-5/8" throw for all types of doors.  The ribbed non-marring rubber shoe is securely fastened to unit with a screw and is easily replaced when worn.

Aluminum finish only

Ives Part # FS1153

• Narrow design unit for use on rose or escutcheon 3-1/2" or less.
• For use with Type 86 Mortise and Type 161 Cylinder Locks
  (ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the opening
  between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel

1-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2”

• Ideally suited for use with rose or escutcheon 2-3/4" wide or less.
• For use with Type 86 Mortise and Type 161 Cylindrical Locks
  (ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the
  opening between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel.

2-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2"

• Non Handed
• Flush Mounted, No Inset
• 48" Maximum Door Width
• Beveled or Square Edge Doors, 83" long, cut to length

For Doors Weighing up to 450 pounds without reinforcing,
600 pounds with reinforcing

Continuous Full Surface Geared Hinge

• Non Handed
• Narrow Frame
• 1/16" Door Inset
• 48" Maximum Door Width
• Beveled or Square Edge Doors

83" inches long, cut to length
For Doors Weighing up to 600 pounds

Two Way Catch CL22, bronze construction, chrome plated. Body - 1/2" Wide x 2-3/16" High x 1/2" Deep. Strike - 3/8" Wide x 1-3/8" High x 5/8" Deep.

Ives part # CL22

The Lock Guard with Security Pin is ideal to cover the latchbolt area of the door, lock and frame, with the added protection of a security pin to prevent separation of the door and door frame.  The plate is through bolted with carriage bolts and nuts, which are included with the guard.  The plate is constructed of 13 gauge stainless steel.  The plate measures 3" wide and 11-1/2" high, with a center to center on the mounting bolts of 10-1/2".

This replacement tip is used on the WB11, WB12, WS20 and WS33.
5/8" insert diameter
7/8" head diameter
1" overall length

For use on commercial applications.
• Exceeds OSHA and BHMA strength test requirements.
• Packed with square head iron lag screw, expansion shield and screws.
• Cast Aluminum construction.

Dimensions
Base Diameter: 3-1/8"
Base to Rail Center: 3-1/8"

Ives Replacement Rubber Shoe

Used as a replacement shoe for the FS444, FS446, WS443, WS445,GJF26, GJW27, RB444HD, and RB443
The rubber shoe measures 7/8" diameter x 1-1/2" long

Ives part # 09-316

• Designed for use on all Type 161 Cylindrical Locks (ANSI 156.2 Series 2000)
  Monolock and Unilock.
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the
  opening between door and frame at latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel.

1-1/2" Wide x 7" High
Stud center to center: 4-1/2"
