Wood Door Automatic Flush Bolt FB41

H.B. Ives FB41 Series are sold has Top, Bottom or in Pairs (top and bottom). Fully automatic, inactive door is latched when active door closes, bolts retract when active door is opened. Top Bolt has no spring tension. They are non handed, but the top and bottom bolts are different. The body size is 1" wide, 8-1/2" tall and 2" deep, the bolts have a 3/4" throw with a 7/8" vertical adjustment.

Ives Part #'s
FB41P - Pairs
FB41T - Top
FB41B - Bottom

Wood Door Constant Latching Flush Bolt FB61P

The Ives FB61P is used on the inactive leaf of wood fire doors.   The latch remains extend until the active door is opened.   When the active door is opened the latches retract, and extend when the active door is closed.  The bodies measure 1” wide by 8-1/2” tall and 2” deep.  The bolt throw is 3/4” with a 7/8” vertical adjustment, and has a 3/4” backset.   This package comes with the top and bottom flush bolts with screws and strikes.

90 minute UL Rated.

Ives Part # FB61P

Ives Window Bar Lift 026

Made out of Solid Brass and plated to your selected finish.  Base is 1-1/8" high by 4" wide, with a projection of 1-1/16"

Ives Part # 026B

Ives Roller Latch RL1130

The Ives Roller Latch RL1130 is a combination of the RL30 and an Angle Stop.  Tension is easy to adjust with the two tension screws on the face plate.

Ives Roller Latch RL32

The Ives Roller Latch RL32 is constructed of Brass and Plated to your desired finish.  The body measures 1-1/8" wide by 2-1/4" high and 2-1/4" deep.  The roller is constructed of Nylon, and has an adjustable projection up to 1/2".  Fits a standard heavy-duty cylindrical lock cutout.

Ives Roller Latch RL30

The Ives Roller Latch RL30 is constructed of Forged Brass and Plated to your finish.   Furnished with a Nylon Roller.   Body measures 1" wide by 3-3/8" high by 1-11/16" deep. The roller has a maximum projection of 3/8" and is easily adjustable.

Metal Door Automatic Flush Bolts FB31P

Fully automatic-inactive door is latched, bolts are extended when active door closes, door is unlatched, bolts retract when active door is opened. The Ives FB31P Body is 1” wide by 6-3/4” long and 2” deep. Bolt throw is 3/4” with a 7/8” adjustment with a 3/4” backset,  standard rod is 12” which is measured from the center of latch body to the bolt tip.

Rods are also available in 18”, 24” and 36”, call for pricing.  We ship the 12” rods, and this set would include the top and bottom latches.

3 Hour UL Listed

Ives Part # FB31P

Ives Wall Mounted Door Holder WS40

• Constructed of sturdy cast brass, or aluminum.
• Holder is mounted on wall and strike is mounted on door.
• Roller on holder rides up seats itself on strike, with a heavy duty bumper
  pad deadening the sound and shock.
• Universal screw pack accommodates all types wall construction.

Base Height: 2"
Base Width: 2-1/2"
Base Projection: 2-1/4"
Engaged Projection: 3-1/2"
Strike Height: 2-1/16"
Strike Width: 3/4"
Strike Projection: 2"

Wall Mounted Door Holder / Stop WS45

• Constructed of cast brass, bronze or aluminum.
• Spring loaded roller rides up the face of the strike, seating itself on the strike, holding the door firmly in the open position.
• A heavy rubber pad cushions the shock and absorbs the sound.
• With unit mounted on door and the strike on wall, vertical adjustment is available on body.
• The strike is adjustable 45 degrees left or right, both adjustments easily accomplished at time of installation or at a later date.

WS45 strike is furnished with wood screws for drywall mounting.

Ives 7212 Pivot Set

• Handed
• Top, header mount
• Bottom, jamb mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram

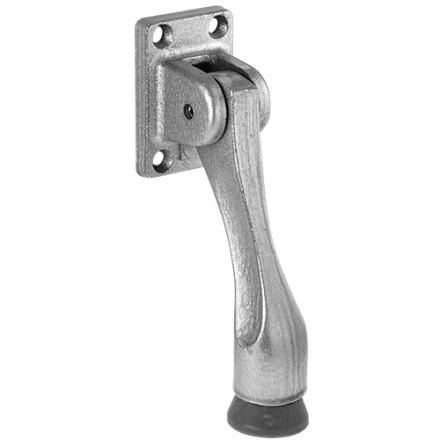

5" Kickdown Door Holder / Stop FS555

Features:

• Units provide an economical method to hold open doors.
• Cast of durable iron.
• Non-marring rubber shoes have corrugated bottoms to provide secure grip. Rubber shoe is securely fastened with screw. When worn, shoes are easily replaced.
• FS555 for door-to-floor clearances up to 3".

Made by H.B. Ives

• Handed
• Top, header mount
• Bottom, base plate mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram

5" Kickdown Door Holder / Stop FS452

Features:

• Units provide simple hold and release, activated with a touch of the foot.
• Cast brass or aluminum construction.
• Stainless steel spring.
• Non-marring rubber shoes have corrugated bottoms to provide secure grip.
• Shoes are easily replaced when worn.
• FS452-5 has a door-to-floor clearance up to 3".
• Packed with sheet metal screws.

Ives Part # FS452

• Designed for use with the bottom bolt of all flush bolts.
• Spring-loaded plunger returns to floor or threshold level anytime
  flush bolt is retracted, eliminating need to clean standard
  floor strikes.
• Strike hole is 3/4" Diameter and 1-1/8" Deep

DP1 Face Plate: 1-7/16" Diameter
Body: 1-3/16" Diameter x 1-7/8" Deep

• Surface Bolt has 1-3/16" throw for maximum security.
• Strong tension springs prevent creep.
• Ideal for all types of doors.
• Available 8"
• Units packed with standard screws for added security.
• Units packed with both a universal top strike (US) and
a mortise bottom strike (MS).
• Constructed of heavy duty steel.

4" Kickdown Door Holder / Stop FS455

Features:

• Units provide simple hold and release, activated with a touch of the foot.
• Cast brass or aluminum construction.
• Non-marring rubber shoes have corrugated bottoms to provide secure grip and a shank which forms its own thread when screwed into threaded cavity of holder.
• When worn, shoes are easily replaced.
• Door-to-floor clearances of 2" or less.

Made by H.B. Ives

4" Kickdown Door Holder / Stop FS452

Features:

• Units provide simple hold and release, activated with a touch of the foot.
• Cast brass or aluminum construction.
• Stainless steel spring.
• Non-marring rubber shoes have corrugated bottoms to provide secure grip.
• Shoes are easily replaced when worn.
• FS452-4 has a door-to-floor clearance of 2" or less.
• Packed with sheet metal screws.

4" Kickdown Door Holder / Stop FS544

This is one of our most popular Kickdown Door Holder/Stop for the past 35 years.

Features:

• Units provide an economical method to hold open doors.
• Cast of durable iron.
• Non-marring rubber shoes have corrugated bottoms to provide secure grip. Rubber shoe is securely fastened with screw. When worn, shoes are easily replaced.
• FS544 for door-to-floor clearances of 2" or less.

• Designed for use with the bottom bolt of all flush bolts.
• Spring-loaded plunger returns to floor or threshold level anytime
  flush bolt is retracted, eliminating need to clean standard
  floor strikes.
• Strike hole is 3/4" Diameter and 1-1/8" Deep

DP2 Face Plate: 1-5/8" W x 3-1/2" L x 1/8" Thick
Body: 1-3/16" Diameter x 1-7/8" Deep

• Designed for use on all Type 161 Cylindrical Locks (ANSI 156.2 Series 2000)
  Monolock and Unilock.
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the
  opening between door and frame at latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel.

1-1/2" Wide x 7" High
Stud center to center: 4-1/2"

Ives RL32 Nylon Roller RLPART.1045

This replacement Nylon Roller and Rivet Package is for the Ives RL32 Roller Latches.  The Roller measures 3/4" high by 5/8" diameter.  The Rivet measures 15/16" long and is threaded on one side.

Ives Part # RLPART.1045

Ives RL30 and RL1152 Nylon Roller RLPART.1025

This replacement Nylon Roller and Rivet Package is for the Ives RL30 and RL1152 Roller Latches.  The Roller measures 3/4" high by 5/8" diameter.  The Rivet measures 1-1/16" long and is threaded on one side.

Ives Part # RLPART.1025

• Ideally suited for use with rose or escutcheon 2-3/4" wide or less.
• For use with Type 86 Mortise and Type 161 Cylindrical Locks
  (ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the
  opening between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel.

2-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2"

• Narrow design unit for use on rose or escutcheon 3-1/2" or less.
• For use with Type 86 Mortise and Type 161 Cylinder Locks
  (ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the opening
  between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel

1-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2”
