Jackson Exit Device replacement 1295 Latch Assembly.

Jackson Part # 302679

Jackson 1095 LH Backplate Assembly

Jackson Part # 30-847

Jackson Exit Device 2085 Dogging Assembly LH/RHRB

This Jackson Exit Device dogging assembly is used on the 2085 Device made after October 1, 1999. It will work on the previous version of this exit device, but you may have to use a file a remove some material from the catch.

Jackson Part # 30-2462

Jackson 1095 RH Backplate Assembly

Jackson Part # 30-846

Jackson Exit Device 2085 Dogging Assembly RH/LHRB

This Jackson Exit Device dogging assembly is used on the 2085 Device made after October 1, 1999. It will work on the previous version of this exit device, but you may have to use a file a remove some material from the catch.

Jackson Part # 30-2467

Jackson Exit Device 1085/1285/2086 Bottom Bolt Guide Assembly

Jackson Part # 30-320

The Jackson Exit Device Rod and Case Assembly is used on 7' doors for the models 1085, 1285 and 2086 devices.

Jackson part # 30915J

Jackson 1085/1285/2086 Top Bolt Guide Assembly

1-1/2” deep x 1-1/16” wide x roughly 1” tall

Jackson Part # 30-934

Jackson Exit Device 1285/1295 Dogging Assembly

Package includes 4 screws, bracket and dogging bracket. Uses 1/8" dog key, our part # 88R6018

Jackson part # 30-2670

1085/1285/2086 Jackson Top Bolt Trip

The Jackson Top Bolt Trip Assembly is the piece that triggers the Top Bolt Guide Assembly and allows the rods to extend.

Jackson Part # 30-824-

Jackson 1285 Actuating Lift Assembly

G302669  LHRB
G302675 RHRB

Jackson 1085 Hinge Case, also the 1095 Jackson inactive Case. Includes everything in the housing.

The housing mounting studs are 6-5/16" on centers

Jackson part # 30-982 Right Hand Body and Arm Assembly
Jackson part # 30-983 Left Hand Body and Arm Assembly

Housing Shown in Aluminum

Jackson 2095 Exit Device

Certified ANSI 156.3 Grade 1. Made of extruded aluminum, with stainless steel and hardened steel mechanical components.

Select Drop Down Menu for Handing examples

Jackson 2085 Exit Device

Certified ANSI 156.3 Grade 1. Made of extruded aluminum, with stainless steel and hardened steel mechanical components.

All PR80 Closers are UL listed and warranted for ten years. Parallel Arm Brackets and mounting hardware are included with each closer permitting universal installation for regular, top jamb or parallel arm applications. The closer is supplied with a standard plastic slim style cover.

The closer is sized for 2 to 5 spring tension and will work on doors 24" to 54" Wide and 33 to 264 Lbs. This closer has a hole spacing of 3/4 x 9-1/16 inches.

Jackson 1085 Concealed Vertical Rod Exit Device

Jackson 1085 Series Exit Device is universally recognized as the standard for aluminum storefront hardware. Made of high tensile strength aluminum.
Non Handed
Comes with 45" cross bar that is easily cut in the field, includes all screws, strikes and concealed vertical rods.

Replacement parts are available, in stock!

The Jackson 20-330 Series Overhead Concealed Closer has been the leader in the industry for more than 35 years. The closer is manufactured in the U.S.A. under strict ISO 9001 guidelines and is designed to give long lasting, maitenance-free performance. One basic closer mechanism allows for single or double acting, center-hung, or offset applications and is non-handed. The adjustable spring power makes this closer suitable for aluminum, wood or steel doors.

Mechanism only, Spindle Length is 1/2"
See Jackson arms for replacement arms.

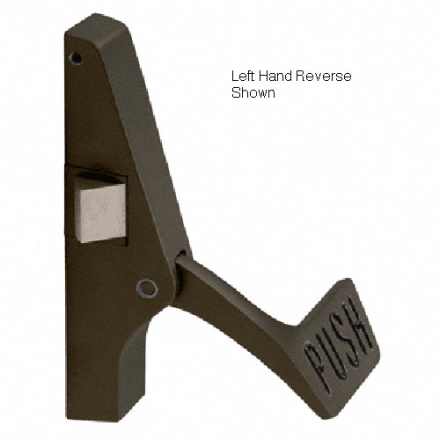

The Jackson 1095P Paddle Exit Device is designed for use on narrow style aluminum storefront doors.  It features the same housing as the Jackson 1095, but with a paddle instead of a cross bar.  This peice is designed for aluminum or steel doors, it will not work on wood doors.   The device mounts on surface studs that need to be drilled and tapped on the door, if the door is wood, the threads will simply pull out.
