Truth Entrygard 11.42 Awning Operator

Numbers usually found on this operator are 31545

arms measure 12" across when in the closed postition

Truth part # 11.42.00.001

Truth Window Bracket 10552

This bracket is usually used on the Truth split arm operators

Truth 22.21 Single Pull Awning Window Operator

The arms stretch 21-1/2" across in the closed position. The housing is front side mounted with 4 screws. The spacing on the outside screws are 7" on center, and 6" on the inter screws. We find the number 30895 or 30895A stamped on the arm.

The Wi11454 handle in matching color is included with the operator along with the Sash Hook Wi20008.

Truth Split Arm Operator.

White and Bronze only. Ships with matching handle.

Common numbers found on this operator is 30866

Truth 23.02 Window Operator

13-1/2" long arm. Rear Mounting. Ships with matching handle.

Truth 22.29 Awning Operator

The Truth 22.29 is the rear mount awning operator, meaning the screws to mount it come in from the outside of the window frame. This usually means it is used on aluminum or vinyl clad windows. The arms measure 16-1/2" across in the closed position, or 16" elbow joint to elbow joint. The mounting screws are 7" on center. Common numbers found on the arms are 31254, 31255, and 30896. We only offer this operator in white.

Truth Part # 22.29.32.002

Truth 13.14 Awning Window Hinge.

The track measures 14" long, and is 11-16" wide. The stack height is 1/2". The arm marked 30128 is 6-3/4" long. And the arm stamped 30127 is 8" long. This hinge is constructed of steel that is powder coated in a tanish gray color. The common numbers found stamped on this hinge are 30128 and 30127

Sold in pairs

Truth Entrygard Dual Arm Operator. We would expect you to find 20810 on the linkage arm, which measures 4-7/16" overall length. This is the most common size we find in use. Other common numbers we would expect to find are 31538, 31539, 30841, 30842, 30472, 30470, 20810, or 20544. Also known as a TH-23076 or TH-23077.

4-7/16" link dimension, offset up. For offset down, order Wi1561.

Order Wi1516 if your link dimension is 3-3/4" stamped 20755.
Order Wi1515 if your link dimension is 2-7/8" stamped 20748.

MOST POPULAR SIZE

To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.

PART # HAND
WI1510R RIGHT HAND
WI1510L LEFT HAND

Truth Entrygard Dual Arm Operator

Truth 13.15 Awning Hinge

A common number we find on this hinge is 30132 A, which is located on the arm that attaches to the window.

Sold in Pairs

The Truth Encore 51.10 Awning Operator is used on windows that open from the bottom and swing out, like a one piece garage door.  When in the closed position, the arms have an approximate length of 15 inches.  The operator ships with the 31879 detach clip, but does not include the 11647 Maxim Slide Shoe.  The slide shoe is the piece that slides in the track at the bottom of the window.   A common number we find on this operator is 41013.  The housing is constructed of die cast metal, and arms are steel.   The complete assembly is electro statically painted.

The Truth 23.49 is a Dyad Operator is rear mounted. The linkage arm is 9-1/4 inches overall length, 8-3/4 inches hole to hole. The rear mounting holes are 5 inches on centers.

Truth Entrygard Dual Arm Operator. We would expect you to find 20748 on the linkage arm, which measures 2-7/8" overall length. Other common numbers we would expect to find are 31538, 31539, 30841, 30842, 30472, 30470, and 20748.  Call or email for quantity "Discount Codes".

2-7/8" linkage dimension, off set up.

Order Wi1516 if your link dimension is 3-3/4" stamped 20755.
Order Wi1510 if your link dimension is 4-7/16" stamped 20810.

To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.

Left hand shown.

Part # Hand
WI1515R Right Hand
WI1515L Left Hand

Truth Entrygard Casement Operator

Truth Entrygard Dual Arm Window Operator. This operator is the same as the Wi1510, except are arms are made of stainless Steel

To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.

Common numbers found on this operator are 30758 RH , 30757 LH, 30852, 20812, and 30767

Left hand shown.

Truth Entrygard Dual Arm Operator. We would expect you to find 20755 on the linkage arm, which measures 3-3/4" overall length. Other common numbers we would expect to find are 31538, 31539, 30841, 30842, 30472, 30470, and 20755.  Call or email for quantity "Discount Codes".

To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.

3-3/4" link dimension, offset up. For offset down order Wi1520

Order Wi1510 if your link dimension is 4-7/16" stamped 20810.
Order Wi1515 if your link dimension is 2-7/8" stamped 20748.

Left hand shown.

PART # HAND
WI1516R RIGHT HAND
WI1516L LEFT HAND

Truth Entrygard Dual Arm Operator

Truth 11" Surface Rear Mounted Operator

This Truth Surface Mounted Window Operator is usually used on commercial aluminum windows. It features an 11" long arm, measured from the center of the housing to the center of the metal roller.

Truth Entrygard Dual Arm Operator. We would expect you to find 20755 on the bottom of the linkage arm, which measures 3-3/4" overall length. Other common numbers we would expect to find are 31538, 31539, 30841, 30842, 30472, 30470, and 20755.  Call or email for quantity "Discount Codes".

To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.

3-3/4" link dimension, offset down. For offset up order Wi1516

Order Wi1510 if your link dimension is 4-7/16" stamped 20810.
Order Wi1515 if your link dimension is 2-7/8" stamped 20748.

Left hand shown.

Truth 22.17 Awning Window Operator

Surface mounted Truth Awning Window Operator.  The arms span 13-1/4” from rivet to rivet.  The mounting holes measure 6-7/8” on the outside screws center to center, and 6” center to center on the two inside mounting screws.

Truth Part # 22.17

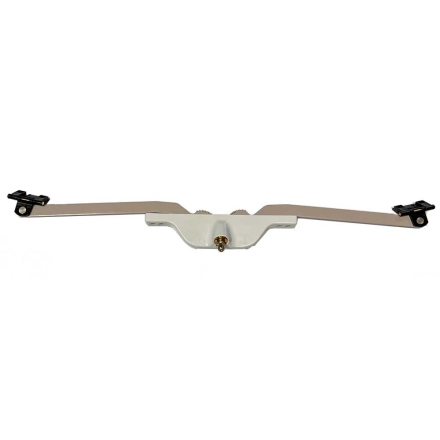

The Truth 22.18 Front Mount Awning Operator spreads 20-1/8 inches pin to pin on the arms when it is in the closed position. The Front Mount hole spaceing is 7 inches on the outside holes and 6 1/8 inches on the inside holes.

Truth Single Arm Window Operator. This new style replaces the older tradiational size shown in the diagrams.

To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.

We sometimes find the number 45251 cast on the housing, and 40049 and 40050 stamped on the arms.   This operator has a Nylon Wheel or Roller.

Left hand shown. The Wi11454 handle in matching color is included

The Truth 50.01 Maxim Dual Arm is one of the more popular new style operators from Truth. They are only been around since 1999, but were discontinued in 2020.  The Truth 50.11 is an exact replacement, and it ships with the 12614 or 12616 Encore Handle and Cover.

Common numbers sometimes found on this operator are 31876 and 41011.

Truth 22.10 Awning Window Operator.

Surface mounted Truth Awning Window Operator. The arms span 24-7/8" when in the closed postion. The mounting screws are 7" on center on the outside screw holes and 6" on center on the inside holes. Plastic Glides are not available separately, they are riveted in place.

Truth Part # 22.10

Truth 11.14 Double Pull Awning Operator.

Attaches to window at two points 9" apart. 25" spread with operator is in closed position. We some times see the numbers 40245, 30897 or 30897A stamped on the arms.

Sash Hooks and matching color handle included.

Truth Window Operator Surface Mount 11"

This Truth Surface Mounted Window Operator is usually used on commercial aluminum windows. It features an 11" long arm, measured from the center of the housing to the center of the metal roller. The outside mounting screw holes are 4-3/4" a part and the inter screws are 3-7/8" on center.

Right Hand Shown, in Aluminum

Right Hand Aluminum Wi36223AL
Left Hand Aluminum Wi36222AL
Right Hand Bronze Wi36223BR
Left Hand Bronze Wi36222BR
Right Hand White Wi36223W
Left Hand White Wi36222W

Truth 14.17 Casement Hinge-Pair

The 14.17 is not that popular of a hinge. But if your track measures 14" than this is probably what you have. The hinge has a stack height of 7/16". The outside screw holes measure 12-3/8" on center. We sometimes find the number 30986 on the arm and 41498 and 41499 on the stainless steel track.

This hinge is sold in pairs (one top and one bottom). If your window is the opposite hand, the top hinge goes to the bottom and the bottom hinge goes to the top.

Truth Replacement Clip.

Used on Truth operators and hinges

Truth 51.00 Maxim Awning Window Operator-Discontinued, we do have some stock left, but will be shipping the Wi5110, in its place with matching color cover and handle.

Manufactured since 1999-May 2019. 14-1/2" spread when in the closed position. We sometimes find the numbers 41013 and 41016 stamped on the underside of the 12" long arms. Ships with matching handle.

As of 7-30-2019 we are out of the original 5100's, and will be shipping the Wi5110 with Wi21614 Folding Handle and Cover
