Von Duprin Exit Device Racket Release Kit

The Racket Release Kit is used on the 3347, 3547, 9847 and 9947 Exit Devices

Von Duprin Part # 106222

The Von Duprin 990TP Trim is the standard Thumb Piece Trim for the 99 and 98 Series devices.  The plate is constructed of Bronze or Stainless Steel and then plated to the desired finish.  The plate measures 3" wide by 14-3/16" tall, and includes the mounting screws.  The stanchions coming off the back of the plate line up with the center case mounting screws.  The key cylinder locks and unlocks the thumb piece.  The Rim Cylinder shown in the picture is not included.

Von Duprin Part # 990TP-R&V

Cylinder not included.

Von Duprin 8827 Top Latch And Cover

The Von Duprin 8827 Top Latch and Cover in one convenient package. The package includes the Top Latch 050460, the Cover 050464, and cover screws and mount screws.

Von Duprin Part # 050466

Von Duprin Exit Device 55 Right Hand Arm includes the wedge, wedge ring, wedge tite screw and dog screw.

Von Duprin Part # 050136

The Von Duprin 88 Center Case Rivet 090002 is also known as the Latch Tail Rivet used on the 88 Rim Device.  The Rivet fits into the spring and into the Latch Tail 050500.  The rivet measures 1-1/4 inches long less the head, with a 1/8 inch diameter.  We sell this piece individually.

Von Duprin 1606 Rim Device Strike for Panic Devices only.  Strike measure 1-3/8 x 2-7/8 with a 3/8 inch projection. The hole spacing is 2-1/8 inches.

Von Duprin 9927 Latch Covers.

This cover is used on the 2227, 3327A, 3427A, 9827 and 9927 Exit Devices. Replace old bent and worn covers with brand new ones.

Includes mounting screws

Von Duprin Part # 050566

Other finishes are available

Von Duprin Exit Device 88 Mounting Screws

This mounting screw package is used on the 88 Exit Device, there description is 88C/C or E/C Mtg Pkg (CS and MS). The package includes 12 screws, 6 of each type.

Von Duprin Part # 900503
.

Von Duprin 8827 Bottom Latch And Cover

The Von Duprin 8827 Bottom Latch and Cover in one convenient package. The package includes the Bottom Latch 050461, the Cover 050464, and cover screws and mount screws.

Von Duprin Part # 050467

Von Duprin Exit Device 55 Left Hand Arm. Arm includes wedge, wedge ring, wedge tite screw and dog screw.

Von Duprin Part # 050112

Von Duprin 55 Dog Screw-090053

3/8" diameter x 1/2" long
new style 14 threads per inch

Von Duprin part # 090053

Von Duprin 8827-F Top Latch Cover Kit - 050465

This is the Top Latch Cover for the Von Duprin 8827-F. The 8827-F is the Fire Rated Surface Vertical Rod device usually used on interior doors to contain a fire. The Fire Rated version would not have dog screws to lock the device in the retracted postion.

Von Durpin Part # 050465
Old Part # 961206

Von Duprin Exit Devices 608/696/880/990 Trim Grip

Replacement Grip/Handle only, screws not included. Cast bronze construction, and then plated to the selected finish. The Grip measures 15/16" wide by 6" long. The center to center hole spacing is 5-1/2". This handle works on the Von Duprin 608, 696, 880, and 990 outside trim plates.

Von Duprin Part # 972466 and 972467
Old Part # 969925 and 959122

Von Duprin Exit Devices 608/880/990TP Thumb Piece

Replace thumb piece only, rivet not included. Cast bronze construction, and then plated to the selected finish. 5-1/8" overall length, but note that the length is usually cut down in the field depending on the thickness of your door.

Von Duprin Part # 970488
Old Part # 960303

Von Duprin 88 Dog Screw. Newer style, after 1975 or so. If you have an older exit device you will want to order the D100 Panic Bar Retainer.  The Old Style Dog Screw are no longer made.

Von Duprin 88 dog screw 14 threads per inch

Von Duprin Part # 090083

Von Duprin 050536 HD-EL Solenoid

Electric Latch Retraction for Von Duprin Exit Devices with Hex Key Dogging.  #4 on the diagram below large picture.

Von Duprin part # 050536
Old Part # was 110740

No longer available, the only solution we have at this time is to upgrade to the HD-QEL Base Plate.

Von Duprin 386DT Dummy Trim

This Von Duprin 386DT Dummy Trim is just a pull handle. The bolt pattern of the trim plate lines up with the Von Durpin 33A on the inside so they are on conhesive unit. The base plate measures 7-15/16" by 1-5/8". The grip measures 8-1/2" by 4-5/16" with a 2-7/16" projection. This 386DT Dummy Trim is non handed.

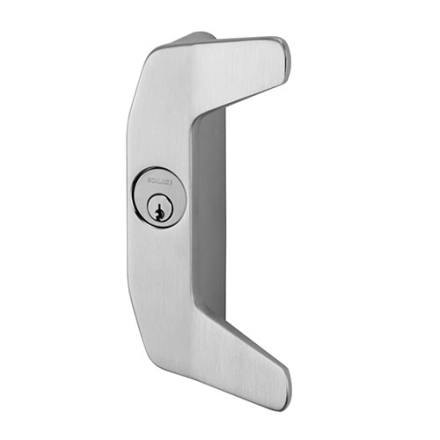

Von Duprin 386NL Dummy Trim

This Von Duprin 386NL Night Latch Trim is just a pull handle. The bolt pattern of the trim plate lines up with the Von Durpin 33A on the inside so they are on conhesive unit. The base plate measures 7-15/16" by 1-5/8". The grip measures 8-1/2" by 4-5/16" with a 2-7/16" projection. This 386NL Night Latch Trim is handed. Uses a standard Rim Cylinder.

Von Duprin 360L Lever Trim

The Von Durpin 360L Lever Trim has a base measurement of 7-1/2" high by 1-11/16" wide and 7/8" thick. The lever is 4-1/2" and projects out 3". This lever Trim uses a 1-1/4" Mortise Straight Cam Cylinder.

Von Duprin Part # 360L

Heavy Duty Design
The new Series 2670 Exit Alarm Lock provides secure protection through a large stainless steel deadbolt, which is 2" x 1/2" (51mm x 13mm) and has over a 3/4" (19mm) throw. The engagement area into the strike is over 1 1/4" (32mm) square inches. The cast aluminum latch case protects the internal mechanism and resists tampering or vandalism from inside the door. This unit has been tested to withstand up to 1600 pounds of static load force against the door.

Fits 36" to 48" doors.
Uses 9 volt battery
Ships with all mounting hardware and strike.

Von Duprin Strike 1609

This strike is used when we have a double door application without a center post. By using this strike we can have one door with a surface vertical rod and one door a rim device, which will save money because vertical rods are usually expensive. This strike can be used with the Von Duprin 22/2227, 88/8827, 98/9827 and 99/9927 combinations, but not with the Fire Rated Versions. The strike base measures 1-1/16" wide by 3-1/4" high, the lip projects out 7/8". The three slots are 1-1/4" on center. This strike ships with the mounting screws.

US19-Black finish

The Von Duprin 33A, 35A, 98 and 99 Cover Plate

Covers the dogging assembly on the hinge side of the door. The usually fall off when the End Cap is not on the exit device.

Von Duprin Part # 050114 and 050117 Hex Key Dog Conversion Kit

Von Duprin 22 Exit Device Only

Von Duprin 22 rim exit device for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with 161* cutouts. Fits door stiles as narrow as 3 13/16"

Ships with all mounting screws and the 299 strike.

Von Duprin 2227 Exit Device Only

Von Duprin 2227 surface mounted vertical rod exit device for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3-5/8". For doors as high as 7'1", if your door is higher than 7'1", please call.

Ships with all mounting screws and the 299, 304L and 248L-4 Strike

Von Duprin Part # 2227EO

The Von Duprin 33/99 Cylinder Dogging Conversion Kit 050155

Converts the Hex Key Dogging 33A and 99 Devices to Cylinder Dogging.  The kit does not include the key cylinder, which is a Mortise Cylinder.

Von Duprin Part # 050155
