5/32" Dog Key used on old Von Durpin, and Dor-o-Matic exit devices. This key has the longer shaft to fit into the deeper Von Duprin dogging slots.

5/32" hex key

3-1/16" overall length

Von Duprin Exit Device Keyed Mullion Retrofit Kit

Keyed Removable Steel Mullions makes removal faster and easier by a single operation of the mortise cylinder. Once mullion is removed, large equipment or furniture can freely pass through the opening. The unit will self lock when re-installed, without use of the cylinder key. Uses a 1-1/4´´mortise cylinder with a
straight cam (Schlage cam reference B502-191). Cylinders are sold separately. Prefix mullion model with “KR”.

Von Duprin Part # 050168

Von Duprin NL Drive Screw 090074

The 090074 NL Drive Screw is used on the Von Duprin 22, 98 and 99 Exit Devices to control the rotation of the key cylinder cam. This small set screw, screws into the back of the chassis assembly next to the receptor for the Rim Key Cylinder. The set screw measures 5/16" long by 3/16" diameter. Note: When the NL drive screw is left in back of device, the outside cylinder will function only as a Night Latch. The Night Latch function means the door can only be opened, but not dogged open with the key cylinder.

Von Duprin Part # 090074
Old Von Duprin Part # 970441

The Von Duprin 33A, 35A, 98 and 99 Cover Plate

Covers the dogging assembly on the hinge side of the door. The usually fall off when the End Cap is not on the exit device.

Von Duprin Part # 050114 and 050117 Hex Key Dog Conversion Kit

The Von Duprin 33/99 Cylinder Dogging Conversion Kit 050155

Converts the Hex Key Dogging 33A and 99 Devices to Cylinder Dogging.  The kit does not include the key cylinder, which is a Mortise Cylinder.

Von Duprin Part # 050155

The Von Duprin 050709 Dogging Assembly is used to update the Von Duprin 22, 33, 35, 98 and 99 device shipped before 1997.  The dogging key on this assembly is 5/32", and you would want to use the longer version of our 88R60 dog key.

Von Duprin Part # 050709
Old Part # 050153

Von Durpin 8827 surface mounted vertical rod devicesfor all types of single and double
doors, UL listed for accident hazard installations.Covers stock hollow metal doors
with 86 or 161 cutouts and fits door stiles as narrow as 3½" (90mm).

● Fully reversible
● Five popular finishes
● Field sizeable
● Hex key dogging
● 5/8"(16mm)throw latch bolt

Ships with all mounting screws and the 299, 304L and 248L-4 Strikes.

Von Duprin 88 Exit Device

Von Duprin 88 rim devices for all types of single and double doors with mullion, UL listed for accident hazard installations. Field reversible, Five popular finishes, ships with 42" crossbar whichis field sizeable, Hex key dogging, 3/4"(19mm)throw latch bolt

Ships with all mounting hardware and strike.

The Von Duprin 22, 33, 33A, 98 and 99 dogging shaft is the current dogging shaft. And has been in production since 1998.   If your device is from before 1998, then you would use the 050709.   This is the piece that the dogging key would fit into. The shaft is for a 5/32" dog key. #4 on diagram

Von Duprin Part # 090040

Von Duprin 88 Master Cam

This is inside the Von Duprin 88 Rim Device and is the piece that the key cylinder moves to lock and unlock the exit device.

Von Durprin part # 050501
Old Part # 951960

Von Duprin 88 and 55 Wedge Tite Screw.

This screw applies pressure to the wedge which then expands the wedge ring to key the Von Duprin 88 and 55's crossbars tite.

Von Duprin Part # 090081

Heavy Duty Design
The new Series 2670 Exit Alarm Lock provides secure protection through a large stainless steel deadbolt, which is 2" x 1/2" (51mm x 13mm) and has over a 3/4" (19mm) throw. The engagement area into the strike is over 1 1/4" (32mm) square inches. The cast aluminum latch case protects the internal mechanism and resists tampering or vandalism from inside the door. This unit has been tested to withstand up to 1600 pounds of static load force against the door.

Fits 36" to 48" doors.
Uses 9 volt battery
Ships with all mounting hardware and strike.

The Von Duprin 050508 88TP-F Cylinder Cam Package is the piece that the key cylinder fits into on the back of the exit device.   This piece is only used with the 880TP outside trim on the Rim Devices.

Von Duprin 050536 HD-EL Solenoid

Electric Latch Retraction for Von Duprin Exit Devices with Hex Key Dogging.  #4 on the diagram below large picture.

Von Duprin part # 050536
Old Part # was 110740

No longer available, the only solution we have at this time is to upgrade to the HD-QEL Base Plate.

The Von Duprin 996L Lever Trim replaces the 992L, and 994L and is the latest generation of the 99 Lever Trim.

The escutcheon plate measures 2-3/4" wide by 10-3/4" high and projects out 27/32". The handle projection is 2-7/8". This lever handle is handed, but is field reversible. Key lock and unlocks lever.

The Von Duprin 990TP Trim is the standard Thumb Piece Trim for the 99 and 98 Series devices.  The plate is constructed of Bronze or Stainless Steel and then plated to the desired finish.  The plate measures 3" wide by 14-3/16" tall, and includes the mounting screws.  The stanchions coming off the back of the plate line up with the center case mounting screws.  The key cylinder locks and unlocks the thumb piece.  The Rim Cylinder shown in the picture is not included.

Von Duprin Part # 990TP-R&V

Cylinder not included.

Von Duprin 22 Exit Device Only

Von Duprin 22 rim exit device for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with 161* cutouts. Fits door stiles as narrow as 3 13/16"

Ships with all mounting screws and the 299 strike.

Von Duprin 9927 Top Vertical Rod

Please call if your door is higher than 7'1", The rod is field adjustable for doors up to 7'1". For larger doors, we have to order a Rod Extension which we do not show online yet.

Old Von Duprin part # 110573
New Von Duprin part # 050512

Von Duprin 2227 Exit Device Only

Von Duprin 2227 surface mounted vertical rod exit device for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3-5/8". For doors as high as 7'1", if your door is higher than 7'1", please call.

Ships with all mounting screws and the 299, 304L and 248L-4 Strike

Von Duprin Part # 2227EO

Von Duprin 2227 Top Vertical Rod.

The standard top rod will fit a 7'1" door, if your door is higher than 7'1", you will need to top rod extension. The top rod is field adjustable to fit any door less than 7'1". Please call if your door is higher than 7'1"

Von Duprin part # 109361

The Von Duprin 5547EO Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors.   It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's.  This device with for 7' high doors, call for doors that are taller then 7'.  To order select finish, and door material.   If you have a wood door, select wood door, the latches at the top and bottom have additional brackets for mounting.

The Von Duprin 55EO Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors.   It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's.

Von Duprin 9875/9975 mortise lock device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4" (121mm). The Von Duprin 9875 device has a smooth mechanism case and the Von Duprin 9975 device has a grooved case. The mortise lock device is non-handed

Von Duprin 9827/9927 surface mounted vertical rod device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The Von Duprin 9827 device has a smooth mechanism case and the Von Duprin 9927 device has a grooved case. The surface vertical rod device is non-handed.

Von Duprin 3327A Exit Device Only

3327A and 3527A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. 3327A/3527A fits door stiles as narrow as 1-3/4". Newly designed device has a one piece center case cover.

The Von Duprin Mullion Stabilizer Package are used with Von Duprin Mullions to stop any deflection on the mullion, which may cause the exit devices to release.  We run into issues where people are able to shake the door, and the door opens.   The package includes two sets of stabilizers and all the mounting screws.

The Von Duprin 970323 299 Strike Adjustor is the piece that secures the placement of the Strike to the door frame or mullion.

Von Duprin 33A Exit Device Only

33A and 35A for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. 33A/35A fits door stiles as narrow as 1 3/4". Newly designed device has a one piece center case cover.

Von Duprin 98/9947 Adjustable Top Rod

Von Duprin 98/9947 Adjustable Top Rod for 6'8" to 8'4" doors.  This rod is used on the 9847, 9847-F, 9947 and 9947-F

Von Dupin Part # 050574
Old Part #110375

Von Duprin 99 Push Bar Retrofit Kit-Pbkit

Von Duprin's 98/99 Push Bar Retrofit Kit updates your current version touch pad, to the newest version. Used on all the Von Durpin 33A, 35A, 99 and 98's.

Von Duprin part # PBKIT

For doors 30" to 36" order the 36" size. If your door is 36" to 48" order the 48" size

Von Duprin 050532 EL Dogging Rod 4'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 4' designates the model it is used on. The 4' model is used on doors 48" down to 36". The Rod measures roughly 17" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices. Use part # G050531 if your door is equal or under 36".

Von Duprin Part # 050532, Old Part # 110008

Von Duprin Steel Mullion 4954 7'6"

The standard mullion used on most double doors with the Von Duprin Exit Devices.  We ship the 7'6" mullion, if you need the 8'6" or 10'6", please call.  Package includes the 050390 and 050335 top and bottom brackets.

Von Duprin 5547 Top Rod Kit

Von Duprin 050053 5547 Top Rod Kit for doors 6'8" to 8' tall.

Von Duprin Part # 050053
Old Von Duprin Part # 104759

Von Duprin Strike 1609

This strike is used when we have a double door application without a center post. By using this strike we can have one door with a surface vertical rod and one door a rim device, which will save money because vertical rods are usually expensive. This strike can be used with the Von Duprin 22/2227, 88/8827, 98/9827 and 99/9927 combinations, but not with the Fire Rated Versions. The strike base measures 1-1/16" wide by 3-1/4" high, the lip projects out 7/8". The three slots are 1-1/4" on center. This strike ships with the mounting screws.

US19-Black finish

Von Duprin 22 Replacement End Cap and Bracket.

The bracket is constructed of zinc plated steel and the end cap is black plastic. Bracket also acts as mounting bracket that holds the exit device on the door.

Von Duprin part # 900981

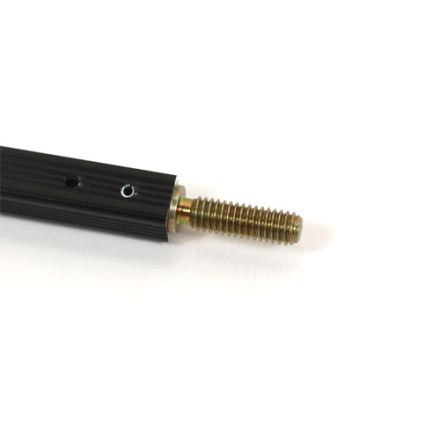

Von Duprin 33/3547A/48A Adjustable Top Rod

Replacement Von Duprin 33/3547A/48A Adjustable Top Rod for 6'8" to 8'4" doors.

Von Duprin Part # 050519
