Ives Floor Mounted Door Holder FS40

This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF40A or F40A, and was brought over to the H.B. Ives line in the 1990's. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.

Door to Floor Clearance 1/2" or less
Holder Dimensions 3" Wide x 3-11/16" High

The Ives Universal Dome Floor Stop FS439 is constructed of cast zinc or stainless steel, depending on the finish.   The stop measures 1-1/2" high, with a base height of 1/4" and base diameter of 1-7/8".   The pad has a height of 1-1/8" from the floor.

Ives Part Number FS439

Door Pull 25 With 3/4" Diameter Handle

This door handle is made of 3/4" round stock in either solid, Aluminum, Brass or Stainless Steel. It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

3/4" diameter
2-3/8" projection
1-5/8" clearance

Finishes

Cal Royal 7000 Lever Trim

Door Pull Offset 3/4" Diameter 29

This door handle is made of 3/4" round stock in either solid, Aluminum, Brass or Stainless Steel. It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

3/4" diameter material
2-1/2" projection
2-1/2" offset

Finishes

Latch finger 701730 included, uses 700308-700309 handle assembly. Also known as 7119281, 75136, 2837, 70063, rs3624, lr136.

Latch finger 701730 & 786540 included, uses 853715 recess lifter.
7119175

Von Duprin Exit Device 88 Lever Arm Right Hand

Von Duprin 88 replacement lever arm for all the Von Duprin 88 exit devices. Includes the dog screw, wedge ring, wedge tite screw and wedge, and sometimes they come with the axle

Von Duprin Part # 050438
Old Part # 100744

• Designed for use with the bottom bolt of all flush bolts.
• Spring-loaded plunger returns to floor or threshold level anytime
  flush bolt is retracted, eliminating need to clean standard
  floor strikes.
• Strike hole is 3/4" Diameter and 1-1/8" Deep

DP1 Face Plate: 1-7/16" Diameter
Body: 1-3/16" Diameter x 1-7/8" Deep

2-1/4" knob pinned to a straight spindle. The inside kob is attached
with two case hardened set screws. 3/8-20 tread on knob and spindle.

Von Duprin 373L 88 Lever Trim

Latch finger 701730 included, uses 700308-700309 handle assembly. Also known as 7119280, 75130, 2831, 70062, rs3018, lr130.

3-1/2" straight spindle thread is 18 tpi. 2-1/4" knob

Standard duty 2-1/4" knob is factory pinned to swivel spindle
to 1-3/4" door. Spindle has two 3/8" centers. Inside knob has
two case hardened set screws and spindle is threaded 3/8-18

Latch finger 701730 & 786540 included, uses 853715 recess lifter.
7119173

• Not load-bearing
• Maintains door alignment
• Non-ferrous base metal
• 3/4"(19mm) offset
• Furnished with wood and machine screws

Handing diagram

International 5510S Rim Device-Light Duty

All devices are non-handed design
Auxiliary guarded latch deadlocks latch bolt automtically locks when the door is closed
High shock-resistant latching mechanical design or protection from vandalism
All inside components are made of high rust-resistant alloy or heavy electroplated steel

Standard 36”: Device length is 33 15/32” (850mm) for 3’ door use, with a standard push bar.
Long 48”: Device length is 44 3/4” (1137mm) for 4’ door use, with long push bar.

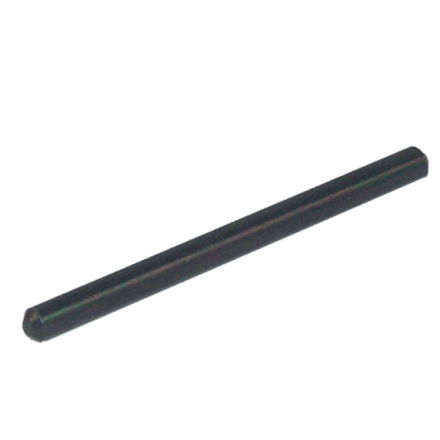

Dor-o-Matic 1690 and 1790 Pushbar Pin

Doromatic part # PIN.128 or PB322

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Exterior or Interior Doors
Weight to 600 lbs.*
Exterior Door Width up to 3'0"(914mm)
Interior Door Width up to 3'6"(1067mm)
Includes 180 Top Pivot
Handed

Handing diagram

Von Duprin 99 Mechanism End Cap, also known as 98/99 Impact Resistant End Cap Kit.

Replaces all of the old versions of the 98/99 End Caps, the mounting holes may be different.

Includes end cap, bracket and all screws

Von Duprin Part # 050014

For Doors Wood or metal. 1-3/4" (44 mm) thick standard.
minimum stile with trim and 3-1/2"
Mounting Supplied standard with wood and machine screws
Chassis Cover Cold drawn brass, bronze or stainless steel
Chassis Nonferrous alloy
Hand Handed. Specify RHRB or LHRB
Dogging Feature Allen-type dogging furnished standard.
Top and Bottom Bolts Brass, stainless steel

Exterior or Interior Doors
Weight to 450 lbs.*
Door Width up to 4'0"(1219mm)
Includes 180 top pivot
Handed

Handing diagram

Door Pull Offset 1" Diameter 39

This door handle is made of 1" round stock in either solid, alumunum, brass or stainless steel. It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Offset Door Handle or Door Grip, and Storefront door handle.

1" diameter material
2-3/4" projection
2-3/4" offset

Finishes

Door Pull 24

This door handle features a 6" center to center screw spacing. It ships with thru bolts and finish washers. Also known as a Door Handle or Door Grip.

1" diameter material
6" centers
8" overall
3/4" base diameter
2" projection

Finishes

Corbin Russwin ED4200 Narrow Stile Exit Device
This device is designed for use with a narrow framed glass door, and is recommend for use in high traffic, abusive areas.

Device
non-handed.
Trim handed.
Easily field cut to size.
Standard: 36" bar fits 30"- 36"
914mm) door.

Stile
Minimum width 2" (51mm).

Replacement parts are also available

EM A Type Receptacle

Receptacle - Can install over existing rods, then snaps closed permanently. Slides freely on rods up to 1 3/8" dia.

Materials: Dark Brown Plastic

EMCO

For Doors Wood or metal. 1 3/4" (44.5mm) thick standard. 2 1/4"(57mm) thick on order.
4 1/8" (105mm) miminum stile
Mounting Supplied standard with wood and machine screws.
Chassis Cover Brass, bronze or stainless steel
Chassis Nonferrous alloy
Crossbar 1" brass, bronze and stainless steel tubing.
Hand Reversible
Dogging Standard Allen key dogging

2-1/4" knob pinned to a straight spindle. The inside kob is attached
with two case hardened set screws. 3/8-18 tread on knob and spindle.

Ives Double Prong Ceiling Hook Chrome Plated

Chrome plated brass construction.

2" height

Replacement Cal-Royal 7000 Series End Caps.

Automatic Floor Type Holder and Stop

Cast brass construction, and then chrome plated. Measures 3-11/16" high by 3" wide with a 1-15/16" projection. The strike is 1-3/16" high. Spring loaded brass roller, rolls over the the strike to lock the door in the open position. To release, just give the door a tug.

Anodized Gold Aluminum Kick Plate
Aluminum base material is then anodized to a polished brass finish. These plates are a great alternative to the Solid Polished Brass and Lifetime Brass kick plates. Custom sizes are available, they run about $0.24 per square inch or less.

.040" thick
Ships with matching Phillips type sheet metal screws

Please allow 7-10 days for delivery

Latch finger 701730 & 786540 included, uses 853715 recess lifter.
7119174, LR130R.

Von Duprin Exit Device 88 Lever Arm Left Hand

Von Duprin 88 replacement lever arm for all the Von Duprin 88 exit devices. The arm includes the Wedge, Wedge Ring, Wedge Tite Screw and Dog Screw, and sometimes the axle.

Von Dupin part # 050439
Old Part # 100729

Replacement Cal-Royal 9800 End Cap and Bracket.   Includes mounting screws.

Ives Roller Latch RL1130

The Ives Roller Latch RL1130 is a combination of the RL30 and an Angle Stop.  Tension is easy to adjust with the two tension screws on the face plate.
