The Truth 14.80 hinge is the most common of the Truth Stainless Steel Casement Hinges. The stainless steel track is 10" long, the glide is a plastic coated steel. The most common problem on this hinge is the shoe. When the hinge is installed incorrectly or not maintained the shoe could pull out the window track. This Truth hinge is used on the Wi1510, Wi1511, Wi1516, Wi1518, Wi1531, Wi1532, Wi1594 and Wi2301.

This hinge is sold in pairs (one top and one bottom). If your window is the opposite hand, the top hinge goes to the bottom and the bottom hinge goes to the top.

Truth Maxim Dual Arm Window Operator 50.10

The Truth 50.10 Maxim Dual Arm is one of the more popular new style operators. This operator is the same as the 50.00, but without the painted steel cover riveted to it. Some numbers we find on this operator are 41011 and 31876.

Left Hand Operator shown in picture.

Gravity Door Coordinator

When active door is open, coordinator prevents active door from closing until inactive door bypasses. Closing of inactive door causes strike plate on top of door to contact cam and lift arm, allowing active door to close. As inactive door continues closing, roller rides over strike plate on to door bracket, holding arm above active door.
Non-handed.
Gravity action arm and door bracket are adjustable on the job for ease of installation. Rubber roller provides quiet and efficient operation, and helps protect the astragal and doors from damage. Nylon roller on short arm glides smoothly over door bracket and strike, ensuring silent operation. Made of forged brass.
COR7G-26D for use on pairs of doors with astragal on active door up to 4' or with astragal on inactive door up to 3'4" or with astragal on both doors up to 2'10" Brushed Chrome Finish.

Ives part # COR7G-26D 7" Arm Projection

Gravity Door Coordinator 9"

When active door is open, coordinator prevents active door from closing until inactive door bypasses. Closing of inactive door causes strike plate on top of door to contact cam and lift arm, allowing active door to close. As inactive door continues closing, roller rides over strike plate on to door bracket, holding arm above active door.
Non-handed.
Gravity action arm and door bracket are adjustable on the job for ease of installation. Rubber roller provides quiet and efficient operation, and helps protect the astragal and doors from damage. Nylon roller on short arm glides smoothly over door bracket and strike, ensuring silent operation. Made of forged brass.
COR9G-26D for use on pairs of doors with astragal on active door over 4' or with astragal on inactive door over 3'4" or with astragal on both doors over 2'10" Brushed Chrome Finish.

Ives part # COR9G-26D 9" Arm Projection

The Yale 7000 Cylinder Dogging Sub Assembly is used on non Fire Rated Yale and Corbin Russwin panic devices.   Like the Hex Key Sub Assembly, this one is for use with a Key Cylinder.

Yale Part # 60-7000-0407-999
Corbin Russwin Part # 650F968

Doromatic Surface Strike STK45

This strike is used when we have a double door application without a center post. By using this strike we can have one door with a surface vertical rod and one door a rim device, which will save money because vertical rods are usually expensive. This strike can be used with the 1590, 1790 and 2090 Rim Devices. The strike base measures 1-5/16" wide by 3-1/4" high, and 1/4" thick. The three slots are 1-1/4" on center. This strike ships with the mounting screws.

US19-Black finish

This L-shaped reversible shower seat is ADA compliant and comes with a one-piece, one-half inch thick ivory phenolic top.  The reversible L-shaped component allows the handing of the seat to be determined in the field.  The seat is 32 inches by 23 inches and includes a self-locking mechanism to secure the seat in the upright position when it is not in use.  The tubular components are fabricated from stainless steel.

The Truth 22.18 Front Mount Awning Operator spreads 20-1/8 inches pin to pin on the arms when it is in the closed position. The Front Mount hole spaceing is 7 inches on the outside holes and 6 1/8 inches on the inside holes.

Retractable White Cushion Shower Seat, 5/16″ thick, one-piece, solid, padded, black core phenolic seat. Frame, support legs, flanges and bracket are type 304 satin finish stainless steel. Features a self-locking mechanism.

Seat is sponge cushion covered with off-white Naugahyde® mounted on 1⁄2″ (13 mm) thick marine grade plywood.

The TH1300 YKK Offset Pivot Set is commonly found on YKK aluminum framed storefront doors. This is not the only one they use, but the only one we can get.

The Jackson 1095P Paddle Exit Device is designed for use on narrow style aluminum storefront doors.  It features the same housing as the Jackson 1095, but with a paddle instead of a cross bar.  This peice is designed for aluminum or steel doors, it will not work on wood doors.   The device mounts on surface studs that need to be drilled and tapped on the door, if the door is wood, the threads will simply pull out.

The Von Duprin 5547EO Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors.   It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's.  This device with for 7' high doors, call for doors that are taller then 7'.  To order select finish, and door material.   If you have a wood door, select wood door, the latches at the top and bottom have additional brackets for mounting.

The Dorma RTS88 Offset Slide Arm 8812 is used on in the RST31, RST30, RTS29, RST28, RST27, RTS26 and RTS25 packages.  This arm is used on Single Acting Doors.

Dorma Part # 8812

Truth Entrygard 10340 Right Hand Bracket

This bracket is usually used on the Entrygard Dual Arm Operators. This bracket is what the linkage arm attaches to on the hinge side of the with.

Truth Entrygard 10499 Right Hand Bracket

This bracket is usually used on the Entrygard Dual Arm Operators. This bracket is what the linkage arm attaches to on the hinge side of the with.

Medart Locker Handle Case, Uses one screw.

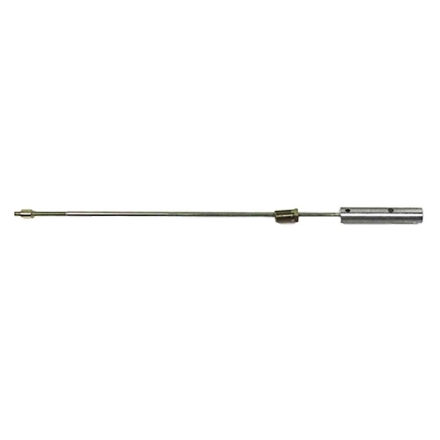

Von Duprin 050531 EL Dogging Rod 3'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 3' designates the model it is used on. The 3' model is used on doors 36" or under. The Rod measures roughly 11" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices

Von Duprin Part # 050531, Old Part # 110007

No longer manufactured

Von Duprin 33/3547 98/9947 Compression Spring (10)

One of two springs located in the 33/3547 and 98/9947 Top Latch 050492.  Sold in packages of 10.

Von Duprin Part # 090066

Sargent 1130 Door Closer

The Sargent 1130 door closer is a non handed universal door closer. It can be mounted on the left, right, push, pull or top jamb. The hole spacing on this door closer is 3/4" x 9-1/16". We ship the Sargent 1131-RU model.

This Ashland Evolutions Cover and Handle measures 5-19/32 inches across.  The Right Hand Cover and Handle work on the Silver Colored Splines, and the Left Hands work on the Gold Colored Splines.

Truth Universal 30326

Female hex on one end, with the Truth female 11/32" spline.

The Barracuda Model DSO is for Out Swinging 36" Doors and provides up to 550 pounds of security.   It is constructed of heavy duty steel with a durable powder coated finish.  The bar goes across the door frame and grabs the lever or knob set with an adjustable clamp.  To secure the door, simply turn the handle until it is secured.  They currently offer two models, one for jambs up to 5-3/4" and one for jambs greater than 5-3/4".  This device ships with all of the hardware and a wall mounting rack for storage.

Barracuda Part # DSO-1 and DSO-2

Black Occupancy Indicator Latch Handle is constructed of cast stainless steel with black finish. Latch handle is designed for 3/4" Doors and is through mounted to the occupancy indicator. Features a 4-1/2" length handle that is tapered at one end to engage with keeper for locking. Features emergency unlatching access on front of indicator. Shipped with fasteners for mounting occupancy indicator to door and pilaster. Known as manufacturer part number 4995.

Truth 14.17 Casement Hinge-Pair

The 14.17 is not that popular of a hinge. But if your track measures 14" than this is probably what you have. The hinge has a stack height of 7/16". The outside screw holes measure 12-3/8" on center. We sometimes find the number 30986 on the arm and 41498 and 41499 on the stainless steel track.

This hinge is sold in pairs (one top and one bottom). If your window is the opposite hand, the top hinge goes to the bottom and the bottom hinge goes to the top.

The Von Duprin 100316 is used on the 5547 on the top of the door.   The top rod goes through the square hole on the plate.  The plate shown in the Picture has both sides or LHR and RHR doors.  One side of the strike is usually broken off depending on the hand of the door.

20 tpi
4-3/4" long
1 solid center
3 pin holes one side

Von Duprin 050532 EL Dogging Rod 4'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 4' designates the model it is used on. The 4' model is used on doors 48" down to 36". The Rod measures roughly 17" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices. Use part # G050531 if your door is equal or under 36".

Von Duprin Part # 050532, Old Part # 110008

Truth Nylon Tie Bar Guide 41157

This nylon guide is used when you have multiple sash locks on your window.  Inside the window, or sometimes on the surface these  nylon guides keep the connecting rods in place, so you only have to actuate one lock to lock multiple locks.

Truth Nylon Tie Bar Guide 45141

This nylon guide is used when you have multiple sash locks on your window.  Inside the window, or sometimes on the surface these  nylon guides keep the connecting rods in place, so you only have to actuate one lock to lock multiple locks.

Von Duprin 8827 Top Latch And Cover

The Von Duprin 8827 Top Latch and Cover in one convenient package. The package includes the Top Latch 050460, the Cover 050464, and cover screws and mount screws.

Von Duprin Part # 050466

The Truth 14.75 hinge is the most common of the Truth Casement Hinges. The stainless steel track is 10" long, the glide is a plastic coated steel. The most common problem on this hinge is the shoe. When the hinge is installed incorrectly or not maintained the shoe could pull out the window track. Common numbers found on this hinge are 30744B, 31133C, 40942 and 40941.

This Truth hinge is used on the Wi1510, Wi1511, Wi1516, Wi1518, Wi1531, Wi1532, Wi1594 and Wi2301.

This hinge is sold in pairs (one top and one bottom). If your window is the opposite hand, the top hinge goes to the bottom and the bottom hinge goes to the top.

The Truth Encore Handle and Cover are used on the Encore Operators Wi5110 and Wi5010.  The cover are constructed on Plastic and the Handles are die cast metal.  The ones shown on the website are Right Hand and the color is Bronze.  Once color is selected and hand, the different hands will appear, the color is not correct.

Truth Part Numbers 12614 (Left Hand) and 12616 (Right Hand).

Color Chart

Two Hole 1-1/4" Wedgeless Cam Handle

Hinged flap rolls down and locks the window shut. We find this window handle is used alot in the western states. The older version had a 1-3/8" hole spacing, but the new one has 1-1/4" hole spacing.

Sometimes we find the number R1 and CAN on this handle

White only!

Medart Locker Fast Rivet, Replaces one piece tubular rivet. Manufactured in the USA.

STAIR TREAD MOUNTING TAPE

Speeds installation of vinyl stair treads without the mess! Tape is sold in 4" wide rolls of 164 feet.

We recommend two strips of tape per tread. One on the nose and one at the back. As an example for the 36" tread you would need 72" or 6' of tape.
