The 782 Raised Disc Landing Tile is designed for use with the 780R Stair Treads.   The tiles measure 19-11/16" x 19-11/16".

Size:  19-11/16" x 19-11/16"
Overall Thickness:  5/32"

ADA Partition Slide Latch with Occupied Symbol. Stainless steel door lock surface mounted for 1" doors, this can be used for doors less than 1" if the rod is cut down between the two pieces. All hardware included for installation. This manufactures part number is 50553. Hole spacing is 3-1/2".

EM 15 Ball Hook Hanger

Durable 17" hardwood hanger with lacquered finish. Plated hook in open, ball top or closed loop designs.

Materials: Hardwood

EMCO

Truth Entrygard 11.42 Awning Operator

Numbers usually found on this operator are 31545

arms measure 12" across when in the closed postition

Truth part # 11.42.00.001

Current style Global stainless steel door catch includes screws for mounting. This is used with the 9g700 latch in ss. Product part number is 8262360. This part has a 3/8" gap for the catch and is 2-1/8" in length, 1-5/8" hole spacing and is 3/4" wide.

The Command Access MLRK1-FAL17 Motorized Latch Retraction Kit With REX is for use on the Falcon Dor-o-matic 1690/1790, AHT4/5, and First Choice 3600/3700 Series Exit Devices. The unit is 24 volt with Standard : 900 mA (Avg Current Peak); 200 mA (Avg Current Hold). The unit requires 18 ga wires. The package includes:  1) Motor Mount with MM5; (1) 50944 Molex Pigtail; (1) 50030 6 Feet Lead with VD Connector; (2) 40124 10-24 x 3/8inch Phillips Screws (Silver); (2) 40125 10-24 x 3/8inch Phillips Screws (Black).

The MLRK1-FAL17 is a cost-effective and straightforward way to upgrade your Falcon 1690/1790, First Choice 3600/3700, & AHT 4/5 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty

The Von Duprin 090076 Spring is located in top latch of the Surface Vertical Rod.  It is used on the 2227, 3327A, 3427A, 9827 and 9927 models. It is number 18 in the attached diagram. They are sold in packages of 10.

Claridge Tackboards-Fabricork Surface. 800 SERIES TYPE CO – 5/8" FACE TRIM. SEE COLOR CHART.

American Sanitary Toilet Partitions Keeper Bumper For 1-1/4" Inswing Square Edge Pilaster Or Post

Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110

Shipped with mounting screws.

Restroom Door Kit Inswing 7/8" Door & 1-1/4" Post Cast SS. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 17803.

EM A Type Receptacle

Receptacle - Can install over existing rods, then snaps closed permanently. Slides freely on rods up to 1 3/8" dia.

Materials: Dark Brown Plastic

EMCO

For use on metal frames featuring
pneumatic design that, once installed,
forms an air pocket to absorb sound and
reduce noise of door closing.

Diameter: 1/2"
Thickness: 1/8"

Toilet Partition SS Continuous Hinge 57" With Spring Close. Rh In, Lh Outswing

14 Gauge,1/4" Pin. 9" centers with 6 holes on each side.

Chrome plated inswing door kit for square edge doors and posts. For 1" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 11000.

The Falcon/Monarch Fire Rated Top Latch is used on the F-19-V, F-24-V, F-25-V, F-18-V and F-XX-V Surface Vertical Rods.  The new number from Falcon is 650375, the old Monarch Number was F588.  This latch is used on the above devices that are Fire Rated, meaning you can not dog these device in the Unlock Position.  If your device has the ability to be dogged open, then use the G588 Non Fire Rated Version

Chrome plated inswing door kit for square edge doors and posts. For 1" doors and 1" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 11300.

Bleacher Outrigger, Designed to mount on the back of skirt boards. The wheel size is 1-5/8" diameter x 5/8" tread with an approximate load of 60 lbs.

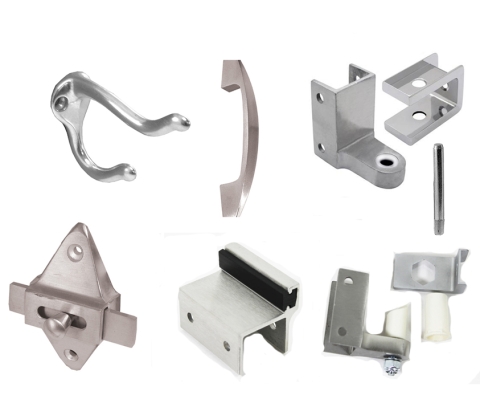

Cast stainless steel outswing door kit for square edge doors and posts. For 1" doors and 1" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 21343.

Cast stainless steel outswing door kit for square edge doors and posts. For 1" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 21003.

FEATURES

• Please note the factory will only sell in quantities of 10.
• Supervisory key control
• Ergonomic dial with grip ring and non-slip coating
• Fully retracting automatic spring latch with standard 5/16” bolt
• Automatic locking
• 7 pre-set combinations for extended usage
• 3-digit dialing combination with 5-pin tumbler key plug
• Patent pending button guard to protect lock function from overstuffed lockers
• Nut channels for easy installation
• All Built-in Combo Locks have a 10 year warranty from time of shipment
• 72 hour shipping available

APPLICATIONS

• Model 1954 is for use with locker door hinged on right; similar in operation to Master Lock 1654
• Fits all standard single point or box lockers

The Monarch 4326 Spring Clip is used with the 4841 Spring in the older Monarch Lever Trims

The Command Access MLRK1-VD22 is a motorized electric latch retraction with REX for the Von Duprin 22.  This motor is 24 to 28 volts and has a Standard : 900 mA (Avg Current Peak); 215 mA (Avg Current Hold). This unit requires 18 ga wire.  And ships with (1) Motor Mount with MM5; (2) 40002 - 8/32 x 1/4 inch Phillips Head Screw; (1) 50030 8/Lead with vd Connector; (1) 50944 Molex Pigtail; (1) 40144 Dogging Hole Cap; (1) 50991 Fire Rated Drilling Template; (1) Replacement Dogging Tail Piece.

The MLRK1-VD22 is a cost-effective and straightforward way to upgrade your Von Duprin 22 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty

The Command Access MLRK1-JAC12 Motorized Latch Retraction Kit With REX is for use on the Jackson CRL 1285 and 1295 Series Exit Devices. The unit is 24 volt with Standard : 900 mA (Avg Current Peak); 200 mA (Avg Current Hold). The unit requires 18 ga wires. The package includes:  1) Motor Mount with MM5; (1) 50944 Molex Pigtail; (1) 50030 6 Feet Lead with VD Connector; (2) 40124 10-24 x 3/8inch Phillips Screws (Silver); (2) 40125 10-24 x 3/8inch Phillips Screws (Black).

The MLRK1-JAC12 is a cost-effective and straightforward way to upgrade your Jackson 12, Kawneer 16/17 and PD16 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty.

Bathroom partition chrome plated inswing door kit for square edge doors and posts. For 7/8" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 17800.

Bathroom partition chrome plated outswing door kit for square edge doors and posts. For 7/8" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 27810.

EM 15 Open Hook Hanger

Durable 17" hardwood hanger with lacquered finish. Plated hook in open, ball top or closed loop designs.

Materials: Hardwood

EMCO

2-1/4" knob pinned to a straight spindle. The inside kob is attached
with two case hardened set screws. 3/8-18 tread on knob and spindle.

Swivel, 9/32" square,
16 tpi, 4-3/4" long,
with stop pin

Sanymetal Partitions Keeper Bumper And Strike For Concealed Latches Inswing/Outswing 1-1/4"

Zamac die cast and polished chrome plate construction. Keeper is 1-1/4" tall by 2-3/8" wide by 1-3/4" deep. The strike is a1/2" thick and the slot is 7/16" deep. The opening to mount it on the pilaster or post is 1-1/4" by 1-1/4" This Strike and Keeper are for square post or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5960

Shipped with screws for mounting.

Toilet Partition Continuous Hinge 54" With 20 Degree Cam Close Stainless Steel. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

Stainless Steel Construction, 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 54" long. Holes are spaced every 13" and are 9/32" diameter and 5 sets of holes. The hinge is self closing by a cam action, which is made possible by angle cuts on the continuous hinge leafs. Cam features 20 Degree Closing for ADA Doors. Can be raised up 3/8" for emergency entry. This hinge is also known as a Bathroom Stall Full Length Continuous Hinge. This hinge is non handed. Manufacture part # 130219, 7598, 125319, 650-9402.

Outswing Keeper Bumper, 1-1/4" Round Edge

Polished chrome plate Zamac die casting construction. Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5570.

Shipped with mounting screws.

Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4" Square Edge. Manufacture part # 5110. Shipped with mounting screws.

Corbin Russwin ED5200 Exit Device

Handing
Device is non-handed.
Lever trim is handed.
Bar Length
Easily field cut to size.
Standard: 36" (914mm) bar fits 30"- 36" door.
Stile
Minimum width 4-1/2" (114mm).

Replacement parts are also available

The Norton PPTO PowerTrack for P7705 is a replacement piece for the P7705PTO Door Closer.  The Track includes the Slider, Soleniod and new mounting screws.  The PPTO Track is for the Push Side of the door, also known as the Stop Side because the track mounts on the jamb stop. Not available in 120 Volt.

Norton Part # PPTO24

The ALREX hinge is a full function hydraulic door closer hinge. It contains all the features of a door closer, closing and latching speed control, power adjustment, and optional hold open feature. They are available in 4, 4.5 and 5 inch (leaf height), and are currently available in Stainless and Black finishes.

Package includes 2 hydraulic closer hinges and one dummy, for a standard 3 x 7 foot door, 100 pound door.

Door Handing:

Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". The ADA Barrier Free Lever is 2-9/16" long when measured from the all the way across the cover. The cover has an overall diameter of 1-1/4". Also known as a Bathroom Stall Concealed ADA Latch Cover and Knob Assembly. Manufacture part # 6150, 163500 uses a T27 Torq Bit that is included. Used with All American, Flush Metal, General and Global Partitions.
