Search results for: 'block fold 1 2 two ear'

Partition Two Ear Wall Bracket For 7/8" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 3-1/2" with 2-3/4" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 7/8". Manufacture part # 1633

Shipped with mounting screws.

Partition panel bracket kit for 1" panel, Two eared chrome plated bracket. Part includes all security fasteners to install the brackets. Also known as 615030.

The Matte Black Hadrian Two Ear Bracket is constructed of stainless steel and measures 3-1/8"Wx1-1/4"Hx47"L. This two ear bracket is designed for 1/2" thickness material. Bracket comes with fasteners to install. Known as manufacturers part number H20559-BLK.

The Matte Black Hadrian Two Ear Bracket is constructed of stainless steel and measures 3-1/8"Wx1-1/4"Hx3-1/8"L. This two ear bracket is designed for 1/2" thickness material. It is recommended that 3 bracket be used for panels of 58" height. Can be used on partitions or urinal screens. Bracket comes with fasteners to install. Known as manufacturers part number 672115-BLK.

Partition panel bracket kit for 1" panel, Two eared cast stainless steel plated bracket. Part includes all security fasteners to install the brackets. Also known as 615033.

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-15/16" with the mounting screws are 2-3/16" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1839.

Shipped with screws

Toilet Partition Bracket One Ear For 1-1/4" Panel Aluminum

Constructed of extruded anodized aluminum. The base is 2-5/8" wide x 1-1/2" high, with the two mounting screws 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The distance between the legs is 1-1/4". It is designed for 1-1/4" thick panels. The 4 screw holes are 1/4" diameter. This bracket is also known as a One Ear Wall Bracket, 1844 One Ear Wall Bracket, Toilet Partitoin One Ear Bracket, or Bathroom Stall One Ear Bracket. The bracket is shipped with all the mounting screws.

Alcove Two Ear Bracket Panel Kit for 1/4" Offset. This kit is used for panel to pilaster 1/4" offset and for 1" panel to wall bracket chrome plated. Security screws included. Also known as 615330.

Toilet Partition One Ear Wall Bracket For 1" Panel Cast Stainless Steel

Cast stainless steel construction. Base of the bracket is 2" x 1-1/2", with 1-1/2" hole spacing. Bracket legs project out 2-1/2" with the screws at 2-1/8" on center from the base. The four holes are 1/4" diameter. Also known as a Bathroom Stall One Ear Wall Bracket or One Ear 1". Manufacture part # 1763.

Shipped with mounting screws.

Partition screen urinal bracket kit for 1" thick panel, two ear bracket that is cast Stainless Steel plated. All bracket kits include security screws to mount the brackets. Also known as 615513.

Stainless Alcove Two Ear Bracket Panel Kit for 1/4" Offset. This kit is used for panel to pilaster 1/4" offset and for 1" panel to wall bracket cast stainless steel plated. Security screws included. Also known as 615333.

Alcove Two Ear Bracket Panel Kit for 3/4" Panel to 1" Post. Wall brackets and alcove clips are cast stainless steel construction. Security screws included. Also known as 615313.

Toilet Partition Bracket One Ear For 1" Panel Aluminum

Constructed of extruded anodized aluminum. The base is 1-1/2" high by 2-5/8" wide, with mounting holes 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs are 1" apart, and is designed for 1" thick panels. This bracket is also known as a One Ear Wall Bracket, One Wing Wall Bracket, Toilet Partition One Ear Bracket, or Bathroom Stall One Ear Bracket. The manufacturers part number is 1764. The bracket ships with all the required fasteners.

Alcove Two Ear Bracket Panel Kit for 3/4" Panel to 1" Post. Wall brackets and alcove clips are chrome plated zamac. Security screws included. Also known as 615310.

The bracket is a zamac die cast material that is then polished chrome plated. The base measures 1-1/2" wide x 2-21/32" long with two mounting holes 1-1/2" on centers. The bracket projects out 3-1/2" with the legs 1" apart, it is used for mounting a 1" thick panel. The mounting holes are located 3-1/8" from the base of the the bracket, and all the holes are 1/4" diameter. The bracket is sometimes called a Toilet Partition One Ear Bracket, Bathroom Stall One Ear Bracket, 1270 wall bracket, 650-6407 wall bracket or sometimes One Wing Bracket.

Partition panel bracket kit for 3/4" thick panel, Two eared bracket that is chrome plated. All kits include security fasteners to install the brackets. Also known as 615010.

Toilet Partition Continuous One Ear Wall Bracket For 1" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 57" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2339.

Toilet Partition Continuous One Ear Wall Bracket For 1-1/4" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 2-11/16" x 57" long. Mounting holes are 1-19/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 14" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2359.

Two Hole 1-1/2" Plastic Handle

Constructed of high density plastic with an 1-1/2" hole spacing. The lock up dimension is 3/8". The base measures 2-1/8" x 7/8". The handle measures 3-1/2" long.

The white is instock, the beige has a 1-3 week lead time.

Toilet Partition One Ear Wall Bracket For 1" Panel,Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-13/32" with the mounting screws are 1-15/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1769.

Shipped with screws

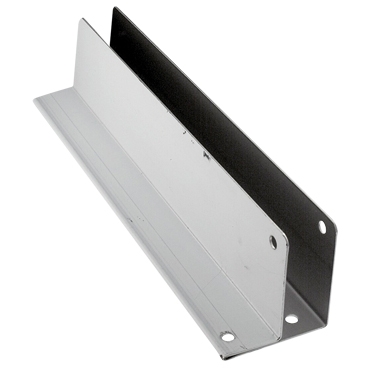

Toilet Partition Continuous One Ear Wall Bracket For 1" Panel x 54" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 54" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2879.

If your toilet partition (bathroom stall) wall bracket is stamped 1650, then chances are you have the One Ear Wall Bracket for 7/8″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2-1/8″ long with 1-1/8″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

If your toilet partition (bathroom stall) wall bracket is cast 1760, then chances are you have the One Ear Wall Bracket for 1″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2-21/32″ long with 1-1/2″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

Aluminum One Ear Bracket 1/2" Panel, 2-1/2" X 57-1/2". Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1/2" for 1/2" thick panels. Sometimes known as Toilet Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2094. These brackets are shipped with all the needed fasteners.

Stamped SS Continuous One Ear Bracket 1/2" x 2-1/2" X 57". 18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 57" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2099.

Toilet Partition One Ear Hinged Wall Bracket 1"

Hinge is 16 ga (.060") thick, Bracket is 14 ga (.075") thick. The one ear hinged bracket is Riveted and welded together. Bracket is 3" high x 2-1/2" deep for a 1" panel. This bracket is ideal for applications were the Pilaster and Panels are not at a 90 degree angle. Also known as a Bathroom Stall HInged Wall Bracket. Manufacture part # 111359

Toilet Partition One Ear Wall Bracket For 1-1/4" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 2-3/4" with 1-1/2" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall One Ear Wall Bracket, or One Ear 1-1/4". Manufacture part # 1843

Shipped with mounting screws.

Toilet Partition One Ear Hinged Wall Bracket 1-1/4"

Hinge is 16 ga (.060") thick, Bracket is 14 ga (.075") thick. The one ear hinged bracket is Riveted and welded together. Bracket is 3" high x 2-1/2" deep for a 1-1/4" panel. This bracket is ideal for applications were the Pilaster and Panels are not at a 90 degree angle. Also known as a Bathroom Stall HInged Wall Bracket. Manufacture part # 111369

Folding Bleacher Company Rubber Floor Pad, 2-1/2" dia X 1" X 5/16". Comes with bolt and nut.

Two Hole 1-1/2" Window Handle

This handle features a 1-1/2" hole spacing with a 5/16" lock up. The handle is made of cast white bronze construction, with brushed nickel finish.

Right Hand Shown

Toilet Partition One Ear Wall Bracket For 3/4" Panel Cast Stainless Steel

Cast stainless steel construction. Base of the bracket is 2" x 1-1/2", with 1-1/8" hole spacing. Bracket legs project out 2-1/2" with the screws at 2-1/8" on center from the base. The four holes are 1/4" diameter. Also known as a Bathroom Stall One Ear Wall Bracket or One Ear 3/4". Manufacture part # 1643.

Shipped with mounting screws.

Toilet Partition One Ear Wall Bracket For 7/8" Panel Cast Stainless Steel

Cast stainless steel construction. Base of the bracket is 2" x 1-1/2", with 1-1/8" hole spacing. Bracket legs project out 2-1/2" with the screws at 2-1/8" on center from the base. The four holes are 1/4" diameter. Also known as a Bathroom Stall One Ear Wall Bracket or One Ear 7/8". Manufacture part # 1653.

Shipped with mounting screws.
