Torque Head Barrel Nut Shoulder Screw for 1-1/4" - 1-5/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe  head torque. Both pieces included.

Door Pull 21

This handle has a cross section dimension of 1/2" x 1" and is made of half round (underside is round) stock. The handle projects out 2-1/8" with a clearance of 1-5/8". This handle is available in 6" and 8" center to center mounting holes, but can be made in different Center to Center dimensions. This product is also known as a Door Handle or Door Grip. The handle ships with thru bolts and matching finish washers.

Finishes

The baby changing tables are ADA compliant units and are welded stainless steel for long and reliable use in commercial buildings. Exposed surfaces are satin finish. Easy one handed operation is assisted by a pull handle and concealed spring. The changing surface is high-impact-resistant plastic for easy cleaning. Its two part adjustable safety strap and 400 lb load capacity assure child protection. This unit is used for surface mounting , also know as part number 9013-9 with American Specialties.

Von Duprin Exit Devices 608/696/880/990 Trim Grip

Replacement Grip/Handle only, screws not included. Cast bronze construction, and then plated to the selected finish. The Grip measures 15/16" wide by 6" long. The center to center hole spacing is 5-1/2". This handle works on the Von Duprin 608, 696, 880, and 990 outside trim plates.

Von Duprin Part # 972466 and 972467
Old Part # 969925 and 959122

Door Pull 15

This door handle features 7-1/2" centers on the mounting screws. With 2" diameter bases. The Grip has a 2-1/4" projection with a 1-5/8" clearance. Also known as a Door Handle or Door Grip. This handle ships with thru bolts and finish washers.

Finishes

Door Pull 26 1" Diameter

This door handle is made of 1" round stock in either solid, aluminum, brass or stainless steel. It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

1" diameter material
2-3/4" projection

Finishes

8" GDP810
10" GDP101
12" GDP121

International Door Closer 3010-DP Bottom Pivot

Adjustable dual purpose bottom pivot set

International Part # 3010-DP

Door Pull 23

This door pull features an 8" center to center screw dimension. The handle ships with thru bolts and finish washers. Also known as a Door Handle, or Door Grip.

3/8" x 1-1/4" handle cross section
8" centers
14" overall length
1" diameter base
1-7/8" projection

Finishes

Brackets designed to mount plexiglass/acrylic sheets to desk surface edge when creating separation/barrier. Brackets are adjustable for thickness from 1/8" to 3/8". It is recommended for use of 1/4" Thick material. Sold as a Pair. Made of Aluminum Alloy. Screws and inserts included. Uses a 5mm/3/16" Allen Key(Not Included) to install screws These are available in either Silver or Black Finish. Silver Finish are readily available while Black Finish may have an extended leadtime depending on quantities being ordered.

Measurements

Height: 2-1/2"

Width: 1-3/4"

Depth: 5/8"

Weight:About 1.3lb

Top to Bottom: 3-5/8"

Plate Width: 1-3/4"

Plate Length: 5-3/4"

Plate Height: 3/16"

Gap/Spacing: 1"

Door Pull 24

This door handle features a 6" center to center screw spacing. It ships with thru bolts and finish washers. Also known as a Door Handle or Door Grip.

1" diameter material
6" centers
8" overall
3/4" base diameter
2" projection

Finishes

Door Pull 12

This handle has a 5-1/2" centers hole spacing and is 6" overall. It has 2" projection with 1-3/8" clearance and the base is 5/8" x 1-1/4". Also known as a Door Handle or Door Grip. Shipped with thru bolts and finish washers.

Finishes

Door Pull 25 With 3/4" Diameter Handle

This door handle is made of 3/4" round stock in either solid, Aluminum, Brass or Stainless Steel. It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

3/4" diameter
2-3/8" projection
1-5/8" clearance

Finishes

Door Pull 22

This door pull features an opened end and a closed end pull. This Door Pull is also known as a Door Handle or Door Grip. The handle ships with thru bolts and finish washers. The dimensions are shown below.

3/8" x 1-1/4" handle cross section
8" centers
14" overall length
1" diameter base
1-7/8" projection

Finishes

Door Pull Offset 3/4" Diameter 29

This door handle is made of 3/4" round stock in either solid, Aluminum, Brass or Stainless Steel. It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

3/4" diameter material
2-1/2" projection
2-1/2" offset

Finishes

1-1/4" diameter materal
Offset Door Handle
Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.

Please specify either wood or metal door, and its thickness; we'll supply
appropriate fasteners.

Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes

Finishes

Door Pull 11

This door pull has 8" center to center screw spacing. The base is 3/4" diameter, the overall lenght is 9-1/4". The projection is 2-1/8" and the clearance is 1-1/2". Also known as a 8" Center Door Grip or Door Handle. This handle is shipped with thru bolts and finish washers.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Finishes

Door Pull Offset 1" Diameter 39

This door handle is made of 1" round stock in either solid, alumunum, brass or stainless steel. It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Offset Door Handle or Door Grip, and Storefront door handle.

1" diameter material
2-3/4" projection
2-3/4" offset

Finishes

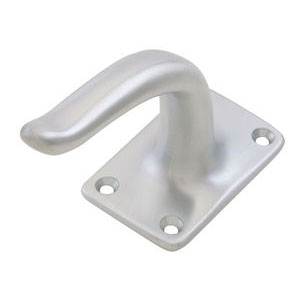

Handicap Door Pull 18

With this handle you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Shipped with screws. Also known as a Handicap Grip, ADA Door Pull or Handle.

Finishes

Torque Head Barrel Nut Shoulder Screw for 1/2" - 3/4" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe head torque. Both pieces included.

The Handicap Hands-Free Door Pull BM4511 is an ADA compliant. You can hook your forearm/wrist into the open end to open a non-latching door. The pull is constructed of stainless steel and is available in brushed stainless steel, powder coated flat black or powder coated dark bronze. The plate measures 4 x 16 inches and the grip is tack-welded to the plate and also has a 5/16-18 thread for thru bolting. The grip is 1-1/4 diameter by 8 inches. Ships with 6 mounting screws and one 5/16-18 thru bolt with finished washer in matching finish.

 Dual Sided Atomic Clock 16". All Clocks use 1 AA Battery, 2 Year Battery Life. School Wall and Hallway Clocks and Guard's. Atomic Clocks are Great for classrooms and gyms. Atomic Clocks sets themselves through radio signals emitted by the US atomic-clock located in Boulder, CO. Just insert the battery, set your time zone and the clock will take care of the rest! All brackets included.

Handicap Door Pull 19

With this handle you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Shipped with screws. Also known as a Handicap Grip, ADA Door Pull or Handle.

Finishes

Chrome Plated One-Way Shoulder Screw & Barrel 1 1/16" - 1 5/16" Grip. Use a Flat Head Screw Driver to install. This is a 10-24 thread.

1" Diameter Solid Aluminum Round

Anodized Finishes, Aluminum or Dark Brown

Cross bar has a 33-1/16" Center to Center screw spacing

Mounting Hardware Included

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1/2" - 3/4" Gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread, stainless steel unplated and uses a 6 lobe  head torque. Both pieces included.

Handicap Door Pull 119

With this handle you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Shipped with screws and finish washers. Also known as a Handicap Grip, ADA Door Pull or Handle.

Finishes

Norton Door Closer Rod and Shoe

The Norton Rod and Shoe 7701-11 and 7701-11A come in two different lengths, 8-7/8" anc 12-1/2".  The length is measured from the end of the bar to the center of the eyelet.

Norton Part #'s:
8-7/8" Long  7701-11
12-1/2" Long 7701-11A

LCN Door Closer Rod And Shoe

This piece fits into the female part of all LCN Regular Arms. The old style had two concave set screws and a ball pressed into the rod. If the door over rotated the ball would pull out of the concave set screws. The new version has a pin holding the rod to the shoe which is designed to fail if the door is over rotated. This piece will work on the LCN 1260, 1460, 4010, 4020, 4030 and 4040 door closers with regular arms. Some of the really old models have multiple threaded holes, so you might have to drill a hole in the female tube. Part #'s 4040-79, 4040-79LR and 4040-79ELR. The 1260, 1460, 4010, or 4020 could replace the 4040 in those part numbers, they are the same.

LCN Door Closer Head and Tube

The LCN Door Closer Head and Tube comes in two versions.  One is 5-3/4" long and the other is 8-5/8".  The square hole is 5/8",   This part usually goes by the part number 4040-78H, 4040-78HL, 1260-78H, 1260-78HL, ect.,.

The LCN 1260 Series combines the best features from the previous 1070 and 1370 into a single versatile and economical cast iron closer, with dual mounting capability. The 1260 is adjustable spring sizes 1-5 and mounts to the most common commercial footprint. The 1260 also features a complete line of regular and extra duty arms, LCN’s peel-n-stick installation templates, a convenient spring adjust pointer. The Brass finish is Painted Brass.

We ship the 1261 Rw/PA

4" Kickdown Door Holder / Stop FS544

This is one of our most popular Kickdown Door Holder/Stop for the past 35 years.

Features:

• Units provide an economical method to hold open doors.
• Cast of durable iron.
• Non-marring rubber shoes have corrugated bottoms to provide secure grip. Rubber shoe is securely fastened with screw. When worn, shoes are easily replaced.
• FS544 for door-to-floor clearances of 2" or less.

Cal Royal 7000 Alarmed Exit Device

Same as the Cal Royal 7700, but with these added features"

Alarm unit has internal horn. When the push rail is depressed, the horn sounds to provide an audible means of signaling that the door has been opened and violated. The unit has changeable 2 minute alarm cutoff or manual reset. Preset at factory for 2 minute alarm cut off. The key switch to turn alarm off is a standard 1 ¼” cylinder with “C” keyway. The alarm operates on one standard 9 volt transistor battery. When battery is weak the horn will emit an intermittent signal. Alarmed units are supplied with a switch that monitors push rail only. Unit includes “EMERGENCY EXIT ONLY • ALARM WILL SOUND” decal for application on door or unit.

This Barn Door Pull Set features back to back handles that are thru-bolt mounted for a hassle-free setup.  The Grip is 6 inches on centers and is constructed of 3/4 inch round stock, and projects out 2-3/8 inch. The flush pull face dimensions are 2-1/2 by 7 inches. The mortise size of the flush pull are 2 x 7/8 deep x 1/4 inch.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Door Pull 10

This door pull has 5-1/2" center to center screw spacing. The base is 3/4" diameter, the overall lenght is 6-1/4". The projection is 2" and the clearance is 1-1/2". Also known as a Door Handle or Door Grip. This handle ships with thru bolts and finish washers.

Finishes

Door Pull 16

This door handle has an overall length of 7-1/2". The base diameters are 2" with three holes each. The handle projects out 2-1/4" and has a clearance of 1-1/2". Also known as a Door Grip or Door Handle. This handle ships with 6 wood/sheet metal screws.

Finishes

4" Kickdown Door Holder / Stop FS452

Features:

• Units provide simple hold and release, activated with a touch of the foot.
• Cast brass or aluminum construction.
• Stainless steel spring.
• Non-marring rubber shoes have corrugated bottoms to provide secure grip.
• Shoes are easily replaced when worn.
• FS452-4 has a door-to-floor clearance of 2" or less.
• Packed with sheet metal screws.
