Dorma RTS88 Series overhead concealed door closer for both
single and double-acting doors. The RTS88 will consist of a steel
cam, rollers, and springs housed in a compact cast iron body.
Closers will be capable of being installed in minimum 1-3/4" x 4"
headers. RTS88 will have maximum door opening to 90º or 105º,
trim conditions permitting. Sweep and latch speed will be
controlled by two noncritical adjustment valves from 90º or 105º
to closed. Built-in pressure relief valve will protect the closer from
abuse caused by forced closing. A mechanical backcheck
combined with a positive stop at 90º or 105º will be provided to
protect the door and frame. The RTS88 closer will be available
with hold open at 90º or 105º, or without hold open. The product
shown here is just the replacement cylinder.

A=1-1/2"

B-273-103 Bobrick Replacement Spindle for models only that are 273, 274, 2730, 2740 and 27466. Replacement spindle only.

The Von Duprin 5547EO Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors.   It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's.  This device with for 7' high doors, call for doors that are taller then 7'.  To order select finish, and door material.   If you have a wood door, select wood door, the latches at the top and bottom have additional brackets for mounting.

Norton 1600 Door Closer

• ANSI A156.4, Grade 1
• 10-year warranty
• Non-handed
• Rack-and-pinion design
• Cast aluminum body
• Standard, separate and independent, latch, sweep
  and backcheck intensity valves
• 2-7/8" (73mm) projection
• Tri-Packed- packed for regular arm, top jamb and
  parallel arm installations.

3/4" x 9-1/16" hole spacing

Older models may be stamped with Scoville or Eaton, which are the companies that used to own Norton.
We sometimes find 20-1624-4001, or 20-1604-4001 stamped on the back of the closer. If your door closer is stamped 20-1603-4001 or 20-1623-4001, you might want to double check the hole spacing. The 20-1603-4001 usually has a hole spacing of 3/4" x 8-3/16", you could use the International Door Closer 853 as a replacement.

We ship the 1601 Norton Door Closer, which is a non size (meaning you can adjust the spring tension), which will work in place of the 1603BC, 1604BC, 1605BC and 1606BC.

Global Partitions Bottom Hinge For Surface Mount. Chrome plated Zamac die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-9/16" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Manufacture part # 3010, 111710. Also used with Flush Metal and General Partitions. Shipped with mounting screws. A=1-9/16". Also used with Accurate Partition doors after January 2013.

Norton 1600BF Barrier Free Door Closer

• ANSI A156.4, Grade 1
• 10-year warranty
• Non-handed
• Rack-and-pinion design
• Cast aluminum body
• Standard, separate and independent, latch, sweep
  and backcheck intensity valves
• 2-7/8" (73mm) projection
• Tri-Packed- packed for regular arm, top jamb and
  parallel arm installations.

3/4" x 9-1/16" hole spacing

Older models may be stamped with Scoville or Eaton, which are the companies that used to own Norton.
We sometimes find 20-1624-4001, or 20-1604-4001 stamped on the back of the closer. If your door closer is stamped 20-1603-4001 or 20-1623-4001, you might want to double check the hole spacing. The 20-1603-4001 usually has a hole spacing of 3/4" x 8-3/16", you could use the International Door Closer 853 as a replacement.

We ship the 1601 Norton Door Closer, which is a non size (meaning you can adjust the spring tension), which will work in place of the 1603BC, 1604BC, 1605BC and 1606BC.

all american chrome plated construction

A=1-5/8"

102

Global Partitions Top Hinge For Flat Surface Mounting. Chrome plated Zamac die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Manufacturer part # 135580. Same part for Flush Metal and General Partitions. Shipped with mounting screws. A=1-7/6". Also used with Accurate Partition doors after January 2013.

Knickerbocker Hinge Pin For Metal 1/4" Diameter 2-3/4" Long, Known as part number 216.

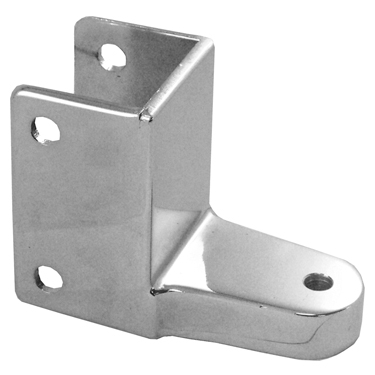

Bottom Partition Hinge For 1-1/4" Round Edge Post Or Pilaster

Chrome plated Zamac die cast construction. The hinge measures 1-1/4" deep by 2-1/8" high by 1-7/16" wide. The U part of the hinge measures 2-1/8" high by 1-1/4" deep with a slot depth of 11/16". The hole spacing is 1-1/2". The lug projects out 1-3/32" and is 1/2" thick with a 5/16" diameter hole. Also known as a Bathrrom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 4040. Used on Ampco and Metpar Metal Partitions.

Shipped with mounting screws.

A=1-7/16"

Global Complete Standard Door Kit . This door kit includes all you see and the security screws. Also known as 40-8513500. Chrome Plated. This was used up until October 2021.

Metpar Partitions Top Hinge Pin

Zinc plated steel construction. The hinge pin is 3/8" diameter by 3-3/4" long. Also known as a Bathroom Stall Door Hinge Pin. Manufacture part # 98544.

Global Partitions Bottom Hinge For Surface Mount. Stainless Steel die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-9/16" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Manufacture part # 3010, 111710, 111713. Also used with Flush Metal and General Partitions. Shipped with mounting screws. A=1-9/16". Also used with Accurate Partition doors after January 2013.

Bobrick B-672 double robe hook. Bright polished stainless steel material. The flange is 2"x2" and projects out 2-5/16" from wall.

Global Partitions Top Hinge Pin

Zinc plated steel construction. The hinge pin is 3/8" diameter by 3-3/4" long. Also known as a Bathroom Stall Door Hinge Pin. Manufacture part # 98544.

This is used for a flat wall surface mount. Cast Stainless Steel material. A=1-1/2". Also known as 3713. White plastic insert included. 1/2" diameter hole. Used with Accurate Partition doors prior to January 2013.

Bobrick Single Robe Hook B-7671 is a bright polished stainless steel finish. The flange is 2" x 2" with the hook 1-5/8" high x 13/16" wide and projects 1-5/8" from wall.

Stainless Steel unit Tumbler lock, sheet metal and heavy duty piano hinge width 11"w x 15"h x 4"d.
Dispenses 400 C-fold or 525 multi-fold paper towels without adjustment or adapters. Fabricated of 22 gauge stainless steel with #4 satin finish. Fitted with tumbler lock and heavy duty stainless steel piano hinge.

This is used for a flat wall surface mount. Cast Stainless Steel material. A=1-1/2". Also known as 3213. 3/8" diameter hole. Used with Accurate Partition doors prior to January 2013.
