Truth 333SS 4 Bar Egress Window HInge. Used on large casement windows to allow egress from buildings.

16-1/2" long, 29/32" wide.

Sold individually, non handed

A. W. Anderberg/Truth Part # 35.12.00.100

Toilet Partition Top Hinge Assembly For 1" Thick Door, 1-1/4" Pilaster Square Edge Chrome Plated

Polished chrome plated zamac die cast construction. Kit includes Top Hinge, Top Hinge Pin, and Top Hinge Door Insert. Top hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4". Also known as a Bathroom Stall Top Hinge Kit. Manufacture part number 63720.

Screws are also included.

Single prong chrome plated hook projects 3-1/8", 3" diameter, known as 0751.

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1-3/16" - 1-3/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stainless steel unplated and uses a 6 lobe head torque. Both pieces included.

Truth Single Arm Window Operator. This new style replaces the older traditional size shown in the diagrams.

To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.

We sometimes find 45251 cast on the housing, and 40051 and 40052 stamped on the arm

Left hand shown. The Wi11454 handle in matching color is included with the operator.

Round Black Plastic Chair Tips Round Tubing For 1-1/4" Outside Diameter X 1-1/8" Inside Diameter Chair Legs.

Rocker Type Plastic Chair Tips for Square Tubing with a 1" Outside Diameter X 7/8" Inside Diameter Legs. This tip is used on slated square legs and available in black.

ASI Visual Display RetroFit Boards RF. RetroFit boards fit easily over existing framed boards. No need to remove existing board. Magnetic porcelain enameled steel surface. Satin anodized aluminum trim, no tray. Factory-drilled, counter-sunk holes in aluminum frame. Installation can be done in minutes. Innovative board design offers perfect solution to old board replacement or adhering skins.

Marsh Advantage

Reduces cost with less installation time. No need to remove existing board. Marker packet sent with each Marsh Retro-Fit markerboard. Installation hardware sent with board.

Pella Casement Operator

Left Hand Shown

Irwin Bleacher Wheel. 3/8" axle x 1" Tread x 4" Diameter. 1-3/16" hub. This wheel is also used with Folding bleacher Company & Hussey. Load approx. 125 -140 lbs.

Threaded spring clip for round tubing legs. 1/4-20 thread for use with our LA10625 and SLA12525. 1 1/4" outside diameter, 1 1/8" inside diameter.

The Truth Encore Handle and Cover are used on the Encore Operators Wi5110 and Wi5010.  The cover are constructed on Plastic and the Handles are die cast metal.  The ones shown on the website are Right Hand and the color is Bronze.  Once color is selected and hand, the different hands will appear, the color is not correct.

Truth Part Numbers 12614 (Left Hand) and 12616 (Right Hand).

Color Chart

Fiat Partitions Pintle 5/8" Diameter For Steel Doors

Steel and white nylon construction. The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.

Shipped with nut and lock washer.

Global Partitions Pintle 5/8" Diameter For Steel Doors

Steel and white nylon construction. The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.

Shipped with nut and lock washer.

Folding Bleacher Wheel. 3/8" axle x 1" Tread x 4" Diameter. 1-3/16" hub. This wheel is also used with Hussey bleacher Company. Also known as 10011132. Load approx. 125 -140 lbs.

Right hand shown in picture. Facing the lock hinges are on the Right Hand Side.

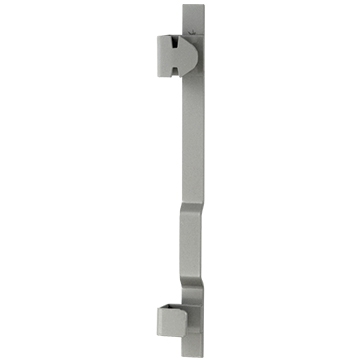

Penco Locker Two Person latch Bar for a Right handed Locker. Used 1970-1984, also known as 60861c.

LCN Hold Open Arm Wrench T-1157

This wrench is used to adjust LCN Friction Hold Open Arms,
one side if for the 1-1/2" nut and the other is 1-3/16"

LCN part # T-1157

Monarch 25-V Series Center Case Cover Kit

Replacement cover for the Monarch Falcon 25-V Exit Device.   Kit includes cover and the mounting screws.

Falcon Part # 650257

Ives Wall Bumper Heavy Duty WS401CCV

Features:

• Special retainer cup makes rubber tamper resistant.
• Constructed in heavy-duty cast brass or aluminum base.
• The WS401CCV unit is designed with a concave rubber bumper which avoids damage to ocks with projecting buttons, packed with wood screw and plastic anchor.

2-1/2" diameter with a 1" projection

Lyon Metal Locker Handle Assembly for right handed lockers, facing the locker if the hinges are on the right side then they are a right handed locker. Assembly includes case, lift and 4 screws. November 1965- September 1981. Also known as 6741 and 6742, 75030, ly2230, ll1746. Hole spacing for the lift is 1-3/4". Hole spacing for the case that mounts to the locker is 3-1/4".

Lyon Metal Locker Handle Assembly for left handed lockers, facing the locker if the hinges are on the left side then they are a left handed locker. Assembly includes case, lift and 4 screws. November 1965- September 1981. Also known as 6741, 6756, 75031, ly2231, ll1748.Hole spacing for the lift is 1-3/4". Hole spacing for the case that mounts to the locker is 3-1/4".

Torque Head Barrel Nut Shoulder Screw for 1-3/16" - 1-3/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe  head torque. Both pieces included.

International 53K01 Lever Trim

The International 53K01 Lever Trim is for the 5000 Series International Door Closer exit device.  The rose diameter is 3-3/8", with a lever length of 4",  and the projection is 3".  Available in Aluminum or Dark Bronze colors.   Available in Dummy, Passage, Classroom and Storeroom functions.   Classroom function the  key locks and unlocks the Lever Handle, if you turn the key one way it is  only unlocked for that one passage, if you turn the key the other way, the Lever is unlocked until it is locked again.   Storeroom/Night Latch function the Lever is always locked. Passage the lever is always free to open the door, it is never locked.  Dummy the lever is stiff and only acts as a pull.

53K01A Classroom/Cylinder
53K01B Passage/Blank
53K01C Storeroom/Nightlatch
53K01D Dummy

Toilet Partition Continuous 'U' Wall Bracket For 3/4" Thick Panel 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 57" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Continuous U Wall Bracket. Manufacturer part # 2069.

Screws included with bracket.

Toilet Partition Continuous "U" Wall Bracket For 1" Thick Panel Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 54" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Manufacturer part # 2799.

Screws included with bracket.

Used on chairs and table, so you can use an adjustable height gilde. Used with the LA10625 or SLA12525. 1/4-20 Thread, 1-1/4" outside diameter and 1-1/8" inside diameter.

Partition Door Integral Hinge Set Top & Bottom. The bottom pin is 4-7/8" high & the top pin 3" X 1/2" high. Most manufactures used this integral hinge pin set for solid plastic partitions. The Pilasters next to the door are cut out for this door to fit in it. The hinge pins break often due to swinging on the door which causes the pin to bend and breaks the door. Manufacture part #7005.

Sargent Exit Device 90 Series End Plug 97-0008

Sargent 97-0008 End Plug and 01-001 End Plug Screw.  Fits the 90 series cross bar panic devices.

Cal Royal 7000 Lever Trim

• Partition Door Privacy Strip are aluminum construction
• 1-1/8" x 72" ht.
• Also known as 121975.
• Partition Door Privacy strips are designed to eliminate any gaps between door and pilaster. Add your own self threading screws to complete the job, includes 1 privacy strip
• This product ships in an oversize box ground.

Cal Royal A2200V Surface Vertical Rod

Grade 1
Non handed-field reversible
Heavy gauge steel, painted
4-1/2" minimum stile width

24" wide x 84" high, and 32" wide and 84" high also available in aluminum only.

Chrome Plated U Bracket For 3/4" X 1-1/2" X 1-3/8. If your toilet partition or bathroom stall wall bracket is cast with the number 1890 on the back, then you have the U Bracket for 3/4″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall U Bracket, or “U” Wall Bracket.

Jackson Exit Device 1095 active housing. Includes everything shown in picture.
The distance between the mounting studs is 6-5/16".

Jackson part # 30-988 Right Hand Body
Jackson part # 30-989 Left Hand Body

Left Hand Housing shown in the aluminum finish.

Medart Locker Recess Lift, Right hand shown in picture. Facing the locker the Hinges are on the Right Hand side.
