Yale 50 Series Door Closer

• ANSI A156.4, Grade 1
• 10-year warranty
• Non-handed
• Rack-and-pinion design
• Cast aluminum body
• 1-3/8" (35mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Standard, separate and independent, latch, sweep
  and backcheck intensity valves
• 2-7/8" (73mm) projection
• Tri-Packed- packed for regular arm, top jamb and
  parallel arm installations.
• All standard arm applications allow

Older models may be stamped with Scoville or Eaton, which are the companies that used to own Norton
We some times find 20-0054-4001 or 20-0254-4001 stamped on the back of the closer

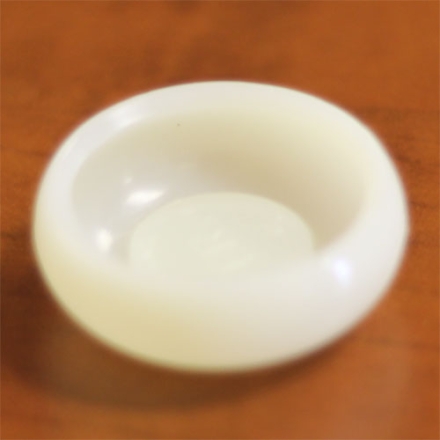

Smooth Bottom Glide Cap Protective Chair Tip

This Glide Cap has a smooth bottom to prevent your chairs from scratching your floors, while at the same time extending the life of your current glides. This cap will fit on all of our Metal and Nylon Based Swivel Glides.

This Glide Cap is designed for use with our SGR Glides, or Swivel Glides Round 1-1/4" bases.

LCN Door Closer Regular Arm

Specify your current closers model number when ordering. Not all
of the LCN closers have the same shape spindle on the door closer
cylinder. The LCN Part #'s on this Regular Arm is: 1260-3077, 1460-3077, 4010-3077, 4020-3077, 4040-3077

Norton Door Closer Covers

Replacement Norton Door Closer Covers, made of impact resistance plastic.  Covers are available for the 1600, 7500, 8300, and 8500 Series Door Closers.

Dorma RTS88 Series overhead concealed door closer for both
single and double-acting doors. The RTS88 will consist of a steel
cam, rollers, and springs housed in a compact cast iron body.
Closers will be capable of being installed in minimum 1-3/4" x 4"
headers. RTS88 will have maximum door opening to 90º or 105º,
trim conditions permitting. Sweep and latch speed will be
controlled by two noncritical adjustment valves from 90º or 105º
to closed. Built-in pressure relief valve will protect the closer from
abuse caused by forced closing. A mechanical backcheck
combined with a positive stop at 90º or 105º will be provided to
protect the door and frame. The RTS88 closer will be available
with hold open at 90º or 105º, or without hold open. The product
shown here is just the replacement cylinder.

Yale 4400 Door Closer

• Non-handed
• Rack-and-pinion design
• Cast aluminum body
• 2-1/8" (54mm) projection
• 1-1/2" (38mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Staked valves
• Standard, separate and independent, latch, sweep and
  backcheck intensity valves
• Backcheck positioning valve
• NorGlide® fluid
• Molded plastic cover
• All standard arm applications allow doors to swing 180°,
  conditions permitting
• Self-drilling screws
• Full-size template
• 10-year limited warranty

2-3/8" x 6-3/4" hole spacing. This door closer replaces the 4400BF. This newer version is Barrier Free Compliant.

The ALREX hinge is a full function hydraulic door closer hinge. It contains all the features of a door closer, closing and latching speed control, power adjustment, and optional hold open feature. They are available in 4, 4.5 and 5 inch (leaf height), and are currently available in Stainless and Black finishes.

Package includes 2 hydraulic closer hinges and one dummy, for a standard 3 x 7 foot door, 100 pound door.

Door Handing:

The NortonSeries 78-B/F Traditional Surface Closers represent a combination of traditional styling and modern closer features. All closer sizes are contained within a single size aluminum alloy shell. Templates for installing this closer are the same for all closer sizes.

The CRL PR90 is a Grade 1 door closer, the heaviest rating possible.  The template is the same as the LCN 4040 with the same features, latching speed, closing speed, back check and power adjustment from size 1 ADA compliant to size 6.

We offer the Standard Cylinder PR90 and also the Delayed Action PR92. Delayed Action will hold the door open for 15-20 seconds to allow handicap individuals to clear the opening before the door closes.

Plastic Cover

Specify your current closers model number when ordering. Not all
of the LCN closers have the same shape cover on the door closer
cylinder.

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Square edge for Plastic Laminate
All Hardware included

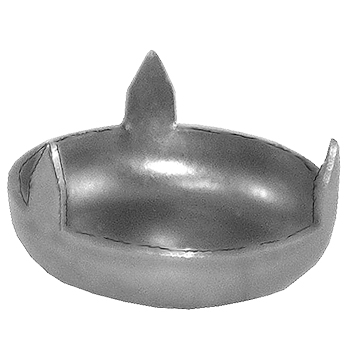

3 Prong 5/8" Slide For Wood Furniture

5/8" base diameter. Metal base slide for wood furniture. You should use a diameter that aproximately half the diameter of furniture leg.

3 Prong 7/8" Slide For Wood Furniture

7/8" base diameter. Metal base slide for wood furniture. You should use a diameter that aproximately half the diameter of furniture leg.

Low Rise Tip-n-Roll Standard Aluminum Bleachers 3 and 4 rows high. Aluminum angle under structure 6" rise/row. First row seat 11-1/2" rise with 5" casters with non-marring wheels and non-marring foot pads. We offer for a 3 row high 7'6" wide for a 15 person maximum, 12' for 24 person maximum or a 15' for 30 person maximum. 4 row high bleachers are 7'6" wide for a 20 person maximum, 12' for a 32 person maximum and a 15' for a 40 person maximum seating.

Call for pricing*********

Safway Bleacher Slide Arm Nose Guide./p>

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Thick Doors- Square Edge for Plastic Laminate
All Hardware included

ADA Concealed Latch Fix it Kits for metal partitions. For 1" thick doors with a round edge. All Partition security hardware included. ADA Stainless Steel Slide Bolt Latch with Indicator, Keeper and with Stainless Steel "U" Shape cover for both sides of door. Also known as 126629.

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

Sargent 1330 Door Closer

Grade 1 requirement, non sized and non handed, heat treated rack and pinion for longer life, separate closing, latching, back check and power adjustments, and a 10 year warranty. The aluminum color is in stock, dark bronze finish may take a few days to ship.

We ship the 1331-JUO
3/4" x 12" hole spacing

LCN Door Closer 4050 Rw/PA

This new LCN Door Closer is a direct replacement for the Norton 7500 and Yale 4400 Door Closers.  It features, a cast aluminum cylinder, 2-3/8” x 6-3/4” hole spacing, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

1. Works with most Foam Hand Sanitizers or Foam Soaps
2. Ideal for use in offices, schools, warehouses, food service facilities, manufacturing, hospitals and much more
3. Stand elevates to the perfect height for sanitizing hands on-the-go
4. ADA compliant in force and one-handed operation
5. Accessible to people with disabilities
6. Made with durable ABS plastic
7. Top dispensing technology reduces risk of leaking valves
8. Automatic, hands free operation for improved hand hygiene
9. Four C batteries (not included) for longer life
10. 1200mL capacity dispenser Bulk Fill
11. Site window to easily monitor the soap level
12. Equipped with lock and key

International Door Closer 5000 Series

1. ADA (Handicap) multi-sized closer with adjustable spring power
2. Adjustable spring power 8 1/2 lbs to Size 5; Adjustable after installation
3. Rack and pinion mechanism is contained in a high tensile precision cast aluminum housing
4. Finishes available in Aluminum (AL), Hardware Bronze - Storefront Bronze (DU)

Ships with regular arm and parallel arm bracket

Hole spacing 3/4" x 12"

The Sico Rubber Table Glide-Rubber Chair Tip is for use on Sico folding and non folding legs, having 1" outside diameter legs. Steel washer in base for added support.  An ideal replacement might be our reinforced Rubber Chair Tip RCT100XTC

Sico part # 178

Cal Royal 700 Series Door Closer

Adjustable closing and latching speeds
3/4" x8-3/16" for sizes 2 and 3, and 3/4 x 9-1/16" for size 4 holes spacing
Powder Coated Painted Finishes
5 year warranty

LCN Door Closer Hold Open Arm

Adjustable nut allows door closer arm to lock when the preselect position is reached.

Specify your current closers model number when ordering.
Not all of the LCN closers have the same shape spindle on the door closer
cylinder. The LCN Part #'s on this Regular Arm is: 1260-3049, 1460-3049, 4010-3049, 4020-3049, 4040-3049

Tip- Proof Flag Stand - 1 1/4". Cast stand with universal bore. Supplied with adapter sleeves to accommodate various pole diameters. Indoor Flag Stand use only. This flagstand is 10-3/4" diameter and 5-1/2" high. The flag base weighs 9 pounds.

International Door Closer 520 Main Arm

International Door Closer part # 520

Standard 3030 series closer shipped with regular arm and wood and
machine screw pack. Sized cylinders for interior doors to 4’0”.
Handed for right or left swinging doors.
Closers to meet ADA requirements.

We ship the 3031 REG

LCN Door Closer 1450 Rw/PA

This new LCN Door Closer is a direct replacement for the Norton 8000 and Yale 3000 Series Door Closers.  It features, a cast aluminum cylinder, 3/4” x 12” hole spacing, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Low Rise Tip-n-Roll Preferred Aluminum Bleachers 3 and 4 rows high. Aluminum angle under structure 6" rise/row. First row seat 11-1/2" rise with 5" casters with non-marring wheels and non-marring foot pads. We offer for a 3 row high 7'6" wide for a 15 person maximum, 12' for 24 person maximum or a 15' for 30 person maximum. 4 row high bleachers are 7'6" wide for a 20 person maximum, 12' for a 32 person maximum and a 15' for a 40 person maximum seating. Preferred Tip-N-Roll Bleachers have 2 foot planks between rows.

Call for pricing********

LCN Door Closer 1250 Rw/PA

This new LCN Door Closer is a direct replacement for the Norton 1600 and Yale 50 Series Door Closers.  It features, a cast aluminum cylinder, 15 year warranty, hole spacing 3/4” x 9-16”, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Yale 2300 Door Closer

• Spring size 2, 3, 4, 5
• Separate and independent valve for sweep speed and latch speed
• Adjustable backcheck standard
• Regular, top jamb, parallel mount
• 5-year limited warranty
• ANSI/BHMA A156.4 Grade 3

3/4" x 9-1/16" hole spacing

In April of 2023 Norton Yale have discontinued the 2300 and 9300.  The Norton 1600 will be sent in place of the 2300.   Same Hole Spacing, but adjustable spring tension.

LCN Door Closer Cush-n-Stop Arm

Non-handed parallel arm features solid forged steel main
arm and forearm with stop in soffit shoe.

Specify your current closers model number when ordering. Not all
of the LCN closers have the same shape spindle on the door closer
cylinder. LCN Part #'s: 1260-3077CNS, 1460-3077CNS, 4040-3077CNS, 4110-3077CNS

The LCN Sentronic Door Closer 3130SE is a concealed overhead door closer

Standard 3130SE series closer shipped with a standard arm, 24V or 120V SE track (please specify), track roller, and wood and machine screw pack. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted. Handed for right or left swinging door. Interfaces with fire alarm systems.

LCN Sentronic Door Closer 3130SE parts are also available.

Center Hung Door Closer

• Available (NHO) non-hold open, or (SHO) selective
  hold open. Specify degree (90 or 105°)
• Standard top pivot: 340 included
• Cycolac cement case
• Separate independent valves for closing,
  latch and backcheck adjustments
• Built-in positive dead stop prevents door
  from swinging beyond desired opening
  degree
• Vertical and horizontal door adjustment
• Arm centering adjustment
