Doromatic 1590 Latch Bolt Assembly

Replacement Latch Bolt Assembly for the Falcon Doromatic 1590.   In the old days you could just replace the PB355 (SPRING.127) spring, but as of November 2015 you have to replace the complete latch head assembly.

Doromatic Part # 4270107603

The Burns 618 Locking Pocket Door Latch is 2-3/4 inches tall by 2-1/2 inches deep. The mortise dimensions are 2-5/16 inches tall by 1-7/8 inch deep. Base metal is Brass or Aluminum depending on the finish.

Brackets designed to mount plexiglass/acrylic sheets to desk surface edge when creating separation/barrier. Brackets are adjustable for thickness from 1/8" to 3/8". It is recommended for use of 1/4" Thick material. Sold as a Pair. Made of Aluminum Alloy. Screws and inserts included. Uses a 5mm/3/16" Allen Key(Not Included) to install screws These are available in either Silver or Black Finish. Silver Finish are readily available while Black Finish may have an extended leadtime depending on quantities being ordered.

Measurements

Height: 2-1/2"

Width: 1-3/4"

Depth: 5/8"

Weight:About .9lb

Top to Bottom: 3-5/8"

Plate Width: 1-3/4"

Plate Length: 3"

Plate Height: 3/16"

Gap/Spacing: 1"

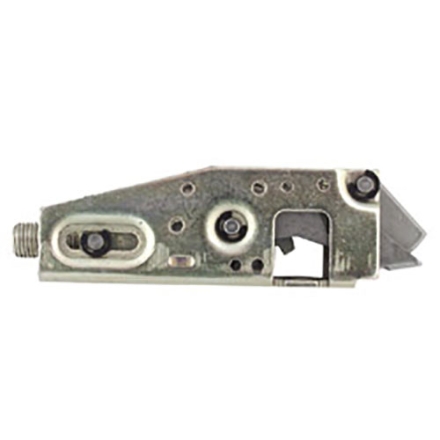

Yale 7100F Series Latch Assembly

This Yale Latch Assembly is used on fire rated panic devices. A fire rated panic is a device were you can not lock the latch in the open position. It is used on doors were the engineers want the door to latch every time it closes to contain a fire.

Yale Part # 60-7000-0425-048

Note the Hub Position of this latch is the 7100

Ives Roller Latch RL1130

The Ives Roller Latch RL1130 is a combination of the RL30 and an Angle Stop.  Tension is easy to adjust with the two tension screws on the face plate.

Brackets designed to mount plexiglass/acrylic sheets to desk top or work surface when creating separation/barrier. Brackets are adjustable for thickness from 1/8" to 3/8". It is recommended for use of 1/4" Thick material. Sold as a Pair. Made of Aluminum Alloy. Screws and inserts included. Uses a 5mm/3/16" Allen Key(Not Included) to install screws These are available in either Silver or Black Finish. Silver Finish are readily available while Black Finish may have an extended leadtime depending on quantities being ordered.

Measurements

Height: 2-1/2"

Width:1-3/4"

Depth: 5/8"

Weight:About .6lb

The Stainless Stel Indicator Latch and Keeper are designed to work with for 1" doors and 1-1/4" pilasters thickness. Constructed of stainless steel with a brushed finish. Comes fasteners for installation. Known as manufacturers part numbers 905200,910128 and 910129.

Von Duprin 8827 Top Latch Case for non fire rated doors. This is the part that may be causing your bottom latch to drag on the floor. The Top Latch does all the work on the Von Duprin 8827. When the Top Latch is retracted, it holds the rods in the retracted postion.

Von Duprin part # 050460
Old Part # 101750

Ives Roller Latch RL32

The Ives Roller Latch RL32 is constructed of Brass and Plated to your desired finish.  The body measures 1-1/8" wide by 2-1/4" high and 2-1/4" deep.  The roller is constructed of Nylon, and has an adjustable projection up to 1/2".  Fits a standard heavy-duty cylindrical lock cutout.

Von Duprin 8827-F Top Latch Cover Kit - 050465

This is the Top Latch Cover for the Von Duprin 8827-F. The 8827-F is the Fire Rated Surface Vertical Rod device usually used on interior doors to contain a fire. The Fire Rated version would not have dog screws to lock the device in the retracted postion.

Von Durpin Part # 050465
Old Part # 961206

Monarch 19-24-25-XX Latch Cover 3781

This Latch Cover is used on the Monarch Falcon 19, XX, 24 and 25 series devices.  Used to go by then number 3781, but the factory is now using the number 650202.

Falcon Part # 650202
Old Monarch Part # 3781

Ives Roller Latch RL30

The Ives Roller Latch RL30 is constructed of Forged Brass and Plated to your finish.   Furnished with a Nylon Roller.   Body measures 1" wide by 3-3/8" high by 1-11/16" deep. The roller has a maximum projection of 3/8" and is easily adjustable.

Sargent Latch Bolt Spring.

Used to put tension on the latch bolt of the 20, 30, 60, and 80 Series Sargent exit devices

Sargent Part # 98-0028

Aurora Steel Product Locker Latch Only. Also known as 20501, 7220, 81016, au6606.

Jackson Exit Device replacement 1295 Latch Assembly.

Jackson Part # 302679

Corbin Russwin ED5400 / ED4400 Top Latch

The Corbin Russwin ED5400 / ED4400 Top Latch is used on the Non Fire Rated ED5400 and ED4400 Exit Devices.

Corbin Russwin Part # 650F55-8

Window Spring Latch

This spring latch features 1-3/8" hole spacing. They are used on older transom windows. White Bronze casting, nickel plated and then brushed

Von Duprin 22, 33, and 9927 Top latch

This latch is used on the 2227, 3327A, and 9927 Surface Vertical Rod Devices. This latch is for use on devices shipped after October 1998. This is usually the problem if your bottom rod is dragging on the floor. Includes screws.  The mounting bracket is sometimes included, and sometimes they are not.  Call us and we will check.

Von Duprin Part # 050400

Bobrick 1080/1090 series phenolic reinforced composite wall privacy. All standard stainless steel brackets included with option of a continuous full length stainless steel channel for back wall. The 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

Bobrick 1080/1090 series phenolic reinforced floor mount privacy. All standard stainless steel brackets included with option of a continuous full length stainless steel channel for back wall. The 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

Corbin Russwin 650F738 Upper Latch used on the ED4800 Narrow Stile Concealed Vertical Rod devices.

1695mkada Master Lock, Built-in lock for ADA single point latch lockers designed for Wrap Around Latch Technology, automatic deadbolt locking, right-hand hinged door, with Master key enabling. Includes 2 student keys with ADA key head. Order Master Key separately.
ADA For Single Point Lockers. Spring latch locks automatically.
RH Only
1-2 week lead time

The 8-32 screw set for the diamond shaped latches. This thread is special to the chrome or stainless steel diamond shape looking surfacemount latch. Note the screw length is 1-1/8" and is a one way screw, the female portion is included and is slotless head. This is for a 1" door.

Von Duprin Exit Device 47 Bottom Latch Kit 050493

This Von Duprin Concealed Bottom Latch is used on the 33A, 35A, 98 and 99 exit devices.

Von Duprin Part # 050493
Von Duprin Old Part # 106780

Yale 7200 Latch Assembly, used on the Narrow Stile Exit Device.

Yale Part # 60-7200-0354-048

Note the position of the hub on this latch is the 7200

Republic Storage Handle Latch Stud Only. Also known as 72009, 2575, 70015, rs1120.

Two person latch bar 1962-1970 9-9/16"length

Von Duprin 88 Latch Tail, Spring and Rivet Kit

The Von Duprin Part # 050500 includes the 1 Latch Tail, 2 Latch Tail Rivets, and 2 Latch Tail Springs.

Von Duprin 2227 Bottom latch.

Replaces and updates all 2227 bottom latches to the new style if you device was shipped before October 1998. If your device was shipped after October 1998 then use the G050401.

Includes screws and bracket

Von Duprin Part # 050090

ASI Locker Nylon Latch Clip used with ASI, Edsal, List Industries and Penco lockers. Manufactured in the USA for the past 25 + Years. Also known as 8651, 60501, 4125, 74016, pn3310, lp8827, ls645. This part attaches to the lock bar that rides vertically and latches on the locker frame hook to secure and lock it. This is a very common part to break due to it being a plastic catch clip.
