Doors

Monarch Falcon 3788 Strike Top Strike

The Monarch Falcon 3788 Top Latch Strike is used on the 19-V, 24-V, 25-V and XX-V devices.

Falcon Part # 3788

Monarch Falcon 299 Strike for 25-R and 24-R Devices

The Monarch Falcon 299 Strike is used on the 25-R and 24-R Devices.  The 299 strike measures 1-1/4" wide by 2-7/8" high with a slotted hole spacing of 2-1/8". The roller projects out 13/16".  This strike is the same as the Von Duprin 299 Strike.

Ships with shim and mounting screws

Falcon Part # 299

Monarch Falcon 25-V Vertical Rod Exit Device

The Monarch Falcon 25-V is designed for high-traffic applications were added strength and durability are required.  The device includes all strikes and mounting screws required for installation.  Available in 3' and 4' devices, the 3' device is for doors 30" to 36", the 4' device is for doors that are 37" up to 48" wide.  The vertical rods furnished with this device are for doors up to 7' tall, if your doors are taller, please contact us.

Monarch 24-R Series Center Case Cover Kit

Replacement cover for the Monarch Falcon 24-R Narrow Stile Exit Device.   Kit includes cover and the mounting screws.

Falcon Part # 650247

Monarch 25-V Series Center Case Cover Kit

Replacement cover for the Monarch Falcon 25-V Exit Device.   Kit includes cover and the mounting screws.

Falcon Part # 650257

Monarch 19-24-25-XX Latch Cover 3781

This Latch Cover is used on the Monarch Falcon 19, XX, 24 and 25 series devices.  Used to go by then number 3781, but the factory is now using the number 650202.

Falcon Part # 650202
Old Monarch Part # 3781

Monarch 19-24-25-XX Top Latch 588

Monarch 19-24-25-XX Top Latch 588 for non Fire Rated Doors.  This latch has a long history, the old number is 588, and the new number is 650389.  A non Fire Rated door is usually an exterior door, or a door that is not designed to contain the spread of fire.

Falcon Part # 650389

Monarch 25-R Series Center Case Cover Kit

Replacement cover for the Monarch Falcon 25-R Exit Device.   Kit includes cover and the mounting screws.

Falcon Part # 650255

Monarch 24 / 25 Series Channel End Cap Kit

This end cap is used on the Falcon 24 and 25 series devices.  Used to go by then number 600270, but the factory is now using the number 650294.  Includes bracket, screws and end cap.

Falcon Part # 650294

Monarch 25-R Center Case Kit

The Falcon / Monarch 25-R Center Case Kit 650239 for non Fire Rated Doors.  A non Fire Rated door is usually an exterior door, or a door that is not designed to contain the spread of fire.

Falcon Part # 650239

LCN Arm Screw

This screw goes by the number 4040-159, 4110-159, 4020-159, 1260-159, 1260-159, 4040-159 and 4040SE-159.   The screw has a 3/4" diameter head, 1/2" high with a 1/4" diameter shaft with 20 threads per inch (1/4-20 screw).

LCN Sentronic Door Closer Arm - 4040SE-3077T

This arm will only work on the 4040SE. If you have another LCN Sentronic Model, we can special order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, ect..) and the hand of the door.

LCN Part # 4040SE-3077T

LCN Sentronic 4310ME-72MC Cover

Replacement metal cover for the LCN 4310ME Door Closer

Manufacture Part #:  4310ME-72MC

Adams Rite 8800 Exit Device

The 8800 features the Starwheel locking bolt that interlocks door to the door frame.  This device is used exclusively on aluminum framed glass storefront doors.  If your door is 35" wide, then you would order the 36" device.  We want to make sure they device is wide enough to span the glass on the storefront doors.  Replacement parts are available.

LCN 8310-3857TW Actuator Package

Actuator package, 4-3/4" Square, includes:
2 8310-853T Wireless Wall Mount Actuator
2 8310-867S Surface Mount Boxes
2 8310-801  Weather Ring
2 8310-844 Jamb Mount Transmitter
1 8310-865 Receiver

LCN Part # 8310-3857TW

LCN 8310-3860TW Actuator Package

Wireless  Actuator package, 4-1/2" Round, includes:
2 8310-856T Wireless Wall Mount Actuator
2 8310-868S Surface Mount Boxes
2 8310-800  Weather Ring
2 8310-844 Jamb Mount Transmitter
1 8310-865 Receiver

LCN Part # 8310-3860TW

LCN 8310-3822TW Actuator Package

This package is recommended for interior use only!   Actuator package, 1-1/2" x 4-3/4", includes:
2 8310-818T Wireless Jamb Mount Actuator
2 8310-819S Surface Mount Boxes
2 8310-844J Jamb Mount Transmitter
1 8310-865 Receiver

LCN Part # 8310-3822TW

Sargent Exit Device 90 Series End Plug 97-0008

Sargent 97-0008 End Plug and 01-001 End Plug Screw.  Fits the 90 series cross bar panic devices.

Monarch Exit Device 914KIL Lever Trim

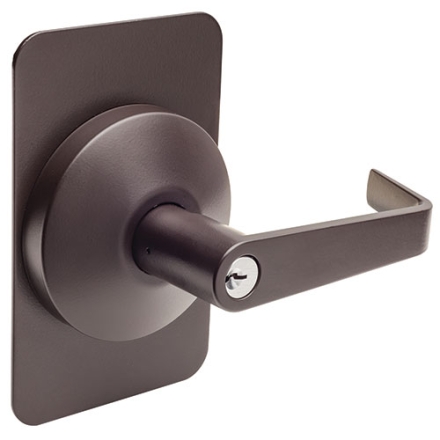

The 914KIL Lever Trim is for use on the Monarch / Falcon 19 Series.  This lever trim is shipped with a standard Schlage C Keyway, that are keyed different if you are ordering multiple levers.  The key locks and unlocks the Lever handle.

Monarch Falcon Part # 914KIL-KD

Monarch Exit Device 912L Lever Trim

The 912L measures 7-1/4" high by 1-3/4" wide and the mounting plate is 5/8" thick.  We ship these with the Dane Lever, which projects out 2-7/8" in the Classroom function.  This lever is for use on the Monarch/Falcon 19 Series.  On the Night Latch function the key locks and unlocks the lever handle, the Key Cylinder is not included.  This lever trim is field reversible, so handing is not needed.  We offer this Lever Trim in Painted Aluminum, Painted Dark Bronze, and Brushed Satin Nickel.

Monarch Part # 912L Dane

Sargent Door Closer Heavy Duty Compression Holder Arm

Forged Steel Arm 11-1/4" long, non handed, will work left or right for Parallel Armed Sargent Closers.  Permits 105 degree opening with built in compression stop and holder mechanism.

Sargent Part # 25-CPSH

Corner Guard CG-10 3" x 3"

90 degree 3” x 3” vinyl corner guard with aluminum retainer.  Vinyl flex action absorbs impact, and is .100” thick, the aluminum retainer is .062 thick.  Available in 4, 8 and 9 foot lengths.  Top and bottom end caps included with the corner guard.

Von Duprin Electric Strike 6114 24VDC

Von Duprin 6100 Series electric strikes are designed for use with Rim devices.  The 6114 has a 3/4” latch bolt throw, 7” face plate length, 1-7/8” width, and projects1-9/16”.  The lock retrofits the Folger Adams FD 310-5.  Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

Von Duprin Electric Strike 6113 24VDC

Von Duprin 6100 Series electric strikes are designed for use with Rim devices.  The 6113 has a 3/4” latch bolt throw, 6” face plate length, 1-5/8” width, and an 1-15/16” backbone depth.  The lock retrofits the VD 3011 and VD 3021.  Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

Von Duprin Electric Strike 6112 24VDC

Von Duprin 6100 Series electric strikes are designed for use with Rim devices.  The 6112 has a 3/4” latch bolt throw, 9” face plate length, 1-5/8” width, and an 1-3/4” backbone depth.  The lock retrofits the Folger Adams FA 310-4.  Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

Von Duprin Electric Strike 6111 24VDC

Von Duprin 6100 Series electric strikes are designed for use with Rim devices. The model 6111 retrofits model number VD 3031, and measures 1-5/8” wide, 6” high and has a backbox depth of 1-3/4”.    Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

LCN Door Closer 4050 Rw/PA

This new LCN Door Closer is a direct replacement for the Norton 7500 and Yale 4400 Door Closers.  It features, a cast aluminum cylinder, 2-3/8” x 6-3/4” hole spacing, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

LCN Door Closer 1450 Rw/PA

This new LCN Door Closer is a direct replacement for the Norton 8000 and Yale 3000 Series Door Closers.  It features, a cast aluminum cylinder, 3/4” x 12” hole spacing, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

LCN Door Closer 1250 Rw/PA

This new LCN Door Closer is a direct replacement for the Norton 1600 and Yale 50 Series Door Closers.  It features, a cast aluminum cylinder, 15 year warranty, hole spacing 3/4” x 9-16”, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Von Duprin Steel Mullion 4954 7'6"

The standard mullion used on most double doors with the Von Duprin Exit Devices.  We ship the 7'6" mullion, if you need the 8'6" or 10'6", please call.  Package includes the 050390 and 050335 top and bottom brackets.

Von Duprin Mullion Weather Stripping

Von Duprin 050580 10' Weatherstripping for the 5654 and 5754 Mullions.  Each strip is 10' long and two would be required per mullion.  This product is specific to Von Duprin products and will usually only work on Von Duprin Products.

Jackson Exit Device 1285 Push Pad End Cap Package

Package includes two end caps, one bracket mounting screw, and 4 end mounting screws. This product was just upgraded to a metal cover, which will replace the old plastic cover.

Old Jackson part # 30-2661
New Jackson Part # 30-2652-628 or 30-2652-313

Jackson Exit Device 1295 Push Pad End Cap Package

Package includes two end caps, one bracket mounting screw, and 4 end mounting screws. This product was just upgraded to a metal cover, which will replace the old plastic cover.

Old Jackson part # 30-2677
New Jackson Part # 30-2654

Norton Door Closer Rod and Shoe

The Norton Rod and Shoe 7701-11 and 7701-11A come in two different lengths, 8-7/8" anc 12-1/2".  The length is measured from the end of the bar to the center of the eyelet.

Norton Part #'s:
8-7/8" Long  7701-11
12-1/2" Long 7701-11A

International Door Closer 3010-DP Bottom Pivot

Adjustable dual purpose bottom pivot set

International Part # 3010-DP

The Von Duprin 050671 and 050814 solenoid have been discontinued.  All of our stock is gone.  Von Duprin has come out with a retrofit kit to update your E996 Lever to the M996 Lever. The kit changes out the solenoid for a mortorized version, more robust and uses less current. The newer version can be found by searching for M996.

This solenoid is used on the E996 Electrified Lever Trim.  The Solenoid body measures 1-3/8” x 9/16” diameter, mounting bracket has a 3/4” on center hole spacing.  The wiring harness has a two wire plug.  We some times fine the number 991342 on the solenoid.

New for 2024 Von Duprin has come up with a Mechanical Electrified Conversion kit. This kit converts the EL Solenoid to a Mechanical Electrified Trim.  More information can be found @ https://www.robertbrooke.com/von-duprin-m996l-retrofit-kit.html

Von Duprin Part # 050814
Von Duprin Part # 050671
