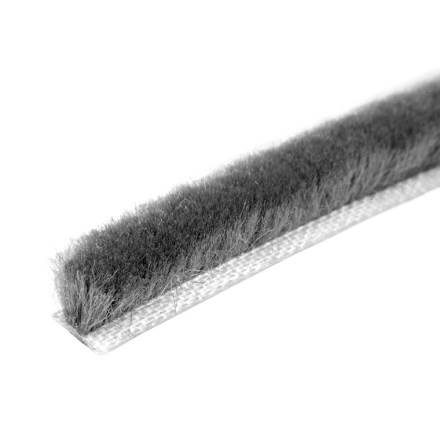

Zipper Pile Weatherstrip .270" Backing - .200" Pile Height - 100' Roll

Replaces Old or Worn-Out Pile Weatherstripping in Doors and Windows. New Zipper Tooth Design Allows Pile to Easily Snap in from Above the Extrusion Slot. High Density Gray Pile with Double Center Fin.

Single Left Door Latch -- Rests firmly against door jamb. Shown without optional lock. Lock prevents theft.

Corbin Russwin Adjusting Nut 483F35-8

This Corbin Russwin Adjusting Nut is used on the Corbin Russwin Mortise Lever Locks. It threads into the end of the spindle. 2-3/8" overall length, 9/16" thread length, 1-15/16" bolt length. The threads are 1/4-28.

Corbin Russwin part # 483F35-8

Intermediate Hinge IP-2202 and IP-2201

Cast aluminum construction with steel bearings and axle. The set measures 3-1/2" tall with an 1-3/8" projection. This hinge is usually used an an intermediate hinge in between the top and bottom hinge.

Manufacture part # IP-2202 and IP-2201
IP-2202 is for Right Hand Doors
IP-2201 is for Left Hand Doors

Zipper Pile Weatherstrip .270" Backing - .250" Pile Height - 100' Roll

Replaces Old or Worn-Out Pile Weatherstripping in Doors and Windows. New Zipper Tooth Design Allows Pile to Easily Snap in from Above the Extrusion Slot. High Density Gray Pile with Double Center Fin.

TH1110 Arch/Vista Wall Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

TH1112 Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

TH1114KM Pitco Style Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

TH1114U US Alum Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

TH1100 Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

Handing diagram

TH1118-B Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

Intermediate Hinge TH1121 Kawneer Style

Male mounting bracket measures 1-5/16” wide by 2-3/16” high, with a hole spacing of 13/16”.  Female mounting leaf measures 1-7/16” high by 1-9/16”, with a hole spacing of 3/4” center to center. These hinges are non handed.

The TH1300 YKK Offset Pivot Set is commonly found on YKK aluminum framed storefront doors. This is not the only one they use, but the only one we can get.

Ives 7212 Pivot Set

• Handed
• Top, header mount
• Bottom, jamb mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram

2-1/4" knob pinned to a straight spindle. The inside kob is attached
with two case hardened set screws. 3/8-20 tread on knob and spindle.

Install A Lock Cylindrical

Repair and reinforce existing doors with this wrap around trim. A great way to repair doors that have been pried or forced open. Select your back set, the distance from the edge of the door to the center of the bore, door thickness, and color. Available in Stainless Steel, and Polished Brass.

2-1/8" bore x 9" tall x 4-1/4" wide.

Zipper Pile Weatherstrip .270" Backing - .300" Pile Height - 100' Roll

Replaces Old or Worn-Out Pile Weatherstripping in Doors and Windows. New Zipper Tooth Design Allows Pile to Easily Snap in from Above the Extrusion Slot. High Density Gray Pile with Double Center Fin.

• Use with 7212, 7212V or 7222 3/4 Offset Pivot
• Handed
• Vertical adjustment 3/16", include positive locking.

Handing diagram

Standard duty brass 2-1/4" knob is pinned to swivel spindle for 1-3/4" door.
Outside spindle is 3/8" solid center and inside spindle is 9/32". Inside knob
threaded 3/8-20 with two case hardened set screws.

Install A Lock Lock And Deadbolt

Repair and reinforce existing doors with this wrap around trim. A great way to repair doors that have been pried or forced open. Select your back set, the distance from the edge of the door to the center of the bore, door thickness, and color.

2-1/8" holes with 3-5/8" centers

• Handed
• Top, header mount
• Bottom, base plate mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram

Heavy duty knob set. Replaces the Corbin #1419 with #32 spindle.
Outside knob is pinned to spindle and inside knob is held by
two 5/16" case hardened set screws. Spindle is on 3/8" diameter
center on outside half and inside spindle is threaded 3/8-20

• Use with 7212, 7212V or 7222 3/4 Offset Pivot
• Handed
• Vertical adjustment 3/16", include positive locking.

Handing diagram

Swivel spindle, 4-3/4" long,
plain centers, 20 tpi

Install A Lock Deadbolt

Repair and reinforce existing doors with this wrap around trim. A great way to repair doors that have been pried or forced open. Select your back set, the distance from the edge of the door to the center of the bore, door thickness, and color.

2-1/8" bore x 4-1/2" tall x 4-1/4" wide.

Swivel spindle, 9/32" square,
18 tpi, 4-3/4" long with two 3/8" solid centers

Swivel spindle, 9/32" square,
18 tpi, 4-3/4" long with two 3/8" solid centers
and three pinning holes

Standard duty 2-1/4" knob is factory pinned to swivel spindle
to 1-3/4" door. Spindle has two 3/8" centers. Inside knob has
two case hardened set screws and spindle is threaded 3/8-18

3-1/2" straight spindle thread is 18 tpi. 2-1/4" knob

2-1/4" knob pinned to a straight spindle. The inside kob is attached
with two case hardened set screws. 3/8-18 tread on knob and spindle.

Swivel spindle, 4-3/4" long
Two 3/8" solid centers
20 tpi

Reinforcing Pivot Hinge 4" - for use with a 4" wide butt hinge

1/2" to center line of 4" hinge.
Used to strengthen and reduce vibration
to your current full mortise butt hinges.
Made of Zinc Plated Steel

These hinges are not longer handed. Please select hand when checking out, until our system is updated.

4-3/4" long
9/32" square
16 tpi

Reinforcing Pivot Hinge - For use with 4-1/2" wide butt hinges

3/4" to center line of 4-1/2" hinge pin.
Pin uses large pin and bushing.
Used to dampen vibration and increase
strength to your full mortise butt hinges.
Constructed of heavy duty cold rolled steel.
Made of Zinc Plated Steel
Supports weights up to 300 lbs

Manufacturer part # B1923
Our part # DR1923 for Right Hand, DL1923 for Left Hand

These hinges are no longer handed, you can select right or left, but the hinges will work both ways.

Swivel, 9/32" square,
16 tpi, 4-3/4" long,
with stop pin

The reinforcing pivot hinge is a good way to solve door sag issues. And also be a preventative solutions for future isses with extra heavy or wide doors. The hinges comes in two sizes 4 or 4.5 inches, and two finishes, prime coat and satin chrome. The hinge uses a heavy duty ball-bearing to add extra life.  The base metal is steel.
