Doors | Burns Manufacturing

The 533 Automatic Wall Type Holder and Stop is a commercial grade door holder.  The holder is mounted on the wall and strike is mounted on the door. It is constructed of cast brass, and measures 2 x 2-1/2 base and 2-1/8 inch high. Currently it is only available in brushed chrome.

Trim Protector Bar

A great product for applications were your door knobs and levers are getting damaged due to hand carts and other items hitting door trim. Mount this product above or below existing items on walls and doors to protect and sheild them from damage.

Material: Brass, Bronze, Stainless Steel
Material Size: 3/8" x 1-1/2"
Base: 1-3/4" x 3-1/2"
Projection: 3-1/4"

The 598-12 or 5599-24 feature heavy duty steel construction to ensure maximum strength and security. The bolt measures 1/4 x 3/4 x 12 or 24 inches and ships with strikes and mounting screws. The finish in Brushed Chrome. This bolt is UL approved.

Straight Round Stock with Square Ends. 1 inch diameter material with a 2-1/2 inch projection. The base material is brass, bronze, stainless steel or aluminum. For a quote fill out the PDF with your desired dimensions, then email to sales@robertbrooke.com . For spans longer than 80 inches an intermediate post is recommended.

VP4240 PDF

Straight Post Mount with square ends. 1-1/2 inch diameter material with a 3 inch projection. The base material is brass or stainless steel only. For a quote fill out the PDF link with your desired dimensions, then email to sales@robertbrooke.com . For spans longer than 80 inches an intermediate post is recommended.

VP4242 PDF

Staight Post Mount with square ends. 1-1/4 inch diameter material with a 2-3/4 inch projection. The base material is brass, bronze, stainless steel or aluminum. For a quote fill out the PDF with your desired dimensions, then email to sales@robertbrooke.com . For spans longer than 80 inches an intermediate post is recommended.

VP4241 PDF

Stainless Steel Kick Plate Brushed 18 Gauge

Brushed Stainless Steel Kick Plate US32D18 Ga (.037") . This plate is ideal as a replacement for Brushed Chrome kick plates. Brushed Chrome Kick Plates are usually a bronze plate that is chrome plated. The problem with bronze is it is a soft metal and dents easily. The stainless steel plates are a lot harder and more resistant to dents. Brushed chrome looks identical to brushed stainless steel. Also known as Satin Stainless Steel.
Custom sizes available starting around $0.22 per square inch depending quantity

Please allow 1 week shipping time

Kick Plates come pre drilled with screws

Stainless Steel Kick Plate Brushed 16 Gauge

Brushed Stainless Steel Kick plate US32D 16 Ga (.050")
Custom sizes available starting around $0.23 per square inch depending quantity

Please allow 1 week shipping time

Kick Plates come predrilled with screws.

Stainless Steel Kick Plate Brushed 14 Gauge

Brushed Stainless Steel Kick plate US32D 14 Ga (.062")
Custom sizes available starting around $0.40 per square inch depending quantity
Same appearance as brushed chrome

Please allow 1 week shipping time

Ships with a Phillips type sheet metal screws

The 422SB Push Bar is the same as our popular 422, except it only has a single bend. The bar is made of 1 inch diameter solid aluminum, brass, bronze or stainless steel. It has a projection of 2-1/8 inches with a clearance of 1-1/8 inches. The bar is fastened to the door with a 5/16-18 thru bolt. Each bar is custom made to order.

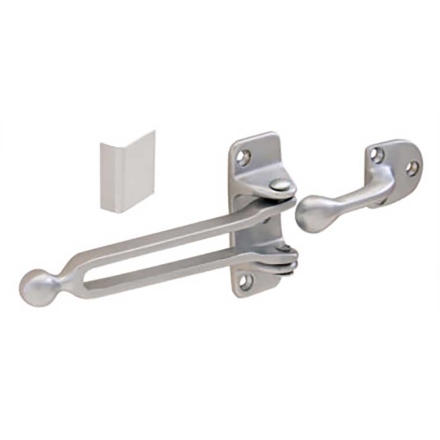

The Burns Manufacturing Security Door Guard 580 is constructed of Brass. It ships with edge protector and all mounting screws. Jamb Plate 2-5/8" × 1-1/32", Strike Plate 1-1/16" × 1-1/16", Arm Length 4-3/4"

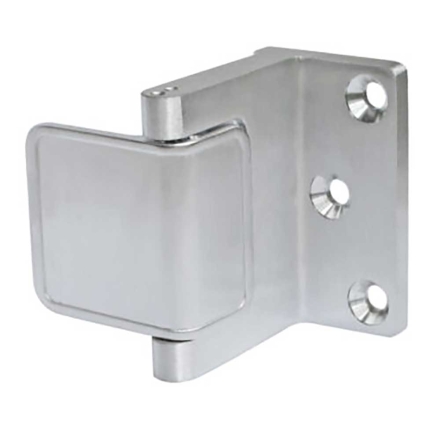

The Burns Manufacturing Security Door Guard 579 is constructed of Brass. The Guard mounts on the door frame and the base measures 1-1/2 by 1-5/8 inches. It projects out 2-3/16 inches. This product is also known as a Privacy Door Latch.

Round Profile with top and bottom radius bends. 1-1/2 inch diameter material with a 3-1/2 inch projection. The base material is stainless steel. For a quote fill out the PDF with your desired dimensions, then email to sales@robertbrooke.com . For spans longer than 80 inches an intermediate post is recommended.

VP4222 PDF

Round Profile with top and bottom radius bends. 1-1/4 inch diameter material with a 3 inch projection. The base material is brass, bronze, stainless steel or aluminum. For a quote fill out the PDF with your desired dimensions, then email to sales@robertbrooke.com . For spans longer than 80 inches an intermediate post is recommended.

VP4221 PDF

Round Profile with top and bottom radius bends. 1 inch diameter material with a 2-1/2 inch projection. The base material is brass, bronze, stainless steel or aluminum. For a quote fill out the PDF with your desired dimensions, then email to sales@robertbrooke.com . For spans longer than 80 inches an intermediate post is recommended.

VP4220 PDF

The Burns Manufacturing 455 Adjustable Push/Push units consists of 2 454 push bars and and 1 453 pull bar. They are adustable up to 36". The tubes are 1 inch round and the bases are 2 inch diameter by 2-1/2 inch projection. The base metal is brass.

Push Plate Plastic 90

1/8" thickness plastic

Push Plate 89

.125" thickness
3-1/2" x 15-3/4" Forged

Finishes

The 80 Series Push Plate is similar to the 70 series, but has a round bevel on the top and bottom of the plate. There is no bevel on the sides. These plates are  an 1/8 inch thick and are available many different finishes and size.  Custom sizes are available, and they ship with the matching finish mounting screws.

Push Plate 70

.125" thick with 4 beveled edges. Base material is either aluminum, brass, bronze or stainless steel depending on the finish. This would be considered a premium push plate.

Finishes

Push Plate 65

3" x 15" x .050

Finishes

Push Plate 62

7-1/2" x 15" x .050
Handed
LH shown

Finishes

Push Plate 61

7-1/2" x 15" x .050
Handed
LH Shown

Finishes

Push Plate 60

8" x 16" x .050

Finishes

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Push Plate 59

The push plate measures 7-1/2" wide x 15" tall x .050" thick. This plate is shipped with the mounting screws.

Finishes

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Push Plate 58

3-1/2" x 15" x 7/32"

Finishes

Push Plate 50-Most Common

.050" thick 4 bevel edge

Finishes

3 x 12" GPH312
3.5 x 15" GPH315
4 x 16" GPH416
6 x 16" GPH616
4 x 20" GPH420
8 x 16" GPH816

Push Bar with Posts has a 1-1/4 inches diameter push bar and the mounting posts are 1 inch round. The bar has a clearance of 1-1/2 inches and a projection of 2-3/4 inches. Base material is either aluminum, brass, bronze or stainless steel depending on the finish. To order specify the Color (finish), Mounting Center to Centers, Bar overall length, and Door Thickness.

Push Bar with Posts has a 1 inch diameter push bar and the mounting posts are 7/8 inch round. The bar has a clearance of 1-1/2 inches and a projection of 2-1/2 inches. Base material is either aluminum, brass, bronze or stainless steel depending on the finish. To order specify the Color (finish), Mounting Center to Centers, Bar overall length, and Door Thickness.

The M422 with M49D are constructed of 1-1/4 inch solid stock, with the material determined by the finish (color). The push bar has a clearance of 1-1/2 and the handle has a clearance of 1-1/2 inches. The projection is 2-3/4 on the push bar and 2-3/4 inches on the handle. The pull handle is 12 inches on center, with a 7 inch offset. The set comes with two 5/16-18 thru bolts and one 5/16 back to back conehead.

The 422 with 49D are constructed of 1 inch solid stock, with the material determined by the finish (color). The push bar has a clearance of 1-1/8 and the handle has a clearance of 1-1/2 inches. The projection is 2-1/8 on the push bar and 2-1/2 inches on the handle. The pull handle is 12 inches on center, with a 7 inch offset. The set comes with two 5/16-18 thru bolts and one 5/16 back to back conehead.

1-1/4" diameter materal
Offset Door Handle
Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.

Please specify either wood or metal door, and its thickness; we'll supply
appropriate fasteners.

Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes

Finishes

1" diameter materal
Offset Door Handle
Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.

Please specify either wood or metal door, and its thickness; we'll supply
appropriate fasteners.

Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes

Finishes

1" diameter material
Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.

Please specify either wood or metal door, and its thickness; we'll supply
appropriate fasteners.

Please allow 3-4 weeks on Aluminum and Dark Bronze, and 2 weeks on the other finishes

Finishes

Push Bar Adjustable 454

Finishes:
US26/625 polished chrome
US26D/626 brushed chrome
US3/605 polished brass
US4/606 brushed brass

Material: Brass
Material Size: 1" round tube adjustable up to 36"
Base: 2" round x 2-1/2"
Clearance: 1-1/2"
Projection: 2-1/2"

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.
