Provides hold-open function with templated stop/hold-open points.
Handle controls hold-open function.

Specify your current closers model number when ordering. Not all
of the LCN closers have the same shape spindle on the door closer
cylinder. This LCN Arm is known as these part numbers: 1260-3049CNS, 1460-3049CNS, 4040-3049CNS, 4110-3049CNS

Handing diagram

Angle Base 1-3/8" Window Handle-1/2 Drop With Ring Pull

Cast white bronze with a brushed nickel finish

LCN Sentronic Door Closer 4310ME

Standard LCN Sentronic Door Closer 4310ME series closer shipped with a 24V or 120V cylinder (please specify) on a mounting plate, metal cover, Swing-Free arm, track, track roller, and wood and machine screw pack. See 4310ME Series pages 23 & 24 for options. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted with Swing-Free arm engaged. Handed for right or left swinging door. Concealed or exposed electrical connections. Built-in “On/Off” switch controls hold-open function. Swing-Free arm allows door to be moved without door closer resistance. Interfaces with fire alarm systems. LCN Sentronic Door Closer 4310ME part are also available.

LCN Sentronic Door Closer 4410ME

Standard LCN Sentronic Door Closer 4410ME series closer shipped with a 24V or 120V cylinder (please specify) on a mounting plate, metal cover, regular arm, and wood and machine screw pack. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted. Handed for right or left swinging door. Concealed or exposed electrical connections. Built-in “On/Off” switch controls hold-open function. Interfaces with fire alarm systems.

LCN Sentronic Door Closer 4410ME parts are also available.

The ALREX hinge is a full function hydraulic door closer hinge. It contains all the features of a door closer, closing and latching speed control, power adjustment, and optional hold open feature. They are available in 4, 4.5 and 5 inch (leaf height), and are currently available in Stainless and Black finishes.

Package includes 2 hydraulic closer hinges and one dummy, for a standard 3 x 7 foot door, 100 pound door.

Door Handing:

Angle Base 1-3/8" Window Handle-1/4" Drop

Cast white bronze with a brushed nickel finish

Two Hole 1-3/8" Window Handle 5/16" Lockup With Ring Pull

This window handle features a 1-3/8" hole spacing, a 5/16" lock up dimension and a ring pull for elevated windows. This handle is cast white bronze construction with a brushed nickel finish.

Right Hand Shown

Project In Window Handle -1-3/8"

Cast white bronze with a brushed nickel finish

Angle Base Kawneer Window Handle 1-3/8"

Cast white bronze, with brushed nickel finish.

Used on Kawneer Windows.

Project In Window Handle 1-3/8"

Cast white bronze with a brushed nickel finish

Angle Base 1-3/8" Window Handle

Angle base window is constructed of cast white bronze, and then nickel plated.

Right Hand shown in pictures.

Two Hole 1-3/8" Window Handle 9/32" Lockup Most Popular

This window handle is constructed of cast white bronze with a brushed nickel finish. The handle has a 1-3/8" hole spacing with 9/32" lock up dimension. This window handle is one of our most popular.

Right Hand shown in Picture

Project In Handle With Ring Pull -1-3/8" hole spacing with a 7/16" lock-up C Dimension

Cast white bronze with a brushed nickel finish

Project In Window Handle 1-3/8"

This window handle has a hole spacing of 1-3/8" with a 7/16" lock up C Dimension. The handle is constructed of cast white bronze with a brushed nickel finish.

Angle Base Window Handle 1-1/8"

Angle base handle is made of a white bronze casting that is then brushed nickel plated.   Angle base holes are 1-1/8" on center and have a 10-24 thread.

Right Hand Shown in Picture

Two Hole 1-3/8" Window Handle 5/16 Lock Up

This window handle features a 1-3/8" hole spacing wth a 5/16" lock up. The handle as a cast white bronze construction with a brushed nickel finish

Angle Base 1-3/8" Window Handle

Cast white bronze with a brushed nickel finish

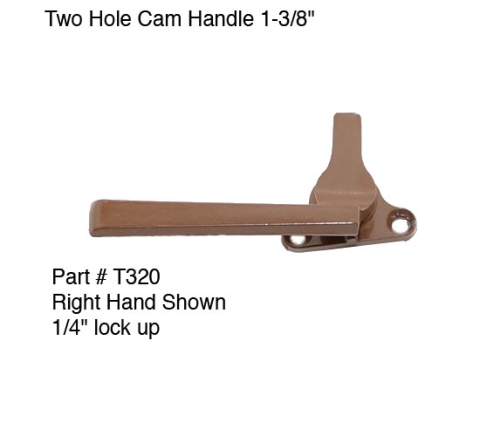

Two Hole 1-3/8" Window Handle

This window handle features a 1-3/8" hole spacing with a 1/4" lock up. The window handle is constructed of a die cast material that is then powder coated.

Angle Base 1-3/8" Window Handle Truth

Also known as the Truth 25.39, this handle is constructed of a die cast metal and powder coated to the desired color. The distance between the screws is 1-3/8" on center. The handle measures 3-3/4" long, base measures 2-1/8" long. The number found on the handle is 45086 for the Right Hand, and 45085 for the Left Hand. We also find U.S. Pat. # 4,930,820

Right Hand is shown in picture.

Two Hole 1-3/8" Window Handle 5/16" Lockup

Cast white bronze with a brushed nickel finish

Right Hand Shown.

Center Hung Door Closer

• Available (NHO) non-hold open, or (SHO) selective
  hold open. Specify degree (90 or 105°)
• Standard top pivot: 340 included
• Cycolac cement case
• Separate independent valves for closing,
  latch and backcheck adjustments
• Built-in positive dead stop prevents door
  from swinging beyond desired opening
  degree
• Vertical and horizontal door adjustment
• Arm centering adjustment

• Available (NHO) non-hold open,
(SHO) selective
hold open. Specify degree (90, or
105°)
• Standard top pivot: 180 included
• Cycolac cement case
• Separate independent valves for closing,
latch and backcheck adjustments
• Built-in positive dead stop prevents door
from swinging beyond the desired
opening degree
• Vertical door adjustment

Less all parts means, only the Cylinder!

The Yale Series 1900 Traditional Surface Closers represent a combination of traditional styling and modern closer features. All closer sizes are contained within a single size aluminum alloy shell. Templates for installing this closer are the same for all closer sizes.

Yale Part # 1902/4

Handing diagram

Truth Entrygard Dual Arm Operator. We would expect you to find 20755 on the bottom of the linkage arm, which measures 3-3/4" overall length. Other common numbers we would expect to find are 31538, 31539, 30841, 30842, 30472, 30470, and 20755.  Call or email for quantity "Discount Codes".

To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.

3-3/4" link dimension, offset down. For offset up order Wi1516

Order Wi1510 if your link dimension is 4-7/16" stamped 20810.
Order Wi1515 if your link dimension is 2-7/8" stamped 20748.

Left hand shown.

The TH1300 YKK Offset Pivot Set is commonly found on YKK aluminum framed storefront doors. This is not the only one they use, but the only one we can get.

The NortonSeries 78-B/F Traditional Surface Closers represent a combination of traditional styling and modern closer features. All closer sizes are contained within a single size aluminum alloy shell. Templates for installing this closer are the same for all closer sizes.

Exterior or Interior Doors
Weight to 600 lbs.*
Exterior Door Width up to 3'0"(914mm)
Interior Door Width up to 3'6"(1067mm)
Includes 180 Top Pivot
Handed

Handing diagram

Exterior or Interior Doors
Weight to 450 lbs.*
Door Width up to 4'0"(1219mm)
Includes 180 top pivot
Handed

Handing diagram

Application
Interior Doors
Weight to 250 lbs.*
Door Width up to 3'6"(1067mm)
Includes 180 Top Pivot
Handed

Handing diagram

Application
includes 180 top pivot
Interior Doors
Weight to 300 lbs.*
Door Width up to 3'6"(1067mm)
Handed

Handing diagram

• Not load-bearing
• Maintains door alignment
• Non-ferrous base metal
• 3/4"(19mm) offset
• Furnished with wood and machine screws

Handing diagram

Roto Split Arm Operator

The housing is 4-1/2" wide, and the linkage arm has an overall length of 4-3/8"

Right Hand shown in the picture

LCN Sentronic 4310ME-72MC Cover

Replacement metal cover for the LCN 4310ME Door Closer

Manufacture Part #:  4310ME-72MC

LCN Sentronic 4410ME-72MC Cover

Replacement metal cover for the LCN 4410ME Door Closer

Manufacture Part #:  4410ME-72MC

The Adams Rite 4580 cam is used on the the 4500 and 4900 Dead Latch Paddles.  The 4580-500 is for Left Hand, and the 4580-600 is for Right Hand Doors.

Sweep Lock for Aluminum Windows

Made die cast metal, unfinished. Lock measures 1-5/8" x 15/16" x 3/8" projection. Available in left and right versions, the Right Hand version is shown in the picture. This lock is found on aluminum framed windows. Ships with Latch and Nylon Bushing, the screw is not included.
