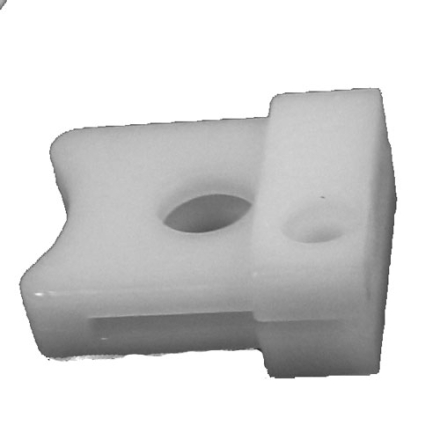

Penco Locker Lift Trigger only, Clear in color. Also known as 9687. Note use pop rivet part number 108695. The trigger mounts to the recess lifter to protect your finger. The trigger can be painted in the field and only come in clear color.

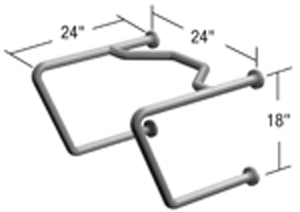

Toilet Grab Bar Wall Mounted ADA Accessible Compartments Require: 1-1/4" dia. bars, Exposed Mounting. Type 34 from American Specialties. Manufacture part number 3434 Straddle Grab Bar by American Specialties. When installing to meet ADA Compliance, top of grab bar would need to be mounted minimum 33" Above Finished Floor to 36" maximum AFF.

Roval Surface Mount Waste Receptacle 20826 Receptacle front and sides fabricated of 20 gauge type 304 stainless steel with satin finish. Capacity 11 gal. (42 L). Same as 20826 but with closed top, spring-loaded door. Capacity 12.8 gal. (48.8 L). Overall size 15-1/8"x23"x8-1/2"

Roval Automatic Roll Paper Towel & Waste Receptacle with Smaller waste receptacle, 13.5 gal. (51.1 L), allows installation according to ADAAG. Internal shelf is ideal for paper towel storage. Wall Opening: 15 13/16” x 54 11/16” x 10” Power Source can be hard wired is (AC) or Battery Operated (A) Battery not supplied, 4-D Batteries.

Heavy-duty 9/64" staked piano hinge adds to the robust construction. Drawn one piece seamless door of 22 gauge type 304 stainless steel with a satin finish. 1 gal. (3.7 L) waste capacity. wall opening 11-3/8"tall x 9-5/8"wide x 4"deep. Same as 20470 but mounts through partitions up to 1 1/4" thick. Expandable steel waste can ensures a perfect fit for thicker partitions. This for 2 stalls with a common partition divider.

Tubing is 1″ diameter x 20 gauge with a satin finish. 36" Length will be as specified. Rod is held captive by flanges when installed properly. Rod may rotate in flanges if turned by hand. Correctly installed rod and flanges will support specified shower curtain(s) hung on hooks 1200-SHU or others. Rod will bend and pull from flanges if significant body weight is suspended.

Tubing is 1″ diameter x 20 gauge with a satin finish. 60" Length will be as specified. Rod is held captive by flanges when installed properly. Rod may rotate in flanges if turned by hand. Correctly installed rod and flanges will support specified shower curtain(s) hung on hooks 1200-SHU or others. Rod will bend and pull from flanges if significant body weight is suspended.

Tubing is 1″ diameter x 20 gauge with a satin finish. 42" Length will be as specified. Rod is held captive by flanges when installed properly. Rod may rotate in flanges if turned by hand. Correctly installed rod and flanges will support specified shower curtain(s) hung on hooks 1200-SHU or others. Rod will bend and pull from flanges if significant body weight is suspended.

Tubing is 1″ diameter x 20 gauge with a satin finish. 72" Length will be as specified. Rod is held captive by flanges when installed properly. Rod may rotate in flanges if turned by hand. Correctly installed rod and flanges will support specified shower curtain(s) hung on hooks 1200-SHU or others. Rod will bend and pull from flanges if significant body weight is suspended.

Tubing is 1″ diameter x 20 gauge with a satin finish. 48" Length will be as specified. Rod is held captive by flanges when installed properly. Rod may rotate in flanges if turned by hand. Correctly installed rod and flanges will support specified shower curtain(s) hung on hooks 1200-SHU or others. Rod will bend and pull from flanges if significant body weight is suspended.

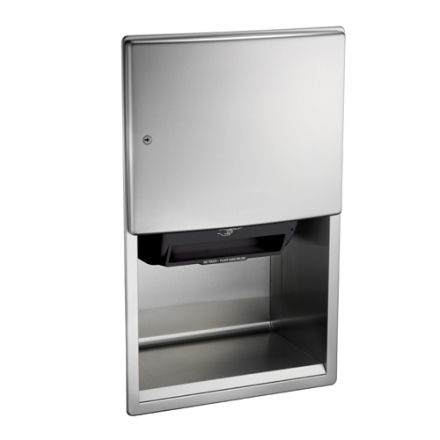

Available in Recessed, Semi Recessed and Surface mount. Fabricated of 22 gauge stainless steel with satin finish. Wall Opening: 15 3/4” x 26” x 10” Power Source can be hard wired is (AC) or Battery Operated (A) Battery not supplied, 4-D Batteries. Automatic Mechanism. Unit automatically dispense one predetermined length at a time when hands are placed in the sensor zone. The owner can determine the length of sheets.

ASI Roval cast iron hand dryers offers many features, Quick Dry (Under 25 Secs), No Touch (Energy Efficient), Universal Voltage (100-240 VAC & 50/60 Hz), Only Available in White, Cover made from ¼” Thick Heavy Duty Cast Iron, ADA Compliant, Durable yet Modern Design. Dimensions are 15-3⁄32"W x 11-7⁄32"H x 3-15⁄16"D (383 x 285 x 100 mm).

Recessed toilet tissue holder that is fabricated of 14 gauge type 304 stainless steel. Offers a satin finish exterior and glass blasted insterior finish. Interior depth 4-1/2" with 5" diameter is to accomodate a single standard roll of tissue tissue paper. Mounting flange is 7" (179mm) Square and includes Mounting Hardware. Designed in mind for Behavioral Health and Detention Centers.

The baby changing tables are a horizontal station, has a door facing and collar made from 18 gauge 304 stainless steel. Fabricated of FDA approved fungus and bacteria-resistant plastic. Unit complies with 2010 ADA Accessibility Standards and supports a static load of 300 lbs. This unit is used for recess mounting , also know as part number 9018-9 with American Specialties.

Kit includes rod with exposed flanges.

Flanges fabricated of 20ga. stainless steel with a satin finish. Flanges have (3) countersunk 13/64" dia. holes to accept #10 flat or oval head screws furnished by others.

Rod is installed in straight section between two (2) mounting flanges. Rods longer than 60′′ require ceiling hanger Model No 1204-C18.

For use with standard shower curtain model No ’s 1200 or 1200-V having 60′′ length and standard hooks Model No 1200-SHU unit should be installed with rod centerline 74-1/2′′ AFF or 67′′  above tub rim to obtain 6′′ bottom overlap.

Kit includes rod with exposed flanges.

Flanges fabricated of 20ga. stainless steel with a satin finish. Flanges have (3) countersunk 13/64" dia. holes to accept #10 flat or oval head screws furnished by others.

Rod is installed in straight section between two (2) mounting flanges. Rods longer than 48′′ require ceiling hanger Model No 1204-C18.

For use with standard shower curtain model No ’s 1200 or 1200-V having 48′′ length and standard hooks Model No 1200-SHU unit should be installed with rod centerline 74-1/2′′ AFF or 67′′  above tub rim to obtain 6′′ bottom overlap.

Kit includes rod with exposed flanges.

Flanges fabricated of 20ga. stainless steel with a satin finish. Flanges have (3) countersunk 13/64" dia. holes to accept #10 flat or oval head screws furnished by others.

Rod is installed in straight section between two (2) mounting flanges. Rods longer than 42′′ require ceiling hanger Model No 1204-C18.

For use with standard shower curtain model No ’s 1200 or 1200-V having 42′′ length and standard hooks Model No 1200-SHU unit should be installed with rod centerline 74-1/2′′ AFF or 67′′  above tub rim to obtain 6′′ bottom overlap.

Kit includes rod with exposed flanges.

Flanges fabricated of 20ga. stainless steel with a satin finish. Flanges have (3) countersunk 13/64" dia. holes to accept #10 flat or oval head screws furnished by others.

Rod is installed in straight section between two (2) mounting flanges. Rods longer than 36′′ require ceiling hanger Model No 1204-C18.

For use with standard shower curtain model No ’s 1200 or 1200-V having 36′′ length and standard hooks Model No 1200-SHU unit should be installed with rod centerline 74-1/2′′ AFF or 67′′  above tub rim to obtain 6′′ bottom overlap.

Kit includes rod with exposed flanges.

Flanges fabricated of 20ga. stainless steel with a satin finish. Flanges have (3) countersunk 13/64" dia. holes to accept #10 flat or oval head screws furnished by others.

Rod is installed in straight section between two (2) mounting flanges. Rods longer than 72′′ require ceiling hanger Model No 1204-C18.

For use with standard shower curtain model No ’s 1200 or 1200-V having 72′′ length and standard hooks Model No 1200-SHU unit should be installed with rod centerline 74-1/2′′ AFF or 67′′  above tub rim to obtain 6′′ bottom overlap.

The baby changing tables are a horizontal station, has a door facing and collar made from 18 gauge 304 stainless steel. Fabricated of FDA approved fungus and bacteria-resistant plastic. Unit complies with 2010 ADA Accessibility Standards and supports a static load of 300 lbs. This unit is used for recess mounting , also know as part number 9018 with American Specialties.

Roval Recessed Paper Towel Dispenser, 20452 Dispenses 600 C-fold or 800 multi-fold paper towels. Door fabricated of 18 gauge type 304 drawn one piece stainless steel with satin finish. Door secured with 3/16" staked piano hinge and flush tumbler lock. Wall Opening: 11 3/16" W x 26 1/4" H x 4" D

C-Fold, Multi Fold Towel Dispenser and Waste Receptacle
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
12 gallon waste receptacle
h15"w x 54" x 4"d hole opening
17-1/4"x56"ht x 4" overall dimension.

C-Fold, Multi-Fold Paper Towel Dispenser
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
13"w x 26"h x 4"d

C-Fold, Multi-Fold Paper Towel Dispenser
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
13"w x 26"h x 4"d

C-Fold, Multi Fold Towel Dispenser and Waste Receptacle
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
12 gallon waste receptacle
15"w x 54"h x 4"d

C-Fold, Multi Fold Towel Dispenser and Waste Receptacle
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
12 gallon waste receptacle
15"w x 54"h x 4"d

ASI locker recess lifter handle in black color. The lifter attaches to the lock bar which releases the door from the frame and unlocks the door. This is an Ada locker handled and is now a standard in the locker industry. The trigger is now sold separately if this is all you need.

Roval Paper Towel Dispenser & Removable Waste Receptacle. Dispenses 350 C-fold, 475 multi-fold paper towels. 2.96 gal. (11.2 L) removable stainless steel waste receptacle with a tumbler lock. 22 gauge type 304 stainless steel door in a satin finish with a flush lock and a heavy-duty 3/16" staked piano hinge on door. Wall Opening: 12 3/4" W x 26 1/2" H x 4 1/4" D

Snap Flange (1-1/4" O.D) Smooth - Straight Grab Bar w/ Intermediate Support, 48". Features include cover that snaps over mounting flange dimples to conceal screws and concealed mounting flange of 31/8" O.D. diameter with 2 screw holes and 3 locking dimples; 1/8" thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3⁄16" diameter. Also know as 10-3702-48.

Stainless Steel ADA Soap & Shelf Combo
for liquid & lotion soaps. Model 0318
Dispenser 17-3/8" x 3-7/16" x 5-1/16"
83 oz.capacity

Roval Paper Towel Dispenser & Removable Waste Receptacle. Dispenses 600 C-fold or 800 multi-fold paper towels. 14.8 gal. (56 L) removable waste receptacle. Door made of 18 gauge type 304 stainless steel with a heavy-duty 3/16" staked piano hinge. Wall Opening: 15 3/4" W x 54 1/2" H x 4" D

ADA Vertical soap dispenser
for both liquid and lotion soaps
stainless steel
5" w x 8" h x 5" d
40 oz. capacity
Bulk Fill

Surface mounted unit dispenses 250 single or half-fold seat covers. Fabricated of 22 gauge type 304 stainless steel with satin finish. 15.75 in × 11 in × 1-7/8" in Stainless Steel. Also known as 0477-sm by American Specialties.
