Search results for: 'partition door glass tube retain'

Toilet Partition Continuous Toilet Partition Hinge 54" With Spring Close Stainless Steel, Lh Outswing, Rh Inswing

Stainless Steel Construction 16 gauge (.060" thick). Hinge is 3" wide when laid flat, by 54" long. Holes are 9/32" diameter, spaced every 10-1/4" or so. Hinge can be raised up 3/8" for emergency entry. Hinge pin is 1/8" diameter. This Continuous Hinge is for Left Hand Outswing, and Right Hand Inswing, see handing diagram under "More Views". Also known as a Full Length Bathroom Stall Continuous Hinge. Manufacture part # 7959.

Partition screen urinal bracket kit for 1" thick panel, two ear bracket that is chrome plated. All bracket kits include security screws to mount the brackets. Also known as 15510.

If your toilet partition (bathroom stall) wall bracket is cast 1840, then you have the One Ear Wall Bracket for 1-1/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2-3/4″ long with 1-1/2″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

Toilet Partition Stainless Steel Continuous Hinge, 71-1/2"Lh Inswing ,Rh Outswing ,16 Gauge ,1/8" Pin

Stainless Steel Construction 16 gauge (.060" thick). Hinge is 3" wide when laid flat, by 71-1/2" long. Holes are spaced every 11" or so. The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.

Manufacture part # 7769

Partition panel bracket kit for 1/2" panel, Two eared cast stainless steel plated bracket. Part includes all security fasteners to install the brackets. Also known as 615003. Global's 40-8275020.

Toilet Partition Stainless Steel Continuous U Bracket, 71", 1/2"x1-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge. U bracket is for 1/2" wide partitions and is 1-1/2" height and 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous U Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182669

Toilet Partition Stainless Steel Continuous One Ear Bracket, 71", 1"x2-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge. One ear bracket is for 1" wide partitions and is 2-1/2" height by 2-13/32" wide by 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous One Ear Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182339

Toilet Partition Stainless Steel Continuous Two Ear Bracket, 71", 1"x2-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge.Two ear bracket is for 1" wide partitions and is 2-1/2" height by 3-11/16" wide by 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous Two Ear Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182349

If your toilet partition (bathroom stall) wall bracket is stamped 1630, then chances are you have the Two Ear Wall Bracket for 7/8″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-1/2″ long with 2-3/4″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket.

Toilet Partition Stainless Steel Continuous One Ear Bracket, 71", 7/8"x2-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge. One ear bracket is for 7/8" wide partitions and is 2-1/2" height by 2-9/32" wide by 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous One Ear Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 204039

Toilet Partition Stainless Steel Continuous One Ear Bracket, 71", 1-1/4"x2-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge. One ear bracket is for 1-1/4" wide partitions and is 2-1/2" height by 2-11/16" wide by 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous One Ear Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182359

Toilet Partition U Bracket For 1" Thick Panel Cast Stainless Steel

Cast stainless steel construction. Bracket base is 1-3/8" x 1-1/4" with two mounting screw holes. Bracket legs project out 1-3/8" with the thru hole at 1" on center from the bottom of the base. Also known as a Bathroom Partition Stall U-Bracket or Wall Bracket 1". Manufacture part number 1913

Shipped with mounting screws

If your toilet partition (bathroom stall) wall bracket is stamped 1640, then chances are you have the One Ear Wall Bracket for 3/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2″ long with 1-1/8″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

Toilet Partition Alcove Clip Set, 2 Pieces, For 1" To 1-1/4" Panel Chrome Plated

These clips are 1-1/2" tall x 2-1/4" wide. The screws are 1-1/2" on center, with 1/4" diameter holes. The clip is constructed of polished chrome plated zamac die cast materail. This part is also know as Bathroom Stall Alcove Clip Set, or Toilet Partition Alcove Clip. The manufacturers part number is 8340, 560157, and 650-6656. These clips are sold in sets with the fasteners. They are used to connect a 1" panel to a 1-1/4" panel.

Toilet Partition Two Ear Urinal Wall Bracket For 1" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" centers on the mounting holes. The bracket legs project out 2-1/2" with the thru hole at 2-1/8" from the back of the base. Walls are 1/8" thick. Also know as a Bathroom Stall Partition Urinal Screen Bracket - Two Ear 1". Manufacture part # 1613.

Ships with mounting screws.

Toilet Partition Bracket Two Ear For 1" Thick Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3" high by 3-3/4" wide with the mounting holes 2-3/4" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The 8 holes are 1/4" diameter. All wall thicknesses are 1/8". This bracket is sometimes known as a Bathroom Stall Two Ear Wall Bracket, or Toilet Partition Two Ear Wall Bracket. The manufacturers part number is 2264 and 650-1839. This bracket ships with all the needed fasteners.

Toilet Partition Pilaster Anchoring Device for 1" thick or larger.

Zinc plated steel bracket. For 3" to 6" wide Pilaster Posts. Also known as a Bathroom Stall Pilaster Post Anchoring Device. Ships with all the hardware and screws shown.

Toilet Partition Stainless Steel Continuous Angle Bracket, 71, 18 Gauge.

Stainless Steel Construction 18 gauge. Angle bracket is 1" wide by 2-1/4" height and 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous Angle or L Bracket. Angle bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182689

Toilet Partition Bracket One Ear For 1" Panel Aluminum

Constructed of extruded anodized aluminum. The base is 1-1/2" high by 2-5/8" wide, with mounting holes 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs are 1" apart, and is designed for 1" thick panels. This bracket is also known as a One Ear Wall Bracket, One Wing Wall Bracket, Toilet Partition One Ear Bracket, or Bathroom Stall One Ear Bracket. The manufacturers part number is 1764. The bracket ships with all the required fasteners.

Aluminum Toilet Partition Slide Bolt Latch 3-1/2" Screws

Clear anodized aluminum construction. Base is 4-1/2" by 2" by 1/8" thick and projects out 1-5/8". Latch bolt is 1" wide by 3-1/8" long by 1/4" thick, and has a 1" throw. This Bathroom Stall Latch is usually used on Solid Plastic (HDPE) Toilet Partition's. Manufactures part # are 5054, 5058 and 650-8543. Also known as Toilet Partition Locks.

Shipped with mounting hardware.

If your toilet partition or bathroom stall wall bracket is cast with the number 1920 on the back, then you have the “U” Wall Bracket for 1″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/4″ wide x 1-3/8″ tall, with the through hole located at 2-1/8″ from the back. If features 2 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall X Long “U” Bracket, or X Long “U” Wall Bracket.

If your toilet partition or bathroom stall wall bracket is cast with the number 1940 on the back, then you have the “U” Wall Bracket for 1-1/4″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/2″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

Chrome Plated U Bracket For 3/4" X 1-1/2" X 1-3/8. If your toilet partition or bathroom stall wall bracket is cast with the number 1890 on the back, then you have the U Bracket for 3/4″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall U Bracket, or “U” Wall Bracket.

Partition U Bracket For 3/4" Thick Panel Cast Stainless Steel. Cast stainless steel construction. Bracket base is 1-3/8" x 1" with two mounting screw holes. Bracket legs project out 1-3/8" with the thru hole at 1" on center from the bottom of the base. Also known as a Bathroom Partition Stall U-Bracket or Wall Bracket 3/4". Manufacture part number 1893. Shipped with mounting screws.

Toilet Partition Two Ear X- Long Urinal Wall Bracket For 1" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" centers on the mounting holes. The bracket legs project out 3-1/2" with the thru hole at 3-1/8" from the back of the base. Walls are 1/8" thick. Also know as a Bathroom Stall Partition Urinal Screen Bracket - Two Ear Extra Long 1". Manufacture part # 1283.

Ships with mounting screws.

Toilet Partition Continuous Toilet Partition Hinge 57-1/2" With Spring Close Stainless Steel
Lh Inswing or Rh Outswing See Diagram

16 gauge (.060" thick) stainless steel with 4 springs. 3" wide when laid flat x 57-1/2" long. 1/8" diameter hinge pin. Mounting screws are located every 11" or so. Can be raise up 3/8" for emergency entrance. Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7669.

Shipped with all the fasteners

Torx driver bit T27 for toilet partition security screws. These torq heads screws are used with brackets that hold the partitions together. This torx bit is for a T27 size and is hollow for a screw with a pin sticking out in the middle of head of the screw and uses a 1/4" shank bit.

Toilet Partition U Bracket For 7/8" Thick Panel Cast Stainless Steel

Cast stainless steel construction. Bracket base is 1-3/8" x 1-5/32" with two mounting screw holes. Bracket legs project out 1-3/8" with the thru hole at 1" on center from the bottom of the base. Also known as a Bathroom Partition Stall U-Bracket or Wall Bracket 7/8". Manufacture part number 1903

Shipped with mounting screws

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1-1/4" - 1-5/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stainless steel unplated and uses a 6 lobe head torque. Both pieces included.

Partition panel bracket kits for 3/4" thick panel, One eared bracket that is chrome plated. All bracket kits include security hardware fasteners to mount the brackets. Also known as 615100.

Toilet Partition "H" Alcove Bracket Aluminum For 1" Panel to 1" Pilaster

Constructed of extruded anodized aluminum. Bracket is 2-1/2" high, 1-1/4" wide and 1-1/2" deep. Mounting thru holes 1-1/2" on center. The legs project out 1-3/16". Designed for 1" thick panels to 1" thick pilasters. This bracket is also known as a H Wall Bracket, Alcove H Bracket, Toilet Partition H Wall Bracket, or Bathroom Stall Alcove H Bracket. The manufacturers part number is 1724. The bracket ships with all the required fasteners.

Partition panel bracket kit for 1" thick panel, One eared bracket that is cast stainless steel plated. All bracket kits include security screws to mount the brackets. Also known as 615053.

Partition panel bracket kit for 1" panel, Two eared chrome plated bracket. Part includes all security fasteners to install the brackets. Also known as 615030.

Occupancy Indicator Handle Set, European Design, Stainless Steel Construction. This product offers the European style with a sleek and modern feel. Features the capability of being installed on partitions with thickness of either 3/4" or 1", Built-In Handle, and Emergency unlatching access on front face of indicator, make this an extremely versatile option for restroom partitions. Traditionally these are designed for partitions that have routed edges to create a no-sightline system but can be used with non-routed edge partitions with addition hardware under related products.

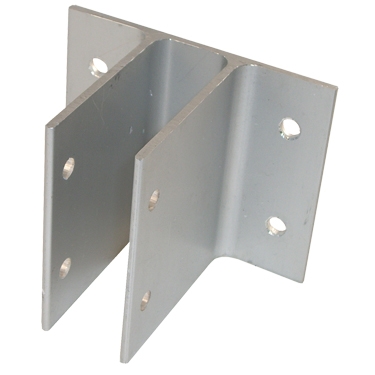

Toilet Partition Bracket Two Ear For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 1-1/2" high by 3-3/4" wide, with mounting screws at 2-3/4" on center. Legs project out at 2-3/4" with the thru hole at 2-1/2" for the back of the base. The legs are 1" apart. Also known as a Bathroom Stall Two Ear Wall Bracket and Toilet Partition Two Wing Wall Bracket. The manufacturers part numbers are 1754, 650-1839, and 40-8445210. Bracket is shipped with all the fasteners.
