Toilet Partition Alcove Clip Set, 2 Pieces, For 1" To 1-1/4" Panel Chrome Plated

These clips are 1-1/2" tall x 2-1/4" wide. The screws are 1-1/2" on center, with 1/4" diameter holes. The clip is constructed of polished chrome plated zamac die cast materail. This part is also know as Bathroom Stall Alcove Clip Set, or Toilet Partition Alcove Clip. The manufacturers part number is 8340, 560157, and 650-6656. These clips are sold in sets with the fasteners. They are used to connect a 1" panel to a 1-1/4" panel.

Slotless Bolt 10-24 X 1/2" for locker hooks, sides, tops, bottoms of lockers. Manufacturer part number 8633H.

For 3/4" - 2-1/2" Thick Partition Doors. The Latch Bar extends 3/4", Over all dimensions 1-11/16" x 2-11/16". Also known as 124563. The bolt comes out 3/4" x 7/16" wide x 1/4" thick.

Partition panel bracket kit for 1" panel, Two eared chrome plated bracket. Part includes all security fasteners to install the brackets. Also known as 615030.

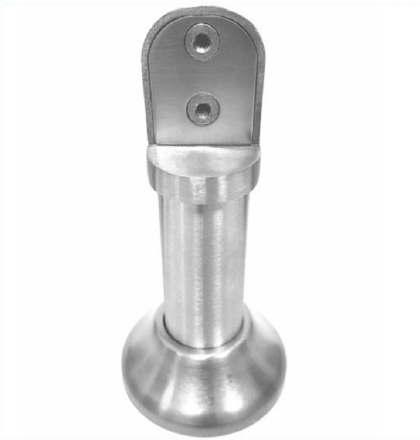

Euro Style Support Brace for 3/4" thickness material. Available in 4"-4-1/2", 6-6-1/2" and 9-9-1/2" height, all adjustable by a 1/2". Heavy duty industrial #304 stainless steel material. References part numbers are 189003, 189013, 189023.

Partition panel bracket kit for 1" panel, Two eared cast stainless steel plated bracket. Part includes all security fasteners to install the brackets. Also known as 615033.

Locker Slotless Bolt 10-24 x 3/8 for locker hinges, number plates, locker sides, tops, bottoms and more. Manufacturer part number 8632H. Also known as LF19, 9520.

Toilet Partition Nylon Hinge Insert Replacement Kit

Replaces Bathroom Stall hinge pins on our part #'s 9a7043, 9a7043, 9a7ss1, 9a7ss2, 9a07b1 & 9a70b2.

actual size 5/8" x 2-3/4"

Toilet Partition Continuous 'L' Wall Bracket 2-3/4" X 57-1/2" Aluminum

Extruded aluminum construction. Base is 1-3/8" and the leg projects out 2-3/4". These are sold individually. It is also known as a Bathroom Stall Continuous L Wall Bracket. The manufacturers part # is 2684.

Coat Hook 3" Projection x 1-3/4" High Cast Stainless Steel

Cast stainless steel construction. The hook base measures 1-3/16" wide by 1-9/16" high. The long hook projects out 3" and the short hook projects out 1-1/2". Also known as Bathroom Stall Hook. Manufacture part # 4023.

Toilet Partition Alcove Clip Set, 2 Pieces, For 1" To 1-1/4" Panel Stainless Steel Plated

These clips are 1-1/2" tall x 2-1/4" wide. The screws are 1-1/2" on center, with 1/4" diameter holes. The clip is constructed of cast stainless steel material. This part is also know as Bathroom Stall Alcove Clip Set, or Toilet Partition Alcove Clip. The manufacturers part number is 8343. These clips are sold in sets with the fasteners. They are used to connect a 1" panel to a 1-1/4" panel.

Headrail End Plug 1"X2"H

Chrome plated Zamac die cast construction. The head rail end plug measures 1" wide by 2" tall. Also known as a Bathroom Stall Head Rail End Plug. Manufacture part # 6670.

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-15/16" with the mounting screws are 2-3/16" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1839.

Shipped with screws

Partition Headrail Bracket for 1" Headrail

Chrome plate Zamac die cast construction. The overall measurements of the bracket are 2-3/4" wide by 1-19/32" high by 1" deep with a hole spacing of 2". The spread for the headrail is 1-1/8" by 1-19/32" deep. Also known as a Bathroom Stall Headrail Bracket. Manufacture part # 2150.

Shipped with screws.

Heavy Duty Toilet Partition Gravity Hinge Set Lh Outswing, Rh Inswing Stainless Steel see diagram

1/8" thick stainless steel construction. 1-1/2" hole spacing up and down and 2-3/8" right to left hole spacing. Outside dimensions are 3-1/8" wide x 3" high. Also known as Bathroom Stall Gravity Hinge Sets. Manufacture part # 7052.

Includes all screws.

Toilet Partition Angle Bracket Chrome Plated 1 3/4" X 1 3/4"

Constructed of stainless polished finish with chrome plated zamac die casting. Base is 1-3/4" x 1-3/8", projects out 1-3/4". Two screw holes are 1/4" diameter, and are located 1-1/4" from opposing face. Sometimes called Bathroom Stall Angle Bracket. Sold individually, and shipped with required screws. Manufacturer part number 2015.

Cast Stainless Steel Partition Keeper 1-1/2" Between Screws

Cast stainless steel construction. Keeper base is 2-1/2" high by 1-3/16" wide with a 1-1/2" hole spacing. Strike is 2-1/2" tall by 7/8" deep. The material 1/8" thick. The slot is 13/16" high by 1/4". Also known as a Bathroom Stall Keeper Inswing Flat. Manufacture part # 5183.

Shipped with mounting screws.

Toilet Partition Keeper Bumper Inswing With 1-7/8" Between Screws

Stainless steel construction, 14 gauge (.075" thick). Plate measures 2-7/8" high x 1-7/8" wide including lugs. Lugs are 7/8" high and 9/16" thick. Screw holes are 1/4" diameter. Sometimes called Bathroom Stall Strike and Keeper-Inswing/Outswing Flat. Manufacuture part # 6329 and 650-8226.

Screws are included with this keeper.

Coat Hook & Bumper 3-1/8" Projection X 2-1/8" High Cast Stainless Steel Construction

Cast stainless steel construction. Coat hook bumper projects out 3" and has a rubber insert. The hook projects out 1-7/32". The coat hook bumper base is 1-7/16" wide by 2-1/4" high with a hole spacing of 7/8". Also known as a Bathroom Stall Hook. Manufacture part # 4003.

Fits most manufactures like Global, Hadrian, Accurate Toilet Partitions. Also known as a Bathroom Stall 8" Top Repair Kit. These might not fit exactly. Shave off two sides to make smaller. The configuration is the same for all manufactures, some just a little wider in the diameter.

Manufacture part # 8465

Toilet Partition U Bracket For 1" Thick Panel Cast Stainless Steel

Cast stainless steel construction. Bracket base is 1-3/8" x 1-1/4" with two mounting screw holes. Bracket legs project out 1-3/8" with the thru hole at 1" on center from the bottom of the base. Also known as a Bathroom Partition Stall U-Bracket or Wall Bracket 1". Manufacture part number 1913

Shipped with mounting screws

Toilet Partition Continuous 'U' Wall Bracket For 1" Thick Panel 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 57" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Continuous U Wall Bracket. Manufacturer part # 2369.

Screws included with bracket.

Stamped SS One Ear Bracket 3/4" Panel 1-1/2" X 2-1/2"

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-5/32" with the mounting screws are 1-11/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1649.

Shipped with screws

Toilet Partition Two Ear Wall Bracket For 1 1/4" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 1". Manufacture part # 1833

Shipped with mounting screws.

Toilet Partition 'U' Wall Bracket For 1" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 1-13/16" . Leg project out 1-1/2" with the thru hole at 1-1/8" from the base. The 4 thrue holes are 1/4" diameter, two of them are the mounting holes. Also known as a Bathroom Stall U Wall Bracket. Manufacturer part # 1919.

Shipped with screws

Partition Keeper Bumper Outswing 1-1/2" Between Screws Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measure 2-1/2" high by 1-5/8" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. Also known as a Bathroom Stall Strike and Keeper Outswing Flat. Manufacture part # 5263.

Shipped with mounting screws.

Chrome Plated Partition Keeper Bumper For Throw Latch, For Inswing Flat Stop

Chrome plated Zamac die casting. The strike and keeper is 1-1/4" high by 2-1/2" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. The slots are 1/4" deep. Also known as a Bathroom Stall Strike and Keeper Inswing Flat. Manufacture part # 5650.

Shipped with mounting screws.

Toilet Partition One Ear Bracket For 7/8" Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-5/16" with the mounting screws are 1-13/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1659.

Shipped with screws

Toilet Partition One Ear Wall Bracket For 3/4" Panel Cast Stainless Steel

Cast stainless steel construction. Base of the bracket is 2" x 1-1/2", with 1-1/8" hole spacing. Bracket legs project out 2-1/2" with the screws at 2-1/8" on center from the base. The four holes are 1/4" diameter. Also known as a Bathroom Stall One Ear Wall Bracket or One Ear 3/4". Manufacture part # 1643.

Shipped with mounting screws.

Aluminum Toilet Partition Slide Bolt Latch 3-1/2" Screws

Clear anodized aluminum construction. Base is 4-1/2" by 2" by 1/8" thick and projects out 1-5/8". Latch bolt is 1" wide by 3-1/8" long by 1/4" thick, and has a 1" throw. This Bathroom Stall Latch is usually used on Solid Plastic (HDPE) Toilet Partition's. Manufactures part # are 5054, 5058 and 650-8543. Also known as Toilet Partition Locks.

Shipped with mounting hardware.

Generic Plastic Rod Fits most manufactures like Global, Hadrian, Accurate Toilet Partitions. Also known as a Bathroom Stall 8" Bottom Repair Kit. These might not fit exactly. Shave off two sides to make smaller. The configuration is the same for all manufactures, some just a little wider in the diameter. Manufacture part # 8465

Concealed Partition Latch Keeper Bumper 1" Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measures 2-1/2" tall by 1-15/16" wide by 1-17/32 deep. The mounting holes are 1-1/2" on center. The stop measures 7/8" wide by 17/32" deep with a rubber insert bumper. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing 1". Manufacture part # 5733.

Shipped with mounting screws.

Partition Headrail End Plug 1" X 1-1/2" HIGH

Chrome plated Zamac die cast construction. The head rail end plug measures 1" wide by 1-1/2" tall. The pegs that hold it in place project out 3/4". Also known as a Bathroom Stall Head Rail End Plug. Manufacture part # 6660.

Toilet Partition Two Ear Wall Bracket For 1" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-11/16" with the mounting screws are 2-15/16" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1759.

Shipped with screws
