Search results for: 'hussey matic mill socket pull 4 plug'

Torque Head Barrel Nut Shoulder Screw for 1/2" - 3/4" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe head torque. Both pieces included.

Toilet Partition Bracket One Ear For 1" Panel Aluminum

Constructed of extruded anodized aluminum. The base is 1-1/2" high by 2-5/8" wide, with mounting holes 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs are 1" apart, and is designed for 1" thick panels. This bracket is also known as a One Ear Wall Bracket, One Wing Wall Bracket, Toilet Partition One Ear Bracket, or Bathroom Stall One Ear Bracket. The manufacturers part number is 1764. The bracket ships with all the required fasteners.

If your toilet partition (bathroom stall) wall bracket is cast 1840, then you have the One Ear Wall Bracket for 1-1/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2-3/4″ long with 1-1/2″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

Toilet Partition Continuous Two Ear Wall Bracket For 3/4" Panel X 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 57" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 14" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2089.

Cast stainless steel outswing door kit for square edge doors and posts. For 1" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 21003.

Toilet Partition One Ear Hinged Wall Bracket 1-1/4"

Hinge is 16 ga (.060") thick, Bracket is 14 ga (.075") thick. The one ear hinged bracket is Riveted and welded together. Bracket is 3" high x 2-1/2" deep for a 1-1/4" panel. This bracket is ideal for applications were the Pilaster and Panels are not at a 90 degree angle. Also known as a Bathroom Stall HInged Wall Bracket. Manufacture part # 111369

Partition Door Hook & Bumper Stop Inswing Stamped Stainless Steel

Stamped stainless steel 1/16" thick construction. The hook and stop measures 5/8" wide by 2-3/4" high by 3-1/16" projection with a 1" hole spacing. There is a rubber bumper on the end of the 3-1/16" projection. Also known as a Bathroom Stall Hook. Manufacture part # 4009

Toilet Partition Continuous One Ear Wall Bracket For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 54" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2878, and 650-9750-54. These brackets are shipped with all the needed fasteners.

If your toilet partition or bathroom stall wall bracket is cast with the number 1940 on the back, then you have the “U” Wall Bracket for 1-1/4″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/2″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

Bathroom partition chrome plated inswing door kit for square edge doors and posts. For 7/8" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 17800.

Bathroom partition chrome plated outswing door kit for square edge doors and posts. For 7/8" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 27810.

Toilet Partition Continuous One Ear Wall Bracket For 3/4" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 57" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2079.

If your toilet partition (bathroom stall) wall bracket is stamped 1830, then chances are you have the Two Ear Wall Bracket for 1-1/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-15-16″ long with 3″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket, they can be ordered on our website.

Is your Toilet Partition Bracket stamped 1310, if it is you have a one ear urinal bracket. The bracket is made from a zamac die casting that is then polished chrome plated. It sometimes goes by the name Toilet Partition One Ear Urinal Screen Bracket, Urinal Wall Bracket, 1310 Wall Bracket, 650-6410 wall bracket, or just Wall Bracket. The base is 1-1/2" wide x 2-3/4" long with a 1-1/2" on center hole spacing. The legs project out 3-1/2" with the mounting holes at 3-1/8" from the base. The holes are 1/4" diameter.

For use on 1-1/4" thick panels

Stamped SS One Ear Bracket 3/4" Panel 1-1/2" X 2-1/2"

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-5/32" with the mounting screws are 1-11/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1649.

Shipped with screws

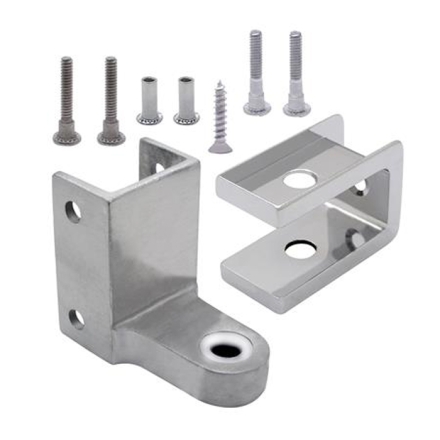

Toilet Partition Bottom Hinge Assembly For 1" Door, 1-1/4" Pilaster Square Edge Cast Stainless Steel

Cast stainless steel construction. Set includes bottom hinge, pin and door insert. Also known as a Bathroom Toilet Stall Bottom Hinge Kit. Manufacture part #63033.

Shipped with mounting screws.

Toilet Partition Top Hinge Assembly For 1"Door,1-1/4"Pilaster Square Edge Cast Stainless Steel

Cast stainless steel construction. Set includes top hinge, pin and door insert. Also known as a Bathroom Toilet Stall Top Hinge Kit. Manufacture part #63043.

Shipped with mounting screws.

If your toilet partition (bathroom stall) wall bracket is stamped 1640, then chances are you have the One Ear Wall Bracket for 3/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2″ long with 1-1/8″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

Partition Door Piano Hinge 57", 14 Gauge SS,1/4" Pin with 20 Degree Cam Close. This hinge keeps the door open 20 degree so the user knows there is nobody in the restroom toilet stall. This is the most Heavy Duty Continuous Full Length Hinge we sell. 14 gauge (.075" thick) stainless steel construction with a 1/4" diameter hinge pin. The hinge leafs are angle cut so your door will close with the camming action. The hinge is 3" wide when laid flat, and 57" long. Screws are spaced 11" apart and the holes are 9/32" diameter and has 6 sets of holes. Hinge can be raised up 3/8" for emergency entry. Also known as a Restroom Toilet Stall Full Length Continuous Hinge. Manufacturer part #650-9401 and 160039. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

If your toilet partition (bathroom stall) wall bracket is stamped 1620, then chances are you have the Two Ear Wall Bracket for 3/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3″ long with 2-7/32″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket

Toilet Partition One Ear Wall Bracket For 1-1/4" Panel, Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-13/32" with the mounting screws are 1-15/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1849.

Shipped with screws

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-15/16" with the mounting screws are 2-3/16" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1839.

Shipped with screws

Toilet Partition Continuous Hinge 54" With 20 Degree Cam Close Stainless Steel. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

Stainless Steel Construction, 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 54" long. Holes are spaced every 13" and are 9/32" diameter and 5 sets of holes. The hinge is self closing by a cam action, which is made possible by angle cuts on the continuous hinge leafs. Cam features 20 Degree Closing for ADA Doors. Can be raised up 3/8" for emergency entry. This hinge is also known as a Bathroom Stall Full Length Continuous Hinge. This hinge is non handed. Manufacture part # 130219, 7598, 125319, 650-9402.

Toilet Partition Continuous Hinge 54" With Cam Close Stainless Steel. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

Stainless Steel Construction, 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 54" long. Holes are spaced every 13" and are 9/32" diameter and 5 sets of holes. The hinge is self closing by a cam action, which is made possible by angle cuts on the continuous hinge leafs. Cam features Zero Degree Closing. Can be raised up 3/8" for emergency entry. This hinge is also known as a Bathroom Stall Full Length Continuous Hinge. This hinge is non handed. Manufacture part # 130209, 7599, 125319, 650-9402. This hinge is known as 7599.

Cabinet Roller Catch.  Roller catches type b. Strike catch with polyethyleine roller. Size: 1-1/4" x 1-3/4" x 3/8", and the screws included.

projects 2", ht 1-3/4"

3/4" Center to Center Hole Spacing

Single Hole Cam Handle Clevis Screw

This screw has a 1/4-20 thread and is 3/4" long.

Single Prong Locker Hooks for school type lockers. The hook is made from a metal 3/16" diameter tube x 3-1/4" ht x 2" width. These locker hooks are wall mounted to the locker back or sides. The hole spacing is 3/4" or 1-1/4", the top hole is 1/4" round with the two lower as 3/8" slots. Also known as 9010, 81006, bu0111, lu126, 8697.

Chrome Plated Partition Keeper Bumper For Throw Latch, For Inswing Flat Stop

Chrome plated Zamac die casting. The strike and keeper is 1-1/4" high by 2-1/2" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. The slots are 1/4" deep. Also known as a Bathroom Stall Strike and Keeper Inswing Flat. Manufacture part # 5650.

Shipped with mounting screws.

Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4", Door Stop Pilaster Mounted Polished Stainless Steel

Polished Stainless Steel Construction. The door stop base is 3" wide by 1-1/4" high with a 2-5/16" hole spacing. The stop projects out 2-1/2" and has a rubber insert in it. This door stop is usually mounted on the pilaster or post. Also known as a Bathroom Stall Door Stop. Manufacture part # 4155.

Euro Style Support Brace for 3/4" thickness material. Available in 4"-4-1/2", 6-6-1/2" and 9-9-1/2" height, all adjustable by a 1/2". Heavy duty industrial #304 stainless steel material. References part numbers are 189003, 189013, 189023.

replacement valve Valve threads are 3/4" o.d. 28 treads per inch

Double Prong Ceiling Hook

Heavy Duty Zinc Plated Steel Wire.
2-3/4" height
3-1/2" wide
1/4" diameter wire
7/8" hole spacing

Toilet Partition Slide Bolt Latch Stainless Steel

Cast stainless steel construction. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5023.

Shipped with mounting screws.

also known as 9F0302SS

Concealed Latch Keeper Bumper Outswing Cast Stainless Steel

Cast Stainless Steel casting. The strike and keeper is 1-1/4" high by 1-3/4" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. Also known as a Bathroom Stall Strike and Keeper Outswing Flat. Manufacture part # 5643.

Shipped with mounting screws.
