Toilet Partition Stainless Steel Continuous Hinge, 71-1/2" Rh Inswing, Lh Outswing, 16 Gauge, 1/8" Pin

Stainless Steel Construction 16 gauge (.060" thick). Hinge is 3" wide when laid flat, by 71-1/2" long. Holes are spaced every 11" or so. The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.

Manufacture part # 7759

Torque Head Barrel Nut Shoulder Screw for 1-1/4" - 1-5/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe  head torque. Both pieces included.

Toilet Partition Aluminum Square Post 1-3/4" X 10'

Extruded anodized aluminum. 1-3/4" x 1-3/4" x 10' long. Also known as a Bathroom Stall Aluminum Square Post. Manufacture part # 40-5443400G. Oversized part, has to ship Truck.

Toilet Partition Alcove Clip Set, 2 Pieces, For 1" To 1-1/4" Panel Stainless Steel Plated

These clips are 1-1/2" tall x 2-1/4" wide. The screws are 1-1/2" on center, with 1/4" diameter holes. The clip is constructed of cast stainless steel material. This part is also know as Bathroom Stall Alcove Clip Set, or Toilet Partition Alcove Clip. The manufacturers part number is 8343. These clips are sold in sets with the fasteners. They are used to connect a 1" panel to a 1-1/4" panel.

Toilet Partition Pilaster Anchoring Device

Zinc plated steel construction. For 3/4" thick and larger Pilaster Posts and 3" wide and larger pilaster posts. The brackets are 11/16" wide. Also known as a Bathroom Stall Pilaster Post Anchoring Pack. All the screws are included in the package.

Torque Head Barrel Nut Shoulder Screw for 1/2" - 3/4" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe head torque. Both pieces included.

Toilet Partition Pilaster Anchoring Device for 1" thick or larger.

Zinc plated steel bracket. For 7" wide and larger Pilaster Posts. Also known as a Bathroom Stall Pilaster Post Anchoring Device. Ships with all the hardware and screws shown.

Toilet Partition Bottom Hinge Assembly For 7/8" Door To 1-1/4" Pilaster Square Edge Cast Stainless Steel

Cast stainless steel hinge. Hinge mounts to 1-1/4" square edge post or pilaster, for use with 7/8" thick doors. Kit includes bottom hinge, pintle, pin and insert. Also known as a Bathroom Stall Bottom Pivot Hinge Set. Manufacture part # 63013

Includes all screws.

Partition Door Pull 2-3/4" Between Screws Cast Stainless Steel

Cast stainless steel construction. Door pull measures 4-1/16" wide by 13/16" projection with a 2-3/4" hole spacing. The holes are threaded for a 8-32 screw. Also known as a Bathroom Stall Door Pull. Manufacture part # 6203.

Partition Door Pull 5" Between Screws Stamped Stainless Steel

Stamped stainless steel construction, 3/32" thick. The door pull measures 5-21/32" wide by 5/8" high by 1-11/16" projection with a 5" on center hole spacing. Also known as a Bathroom Stall Door Pull. Manufacture part # 6419.

Shipped with mounting screws.

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 7/8" - 1-3/16" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stanless steel unplated and uses a 6 lobe head torque. Both pieces included.

Partition Door Pull 3-1/2" Between Screws Chrome Plated

Chrome plated Zamac die cast construction. The pull measures 4-3/4" wide and projects 1" with a hole spacing of 3-1/2". The mounting holes are threaded for a 10-24 screw. Also known as a Bathroom Stall Door Pull. Manufacture part # 5400.

Chrome Plated Partition Keeper Bumper For Throw Latch, For Inswing Flat Stop

Chrome plated Zamac die casting. The strike and keeper is 1-1/4" high by 2-1/2" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. The slots are 1/4" deep. Also known as a Bathroom Stall Strike and Keeper Inswing Flat. Manufacture part # 5650.

Shipped with mounting screws.

Hand Driver with Magnetic End, used to install and remove fasterners. Accepts Hex bits for use with different fasterners. Can be used with TBIT(T-27 Torx) bit we offer for installing fasteners on restroom partitions. End holds a standard 1/4" Hex Bit.

Heavy Duty Toilet Partition Gravity Hinge Set Lh Outswing, Rh Inswing Stainless Steel see diagram

1/8" thick stainless steel construction. 1-1/2" hole spacing up and down and 2-3/8" right to left hole spacing. Outside dimensions are 3-1/8" wide x 3" high. Also known as Bathroom Stall Gravity Hinge Sets. Manufacture part # 7052.

Includes all screws.

Toilet Partition Top & Bottom Hinge Assembly For 1" Door To 1" Post Square Edge Cast Stainless Steel

Cast stainless steel hinge. Hinge mounts to 1" square edge post or pilaster, for use with 1" thick doors. Kit includes top and bottom hinges, pintle, pin and inserts. Also known as a Bathroom Stall Pivot Hinge Set. Manufacture part # 63153

Includes all screws.

Concealed Partition Latch Keeper Bumper 1" Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measures 2-1/2" tall by 1-15/16" wide by 1-17/32 deep. The mounting holes are 1-1/2" on center. The stop measures 7/8" wide by 17/32" deep with a rubber insert bumper. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing 1". Manufacture part # 5733.

Shipped with mounting screws.

Chrome Plated Partition Keeper Bumper Flat Stop Outswing Door

Chrome plated Zamac die casting. The strike and keeper is 1-1/4" high by 1-3/4" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. Also known as a Bathroom Stall Strike and Keeper Outswing Flat. Manufacture part # 5640.

Shipped with mounting screws.

Toilet Partition Bottom Hinge Assembly For 1" Door, 1-1/4" Pilaster Square Edge Cast Stainless Steel

Cast stainless steel construction. Set includes bottom hinge, pin and door insert. Also known as a Bathroom Toilet Stall Bottom Hinge Kit. Manufacture part #63033.

Shipped with mounting screws.

Toilet Partition Top Hinge Assembly For 1"Door,1-1/4"Pilaster Square Edge Cast Stainless Steel

Cast stainless steel construction. Set includes top hinge, pin and door insert. Also known as a Bathroom Toilet Stall Top Hinge Kit. Manufacture part #63043.

Shipped with mounting screws.

Partition Door Hook & Bumper Stop Inswing Stamped Stainless Steel

Stamped stainless steel 1/16" thick construction. The hook and stop measures 5/8" wide by 2-3/4" high by 3-1/16" projection with a 1" hole spacing. There is a rubber bumper on the end of the 3-1/16" projection. Also known as a Bathroom Stall Hook. Manufacture part # 4009

Partition Headrail Bracket for 1" Headrail

Chrome plate Zamac die cast construction. The overall measurements of the bracket are 2-3/4" wide by 1-19/32" high by 1" deep with a hole spacing of 2". The spread for the headrail is 1-1/8" by 1-19/32" deep. Also known as a Bathroom Stall Headrail Bracket. Manufacture part # 2150.

Shipped with screws.

Toilet Partition Top Hinge Assembly For 7/8" Door To 1-1/4" Post Square Edge Cast Stainless Steel

Cast stainless steel hinge. Hinge mounts to 1-1/4" square edge post or pilaster, for use with 7/8" thick doors. Kit includes top hinges, pintle, pin and inserts. Also known as a Bathroom Stall Top Pivot Hinge Set. Manufacture part # 63023

Includes all screws.

Bathroom partition chrome plated inswing door kit for square edge doors and posts. For 7/8" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 17800.

Bathroom partition chrome plated outswing door kit for square edge doors and posts. For 7/8" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 27810.

Toilet Partition Keeper For Inswing Doors 1-7/8" Between Screws Stainless Steel

14 gauge (.075" thick) stainless steel construction. Keeper is 2-7/8" high x 1-13/16" wide with 1-7/8" hole spacing. Lip is 9/16" and the slot or cut out is 7/32" x 1". Also known as Bathroom Stall Keeper Inswing. Manufacture part # 6319.

Shipped with screws.

Heavy Duty Toilet Partition Gravity Hinge Set Rh Outswing, Lh Inswing Stainless Steel

1/8" thick stainless steel construction. 1-1/2" hole spacing up and down and 2-3/8" right to left hole spacing. Outside dimensions are 3-1/8" wide x 3" high. Also known as Bathroom Stall Gravity Hinge Sets. Manufacture part # 7051.

Includes all screws.

Toilet Partition Keeper Bumper Inswing With 1-7/8" Between Screws

Stainless steel construction, 14 gauge (.075" thick). Plate measures 2-7/8" high x 1-7/8" wide including lugs. Lugs are 7/8" high and 9/16" thick. Screw holes are 1/4" diameter. Sometimes called Bathroom Stall Strike and Keeper-Inswing/Outswing Flat. Manufacuture part # 6329 and 650-8226.

Screws are included with this keeper.

U Bracket Stainless Steel for 1/2" Panel. This is used with a 1/2" thick panel only. The hole spacing is 1-1/2" and height is 3", and sticks out from the wall 2-1/2". The overall width is 5/8". This is also known as 2189. The stainless steel is flat and rolled to form a two ear partition bracket.

Partition Headrail End Plug 1" X 1-1/2" HIGH

Chrome plated Zamac die cast construction. The head rail end plug measures 1" wide by 1-1/2" tall. The pegs that hold it in place project out 3/4". Also known as a Bathroom Stall Head Rail End Plug. Manufacture part # 6660.

Partition Door Pull 3-1/2" Between Screws Cast Stainless Steel

Cast stainless steel construction. The pull measures 4-3/4" wide and projects 1" with a hole spacing of 3-1/2". The mounting holes are threaded for a 10-24 screw. Also known as a Bathroom Stall Door Pull. Manufacture part # 5403.

Partition Door Pull 2-3/4" Between Screws Chrome Plated

Chrome plated Zamac die cast construction. Door pull measures 4-1/16" wide by 13/16" projection with a 2-3/4" hole spacing. The holes are threaded for a 8-32 screw. Also known as a Bathroom Stall Door Pull. Manufacture part # 6200.

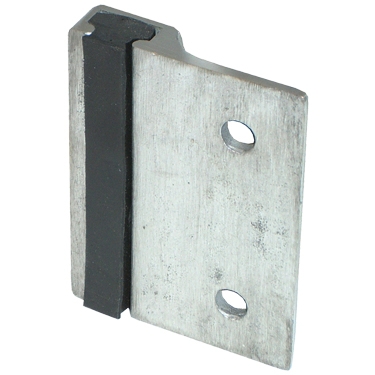

Cast Stainless Steel Partition Door Stop

Cast stainless steel construction. The strike and keeper measure 2-1/2" high by 1-7/8" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5173.

Shipped with mounting screws.
