Chrome Plated Keeper Bumper For 1-1/4" Inswing Round Edge Post

Zamac die cast and polished chrome plate construction. The strike and keeper measure 2-1/2" high by 1-7/8" wide with a hole spacing of 1-1/2" on center. The stop is 2-1/2" tall by 3/4" wide with a rubber insert. The slot measures 1-9/16" high by 5/16" deep. Commonly known as a Bathrrom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5310

Shipped with mounting screws.

Toilet Partition Urinal Screen Bracket Chrome Plated. This bracket is for any thickness panel. The bracket is 2 separate pieces. The base is 1-1/2" x 1-1/2". The base mounting hole is 1" from the inside face of the leg face. The bracket projects out 2-1/2", and the holes are at 2-1/8" and 1-1/8" from the mounting face. The brackets are made of a zamac die cast material and polished chrome plated. This bracket is also known as a Two Piece Bracket - Two Holes, Toilet Partition Bracket, or Bathroom Stall Bracket. The manufacturers part number is 1860 or 650-6437. The bracket is shipped as two pieces plus all of the fasteners.

Cast SS Two Ear Bracket 1" Panel 1-1/2" X 2-1/2"

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 1". Manufacture part # 1753

Shipped with mounting screws.

Toilet Partition Urinal Screen Bracket Cast Stainless Steel. This bracket is for any thickness panel. The bracket is 2 separate pieces. The base is 1-1/2" x 1-1/2". The base mounting hole is 1" from the inside face of the leg face. The bracket projects out 3-1/2", and the holes are at 3-1/8" and 2-1/8" from the mounting face. The brackets are made of Cast Stainless Steel. This bracket is also known as a Two Piece Bracket - X-long Two Holes, Toilet Partition Bracket, or Bathroom Stall Extra Long Bracket. The manufacturers part number is 1323. The bracket is shipped as two pieces plus all of the fasteners.

Partition Two Ear Wall Bracket For 7/8" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 3-1/2" with 2-3/4" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 7/8". Manufacture part # 1633

Shipped with mounting screws.

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 7/8" - 1-3/16" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stanless steel unplated and uses a 6 lobe head torque. Both pieces included.

Toilet Partition Continuous 'L' Wall Bracket 2-3/4" X 57-1/2" Aluminum

Extruded aluminum construction. Base is 1-3/8" and the leg projects out 2-3/4". These are sold individually. It is also known as a Bathroom Stall Continuous L Wall Bracket. The manufacturers part # is 2684.

Toilet Partition Bracket One Ear For 1-1/4" Panel Aluminum

Constructed of extruded anodized aluminum. The base is 2-5/8" wide x 1-1/2" high, with the two mounting screws 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The distance between the legs is 1-1/4". It is designed for 1-1/4" thick panels. The 4 screw holes are 1/4" diameter. This bracket is also known as a One Ear Wall Bracket, 1844 One Ear Wall Bracket, Toilet Partitoin One Ear Bracket, or Bathroom Stall One Ear Bracket. The bracket is shipped with all the mounting screws.

Toilet Partition Urinal Screen Bracket Chrome Plated

This bracket is for any thickness panel. The bracket is 2 separate pieces. The base is 1-1/2" x 1-1/2". The base mounting hole is 1" from the inside face of the leg face. The bracket projects out 3-1/2", and the holes are at 3-1/8" and 2-1/8" from the mounting face. The brackets are made of a zamac die cast material and polished chrome plated. This bracket is also known as a Two Piece Bracket - X-long Two Holes, Toilet Partition Bracket, or Bathroom Stall Extra Long Bracket. The manufacturers part number is 1320 or 650-6434. The bracket is shipped as two pieces plus all of the fasteners.

Toilet Partition Continuous "U" Wall Bracket For 1" Thick Panel Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 54" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Manufacturer part # 2799.

Screws included with bracket.

Toilet Partition Bottom Hinge Assembly For 7/8" Door To 1-1/4" Pilaster Square Edge Cast Stainless Steel

Cast stainless steel hinge. Hinge mounts to 1-1/4" square edge post or pilaster, for use with 7/8" thick doors. Kit includes bottom hinge, pintle, pin and insert. Also known as a Bathroom Stall Bottom Pivot Hinge Set. Manufacture part # 63013

Includes all screws.

Toilet partition square edge pilaster shoe split, stamped stainless steel construction. Pilaster Shoe measures 2" to 24" wide by -1-1/4" thick by 3" high. This size pilaster post shoe is split on one end for easy installation. Also known as a bathroom stall pilaster post shoe square edge. Used for the base of the support system with floor mounted pilaster.

Generic Plastic Rod Fits most manufactures like Global, Hadrian, Accurate Toilet Partitions. Also known as a Bathroom Stall 8" Bottom Repair Kit. These might not fit exactly. Shave off two sides to make smaller. The configuration is the same for all manufactures, some just a little wider in the diameter. Manufacture part # 8465

Sweep Lock for Aluminum Windows

Made die cast metal, unfinished. Lock measures 1-5/8" x 15/16" x 3/8" projection. Available in left and right versions, the Right Hand version is shown in the picture. This lock is found on aluminum framed windows. Ships with Latch and Nylon Bushing, the screw is not included.

Torx driver bit T27 for toilet partition security screws. These torq heads screws are used with brackets that hold the partitions together. This torx bit is for a T27 size and is hollow for a screw with a pin sticking out in the middle of head of the screw and uses a 1/4" shank bit.

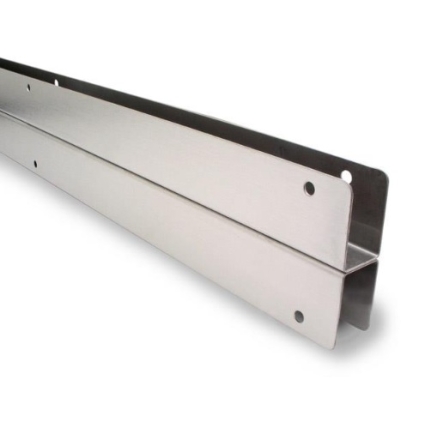

Toilet Partition Continuous Alcove "H" Bracket For 1" Panel x 54" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Bracket is 1" x 3-1/2" x 54" long. Legs project out 1-3/4" with the thru hole at 1-3/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Alcove Bracket or "H" Bracket. Manufacturer part # 2859.

Shipped with screws.

Toilet Partition Continuous Hinge Without Spring, 57-1/2 Long Stainless Steel

16 gauge (.060" thick) stainless steel construction. 3" wide when laid flat x 57-1/2" long with holes every 11" or so. 1/8" diameter hinge pin. Hinge can be raised up 3/8" for emergency entry. Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7649.

Shipped with all the fastners

Toilet Partition Continuous 'U' Wall Bracket For 3/4" Thick Panel 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 57" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Continuous U Wall Bracket. Manufacturer part # 2069.

Screws included with bracket.

Aluminum 2 piece wall bracket kit typically used with toilet partition panels, but have various other uses. The overall length of the brackets are 2-1/2" x 1-1/2" x 1-1/2". The holes are 1/4" diameter. This item also know as 1864. All hardware included with brackets and note these are 2 piece L brackets.

Toilet Partition Two Ear Wall Bracket For 1" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-11/16" with the mounting screws are 2-15/16" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1759.

Shipped with screws

Toilet Partition One Ear Wall Bracket For 1" Panel,Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-13/32" with the mounting screws are 1-15/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1769.

Shipped with screws

Toilet Partition Keeper Bumper Inswing With 1-7/8" Between Screws

Stainless steel construction, 14 gauge (.075" thick). Plate measures 2-7/8" high x 1-7/8" wide including lugs. Lugs are 7/8" high and 9/16" thick. Screw holes are 1/4" diameter. Sometimes called Bathroom Stall Strike and Keeper-Inswing/Outswing Flat. Manufacuture part # 6329 and 650-8226.

Screws are included with this keeper.

Toilet Partition U Bracket For 7/8" Thick Panel Cast Stainless Steel

Cast stainless steel construction. Bracket base is 1-3/8" x 1-5/32" with two mounting screw holes. Bracket legs project out 1-3/8" with the thru hole at 1" on center from the bottom of the base. Also known as a Bathroom Partition Stall U-Bracket or Wall Bracket 7/8". Manufacture part number 1903

Shipped with mounting screws

Toilet Partition U Bracket For 1" Thick Panel Cast Stainless Steel

Cast stainless steel construction. Bracket base is 1-3/8" x 1-1/4" with two mounting screw holes. Bracket legs project out 1-3/8" with the thru hole at 1" on center from the bottom of the base. Also known as a Bathroom Partition Stall U-Bracket or Wall Bracket 1". Manufacture part number 1913

Shipped with mounting screws

Toilet Partition Continuous 'U' Wall Bracket For 1" Thick Panel 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 57" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Continuous U Wall Bracket. Manufacturer part # 2369.

Screws included with bracket.

Toilet Partition Two Ear Wall Bracket For 3/4" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-13/32" with the mounting screws are 2-21/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1629.

Shipped with screws

Toilet Partition "U" Wall Bracket For 3/4" Thick Panel Stamped Stainless Steel. 14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 15/16" . Leg project out 1-1/2" with the thru hole at 1-1/8" from the base. The 4 thru holes are 1/4" diameter, two of them are the mounting holes. Also known as a Bathroom Stall U Wall Bracket. Manufacturer part # 1899. Shipped with screws.

Toilet Partition Continuous One Ear Wall Bracket For 1" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 57" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2339.

Toilet Partition Continuous Two Ear Wall Bracket For 1" Panel X 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 57" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 14" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2349.

Toilet Partition Continuous Two Ear Wall Bracket Forl 1" Panel X 41" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 41" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2609.

Chrome Plated Toilet Partitions Bumper Keeper For 1-1/4" Round Edge

Polished chrome plated Zamac construction. The strike and keeper measures 2-1/2" tall by 1-7/8" wide. The mounting holes are 1-1/2" on center. The stop measures 3/4" wide by 17/32" deep with a rubber insert bumper. Slot is 7/16" deep. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing 1-1/4". Manufacture part # 5430.

Shipped with mounting screws.

Chrome Plated Toilet Partition Keeper Bumper Flat Stop 1-1/2" Between Screws, For Outswing

Polished chrome plated Zamac construction. The strike and keeper measure 2-1/2" high by 1-5/8" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. Also known as a Bathroom Stall Strike and Keeper Outswing Flat. Manufacture part # 5260

Shipped with mounting screws.

Chrome Plated Toilet Partition Keeper Bumper Inswing 1-1/4" Round Edge

Polished chrome plated Zamac die casting. The strike and keeper measures 1-7/8" wide by 2-1/2" tall by 1-1/2" deep. The stop measures 2-1/2" tall and projects out 3/4" and has a rubber insert. The two slots have a 1/4" opening by 13/16". Also known as a Bathroom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5330

Partition Keeper Bumper For 1" Square Post Outswing Cast Stainless Steel

Cast stainless steel construction. Strike and Keeper measures 2-1/2" high by 1-15/16" wide. Stop is 17/32" thick and projects out 13/16". The screw holes are 1-1/2" on center. This Bathroom Toilet Door Keeper is designed for use on 1" thick square edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Outswing 1". Manufacture part # 5723.

Shipped with mounting screws.

Toilet Partition Angle Bracket Chrome Plated 1 3/4" X 1 3/4"

Constructed of stainless polished finish with chrome plated zamac die casting. Base is 1-3/4" x 1-3/8", projects out 1-3/4". Two screw holes are 1/4" diameter, and are located 1-1/4" from opposing face. Sometimes called Bathroom Stall Angle Bracket. Sold individually, and shipped with required screws. Manufacturer part number 2015.
