Toilet Partition "H" Alcove Bracket Aluminum For 1" Panel to 1" Pilaster

Constructed of extruded anodized aluminum. Bracket is 2-1/2" high, 1-1/4" wide and 1-1/2" deep. Mounting thru holes 1-1/2" on center. The legs project out 1-3/16". Designed for 1" thick panels to 1" thick pilasters. This bracket is also known as a H Wall Bracket, Alcove H Bracket, Toilet Partition H Wall Bracket, or Bathroom Stall Alcove H Bracket. The manufacturers part number is 1724. The bracket ships with all the required fasteners.

Stainless Steel Partition Support Brace U Shape. Used with up to a 1-1/4" Thick Post. Do your Toilet partition panels keep falling out of the bathroom stall wall mounted brackets? If so, the answer might be a Toilet Partition brace or support, which would support the panel and pilaster from falling, or as preventive maintenance to strengthen the compartment. They are also sometimes called Pilaster Support U-Brackets. The we stock 3 versions that are adjustable from 7-1/2″ to 10″, 9-1/2″ to 12″ and 11-1/2″ to 14″, floor to bottom of panel clearance. The bathroom stall brace is made of stainless steel, with a round base of 2-3/8″ and a support bracket that is 1-1/2″ x 2-3/8″. The diameter of the toilet partition support shaft is 1″. If you have any questions on the Toilet Partition Support Braces let us know!
Same as 8503, 85083, 85093. Most common **8503, 9a8503, 9a85083, 9a85093. The U-Shape is for 1-1/4" panel.

Note the most common are 11-1/2" to 14" due to the partitions are mounted 12" off the floor.

Also note quantities of 10 or more not returnable.

Partition Headrail Bracket for 1 1/4" Headrail

Chrome plate Zamac die cast construction. The overall measurements of the bracket are 3-3/32" wide by 1-19/32" high by 1" deep with a hole spacing of 2-3/8". The spread for the headrail is 1-7/16" wide by 1-19/32" deep. Also known as a Bathroom Stall Headrail Bracket. Manufacture part # 2170.

Shipped with screws.

Roto Casement Operator

This Roto Casement Operator features a hole spacing of 3-1/2" on thee outside mouting holes and 1-7/8" on the two inside mouting holes.  The housing is contructed of die case metal that is electro-statically painted.   The housing is 5-1/2" wide.  The optional handle fits the 5/16" Hex Shaft.

Left Hand Shown in picture

Toilet Partition Continuous "H" (Alcove) Bracket For 1" Thick Panels Aluminum

Constructed of extruded anodized aluminum. Channel is 2-1/2" high by 1+" wide by 54" long, for use with 1" panels. Thru holes are 1-1/2" on center. Holes are 1/4" diameter. Thru holes are every 13" or so. Sometimes known as Bathroom Stall Continuous Alcove Bracket or Toilet Partiton Alcove Bracket. The manufacturers part numbers are 2858, and 650-1862-54. These brackets are shipped with all the needed fasteners.

Toilet Partition Bracket Two Ear For 1" Thick Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3" high by 3-3/4" wide with the mounting holes 2-3/4" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The 8 holes are 1/4" diameter. All wall thicknesses are 1/8". This bracket is sometimes known as a Bathroom Stall Two Ear Wall Bracket, or Toilet Partition Two Ear Wall Bracket. The manufacturers part number is 2264 and 650-1839. This bracket ships with all the needed fasteners.

Partition Keeper Inswing 1-1/4" Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measure 2-1/2" high by 1-7/8" wide with a hole spacing of 1-1/2" on center. The stop is 2-1/2" tall by 3/4" wide with a rubber insert. The slot measures 13/16" high by 1/4" deep. Commonly known as a Bathroom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5343.

Shipped with mounting screws.

Toilet Partition Wall Bracket One Ear For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3" high by 2-5/8" wide with the mounting holes 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The 8 holes are 1/4" diameter. All wall thicknesses are 1/8". This bracket is sometimes known as a Bathroom Stall One Ear Wall Bracket, or Toilet Partition One Ear Wall Bracket. The manufacturers part number is 2274 and 650-1848. This bracket ships with all the needed fasteners.

Toilet Partition Pilaster Anchoring Device for 1" thick or larger.

Zinc plated steel bracket. For 3" to 6" wide Pilaster Posts. Also known as a Bathroom Stall Pilaster Post Anchoring Device. Ships with all the hardware and screws shown.

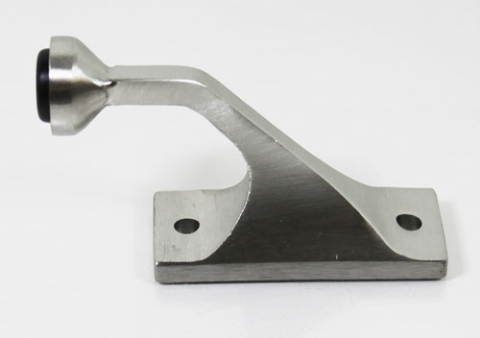

Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4", Door Stop Pilaster Mounted Polished Stainless Steel

Polished Stainless Steel Construction. The door stop base is 3" wide by 1-1/4" high with a 2-5/16" hole spacing. The stop projects out 2-1/2" and has a rubber insert in it. This door stop is usually mounted on the pilaster or post. Also known as a Bathroom Stall Door Stop. Manufacture part # 4155.

Toilet Partition Bracket One Ear For 1" Panel Aluminum

Constructed of extruded anodized aluminum. The base is 1-1/2" high by 2-5/8" wide, with mounting holes 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs are 1" apart, and is designed for 1" thick panels. This bracket is also known as a One Ear Wall Bracket, One Wing Wall Bracket, Toilet Partition One Ear Bracket, or Bathroom Stall One Ear Bracket. The manufacturers part number is 1764. The bracket ships with all the required fasteners.

Toilet Partition Continuous Toilet Partition Hinge 57-1/2" With Spring Close Stainless Steel
Rh Inswing or Lh Outswing See Diagram

16 gauge (.060" thick) stainless steel with 4 springs. 3" wide when laid flat x 57-1/2" long. 1/8" diameter hinge pin. Mounting screws are located every 11" or so. Can be raise up 3/8" for emergency entrance. Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7659.

Shipped with all the fasteners

Toilet Partition Bracket Two Ear For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 1-1/2" high by 3-3/4" wide, with mounting screws at 2-3/4" on center. Legs project out at 2-3/4" with the thru hole at 2-1/2" for the back of the base. The legs are 1" apart. Also known as a Bathroom Stall Two Ear Wall Bracket and Toilet Partition Two Wing Wall Bracket. The manufacturers part numbers are 1754, 650-1839, and 40-8445210. Bracket is shipped with all the fasteners.

U Bracket Stainless Steel for 1/2" Panel. This is used with a 1/2" thick panel only. The hole spacing is 1-1/2" and height is 3", and sticks out from the wall 2-1/2". The overall width is 5/8". This is also known as 2189. The stainless steel is flat and rolled to form a two ear partition bracket.

Cast Stainless Steel Partition Keeper 1-1/2" Between Screws

Cast stainless steel construction. Keeper base is 2-1/2" high by 1-3/16" wide with a 1-1/2" hole spacing. Strike is 2-1/2" tall by 7/8" deep. The material 1/8" thick. The slot is 13/16" high by 1/4". Also known as a Bathroom Stall Keeper Inswing Flat. Manufacture part # 5183.

Shipped with mounting screws.

Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4", Stainless Steel.

Cast Stainless Steel construction. The door stop base is 3" wide by 1-1/4" high with a 2-5/16" hole spacing. The stop projects out 2-1/2" and has a rubber insert in it. This door stop is usually mounted on the pilaster or post. Also known as a Bathroom Stall Door Stop. Manufacture part # 4153.

Partition Strike/Keeper For 3/4" Door Inswing 1-7/8" Between Screw Stamped Stainless Steel

Stamped stainless steel .075" thickness construction. The strike and keeper measures 2-7/8" tall by 2" wide by 1-15/16" deep with a 1-7/8" hole spacing. The stop is 7/16" thick with a rubber insert. Also known as a Bathroom Stall Strike and Keeper Inswing 3/4". Manufacture part # 6469.

Shipped with mounting screws.

Torque Head Barrel Nut Shoulder Screw for 7/8" - 1-3/16" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe  head torque. Both pieces included.

Chrome Plated Keeper Bumper For 1-1/4" Outswing Round Edge Post

Zamac die cast and polished chrome plate construction. The strike and keeper measure 2-1/2" high by 1-7/8" wide with a hole spacing of 1-1/2" on center. The stop is 2-1/2" tall by 3/4" wide with a rubber insert. Commonly known as a Bathrrom Stall Strike and Keeper Outswing 1-1/4". Manufacture part # 5410

Shipped with mounting screws.

Torque Head Barrel Nut Shoulder Screw for 1-1/4" - 1-5/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe  head torque. Both pieces included.

Partition Strike And Keeper For 1" Door, 1-7/8" Between Screws, Stamped Stainless Steel

Stamped stainless steel .075" thick construction. The strike and keeper measure 2-7/8" high by 2" wide with a 1-7/8" hole spacing. The stop posts are 5/8" wide by 7/8" tall with rubber inserts. For use with 1" square edge posts. Also known as a Bathroom Stall Strike and Keeper Outswing 1". Manufacture part # 6459.

Shipped with mounting screws.

Toilet Partition Aluminum Square Post 1-3/4" X 10'

Extruded anodized aluminum. 1-3/4" x 1-3/4" x 10' long. Also known as a Bathroom Stall Aluminum Square Post. Manufacture part # 40-5443400G. Oversized part, has to ship Truck.

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1-1/4" - 1-5/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stainless steel unplated and uses a 6 lobe head torque. Both pieces included.

Piano Hinge W/Cover lh in/rh out 54" aluminum anodized is a heavy duty 1/4" pin with spring to close. this hinge has 5 holes on each side with 13" centers and starts at 1" from top and bottom. The cover makes the hinge holes not as noticeable. Also known as 8684.

Toilet Partition Alcove Clip Set, 2 Pieces, For 1" To 1-1/4" Panel Stainless Steel Plated

These clips are 1-1/2" tall x 2-1/4" wide. The screws are 1-1/2" on center, with 1/4" diameter holes. The clip is constructed of cast stainless steel material. This part is also know as Bathroom Stall Alcove Clip Set, or Toilet Partition Alcove Clip. The manufacturers part number is 8343. These clips are sold in sets with the fasteners. They are used to connect a 1" panel to a 1-1/4" panel.

Two Ear Stainless Steel Partition Bracket for 1/2" Panel. This is used with a 1/2" thick panel only. The hole spacing is 1-1/2" and height is 3", and sticks out from the wall 2-1/2". The overall width is 3-1/4". The screw holes are 1/4" diameter at 8 places. This is also known as 2209. The stainless steel is flat and rolled to form a two ear partition bracket.

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1/2" - 3/4" Gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread, stainless steel unplated and uses a 6 lobe  head torque. Both pieces included.

Universal Handing Partition Hinge Stainless Steel Surface mounted. This hinge is universal which means this can be in or out swing and right or left hinged. This hinge is 1/8" thick, overall width is 3" x 3-3/8"ht. The hole spacing is 2" x 1-1/2" up and down. The manufacturer's part number is 650-8241, 7199. Hardware included for 1" door and 1-1/4" thick post.

Toilet Partition Pilaster Anchor 'L' Bracket For 1-1/8"-1-1/4" Thick Pilaster Posts

Zinc plated brackets and screws. Also known as a Bathroom Stall Pilaster Post Anchoring Pack. Package includes all needed screws and brackets.

Toilet Partition Pilaster Anchoring Device

Zinc plated steel construction. For 3/4" thick and larger Pilaster Posts and 3" wide and larger pilaster posts. The brackets are 11/16" wide. Also known as a Bathroom Stall Pilaster Post Anchoring Pack. All the screws are included in the package.

Toilet Partition Wall Bracket One Ear For 1-1/4" Panel Aluminum

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1-3/16" - 1-3/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stainless steel unplated and uses a 6 lobe head torque. Both pieces included.

Torque Head Barrel Nut Shoulder Screw for 1/2" - 3/4" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe head torque. Both pieces included.

Torque Head Barrel Nut Shoulder Screw for 1-3/16" - 1-3/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe  head torque. Both pieces included.

Toilet Partition Pilaster Anchoring Device for 1" thick or larger.

Zinc plated steel bracket. For 7" wide and larger Pilaster Posts. Also known as a Bathroom Stall Pilaster Post Anchoring Device. Ships with all the hardware and screws shown.
