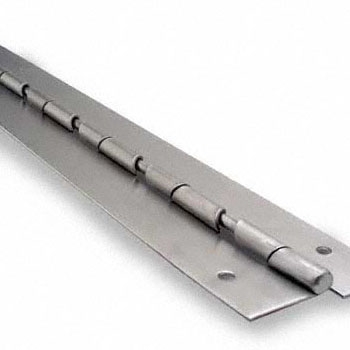

Toilet Partition Stainless Steel Continuous Hinge, 71", Non-Handed, 14 Gauge, 1/4" Pin

Stainless Steel Construction 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 71" long. Holes are typically spaced every 14". The hinge pin is 1/4" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. Hinge had rounded edge 3/8" radius and is cam (gavity) self closing. Designed to be 20 degree hold so that door will close and rest at 20 degress from being flush with partitions surface but can be pulled flush. The Bathroom Stall hinge can be raised up 3/8" for emergency entry.

*Fasteners not Included *

Manufacture part # 160809

Bathroom partition chrome plated inswing door kit for square edge doors and posts. For 7/8" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 17800.

Bathroom partition chrome plated outswing door kit for square edge doors and posts. For 7/8" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 27810.

Restroom Door Kit Outswing 7/8" Door & 1-1/4" Post Cast stainless steel. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 27813.

Toilet Partition Stainless Steel Continuous Hinge, 71", Non-Handed, 14 Gauge, 1/4" Pin

Stainless Steel Construction 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 71" long. Holes are typically spaced every 14". The hinge pin is 1/4" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. Hinge had rounded edge 3/8" radius and is cam (gavity) self closing. Designed to be zero degree hold so that door will close flush with partition surface. The Bathroom Stall hinge can be raised up 3/8" for emergency entry.

*Fasteners not Included *

Manufacture part # 160799

Stainless Steel Angle Bracket 1-5/8"x1-5/8" are for bathroom toilet stalls. This product can be used for any thickness material by using two units. This product is also known as 2019. Security screws included.

Restroom Door Kit Inswing 7/8" Door & 1-1/4" Post Cast SS. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 17803.

Partition Strike And Keeper For 1" Door, 1-7/8" Between Screws, Stamped Stainless Steel

Stamped stainless steel .075" thick construction. The strike and keeper measure 2-7/8" high by 2" wide with a 1-7/8" hole spacing. The stop posts are 5/8" wide by 7/8" tall with rubber inserts. For use with 1" square edge posts. Also known as a Bathroom Stall Strike and Keeper Outswing 1". Manufacture part # 6459.

Shipped with mounting screws.

Toilet Partition Bottom Hinge Assembly For 7/8" Door To 1-1/4" Pilaster Square Edge Cast Stainless Steel

Cast stainless steel hinge. Hinge mounts to 1-1/4" square edge post or pilaster, for use with 7/8" thick doors. Kit includes bottom hinge, pintle, pin and insert. Also known as a Bathroom Stall Bottom Pivot Hinge Set. Manufacture part # 63013

Includes all screws.

Partition Strike And Keeper For 3/4" Door, 1-7/8" Between Screws Stamped Stainless Steel

Stamped stainless steel .075" thick construction. The strike and keeper measure 2-7/8" high by 2" wide with a 1-7/8" hole spacing. The stop posts are 5/8" wide by 7/8" tall with rubber inserts. For use with 3/4" square edge posts. Also known as a Bathroom Stall Strike and Keeper Outswing 3/4". Manufacture part # 6379.

Shipped with mounting screws.

Toilet Partition Top Hinge Assembly For 7/8" Door To 1-1/4" Post Square Edge Cast Stainless Steel

Cast stainless steel hinge. Hinge mounts to 1-1/4" square edge post or pilaster, for use with 7/8" thick doors. Kit includes top hinges, pintle, pin and inserts. Also known as a Bathroom Stall Top Pivot Hinge Set. Manufacture part # 63023

Includes all screws.

Occupancy Indicator Handle Set, European Design, Stainless Steel Construction. This product offers the European style with a sleek and modern feel. Features the capability of being installed on partitions with thickness of either 3/4" or 1", Built-In Handle, and Emergency unlatching access on front face of indicator, make this an extremely versatile option for restroom partitions. Traditionally these are designed for partitions that have routed edges to create a no-sightline system but can be used with non-routed edge partitions with addition hardware under related products.

Partition Strike/Keeper For 3/4" Door Inswing 1-7/8" Between Screw Stamped Stainless Steel

Stamped stainless steel .075" thickness construction. The strike and keeper measures 2-7/8" tall by 2" wide by 1-15/16" deep with a 1-7/8" hole spacing. The stop is 7/16" thick with a rubber insert. Also known as a Bathroom Stall Strike and Keeper Inswing 3/4". Manufacture part # 6469.

Shipped with mounting screws.

Partition Ada Door Handle 3-3/8" Projection X 5-1/2" Wide Cast Stainless Steel

Cast stainless steel construction. This handle a ADA compliant. The handle base is 2" diameter with 3 mounting holes on each base. The handle is made of 3/8" daimeter material. The under clearance for the handle is 3". Also known as a Bathroom Stall Door Pull. Manufacture part # 6253.

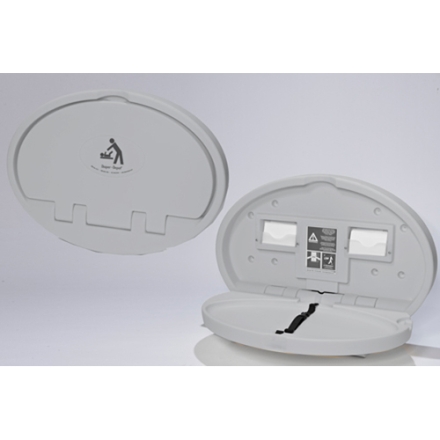

• Attractive, Durable, safe, affordable
• Combines durability with long lasting looks
• Universal Safety instructions
• 4" depth closed, 20" depth open, 34" wide
• Fully hidden gas shock
• Shelf for personal changing items
• Safe strap safety belt
• Molded in hook for purse or diaper bag
• Concave bed
• Includes industrial grade hardware kit for easy installation
• 5 year warrantee

Surface Mounted Partition Slide Bolt Latch Stainless Steel 3/8" Bar To Door Clearance

Cast stainless steel construction. Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 5/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5063.

Shipped with mounting screws.

Surface Mounted Partition Slide Bolt Latch Chrome Plated 3/8" Bar To Door Clearance

Zamac die cast construction, polished chrome finish. Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 5/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5060.

Shipped with mounting screws.

Partition Slide Latch 3/8" Bar To Door, 2-3/4" Between Screws Stainless Steel

Cast stainless steel construction. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/4" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 3/8" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5033.

Shipped with mounting screws.

Toilet Partition Bottom Hinge Assembly For 7/8" Door, 1-1/4" Pilaster

Polished chrome plated zamac die cast construction. Kit includes Bottom Hinge, Pintle, Nylon Cam, and Bottom Hinge Door Insert. Bottom hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4". Also known as a Bathroom Stall Bottom Hinge Kit. Manufacture part number 63010.

Screws are also included.

Partition Surface Mounted Stainless Steel Slide Bolt Latch 1-7/8" Screws. Stamped stainless steel construction. Base is 2-7/8" high by 1-3/8" wide by 5/32" thick. Latch bolt is 2-1/4" long x 13/16" wide x 1/8" thick, and the slide distance is 25/32". Also known as a Bathroom Stall Stainless Steel Slide Latch and Toilet Partition Locks. Manufacture part # 6309. Shipped with mounting screws.

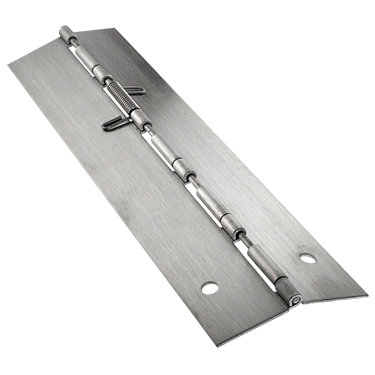

Toilet Partition Continuous Toilet Partition Hinge 57-1/2" With Spring Close Stainless Steel
Rh Inswing or Lh Outswing See Diagram

16 gauge (.060" thick) stainless steel with 4 springs. 3" wide when laid flat x 57-1/2" long. 1/8" diameter hinge pin. Mounting screws are located every 11" or so. Can be raise up 3/8" for emergency entrance. Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7659.

Shipped with all the fasteners

Partition Door Hook & Bumper Stop Inswing Stamped Stainless Steel

Stamped stainless steel 1/16" thick construction. The hook and stop measures 5/8" wide by 2-3/4" high by 3-1/16" projection with a 1" hole spacing. There is a rubber bumper on the end of the 3-1/16" projection. Also known as a Bathroom Stall Hook. Manufacture part # 4009

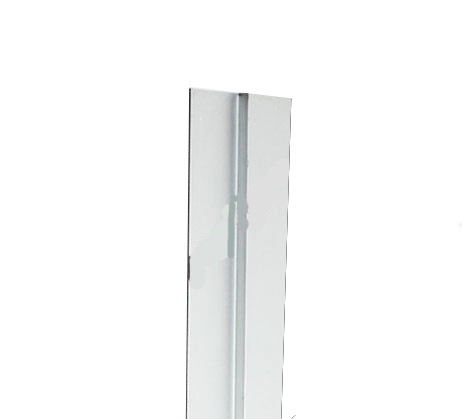

• Partition Door Privacy Strip are aluminum construction
• 1-1/8" x 60" ht.
• Also known as 121974.
• Partition Door Privacy strips are designed to eliminate any gaps between door and pilaster. Add your own self threading screws to complete the job, includes 1 privacy strip
• This product ships in an oversize box ground.

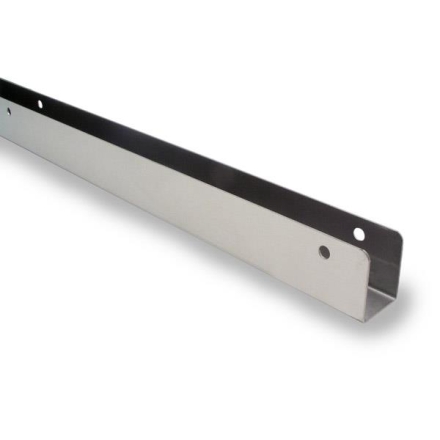

Toilet Partition Stainless Steel Continuous U Bracket, 71", 7/8"x1-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge. U bracket is for 7/8" wide partitions and is 1-1/2" height and 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous U Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 204099

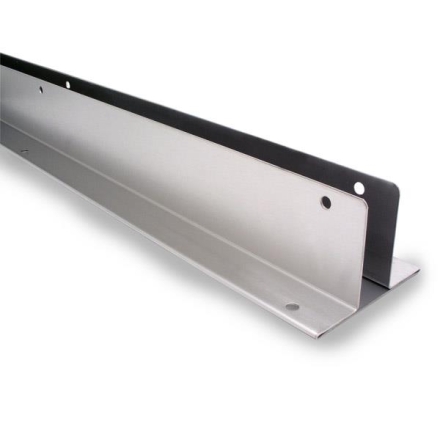

Toilet Partition Stainless Steel Continuous Two Ear Bracket, 71", 7/8"x2-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge.Two ear bracket is for 7/8" wide partitions and is 2-1/2" height by 3-1/2" wide by 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous Two Ear Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 204079

• Partition Door Privacy Strip are aluminum construction
• 1-1/8" x 72" ht.
• Also known as 121975.
• Partition Door Privacy strips are designed to eliminate any gaps between door and pilaster. Add your own self threading screws to complete the job, includes 1 privacy strip
• This product ships in an oversize box ground.

• Attractive, Durable, safe, affordable
• Combines durability with long lasting looks
• Universal Safety instructions
• 4" depth closed, 20" depth open, 34" wide
• Fully hidden gas shock
• Shelf for personal changing items
• Safe strap safety belt
• Molded in hook for purse or diaper bag
• Concave bed
• Includes industrial grade hardware kit for easy installation
• 5 year warrantee

Toilet Partition Stainless Steel Continuous Hinge, 71-1/2"Lh Inswing ,Rh Outswing ,16 Gauge ,1/8" Pin

Stainless Steel Construction 16 gauge (.060" thick). Hinge is 3" wide when laid flat, by 71-1/2" long. Holes are spaced every 11" or so. The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.

Manufacture part # 7769

Partition Door Piano Hinge 57", 14 Gauge SS,1/4" Pin with 20 Degree Cam Close. This hinge keeps the door open 20 degree so the user knows there is nobody in the restroom toilet stall. This is the most Heavy Duty Continuous Full Length Hinge we sell. 14 gauge (.075" thick) stainless steel construction with a 1/4" diameter hinge pin. The hinge leafs are angle cut so your door will close with the camming action. The hinge is 3" wide when laid flat, and 57" long. Screws are spaced 11" apart and the holes are 9/32" diameter and has 6 sets of holes. Hinge can be raised up 3/8" for emergency entry. Also known as a Restroom Toilet Stall Full Length Continuous Hinge. Manufacturer part #650-9401 and 160039. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

• Attractive, Durable, safe, affordable
• Combines durability with long lasting looks
• Universal Safety instructions
• 4" depth closed, 20" depth open, 34" wide
• Fully hidden gas shock
• Shelf for personal changing items
• Safe strap safety belt
• Molded in hook for purse or diaper bag
• Concave bed
• Includes industrial grade hardware kit for easy installation
• 5 year warrantee

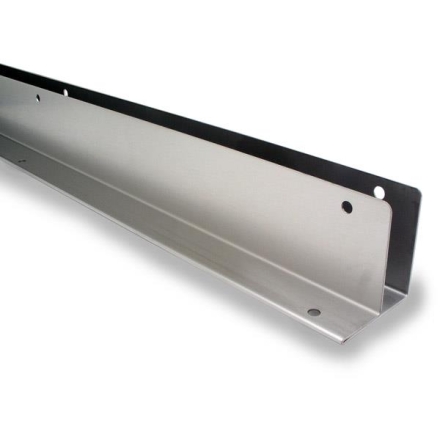

Toilet Partition Stainless Steel Continuous One Ear Bracket, 71", 7/8"x2-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge. One ear bracket is for 7/8" wide partitions and is 2-1/2" height by 2-9/32" wide by 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous One Ear Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 204039

Door Pull 4" Centers Chrome Plated. Chrome Plated die cast handle. 4-3/8" wide x 7/8" projection, also known as 9a0171.

Toilet Partition Continuous Hinge 54" With 20 Degree Cam Close Stainless Steel. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

Stainless Steel Construction, 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 54" long. Holes are spaced every 13" and are 9/32" diameter and 5 sets of holes. The hinge is self closing by a cam action, which is made possible by angle cuts on the continuous hinge leafs. Cam features 20 Degree Closing for ADA Doors. Can be raised up 3/8" for emergency entry. This hinge is also known as a Bathroom Stall Full Length Continuous Hinge. This hinge is non handed. Manufacture part # 130219, 7598, 125319, 650-9402.

Stainless Steel Partition Support Brace U Shape, Cut Adjustable Height. Constructed of 13 Gauge Stainless Steel with Satin finish. Used to support/brace the bottom of partitions and is mounted to the restroom floor. Designed to work with partition panels or pilasters to create stability. Available for material thickness of 3/4", 7/8", 1" and 1-1/4". These partitions support braces are field adjustable by cutting the tube. Ships as standard size 12-1/2" (Max Size) and can be cut down to as small as 3"(Min Size) to create floor clearance. Features a press fit bushing to set the height for the support brace. Ships with fastners. Should you have any questions about this item please let us know. Known as part numbers 135009, 135019, 135029 and 135039.

Notes

• Only Available in U Shape Design
• Field Cut Adjustable: Ships at 12-1/2"(Max) and cuttable down to 3"(Min.)
• Thickness Available Sizes: 3/4", 7/8", 1" and 1-1/4"

Heavy Duty Locker Door Knob for Two Person Locker upper doors, includes 703208 Screw. Also known as 70080, bu0113. 1" diameter x 7/8" height.
