Global Partitions Top Hinge For Flat Surface Mounting. Chrome plated Zamac die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Manufacturer part # 135580. Same part for Flush Metal and General Partitions. Shipped with mounting screws. A=1-7/6". Also used with Accurate Partition doors after January 2013.

Global Partitions Nylon Cam For Steel

White nylon plastic construction. Square part of nylon cam is 7/8" by 1-1/8" with a diameter of 11/16". The cam has an overall heigth of 1-1/4", with a cylinder diameter of 7/8". Also known as a Bathroom Stall Cam. Manufacture part # 98185

Cast Stainless Steel Construction. Used for a Partition door to stop and lock on it.

40-8562306

Ordering Online All Powder Coated Metal Pilasters Manufactured by Global Toilet Partitions. All toilet partition pilaster's ship in 48-72 hours plus 2-4 days travel. Includes Floor mount hardware and Stainless Steel Shoes Available for the following widths - 2, 3, 4, 5, 6, 7, 8, 10, 12, 16, 18, 20, 22 and 24". All Pilaster height's are 84".
Color Chart

Global Partitions Top Hinge Pin Laminate Hinge Pin 3/8" Diameter x 3-7/16" Long

Knurled steel construction. Hinge pin is 3-1/2" long by 3/8" diameter. The knurled end has a threaded hole of a 10-24 screw. Also known as a Bathroom Stall Hinge Pin. Manufacture part # 99109.

Global Partitions Bottom Hinge For Surface Mount. Chrome plated Zamac die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-9/16" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Manufacture part # 3010, 111710. Also used with Flush Metal and General Partitions. Shipped with mounting screws. A=1-9/16". Also used with Accurate Partition doors after January 2013.

Cast Stainless Steel Slide Bolt Latch W/Indicator. For 3/4" or 1" Door, 2-3/4" between screws. Also known as 8563009. This latch is Ada approved. There is no exact replacement available.

Sorry no longer available, see links for options

https://www.robertbrooke.com/bathroom/partition-parts/latches/chrome-plated.html

https://www.robertbrooke.com/bathroom/partition-parts/latches/cast-stamped-stainless-steel.html

Global Partitions Bottom Cam Housing

Chrome Plated Zamac die casting. The bottom cam housing measures 1-3/16" wide by 3" deep. The screw hole is 9/32" diameter. Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4090.

Outswing For 1" Square Edge is designed for out swinging doors with a 1" thick square edged pilaster post.  It is constructed of cast stainless steel.  The manufactures part number is 40-8562308.

Global Partitions Bottom Hinge For Surface Mount. Stainless Steel die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-9/16" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Manufacture part # 3010, 111710, 111713. Also used with Flush Metal and General Partitions. Shipped with mounting screws. A=1-9/16". Also used with Accurate Partition doors after January 2013.

Global Concealed Latch Knob & Cover Chrome Plated

Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 1390, 1380, 6140.

Ordering Online All Plastic Laminate Panels Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. All toilet partitions ship in 48 hours, 2-4 days travel. Panels Includes: 4 standard chrome brackets. Available for the following widths - 16, 18, 22, 28, 34, 40, 46, 52, 55, 58, 60, 65, 70, 76". Actual width is 1/2" less. Specify - Part # 9TPL-XX (where XX is door opening width) Reinforcing for grab bars available.

Global Plastic Laminate color chart

Toilet partition round edge pilaster shoe, stamped stainless steel construction. Pilaster Shoe measures 2" to 24" wide by -1-1/4" thick by 3" high. This size pilaster post shoes are split on one end for easy installation. Also known as a Bathroom Stall Pilaster Post Shoe Round Edge. Used for the base of the support system with pilaster mounting.

Global Partitions Surface Mounted Slide Bolt Latch Chrome Plated

Zamac die cast construction, polished chrome finish. Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5050.

Shipped with mounting screws.

Used by accurate and global

Ordering Online All Powder Coated Metal Floor Anchored Urinal Screen Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. All toilet partitions ship in 48-72 hours plus 2-4 days travel. All standard chrome plated brackets included. Floor Anchored Urinal Screen 70" high pilaster and 58" high panel. Width of screen 16"-76"x 58"ht
Color Chart

Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". The ADA Barrier Free Lever is 2-9/16" long when measured from the all the way across the cover. The cover has an overall diameter of 1-1/4". Also known as a Bathroom Stall Concealed ADA Latch Cover and Knob Assembly. Manufacture part # 6150, 163500 uses a T27 Torq Bit that is included. Used with All American, Flush Metal, General and Global Partitions.

Global Partitions Top Hinge For 1-1/4" Round Edge Post

Chrome plated Zamac die cast construction. Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Also known as a Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3510.

Shipped with mounting screws.

A=1-7/6"

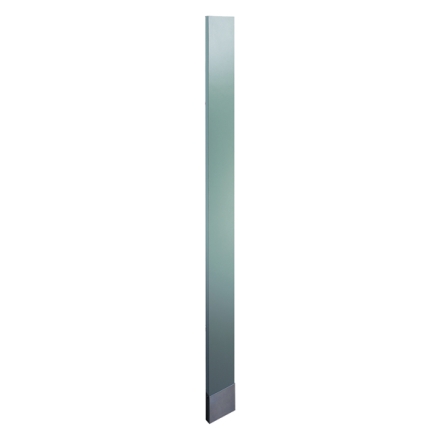

Ordering Online All Plastic Laminate Pilasters Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing.  All toilet partitions ship in 48 hours, 2-4 days travel.  Pilasters Includes: floor mounting hardware and Stainless Steel Shoes  Available for the following widths - 3, 4, 5, 6, 7, 8, 10, 12, 16, 18, 20, 22 and 24". A plastic laminate toilet partition pilasters are 1" thick and 85" high. If yours are less you can cut the top off and the headrail will cover the top.

Global Plastic Laminate color chart

General Toilet Partition Keeper Bumper For Square Edge 1-1/4" Thick Posts

Zamac die cast construction and polished chrome plated. The keeper and strike is 2-1/2" tall by 1-7/8" wide. The stop is 17/32" thick and projects out 3/4". The mounting holes are 1-1/2" on center. The locking slot is 7/16" deep. Generally used with concealed latches. Also known as a Bathroom Stall Strike and Keeper - Inswing/Outswing 1-1/4". Manufacture part # 5230.

Shipped with mounting screws.

Global Partitions Concealed Ada Latch Knob Cover Chrome Plated

Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". The ADA Barrier Free Lever is 2-9/16" long when measured from the all the way across the cover. The cover has an overall depth of 1-1/4". Also known as a Bathroom Stall Concealed ADA Latch Cover and Knob Assembly. Manufacture part # 6150, 1380

Ordering Online All Powder Coated Metal Wall Hung Urinal Screens Manufactured by Global Partitions. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Wall Hung 1" thick by 48" high panel. Available in the following widths 12, 18, 24" x 48" ht screen. Two Standard Chrome Plated Brackets included.
Color Chart

Ordering online All Powder Coated Metal Overhead Braced Floor Anchored Dividers are Manufactured by Global Partitions, see color chart below. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Standard Chrome Plated brackets included. Panels are 58" high. and Pilasters are 84" high. Panel, Pilaster, headrail and all hardware included. Width of screen 16"-76" widths  Color Chart

Ordering Online All Global Partitions in Powder Coated Panels are Manufactured in the usa. All toilet partition panel's ship in 48-72 hours plus 2-4 days travel. All Hardware Chrome Plated included. Available in 16, 18, 22, 28, 34, 40, 46, 52, 55, 58, 60, 65, 70, 76". Actual width is 1/2" less. (58" Height)
Color Chart

Global Complete Hinge Set with Rounded Edge. Used currently with these factories Global, General and Flush Metal and Accurate Partitions. Complete as shown in picture with the parts. Includes top pin, top hinge, bottom cam, pintle and bottom hinge and security screws. Used with powder coated steel and stainless steel partitions with a slight round edge. These will not work with old original Accurate Partitions prior to 2013. Used 2013 to current with Accurate Partitions.

Global Ada Latch Knob & Cover, W/ Screw Chrome Plated, also known as 40-8513370g. This was used up until October 2021.

Keeper Bumper- Outswing For 1-1/4" Sq Edge Chrome Plated Construction

Used on many toilet partition manufacturers partitions, known as 40-8512354.

Cast Stainless Steel Slide Bolt Latch 1-1/2"W X 3-1/4"L, 2-3/4" Between Screws. Used on Accurate and Global Toilet Partitions. Cast stainless steel, also known as 40-256300, 40-8562899, 8698. This latch is Ada approved.

Global Partitions Bottom Hinge For 1-1/4" Round Edge Post

Chrome plated Zamac die cast construction. Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Also known as a Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3010.

Shipped with mounting screws.

A=1-7/6"

ASI Headrail Retrun Kit is designed to work with Global and Accurate Partitions. Manufacturered to work with the new style headrails introduced in May of 2023 which are a lower profile than the previous models that are no longer available. The headrail retun kit will work with the 3/4", 1" and 1-1/4" thickness headrails from ASI. This kit includes (2) Brackets, (2) Wall Anchoring Screws, (2) Plastic Anchors, (4) Fastening Screws and (1) Headrail End Cap. Can be used to run across the top of partitions either between two wall or runnning from a rear wall to a pilaster. Often used in conjuction with ASI Headrail (9A84) Manufacturer Part# 40-8448100.

Global Cam Set For Plastic Laminate also known as,89820, 89830

Chrome Plated Construction

Used on many toilet partition manufacturers partitions

Chrome plated Global Latch Knob & Cover, also known as 40-8513380g. This was used up until October 2021.

The Global Partitions stainless steel Ada latch knob & cover, with Screw, are a concealed latch that is held together by a screw.  They are constructed of cast stainless steel metal that is then brushed and polished.  The 9G3370 meets ADA compliance codes. The manufacturer part number is 40-8263370. This was used up until October 2021.

ASI Alpaco Ada Indicator Latch is used by Accurate and Global Partitions. This European design is featured on the Alpaco Classic and Elegance Collection. Stainless steel construction make this indicator latch durable. These latches are created to be used on 3/4" thick material. Red and White indicator is used to show whether the stall is in use. Offers emergency access fom the outside with coin slot feature. Also known as 8273100.

Ordering Online All Powder Coated Metal 10' Post & Panel Urinal Screen Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. All toilet partition's ship in 48-72 hours plus 2-4 days travel. 10' Post/Panel Urinal Screen 1-3/4" square post up to 120" maximum with 58" high panel. Specify - and Part # 9SFCS-XX (where XX is width from the front of post to the wall). Width of screen 16"-76" x 58"ht, All standard chrome plated hardware included.
Color Chart

ASI EZ Shoe is designed to anchor directely to the floor. Made for Global Partitions and Accurate Partitions restroom stall. This allows for the pilaster to sit inside the shoe. Constructed of #304 Stainless Steel and 3" height. The ASI EZ Shoe comes in round or square edge design. Round Edge shoes are configured for Solid Plastic (1" Thick), Powder Coated Steel and Stainless Steel (1-1/4" Thick) partition pilasters. Square Edge is designed for Plastic Laminate (1" Thick) and Phenolic (3/4" Thick) partition pilasters. ASI EZ Shoes come with all hardware for anchoring shoe to floor and screws for attaching pilaster shoe to pilaster. Pilaster shoes are the base support for partitions.
