Wood Door Automatic Flush Bolt FB41

H.B. Ives FB41 Series are sold has Top, Bottom or in Pairs (top and bottom). Fully automatic, inactive door is latched when active door closes, bolts retract when active door is opened. Top Bolt has no spring tension. They are non handed, but the top and bottom bolts are different. The body size is 1" wide, 8-1/2" tall and 2" deep, the bolts have a 3/4" throw with a 7/8" vertical adjustment.

Ives Part #'s
FB41P - Pairs
FB41T - Top
FB41B - Bottom

Wall Mounted Door Stop WS443

Features:

• Constructed in brass.
• Ideal for interior or exterior use.
• Non-marring rubber tip.
• Packed with expansion shield and lead shield.

Diameter 2-1/4"
Projection 3-11/16"

Ives Wall Bumper Heavy Duty WS401CCV

Features:

• Special retainer cup makes rubber tamper resistant.
• Constructed in heavy-duty cast brass or aluminum base.
• The WS401CCV unit is designed with a concave rubber bumper which avoids damage to ocks with projecting buttons, packed with wood screw and plastic anchor.

2-1/2" diameter with a 1" projection

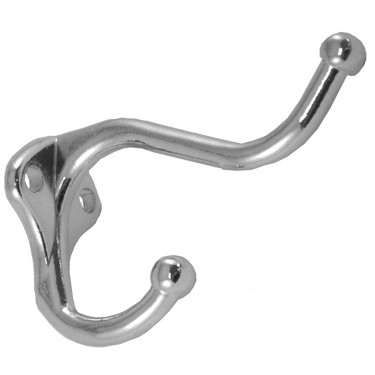

Ives Double Prong Hook

Heavy Duty chrome plated zamac Double Prong Hook.

3" Projection
2-1/4" Height

Kickdown Door Stop / Holder Rubber Shoe

Rubber Shoe for old style GJL444/555 and old style style GJ44's

1" base diameter
13/16" over all height
5/8" outside thread diameter

Ives Plunger Type Holder FS1154

Features:

• Constructed from heavy-duty cast brass or bronze.
• Plunger and internal parts are plated steel and provides a 1-1/4" throw for all types of doors.
• Plunger is easily activated with minimal pressure, releasing instantly with a light tap on the platform lever.
• Round non-marring rubber shoe is securely fastened with a screw in flanged cup to prevent movement or loss. When worn, shoes are easily replaced.

Ives Part # FS1154

This replacement tip is used on the WB11, WB12, WS20 and WS33.
5/8" insert diameter
7/8" head diameter
1" overall length

Ives Wall Mounted Door Stop WS65

• Burnished cast aluminum.
• Replaceable non-marring white rubber bumper.
• Packed with sheet metal screws.

Base Diameter: 1-5/8"
Overall Projection: 3-3/4"

The Lock Guard with Security Pin is ideal to cover the latchbolt area of the door, lock and frame, with the added protection of a security pin to prevent separation of the door and door frame.  The plate is through bolted with carriage bolts and nuts, which are included with the guard.  The plate is constructed of 13 gauge stainless steel.  The plate measures 3" wide and 11-1/2" high, with a center to center on the mounting bolts of 10-1/2".

Rubber Shoe For GJ1154M and GJL444-555 Kickdown Door Stop / Holder

Replacement rubber shoe
5/8" insert diameter
1" base diameter
8-32 threaded screw

Door Holder / Stop Rubber Shoe

Replacement Rubber Shoe
5/8" insert diameter
1" base diameter
7/8" overall height

Ives Part # HRT or FSPART.1075

Floor Mounted Door Stop and Holder
Manual type door holder ideal for interioror exterior use
Cast Bronze Construction
Strike features hinged hook which engages the holder
Accommodates door undercut up to 2-1/2"

Ives Floor Mounted Door Holder FS41

Features:
• Automatic door holders ideal for heavy-traffic situations that require a simple,
fool-proof, Hold-Open device.
• Forged from brass.
• Unit is activated automatically when door is opened. A firm pull on door releases
the mechanism.
• Strikes accommodate different door to floor clearances.
• Model numbers are determined by strike/door-to-floor clearances.
• Holder position on door is adjustable.

Door to Floor Clearance 9/16" to 1-1/16"
Holder Dimensions 3" Wide x 3-11/16" High

Ives Floor Mounted Door Holder FS446

Features:

• Manual type floor holder ideal for interior or exterior use.
• Cast brass or aluminum construction.
• Accommodates door undercut up to 2-1/2".
• Non-marring rubber tip.
• Unit functions as a stop but serves as a Hold-Open device when hook is manually engaged instrike. Unit requires manual disengagement to release Hold-Open.
• Packed with expansion shield and lead shield.

Overall Height 3-3/4"
Height to Stop Center Line 2-5/8"
Diameter 2-1/2"

• Surface Bolt has 1-3/16" throw for maximum security.
• Strong tension springs prevent creep.
• Ideal for all types of doors.
• Available 8"
• Units packed with standard screws for added security.
• Units packed with both a universal top strike (US) and
a mortise bottom strike (MS).
• Constructed of heavy duty steel.

Wood Door Constant Latching Flush Bolt FB61P

The Ives FB61P is used on the inactive leaf of wood fire doors.   The latch remains extend until the active door is opened.   When the active door is opened the latches retract, and extend when the active door is closed.  The bodies measure 1” wide by 8-1/2” tall and 2” deep.  The bolt throw is 3/4” with a 7/8” vertical adjustment, and has a 3/4” backset.   This package comes with the top and bottom flush bolts with screws and strikes.

90 minute UL Rated.

Ives Part # FB61P

Ives Sweep Lock07

The Ives Sweep Lock are made of solid brass and plated to your desired finish.   The base is 15/16" x 2-9/16", and the Strike is 5/8" x 2-9/16".  The center to center distance on the screws 1-15/16".

Ives Part # 07

Plunger Type Holder / Stop FS1153

This plunger type door holder manufactured by H.B. Ives features a contemporary yet economical method of positive Hold-Open.  It is constructed in sturdy cast aluminum for years of service.  The spring operated plunger activates with minimal pressure, releasing instantly with a light tap on the plat-form lever.  The plunger offers a 1-5/8" throw for all types of doors.  The ribbed non-marring rubber shoe is securely fastened to unit with a screw and is easily replaced when worn.

Aluminum finish only

Ives Part # FS1153

Ives Floor Mounted Door Holder FS43

Features:
• Automatic door holders ideal for heavy-traffic situations that require a simple,
fool-proof, Hold-Open device.
• Forged from brass.
• Unit is activated automatically when door is opened. A firm pull on door releases
the mechanism.
• Strikes accommodate different door to floor clearances.
• Model numbers are determined by strike/door-to-floor clearances.
• Holder position on door is adjustable.

Door to Floor Clearance 1-5/8" to 2-11/16"
Holder Dimensions 3" Wide x 3-11/16" High

Metal Door Automatic Flush Bolts FB31P

Fully automatic-inactive door is latched, bolts are extended when active door closes, door is unlatched, bolts retract when active door is opened. The Ives FB31P Body is 1” wide by 6-3/4” long and 2” deep. Bolt throw is 3/4” with a 7/8” adjustment with a 3/4” backset,  standard rod is 12” which is measured from the center of latch body to the bolt tip.

Rods are also available in 18”, 24” and 36”, call for pricing.  We ship the 12” rods, and this set would include the top and bottom latches.

3 Hour UL Listed

Ives Part # FB31P

Ives Floor Mounted Door Holder FS40

This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF40A or F40A, and was brought over to the H.B. Ives line in the 1990's. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.

Door to Floor Clearance 1/2" or less
Holder Dimensions 3" Wide x 3-11/16" High
