5" Kickdown Door Holder / Stop FS555

Features:

• Units provide an economical method to hold open doors.
• Cast of durable iron.
• Non-marring rubber shoes have corrugated bottoms to provide secure grip. Rubber shoe is securely fastened with screw. When worn, shoes are easily replaced.
• FS555 for door-to-floor clearances up to 3".

Made by H.B. Ives

5" Kickdown Door Holder / Stop FS452

Features:

• Units provide simple hold and release, activated with a touch of the foot.
• Cast brass or aluminum construction.
• Stainless steel spring.
• Non-marring rubber shoes have corrugated bottoms to provide secure grip.
• Shoes are easily replaced when worn.
• FS452-5 has a door-to-floor clearance up to 3".
• Packed with sheet metal screws.

Ives Part # FS452

Wall Mounted Door Stop WS33

• Constructed in a durable cast brass and then brushed chrome plated.
• Replaceable rubber bumper with offset shoulder screws into cavity on body to prevent loss or theft.
• Sloping design discourages vandalism

WS33 is furnished with wood screws for drywall mounting.

Door Stop / Holder Rubber Shoe

Replacement rubber shoe
1/2" insert diameter
1" base diameter
1" height

Crash Chain Door Stop CS115

• Specially designed for full-size exterior doors.
• Tear resistant, grey vinyl cover.
• Heavy duty compression spring assembled to both ends of chain
  and end brackets.
• Packed with sheet metal screws.
• Cast Brass brackets with solid, welded steel chain.

Available in 20-1/2", 25-1/2" and 30-1/2" lengths. Length is determined
by the location of your door closer

PART # LENGTH
GCC205 20-1/2"
GCC255 25-1/2"
GCC305 30-1/2"

Ives Wall Mounted Door WS11X

• Constructed in heavy duty cast brass.
• Hexagon section on unit aids in fastening unit when expansion shield is used.
• Replaceable rubber bumpers features off-set shoulder and threaded shank
  that screws into body of unit.

Furnished with a threaded stud and expansion shield for
masonry type mounting. 2" diameter base by 3-3/4" projection.

• Surface Bolt has 1-3/16" throw for maximum security.
• Strong tension springs prevent creep.
• Ideal for all types of doors.
• Available 8"
• Units packed with standard screws for added security.
• Units packed with both a universal top strike (US) and
a mortise bottom strike (MS).
• Constructed of heavy duty steel.

• Use with 7212, 7212V or 7222 3/4 Offset Pivot
• Handed
• Vertical adjustment 3/16", include positive locking.

Handing diagram

Plunger Type Holder / Stop FS1153

This plunger type door holder manufactured by H.B. Ives features a contemporary yet economical method of positive Hold-Open.  It is constructed in sturdy cast aluminum for years of service.  The spring operated plunger activates with minimal pressure, releasing instantly with a light tap on the plat-form lever.  The plunger offers a 1-5/8" throw for all types of doors.  The ribbed non-marring rubber shoe is securely fastened to unit with a screw and is easily replaced when worn.

Aluminum finish only

Ives Part # FS1153

• Non Handed
• Flush Mounted, No Inset
• 48" Maximum Door Width
• Beveled or Square Edge Doors, 83" long, cut to length

For Doors Weighing up to 450 pounds without reinforcing,
600 pounds with reinforcing

• Use with 7212, 7212V or 7222 3/4 Offset Pivot
• Handed
• Vertical adjustment 3/16", include positive locking.

Handing diagram

Continuous Full Surface Geared Hinge

• Non Handed
• Narrow Frame
• 1/16" Door Inset
• 48" Maximum Door Width
• Beveled or Square Edge Doors

83" inches long, cut to length
For Doors Weighing up to 600 pounds

Ives Roller Bumper Offset Ives RB470

RB471
Features:

• Constructed in heavy-duty cast brass.
• RB470 used where two doors open against each other to prevent damage

to the doors or hardware.

• Ideally suited for use with rose or escutcheon 2-3/4" wide or less.
• For use with Type 86 Mortise and Type 161 Cylindrical Locks
  (ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the
  opening between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel.

2-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2"

• Narrow design unit for use on rose or escutcheon 3-1/2" or less.
• For use with Type 86 Mortise and Type 161 Cylinder Locks
  (ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the opening
  between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel

1-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2”

The Lock Guard with Security Pin is ideal to cover the latchbolt area of the door, lock and frame, with the added protection of a security pin to prevent separation of the door and door frame.  The plate is through bolted with carriage bolts and nuts, which are included with the guard.  The plate is constructed of 13 gauge stainless steel.  The plate measures 3" wide and 11-1/2" high, with a center to center on the mounting bolts of 10-1/2".

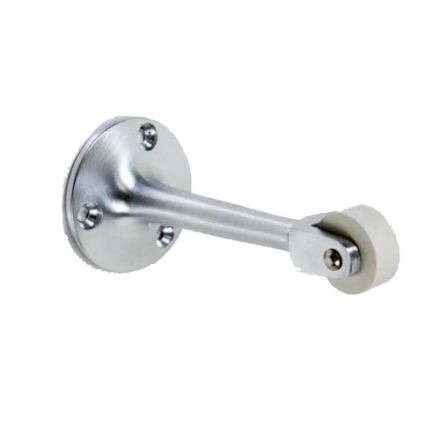

Ives Roller Bumper Straight Arm 6" Ives RB472

Features:

• Constructed in heavy-duty cast brass.
• RB472 is ideal for use in situations where doors meet each

other at approximate right angles (back to back).

Roller Bumper Straight Arm 4" RB471

Features:

• Constructed in heavy-duty cast brass.
• RB471 is ideal for use in situations where doors meet each

other at approximate right angles (back to back).

Ives Plunger Type Holder FS1154

Features:

• Constructed from heavy-duty cast brass or bronze.
• Plunger and internal parts are plated steel and provides a 1-1/4" throw for all types of doors.
• Plunger is easily activated with minimal pressure, releasing instantly with a light tap on the platform lever.
• Round non-marring rubber shoe is securely fastened with a screw in flanged cup to prevent movement or loss. When worn, shoes are easily replaced.

Ives Part # FS1154

• Designed for use on all Type 161 Cylindrical Locks (ANSI 156.2 Series 2000)
  Monolock and Unilock.
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the
  opening between door and frame at latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel.

1-1/2" Wide x 7" High
Stud center to center: 4-1/2"

Two Way Catch CL22, bronze construction, chrome plated. Body - 1/2" Wide x 2-3/16" High x 1/2" Deep. Strike - 3/8" Wide x 1-3/8" High x 5/8" Deep.

Ives part # CL22

This replacement tip is used on the WB11, WB12, WS20 and WS33.
5/8" insert diameter
7/8" head diameter
1" overall length

• Designed for use with the bottom bolt of all flush bolts.
• Spring-loaded plunger returns to floor or threshold level anytime
  flush bolt is retracted, eliminating need to clean standard
  floor strikes.
• Strike hole is 3/4" Diameter and 1-1/8" Deep

DP2 Face Plate: 1-5/8" W x 3-1/2" L x 1/8" Thick
Body: 1-3/16" Diameter x 1-7/8" Deep

• Designed for use with the bottom bolt of all flush bolts.
• Spring-loaded plunger returns to floor or threshold level anytime
  flush bolt is retracted, eliminating need to clean standard
  floor strikes.
• Strike hole is 3/4" Diameter and 1-1/8" Deep

DP1 Face Plate: 1-7/16" Diameter
Body: 1-3/16" Diameter x 1-7/8" Deep

For use on commercial applications.
• Exceeds OSHA and BHMA strength test requirements.
• Packed with square head iron lag screw, expansion shield and screws.
• Cast Aluminum construction.

Dimensions
Base Diameter: 3-1/8"
Base to Rail Center: 3-1/8"

Ives Roller Latch RL30

The Ives Roller Latch RL30 is constructed of Forged Brass and Plated to your finish.   Furnished with a Nylon Roller.   Body measures 1" wide by 3-3/8" high by 1-11/16" deep. The roller has a maximum projection of 3/8" and is easily adjustable.

Ives Replacement Rubber Shoe

Used as a replacement shoe for the FS444, FS446, WS443, WS445,GJF26, GJW27, RB444HD, and RB443
The rubber shoe measures 7/8" diameter x 1-1/2" long

Ives part # 09-316

The Ives Universal Dome Floor Stop FS439 is constructed of cast zinc or stainless steel, depending on the finish.   The stop measures 1-1/2" high, with a base height of 1/4" and base diameter of 1-7/8".   The pad has a height of 1-1/8" from the floor.

Ives Part Number FS439

Ives Roller Latch RL32

The Ives Roller Latch RL32 is constructed of Brass and Plated to your desired finish.  The body measures 1-1/8" wide by 2-1/4" high and 2-1/4" deep.  The roller is constructed of Nylon, and has an adjustable projection up to 1/2".  Fits a standard heavy-duty cylindrical lock cutout.

Ives Window Bar Lift 026

Made out of Solid Brass and plated to your selected finish.  Base is 1-1/8" high by 4" wide, with a projection of 1-1/16"

Ives Part # 026B

Ives RL32 Nylon Roller RLPART.1045

This replacement Nylon Roller and Rivet Package is for the Ives RL32 Roller Latches.  The Roller measures 3/4" high by 5/8" diameter.  The Rivet measures 15/16" long and is threaded on one side.

Ives Part # RLPART.1045

Ives RL30 and RL1152 Nylon Roller RLPART.1025

This replacement Nylon Roller and Rivet Package is for the Ives RL30 and RL1152 Roller Latches.  The Roller measures 3/4" high by 5/8" diameter.  The Rivet measures 1-1/16" long and is threaded on one side.

Ives Part # RLPART.1025

Ives Sweep Lock07

The Ives Sweep Lock are made of solid brass and plated to your desired finish.   The base is 15/16" x 2-9/16", and the Strike is 5/8" x 2-9/16".  The center to center distance on the screws 1-15/16".

Ives Part # 07
