Truth Entrygard Track 30473

Truth track part # Wi30473.
This J track is 11-3/8" long.
4 screw mounting.

Finish is powder coated steel

Truth Entrygard Track 30706

Truth track part # Wi30706.
This J track is 11-3/8" long.
3 screw mounting.

Finish is powder coated steel

Handless Truth Window Lock

Truth 28.17 Handless Window Lock, die cast and steel construction. Powder coated paint.

Aluminum only

Truth 24.10 Casement Window Handle.

Die cast construction, then powder coated to the desired finish.

Aluminum and white in stock, call for other colors.

Truth Entrygard Track 30150

Truth track part # Wi30150.
This J track is 13-3/4" long.
4 screw mounting.

Finish is powder coated steel

Truth 24.31 Sash Lock

Truth 24.31 casement window sash lock.  The hole spacing is 3-13/16" and the "Fork" projects out  1-7/8".   Housing is made of die cast metal that is then powder coated.

Truth Part # 24.31.xx.004

Truth Two Hole 1-1/2" Window Handle

Truth 25.31 Two Hole Cam Handle die cast construction with a powder coated painted finish. We find the numbers 45086 on the right hand handles, and 45085 on the left hand handles.

Right Hand shown in picture.

Truth 11.43 Awning Operator

Arms are 8-3/8" long, and measures 20-3/4" across when the arms are in the closed position.

Awing Operator, we usually find 31545 stamped on the arm, they used to be a cadmium plated steel, now they are powder coated. We also find 21221 on it.

Truth 11.44 Awning Operator

Arms are 13-3/8" long, and the span of the arms when in the closed position, arms opposing each other, is 28-1/8" (Hole to Hole)

Awing Operator, we usually find 40759, 40760, and 21221 stamped on the arms, they used to be a cadmium plated steel, now they are powder coated.

Truth Hole Two 1-1/2" Window Handle

Truth 25.29 Two Hole Window Handle die cast construction with a powder coated painted finish. We find the numbers 45086 on the right hand handles, and 45085 on the left hand handles.  Right Hand shown on Website!

Project In Truth Window Handle-1-1/2"

This window handle features a 1-1/2" hole spacing on centers with a 7/16" lock up dimension. The window handle is constructed of a die cast material that is then powder coated to the finish of your choice. We stock the Bronze color, but other colors are available, call for more information.

Truth 27.31 project in window handle.

Truth 13.14 Awning Window Hinge.

The track measures 14" long, and is 11-16" wide. The stack height is 1/2". The arm marked 30128 is 6-3/4" long. And the arm stamped 30127 is 8" long. This hinge is constructed of steel that is powder coated in a tanish gray color. The common numbers found stamped on this hinge are 30128 and 30127

Sold in pairs

Project In Truth-1-1/2"- 1/2" Lock Up

This window handle features a 1-1/2" hole spacing on centers with a 1/2" lock up dimension. The window handle is constructed of a die cast material that is then powder coated to the finish of your choice. We stock the Bronze color, but other colors are available, call for more information.

Truth 27.32 project in window handle.

Angle Base 1-3/8" Window Handle Truth

Also known as the Truth 25.39, this handle is constructed of a die cast metal and powder coated to the desired color. The distance between the screws is 1-3/8" on center. The handle measures 3-3/4" long, base measures 2-1/8" long. The number found on the handle is 45086 for the Right Hand, and 45085 for the Left Hand. We also find U.S. Pat. # 4,930,820

Right Hand is shown in picture.

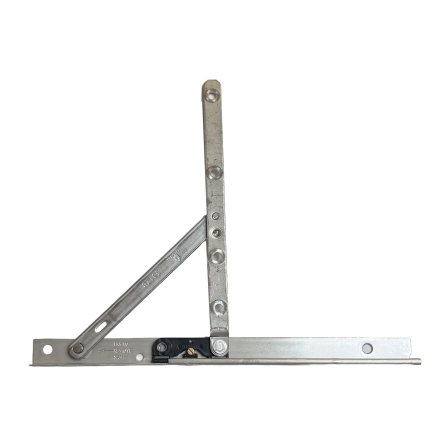

The Truth 14.80 hinge is the most common of the Truth Stainless Steel Casement Hinges. The stainless steel track is 10" long, the glide is a plastic coated steel. The most common problem on this hinge is the shoe. When the hinge is installed incorrectly or not maintained the shoe could pull out the window track. This Truth hinge is used on the Wi1510, Wi1511, Wi1516, Wi1518, Wi1531, Wi1532, Wi1594 and Wi2301.

This hinge is sold in pairs (one top and one bottom). If your window is the opposite hand, the top hinge goes to the bottom and the bottom hinge goes to the top.

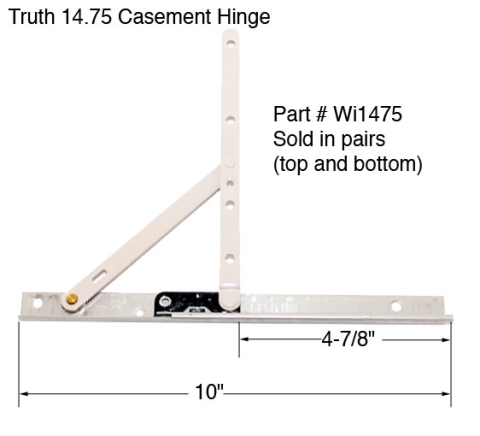

The Truth 14.75 hinge is the most common of the Truth Casement Hinges. The stainless steel track is 10" long, the glide is a plastic coated steel. The most common problem on this hinge is the shoe. When the hinge is installed incorrectly or not maintained the shoe could pull out the window track. Common numbers found on this hinge are 30744B, 31133C, 40942 and 40941.

This Truth hinge is used on the Wi1510, Wi1511, Wi1516, Wi1518, Wi1531, Wi1532, Wi1594 and Wi2301.

This hinge is sold in pairs (one top and one bottom). If your window is the opposite hand, the top hinge goes to the bottom and the bottom hinge goes to the top.
