Von Duprin Push Bar Guide 090049

Fits on the end of the push bar assembly, reduces noise and friction. Used on the Von Duprin 33A, and 99 / 98's

Von Duprin Part # 090049
Old Von Duprin Part # 971993

The Von Duprin 99 rim exit devices for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed.

Ships with all the mounting screws and the 299 Strike.

Von Duprin 22 Exit Device Only

Von Duprin 22 rim exit device for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with 161* cutouts. Fits door stiles as narrow as 3 13/16"

Ships with all mounting screws and the 299 strike.

Von Duprin 98 rim exit devices for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed.

Ships with all the mounting screws and the 299 Strike.

5/32" Dog Key used on old Von Durpin, and Dor-o-Matic exit devices. This key has the longer shaft to fit into the deeper Von Duprin dogging slots.

5/32" hex key

3-1/16" overall length

Von Duprin 9827/9927 surface mounted vertical rod device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The Von Duprin 9827 device has a smooth mechanism case and the Von Duprin 9927 device has a grooved case. The surface vertical rod device is non-handed.

Von Duprin 9875/9975 mortise lock device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4" (121mm). The Von Duprin 9875 device has a smooth mechanism case and the Von Duprin 9975 device has a grooved case. The mortise lock device is non-handed

Von Duprin 33A Exit Device Only

33A and 35A for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. 33A/35A fits door stiles as narrow as 1 3/4". Newly designed device has a one piece center case cover.

Von Duprin 2227 Exit Device Only

Von Duprin 2227 surface mounted vertical rod exit device for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3-5/8". For doors as high as 7'1", if your door is higher than 7'1", please call.

Ships with all mounting screws and the 299, 304L and 248L-4 Strike

Von Duprin Part # 2227EO

The Von Duprin 33A, 35A, 98 and 99 Cover Plate

Covers the dogging assembly on the hinge side of the door. The usually fall off when the End Cap is not on the exit device.

Von Duprin Part # 050114 and 050117 Hex Key Dog Conversion Kit

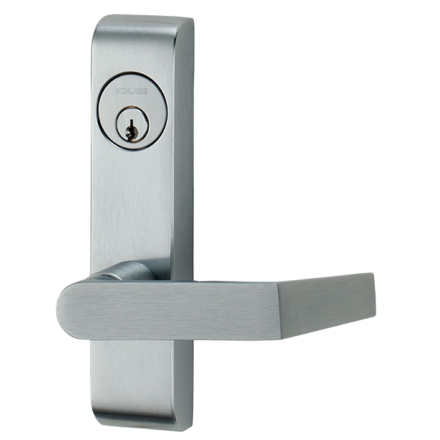

Von Duprin 360L Lever Trim

The Von Durpin 360L Lever Trim has a base measurement of 7-1/2" high by 1-11/16" wide and 7/8" thick. The lever is 4-1/2" and projects out 3". This lever Trim uses a 1-1/4" Mortise Straight Cam Cylinder.

Von Duprin Part # 360L

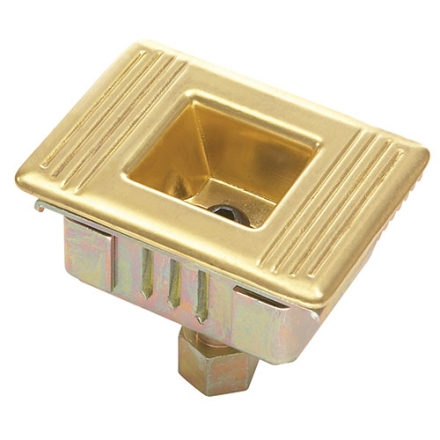

Von Duprin Strike 385A

The Von Duprin 385A Strike is used on the floor for the Von Duprin 2227, 8827, 9827 and 9927 Surface Vertical Rods. The strike face plate outside dimensions are 2-1/4" x 2-1/4" with an inside dimension of 1-1/8" by 1". This floor strike features a bolt that can be cemented into the floor. Zinc plated finish.

Von Duprin Strike 304L

This Von Duprin Strike is used for the bottom latch of the 2227, 8827, 9827 and 9927. The strike measures 1-7/8" by 1-7/8" outside dimension of the square flange, with an inside dimension of 1-1/8" by 1-1/8". The part that is inserted into the floor is 1-3/8" x 1-3/8" and drops down 13/16". Also known as a Von Duprin Floor Mounted Mortise Strike.

The Von Duprin Old Style Dogging Shaft was used on devices manufactured before July 1997.  The Shaft measures roughly 1-1/2" long with a 1/2" diameter.  The hex is 5/32".

Von Duprin Part # 968112

The Von Duprin 338 Strike measures 1-5/8" by 1-7/8" with a 5/8" projection.   The screw mounting is 1-7/8".   This strike is used as a bottom strike on the Von Duprin surface and concealed vertical rod devices.

Von Duprin Strike 1609

This strike is used when we have a double door application without a center post. By using this strike we can have one door with a surface vertical rod and one door a rim device, which will save money because vertical rods are usually expensive. This strike can be used with the Von Duprin 22/2227, 88/8827, 98/9827 and 99/9927 combinations, but not with the Fire Rated Versions. The strike base measures 1-1/16" wide by 3-1/4" high, the lip projects out 7/8". The three slots are 1-1/4" on center. This strike ships with the mounting screws.

US19-Black finish

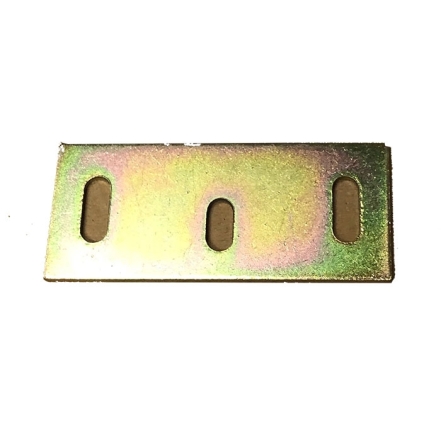

The Von Duprin Shim 970321 is for use with the Von Duprin 299 and Falcon FA299 strikes.   The plate measures 2-7/8 x 1-1/4" x 1-16" thick.   The product is sold individually.

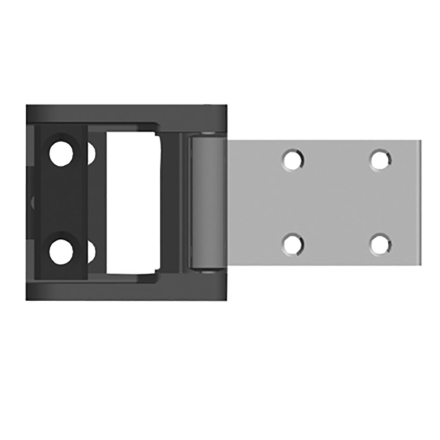

The Von Dupin 1439 Strike measures 1-7/8 horizontal x 1-3/4 inches vertically.  The strike has a projection of 1/2 inch.  We find this strike used on the 33A and 35A exit devices.

Von Duprin 1606 Rim Device Strike for Panic Devices only.  Strike measure 1-3/8 x 2-7/8 with a 3/8 inch projection. The hole spacing is 2-1/8 inches.

Von Duprin 210NL Trim

5-3/8" x 4-25/32" x 3/32"
1-31-32" projection

Von Duprin 230DT Trim

3" x 12-1/16" x 3/32"

Von Duprin 210DT Trim

5-3/8" x 4-25/32" x 3/32"
1-31-32" projection

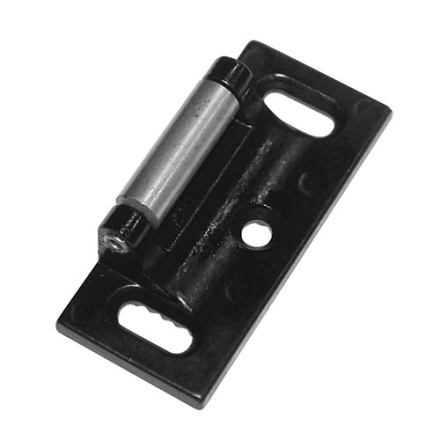

Von Duprin Strike 299F

The Von Duprin 299F Strike is used on the 22, 88, 98, and 99 Fire Rated Rim Devices (no hex or cylinder dogging). The 299F strike measures 1-1/4" wide by 2-7/8" high with a slotted hole spacing of 2-1/8". The roller projects out 13/16". The non fire rated version would be the Von Duprin Strike 299.

Ships with shim and mounting screws

The Von Duprin 88 Center Case Rivet 090002 is also known as the Latch Tail Rivet used on the 88 Rim Device.  The Rivet fits into the spring and into the Latch Tail 050500.  The rivet measures 1-1/4 inches long less the head, with a 1/8 inch diameter.  We sell this piece individually.

Von Duprin 230NL Trim

3" x 12-1/16" x 3/32"

Von Duprin 230TP Thumb Pc Trim

3" x 12-1/16" x 3/32"

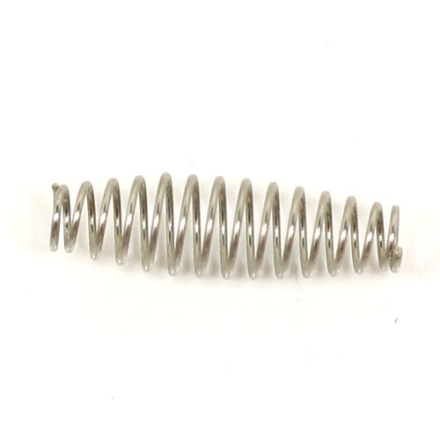

Von Duprin 55 Rim Latch Bolt Spring

Von Duprin 55 Rim Device Latch Bolt Spring

1-1/2" long x 3/8" diameter

Von Duprin part # 967502

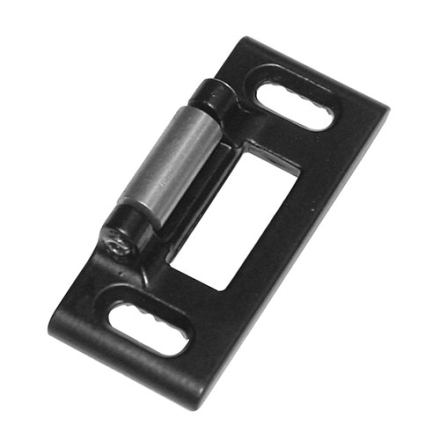

Von Duprin Strike 264

This strike measures 2-7/8" tall by 1-1/4" wide with a roller projection of 9/16". Used on the Von Duprin 22, 88, 98 and 99 when a lower profile strike is need in place of the Von Duprin 299 Strike. The hole spacing is 2-1/8" on center, and it ships with mounting screws and a shim. Also known as a Von Duprin Surface Roller Strike.

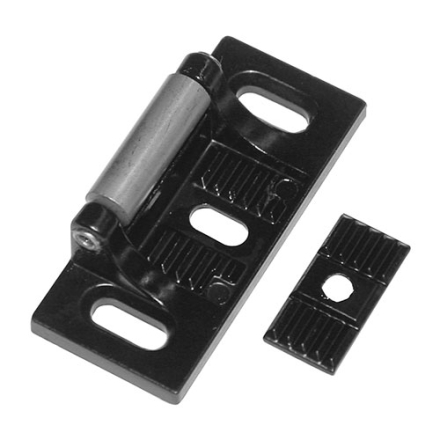

Von Duprin Rim Strike 299

The Von Duprin 299 Strike is used on the 22, 88, 98, and 99 Rim Devices and also as a Top Strike on the 2227, 8827, 9927, and 9827 Surface Vertical Rod Panic Devices. The 299 strike measures 1-1/4" wide by 2-7/8" high with a slotted hole spacing of 2-1/8". The roller projects out 13/16".

Ships with shim and mounting screws

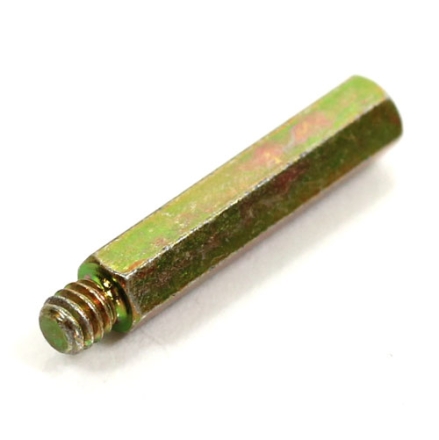

Von Duprin Exit Device 992L Hex Stud

This is the Hex Stud used on the 992L Lever Trim and the 991K Knob Trim. The threads are 1/4-20. Overall length is 1-3/4".   Later versions of the 992L had a larger thread size.

Von Duprin Part # 971440

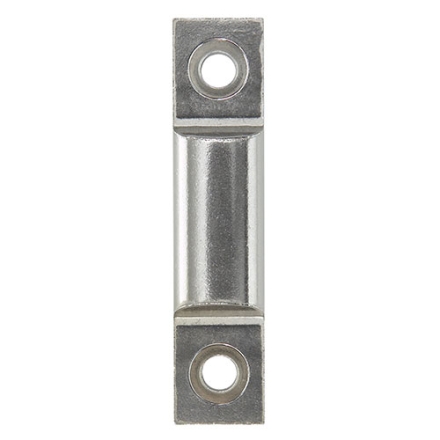

Von Duprin Strike 248L-4

The Von Duprin 248L-4 Strike is used as a Bottom Strike on the 2227, 8827, 9927, and 9827 Surface Vertical Rod Panic Devices. The 248L-4 strike measures 9/16" wide by 2-1/2" high with a hole spacing of 1-7/8. The strike projects out 3/8".

Ships with shim and mounting screws

Von Duprin Strike 248L-4

Burnished steel construction

Heavy Duty Design
The new Series 2670 Exit Alarm Lock provides secure protection through a large stainless steel deadbolt, which is 2" x 1/2" (51mm x 13mm) and has over a 3/4" (19mm) throw. The engagement area into the strike is over 1 1/4" (32mm) square inches. The cast aluminum latch case protects the internal mechanism and resists tampering or vandalism from inside the door. This unit has been tested to withstand up to 1600 pounds of static load force against the door.

Fits 36" to 48" doors.
Uses 9 volt battery
Ships with all mounting hardware and strike.

Von Duprin 386DT Dummy Trim

This Von Duprin 386DT Dummy Trim is just a pull handle. The bolt pattern of the trim plate lines up with the Von Durpin 33A on the inside so they are on conhesive unit. The base plate measures 7-15/16" by 1-5/8". The grip measures 8-1/2" by 4-5/16" with a 2-7/16" projection. This 386DT Dummy Trim is non handed.

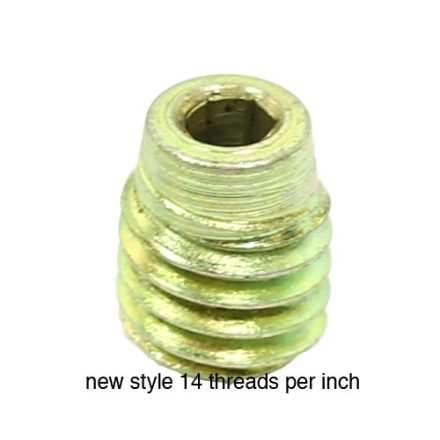

Von Duprin 55 Dog Screw-090053

3/8" diameter x 1/2" long
new style 14 threads per inch

Von Duprin part # 090053

Von Duprin 3327A Exit Device Only

3327A and 3527A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. 3327A/3527A fits door stiles as narrow as 1-3/4". Newly designed device has a one piece center case cover.

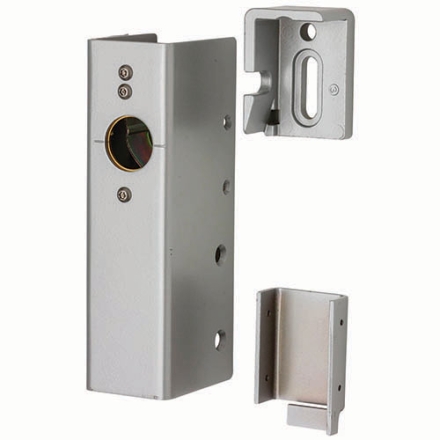

Von Duprin Exit Device Keyed Mullion Retrofit Kit

Keyed Removable Steel Mullions makes removal faster and easier by a single operation of the mortise cylinder. Once mullion is removed, large equipment or furniture can freely pass through the opening. The unit will self lock when re-installed, without use of the cylinder key. Uses a 1-1/4´´mortise cylinder with a
straight cam (Schlage cam reference B502-191). Cylinders are sold separately. Prefix mullion model with “KR”.

Von Duprin Part # 050168
