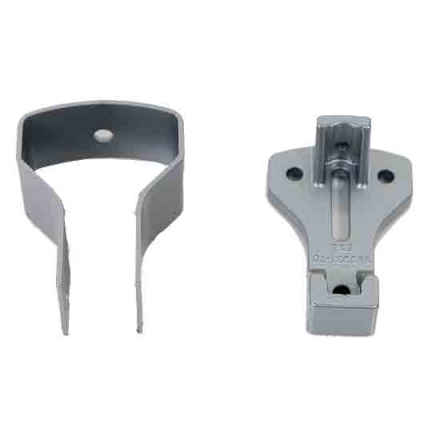

Von Duprin 5654 / 5754 Top Fitting and Cover

THe Von Duprin 050135 Top Fitting and Cover for the 5654 and 5754 Mullions.   Package includes the Top Fitting and Cover, and all of the fasteners.

Von Duprin Part # 050135

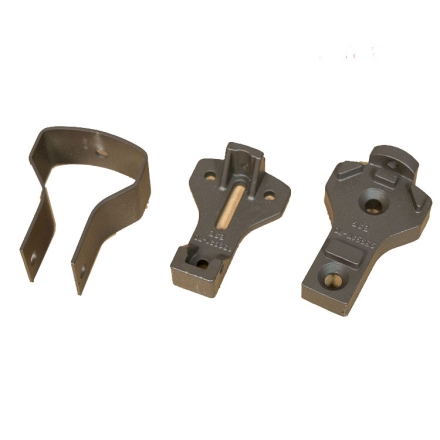

Von Duprin 5654 / 5754 Fitting Set

Von Duprin 5654 and 5754 Mullion Fitting Set, Part # 050130.   Set includes top and bottom fittings, all of the mounting screws.

Von Duprin Part # 050130

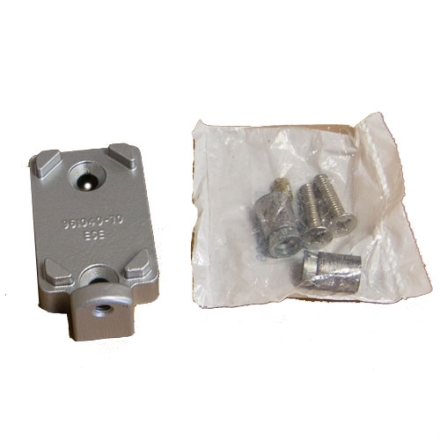

Von Duprin 1654/4754/4854/4954 Bottom Fitting

This is the Bottom Fitting for the 1654, 4754, 4854, and 4954 Von Duprin Mullions. Mounting Screws included.

Von Duprin Part # 050390

Von Duprin 5654 / 5754 Bottom Fitting

Von Duprin 050190  Bottom Mullion Fitting for the 5654 and 5754 Mullions.   The package includes the bottom fitting and all of the fasteners.

Von Duprin part # 050190

Von Duprin 1654/4954 Top Mullion Fitting and Cover

Replacement Top Mullion fitting for the Von Duprin 1654 and 4954 Removable Mullions.

Von Duprin Part # 050335

Von Duprin 9875/9975 mortise lock device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4" (121mm). The Von Duprin 9875 device has a smooth mechanism case and the Von Duprin 9975 device has a grooved case. The mortise lock device is non-handed

Von Duprin Exit Device 55 Left Hand Arm. Arm includes wedge, wedge ring, wedge tite screw and dog screw.

Von Duprin Part # 050112

Von Duprin Exit Device 88 Lever Arm Left Hand

Von Duprin 88 replacement lever arm for all the Von Duprin 88 exit devices. The arm includes the Wedge, Wedge Ring, Wedge Tite Screw and Dog Screw, and sometimes the axle.

Von Dupin part # 050439
Old Part # 100729

Von Duprin Exit Device 55 Right Hand Arm includes the wedge, wedge ring, wedge tite screw and dog screw.

Von Duprin Part # 050136

Von Duprin 2227 Top Vertical Rod.

The standard top rod will fit a 7'1" door, if your door is higher than 7'1", you will need to top rod extension. The top rod is field adjustable to fit any door less than 7'1". Please call if your door is higher than 7'1"

Von Duprin part # 109361

Von Duprin 373L 88 Lever Trim

Von Duprin 22 Exit Device Only

Von Duprin 22 rim exit device for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with 161* cutouts. Fits door stiles as narrow as 3 13/16"

Ships with all mounting screws and the 299 strike.

Von Duprin 2227 Exit Device Only

Von Duprin 2227 surface mounted vertical rod exit device for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3-5/8". For doors as high as 7'1", if your door is higher than 7'1", please call.

Ships with all mounting screws and the 299, 304L and 248L-4 Strike

Von Duprin Part # 2227EO

Von Duprin Exit Device 88 Lever Arm Right Hand

Von Duprin 88 replacement lever arm for all the Von Duprin 88 exit devices. Includes the dog screw, wedge ring, wedge tite screw and wedge, and sometimes they come with the axle

Von Duprin Part # 050438
Old Part # 100744

Von Duprin 3327A Exit Device Only

3327A and 3527A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. 3327A/3527A fits door stiles as narrow as 1-3/4". Newly designed device has a one piece center case cover.

Von Duprin 050538 EL Dogging Rod Retainer

This fitting threads into the 050536 HD Solenoid and connects to the Dogging Rod

#5 On Diagram

Von Duprin 33A Exit Device Only

33A and 35A for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. 33A/35A fits door stiles as narrow as 1 3/4". Newly designed device has a one piece center case cover.

Von Durpin 8827 surface mounted vertical rod devicesfor all types of single and double
doors, UL listed for accident hazard installations.Covers stock hollow metal doors
with 86 or 161 cutouts and fits door stiles as narrow as 3½" (90mm).

● Fully reversible
● Five popular finishes
● Field sizeable
● Hex key dogging
● 5/8"(16mm)throw latch bolt

Ships with all mounting screws and the 299, 304L and 248L-4 Strikes.

Heavy Duty Design
The new Series 2670 Exit Alarm Lock provides secure protection through a large stainless steel deadbolt, which is 2" x 1/2" (51mm x 13mm) and has over a 3/4" (19mm) throw. The engagement area into the strike is over 1 1/4" (32mm) square inches. The cast aluminum latch case protects the internal mechanism and resists tampering or vandalism from inside the door. This unit has been tested to withstand up to 1600 pounds of static load force against the door.

Fits 36" to 48" doors.
Uses 9 volt battery
Ships with all mounting hardware and strike.

Von Duprin 22 / 2227 Push Bar End Cap

Cap fits on the ends of the Von Duprin 22 Series Push Bar.

Von Duprin Part # 968598

Von Duprin 9827/9927 surface mounted vertical rod device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The Von Duprin 9827 device has a smooth mechanism case and the Von Duprin 9927 device has a grooved case. The surface vertical rod device is non-handed.

The Von Duprin 99 rim exit devices for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed.

Ships with all the mounting screws and the 299 Strike.

Von Duprin 8827-F/47-F Soffit Latch Kit

This component fits into the header and is used the Von Duprin 5547-F, 8827-F and 8847-F

Von Durpin Part # 114141
Old Part # 102930

The Von Duprin 55NL Cam is one of the handed parts in the housing, the other is the Arm.  If you need to change the hand of a housing, you just need to order the other hand Cam.

The Cam shown in the Picture is Right Hand

Von Duprin Part #'s 050355-Right Hand, 050356-Left Hand.

Von Duprin Push Bar Guide 090049

Fits on the end of the push bar assembly, reduces noise and friction. Used on the Von Duprin 33A, and 99 / 98's

Von Duprin Part # 090049
Old Von Duprin Part # 971993

The Von Duprin 050508 88TP-F Cylinder Cam Package is the piece that the key cylinder fits into on the back of the exit device.   This piece is only used with the 880TP outside trim on the Rim Devices.

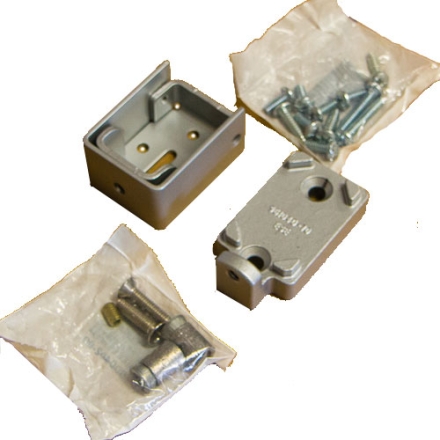

Von Duprin 1654-4954 Mullion Brackets

Top and bottom mullion fittings. Von Duprin part # 050330. Includes everything shown in diagram

Von Duprin 98 rim exit devices for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed.

Ships with all the mounting screws and the 299 Strike.

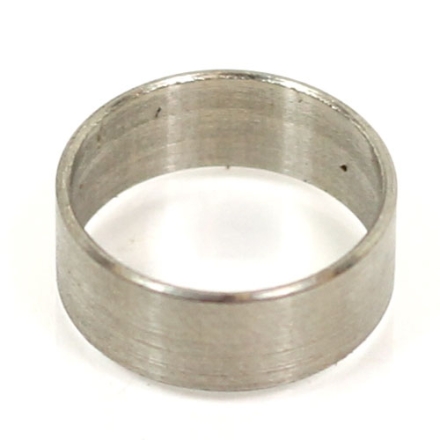

Von Duprin 55 Arm Brushing

Von Duprin 55 Arm Bushing fits in the 55 housing

13/16" outside diameter x 5/16" high

Von Duprin Part #  050333
Old Von Duprin Part # 959986

5/32" Dog Key used on old Von Durpin, and Dor-o-Matic exit devices. This key has the longer shaft to fit into the deeper Von Duprin dogging slots.

5/32" hex key

3-1/16" overall length

The Von Duprin 22, 33, 33A, 98 and 99 dogging shaft is the current dogging shaft. And has been in production since 1998.   If your device is from before 1998, then you would use the 050709.   This is the piece that the dogging key would fit into. The shaft is for a 5/32" dog key. #4 on diagram

Von Duprin Part # 090040

The Von Duprin 373L Lever Control Spring 090091 and 090092 are used on the 371, 373, 375 and 378 Lever Handles.  The spring is used to return the lever to the horizontal position.  Sold in packages of 4 springs.

Von Duprin Part #
090091 Left Hand Reverse
090092 Right Hand Reverse

The Von Duprin 55 End Case is the housing on the hinge side of the door.   The function of this housing is to lift the cross bar, and support the function of the Active Case.  If your housing is on the right side when standing inside looking out, then you would order the Right Hand Case.  The package includes the housing, springs and back plate, the arm is not included.  The current part number on this part is 050196 and 050197, the old part number is 111931 and 111932.

The Von Duprin 88 Center Case Rivet 090002 is also known as the Latch Tail Rivet used on the 88 Rim Device.  The Rivet fits into the spring and into the Latch Tail 050500.  The rivet measures 1-1/4 inches long less the head, with a 1/8 inch diameter.  We sell this piece individually.

The Von Duprin 996L Lever Trim replaces the 992L, and 994L and is the latest generation of the 99 Lever Trim.

The escutcheon plate measures 2-3/4" wide by 10-3/4" high and projects out 27/32". The handle projection is 2-7/8". This lever handle is handed, but is field reversible. Key lock and unlocks lever.

Von Duprin 9927 Top Vertical Rod

Please call if your door is higher than 7'1", The rod is field adjustable for doors up to 7'1". For larger doors, we have to order a Rod Extension which we do not show online yet.

Old Von Duprin part # 110573
New Von Duprin part # 050512
