Leveler Glide with Metal Swivel Base. 1/4-20 thread metal base swivel glide. Stops the wobble of an uneven floor. 1 1/4" base diameter and 1 1/8" stem length. Can also be used with a t-nut to install in wooden legs. Use a spring clip to install in hollow legs.

Bobrick B-7120/B-7128 series hand dryers are a durable 22 gauge type 304 satin finish stainless steel cover option or a zinc plated steel with white epoxy cover with black plastic trim. Choices are 115 volt or 230 volt.

The Doromatic Exit Device 1690/1990 Pullman Latch Assembly PB132 is for use with Electric Strikes only.  This part is also some times called the Doromatic PL Bottom Latch.

Doromatic part # 4270101482

Yale 7110 Top Latch

Yale 7110 Top Latch for the Non Fire Rated Yale 7000 Series Surface Vertical Rod.

Yale Part # 60-7010-049-999

replacement valve Valve threads are 3/4" o.d. 28 treads per inch

one way screw #10 x 5/8" long, 11/32" head x 3/16" tread. Use a flat head screw driver to install.

Yale 7100 Series Latch Assembly

This latch assembly is used on non fire rated doors, meaning panic devices that you can not dog open with the allen key or key cylinder. Non fire rated doors are usually exterior doors.

Yale Part # 60-7000-0419-048

Note the position of the Hub for this Assembly is the 7100

Doromatic 1690 / 1990 ES Top Latch PB131

Doromatic Part # 4270100316

Von Duprin 22, 33, 9927 Bottom latch.

Used to replace the bottom latch on the Von Duprin 2227, 3327A, and 9927 on devices shipped after October 1998.

Includes screws and sometimes the bracket

Von Duprin Part # 050401

Interior Steel Equipment Locker Nylon Latch Finger. Also known as 30501, 3244, 76017, is4407.

Republic Steel Locker Handle Latch Spring only. Also known as 71505, 2565, 70016, rs1117.

Dor-o-Matic 1790 Latch Pin. This is the 1790 latch bolt axle.

The other component of this part would be the GPB328 Latch Retaining Ring Retaining

Doromatic part # 969467-89 or PB320

Dor-o-Matic 1790 Repair Parts Breakdown

The 1 inch diameter Decorative Cap comes in two different tread sizes 1/4-20 and 5/16-18.  The Cap measures 1 inch diameter by 3/8 inch thick. Stainless Steel base material.

Cal Royal 7000 Night Latch Trim

2-5/8" X 15"

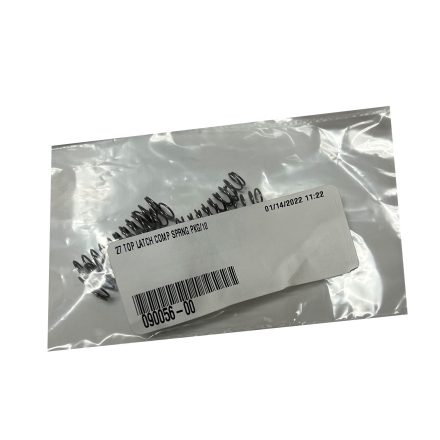

Von Duprin 090056 Top Latch Compression Spring-pkg 10 is used on the 2227, 3327, 3527, 9827 and 9927 Exit Devices.

Wood Door Constant Latching Flush Bolt FB61P

The Ives FB61P is used on the inactive leaf of wood fire doors.   The latch remains extend until the active door is opened.   When the active door is opened the latches retract, and extend when the active door is closed.  The bodies measure 1” wide by 8-1/2” tall and 2” deep.  The bolt throw is 3/4” with a 7/8” vertical adjustment, and has a 3/4” backset.   This package comes with the top and bottom flush bolts with screws and strikes.

90 minute UL Rated.

Ives Part # FB61P

Aurora Steel Product Locker Latch Coil Spring Only. Also known as 21503, 7755, 81015, au6606, lar217.

Global aluminum slide latch for solid plastic partitions typically. This latch has a brushed look to it. The hole spacing is 2-3/4". This products manufacture is global 8442899. Security screws included. The bolt extends 1" out from the edge.

Von Duprin Exit Device 47 Top Latch Kit 050492

This Von Duprin Concealed Top Latch is used on the 33A, 35A, 98 and 99 exit devices. The Latch Kit includes Latch, Mounting Brackets and all screws.

Von Duprin Part # 050492
Von Duprin Old Part # 109759

Jackson Exit Device Mounting Stud 1085/1095

The treaded part of the Jackson Mounting Stud has a 1/4-20 thread.

Durabilt Locker Latch Plate. Also known as 72003, db7755.

Window Spring Latch

Transom window spring loaded window catch. White bronze casting, brushed nickel finish. This Window Spring Catch features a 1-7/16" hole spacing, and a 1/2" lock up dimension.

replacement valve Valve threads are 3/4" o.d. 28 treads per inch

Medart Bleacher Latch Nose, 2" hole spacing.

The Doromatic Latch Screw PB17 is also known as the SCREW.1029.  The screw is a 10-32-1/4" with an undercut head.  This screw is used to hold the top and bottom latches on the door for the 1690 and 1990 series devices.

Yale 2100 Series Latch Assembly

Latch assembly for the Yale 2100 Rim Panic Device.   Assembly base measures 7-3/4" high by 5-1/2" wide with a projection of 2-1/4".

Yale Part # 60-2100-0010-048

Doromatic Exit Device 1690/1990 Top Rod Latch Assy.

Used on the 1490, 1690 and 1990 Concealed Vertical Rod Devices

Doromatic Part # PB130, and also 4270101806

Von Duprin 55 Rim Latch Bolt Spring

Von Duprin 55 Rim Device Latch Bolt Spring

1-1/2" long x 3/8" diameter

Von Duprin part # 967502

Sargent 8700 Top Latch Spring

The Sargent 8700 Top Latch Spring is used on most of the new and older style Sargent Panic Devices.   The springs measures 1-5/8" overall length.

Sargent Part # 97-0300

Chrome plated global slide latch with indicator and emergency access. Overall dimension 2-3/4" x 1-1/2" with 2-1/4" hole spacing. Used with new style doors 10/1/21 to current. Used with a 1 inch door. Security screws included. Manufactures part number 40-8513010.

All Steel Equipment Box Locker Latch only.

Von Duprin 2227 Top latch

This latch is used on devices shipped before October 1998, see related products for the new style latch if your device is newer. This is usually the problem if your bottom rod is dragging on the floor. Includes screws.

Von Duprin Part # 050091
