Medart Bleacher Latch Bracket Left Hand. 2" Hole Spacing.

Monarch Falcon 2130 Bottom Latch Strike

The Monarch Falcon 2130 Bottom Latch Strike is used on the 19-V, 24-V, 25-V and XX-V devices.  This strike usually fits into the threshold or is recessed into the floor.

Falcon Part # 2130

The Jackson 30-1311 Top Latch is used on the 2085 and 3185 Exit Devices. The new number for this product is 301311PKG.

Hadrian stainless steel free standing bathroom partitions floor mounted overhead braced stalls with a smooth surface. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.

Hadrian Stainless Steel Color Chart

Hadrian Instructions Stainless Steel

Snap Flange (1-1/4" O.D) Smooth - Straight Grab Bar w/ Intermediate Support, 48". Features include cover that snaps over mounting flange dimples to conceal screws and concealed mounting flange of 31/8" O.D. diameter with 2 screw holes and 3 locking dimples; 1/8" thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3⁄16" diameter. Also know as 10-3702-48.

The Doromatic Exit Device 1690/1990 Pullman Latch Assembly PB132 is for use with Electric Strikes only.  This part is also some times called the Doromatic PL Bottom Latch.

Doromatic part # 4270101482

Yale 7110 Top Latch

Yale 7110 Top Latch for the Non Fire Rated Yale 7000 Series Surface Vertical Rod.

Yale Part # 60-7010-049-999

Yale 7100 Series Latch Assembly

This latch assembly is used on non fire rated doors, meaning panic devices that you can not dog open with the allen key or key cylinder. Non fire rated doors are usually exterior doors.

Yale Part # 60-7000-0419-048

Note the position of the Hub for this Assembly is the 7100

Doromatic 1690 / 1990 ES Top Latch PB131

Doromatic Part # 4270100316

Von Duprin 22, 33, 9927 Bottom latch.

Used to replace the bottom latch on the Von Duprin 2227, 3327A, and 9927 on devices shipped after October 1998.

Includes screws and sometimes the bracket

Von Duprin Part # 050401

Dor-o-Matic 1790 Latch Pin. This is the 1790 latch bolt axle.

The other component of this part would be the GPB328 Latch Retaining Ring Retaining

Doromatic part # 969467-89 or PB320

Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-Matic 1690 Pinion Support Bracket. Bracket holds pinion tip so that it will not slip

Doromatic part # BRKT.478, BRKT.133 or PB312

Dor-o-Matic 1690 Repair Parts Breakdown

Von Duprin 090056 Top Latch Compression Spring-pkg 10 is used on the 2227, 3327, 3527, 9827 and 9927 Exit Devices.

Wood Door Constant Latching Flush Bolt FB61P

The Ives FB61P is used on the inactive leaf of wood fire doors.   The latch remains extend until the active door is opened.   When the active door is opened the latches retract, and extend when the active door is closed.  The bodies measure 1” wide by 8-1/2” tall and 2” deep.  The bolt throw is 3/4” with a 7/8” vertical adjustment, and has a 3/4” backset.   This package comes with the top and bottom flush bolts with screws and strikes.

90 minute UL Rated.

Ives Part # FB61P

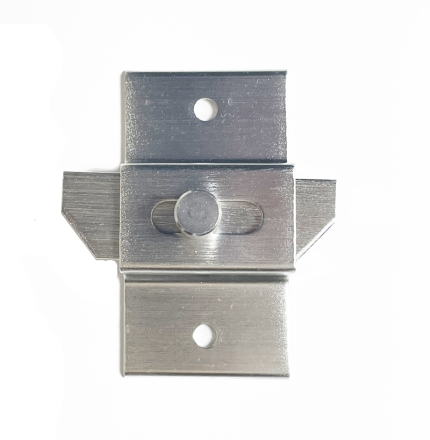

Global aluminum slide latch for solid plastic partitions typically. This latch has a brushed look to it. The hole spacing is 2-3/4". This products manufacture is global 8442899. Security screws included. The bolt extends 1" out from the edge.

Von Duprin Exit Device 47 Top Latch Kit 050492

This Von Duprin Concealed Top Latch is used on the 33A, 35A, 98 and 99 exit devices. The Latch Kit includes Latch, Mounting Brackets and all screws.

Von Duprin Part # 050492
Von Duprin Old Part # 109759

Durabilt Locker Latch Plate. Also known as 72003, db7755.

Surface Mounted Slide Bolt Latch 3/8" Bar To Door Clearance

Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/4" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 3/8" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5030.

Shipped with mounting screws.

Bobrick 5/64" allen wrench only for slide latch for partition doors. Also known as 1000900. Used with slide latch for assembly.

Window Spring Latch

Transom window spring loaded window catch. White bronze casting, brushed nickel finish. This Window Spring Catch features a 1-7/16" hole spacing, and a 1/2" lock up dimension.

Surface Mounted Partition Slide Bolt Latch Chrome Plated 3/8" Bar To Door Clearance

Zamac die cast construction, polished chrome finish. Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 5/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5060.

Shipped with mounting screws.

Medart Bleacher Latch Nose, 2" hole spacing.

Brunswick Chair Front leg Black Rubber Feet with Metal Cap. Fits 5/8" outside diameter tubular legs.  Overall height is 1-3/4", base diameter is 1-1/4". Used on fiberglass shelled Brunswick seats.

The Doromatic Latch Screw PB17 is also known as the SCREW.1029.  The screw is a 10-32-1/4" with an undercut head.  This screw is used to hold the top and bottom latches on the door for the 1690 and 1990 series devices.

Yale 2100 Series Latch Assembly

Latch assembly for the Yale 2100 Rim Panic Device.   Assembly base measures 7-3/4" high by 5-1/2" wide with a projection of 2-1/4".

Yale Part # 60-2100-0010-048

Doromatic Exit Device 1690/1990 Top Rod Latch Assy.

Used on the 1490, 1690 and 1990 Concealed Vertical Rod Devices

Doromatic Part # PB130, and also 4270101806

Chrome Plated Heavy Duty Partition Ada Throw Latch And Keeper

Polished chrome plated brass construction. Latch base is 2" x 2" and is 3/16" thick. The throw latch is 5-7/16" long by 1-1/4" by 7/32" thick. The keeper is 2" by 2" by 21-32" high. Meets ADA codes in most States. Also known as a Bathroom Stall Heavy Duty ADA Throw Latch and Keeper and Toilet Partition Locks. Manufacture part # 5701.

Shipped with mounting screws.

Von Duprin 55 Rim Latch Bolt Spring

Von Duprin 55 Rim Device Latch Bolt Spring

1-1/2" long x 3/8" diameter

Von Duprin part # 967502

Sargent 8700 Top Latch Spring

The Sargent 8700 Top Latch Spring is used on most of the new and older style Sargent Panic Devices.   The springs measures 1-5/8" overall length.

Sargent Part # 97-0300

Chrome plated global slide latch with indicator and emergency access. Overall dimension 2-3/4" x 1-1/2" with 2-1/4" hole spacing. Used with new style doors 10/1/21 to current. Used with a 1 inch door. Security screws included. Manufactures part number 40-8513010.

Chrome Plated Partition Ada Throw Latch 3-1/2" Between Screws Latch Only

Chrome plated brass construction. Base is 4-1/2" wide by 1-1/2" high by 3/16" thick. Throw latch is 3-11/16" long by 3/4" x 3/16" thick. The latch projects from the stall door 1-3/8". Also known as a Bathroom Stall or Toilet Partiton Throw Latch. Manufacture part # 5151

Shipped with mounting screws.

Stacking Chair Bumpers 3/4" Diameter, available in Clear Plastic only. 1/4" stem diameter, 7/16" stem length, 3/16" base height, 3/4" base diameter.
