The Adams Rite 31-0944-IP is the fixture that latches on to the Top Strike Plate Assembly 31-0945.

Hadrian Door Kit includes Ada turn latches with hinges that wrap around the edge of the pilaster type. Cast stainless steel parts include wrap hinges, keeper bumper, ada turn latch, cover plate, pintle, nylon cam, double door pulls, top pin, coat hook with bumper and all security screws included. For Hadrian partitions in steel or stainless steel partitions only. This product manufacture number is 901010, replaces the 901000.

The Von Duprin 090039 is used in the push bar assembly to return the latch. It is known as the Base Plate Latch Return Spring or Latch Return Spring. It is used on the 22, 33A, 35A, 98 and 99 Devices. The spring is 2-1/4 inch long with a 3/8 inch diameter.

The Matte Black Hadrian Door Kit is designed to work with doors and pilasters that are 3/4" thickness. Hinges, Coat Hook and Latch Keeper are constructed of stainless steel and indicator latch is constructed of zamac with all having a matte black finish. The door kits comes with (2) Hinges, (1)Indicator Latch, (1) Latch Keeper, (1) Coat Hook and fasteners for installing. Hinges are field adjustable so door and swing in or out as well as right or left. Known as manufacturers part number 671000-BLK.

Magnet Door Stop

Hands-free magnetic door stop/holder. All you need to do is open the door and a strong maget will keep it open until you close it. Mounts horizontally or vertically. Includes fasteners plus 1 concrete and 3 hollow wall anchors.

Not for use on doors with spring hinges or door closers.

Used with metal latch finger (303233) to quite latching.

Republic Steel upper locking bar for a two person locker. 701730 spring latch included. 7-5/8" length. Current Latching. This is for RH or LH Lockers. Also known as 75701, 2753, rs2000, lr337.

Latch finger 701730 & 786540 included, uses 853715 recess lifter.
7119175

Dor-o-Matic latch rod jamb nut. This nut prevents the latch from coming the rod. Also known as PB23, or GPB23.

Doromatic part # NUT.101

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Lyon Locker Nano Roller Lock bar Catch, Used September 2004 - Current. Used in the Lock bars, This is the part that latches to the frame of the locker. Also known as 6799. Includes the clips and spring,

The Falcon 8242 Automatic Opener is a smart and easy solution to improve accessibility and meet ADA Codes.  The 8242 is a non handed, surface mounted, 115 volt closer for a push side mounting.   If your door is an inswinging door you would use the 8231.   This self contained package features, an on board power supply, LED light on the control box to signal accurate installation and helps with connection diagnostics.  The package includes everything except for the actuators.

Falcon 8200 Catalog

Falcon 8200 Installation Instructions

The Falcon 8231 Automatic Opener is a smart and easy solution to improve accessibility and meet ADA Codes.  The 8231 is a non handed, surface mounted, 115 volt closer for a pull side mounting.   If your door is an outswinging door you would use the 8242.   This self contained package features, an on board power supply, LED light on the control box to signal accurate installation and helps with connection diagnostics.  The package includes everything except for the actuators.

Falcon 8200 Catalog

Falcon 8200 Installation Instructions

The Jackson 2085-3185 Top Strike Package is mounted on the frame of the door were the top latch can engage it.   The Package includes the Strike, Plate, Latch Adjusting Wrench and the Mounting Screws.   Jackson Part Number 30-1345.

Mills Toilet Partition Keeper Bumper For Concealed Latches 1-1/4" Round Edge Post

Polished chrome plate Zamac die casting construction. Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5590.

Shipped with mounting screws.

Latch finger 701730 included, uses 700308-700309 handle assembly. Also known as 7119281, 75136, 2837, 70063, rs3624, lr136.

Hadrian Door Kit includes Ada turn latches with hinges that wrap around the edge of the pilaster type. Chrome plated parts include wrap hinges, keeper bumper, ada turn latch, cover plate, pintle, nylon cam, double door pulls, coat hook & bumper, top pin and all security screws included. For Hadrian partitions in steel or stainless steel partitions only. This product manufacture number is 601025, replaces 601005.

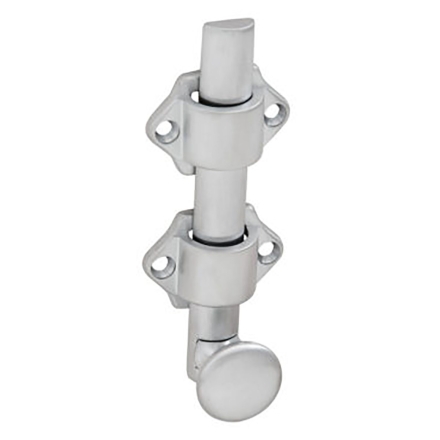

The 594 is constructed of solid brass. The latch bolt is 5/8 inch half round with a 9/16 inch throw.  The bolt ships with mounting screws and strike. The latch bolt has a chamfered end to draw the door in.

Sweep Lock 2-1/4"

Generic sweep latch, used on double hung windows. Also known as a Window Lock, or Double Hung Window Lock. Available in White, Black and Polished Chrome.

Shown in Black

Ives RL32 Nylon Roller RLPART.1045

This replacement Nylon Roller and Rivet Package is for the Ives RL32 Roller Latches.  The Roller measures 3/4" high by 5/8" diameter.  The Rivet measures 15/16" long and is threaded on one side.

Ives Part # RLPART.1045

All Steel Equipment Locker Rivet For latch spring 115293. Same as 5475.

Von Duprin 8827-F Special Hex Stud Kit

The Von Duprin Special Hex Stud mounts on the upper and lower latches.  The cover attaches to the Hex Stud, it is like a spacer.

Von Duprin Part # 050478
Old Part # 961218

Metal Door Automatic Flush Bolts FB31P

Fully automatic-inactive door is latched, bolts are extended when active door closes, door is unlatched, bolts retract when active door is opened. The Ives FB31P Body is 1” wide by 6-3/4” long and 2” deep. Bolt throw is 3/4” with a 7/8” adjustment with a 3/4” backset,  standard rod is 12” which is measured from the center of latch body to the bolt tip.

Rods are also available in 18”, 24” and 36”, call for pricing.  We ship the 12” rods, and this set would include the top and bottom latches.

3 Hour UL Listed

Ives Part # FB31P

Ives RL30 and RL1152 Nylon Roller RLPART.1025

This replacement Nylon Roller and Rivet Package is for the Ives RL30 and RL1152 Roller Latches.  The Roller measures 3/4" high by 5/8" diameter.  The Rivet measures 1-1/16" long and is threaded on one side.

Ives Part # RLPART.1025

Latch finger 701730 & 786540 included, uses 853715 recess lifter.
7119173

Sanymetal Toilet Partition Keeper Bumper For Concealed Latches 1-1/4" Round Edge Post

Polished chrome plate Zamac die casting construction. Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.

Shipped with mounting screws.

Interior Steel Equipment Upper Locking Bar For 2 person lockers. Includes Latching. Also known as 35701, 3530, 76016, is4409, LIN411.

Von Duprin 8827 Chassis Tie Rod Pkg 050328

The 8827 Chassis Tie Rod Package is the rod that goes through the top and bottom latches. The Tie Rod is held in place by the Special Chassis Nut. The Tie Rod measures 1-3/8" long by 3/16" diameter.

Von Duprin Part # 050328
Old Von Duprin Part # 967616

The Von Duprin 88 Center Case Rivet 090002 is also known as the Latch Tail Rivet used on the 88 Rim Device.  The Rivet fits into the spring and into the Latch Tail 050500.  The rivet measures 1-1/4 inches long less the head, with a 1/8 inch diameter.  We sell this piece individually.

Latch finger 701730 included, uses 700308-700309 handle assembly. Also known as 7119280, 75130, 2831, 70062, rs3018, lr130.

Republic Steel st Recessed Lock Bar 60", 47-15/16" Length, Latch finger 701730 & 786540 included, uses 853715 recess lifter.
7119172

Dor-o-Matic 990/1090/1990/2090 Cross Bar

41" or 48" cross bar is sent, cut to size.  48 inch bars are not in stock, leadtime is 3 weeks

Doromatic part # CBAR or 47285197 for 41" bars and 47286482 for the 48" bars.

The Dark Bronze Cross Bars are a very dark bronze and will be closer to black.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The same as the Falcon / Dor-o-Matic 1690 with Mechanical Electric Latch Retraction. Some of the features are listed below. A power supply is required.

Hand: Field reversible, non-handed.
Centercase and end cap are powder-coated black only.
Strikes: PB48 top.
Latches: Hex bottom latch (standard), RL - rod bottom latch, PL - Pullman bottom latch
Cylinder: Rim, key entry (NL) or hold back (HB) feature available.
Field selectable.
Sizes: 30", 36", 42", and 48".
Doors: 1-3/4" thick metal doors, specify if other.
Projections: 3-3/8" in neutral position, 23/8" in dogged position.
Pushbar height is 2-1/2.
Stile: 1-3/4" minimum.

Replacement parts are also available

Shipped with all screws and strikes.

Penco Recess Locker Handle, stainless steel, also known as 60890H.
Used with a multi latching lock bar. Security screw included.

Flush Metal Toilet Partition Keeper Bumper For Concealed Latches 1-1/4" Round Edge Post

Polished chrome plate Zamac die casting construction. Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.

Shipped with mounting screws.
