Knickerbocker Partitions Bottom Hinge 1-1/4" Round Edge

Chrome plated Zamac die cast construction. The wrap around dimension is 1-1/4" wide by 1-3/4" high and 11-16" deep. The hole spacing is 1-1/8" on center. The lug projects out 1-3/8" to center hole with a 1/4" bushing diameter. Also known as a Bathroom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 3420.

a=1-11/16"

Effective December 20, 2024 Falcon Doromatic has discontinued this exit device.  They are currently working on retro-fit plates to make transitioning to 1790EO easy.

The Doromatic 1590 is our heaviest device and offers a clean appearance with pushpad styling and a variety of practical features. The Doromatic 1590 is built with rugged steel operating mechanisms, and durable aluminum push bars and end caps.

Replacement parts are also available

Shipped with all screws and strikes.

General Toilet Partitions Keeper Bumper For 1-1/4" Inswing Sq Edge Pilaster Or Post

Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110

Shipped with mounting screws.

Saddle Threshold 513 - 5" Wide By 1/4" High

Extruded aluminum construction. The thresholds are shipped with mounting screws (#10 x 1-1/2" FH zinc plated wood screws), Milled aluminum finish. This is considered a Handicap Saddle Threshold.

Other sizes and finishes are available, call for more information.

Air shipment is not available on this product. Please allow 7-10 days for delivery.

TH1112 Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

TH1100 Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

Handing diagram

TH1118-B Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

Single Hook Chrome Plated Projects 1-3/4", also known as UC10.

Two Hole 1-1/4" Window Handle 5/16" Lockup With Ring Pull

This window handle features a 1-1/4" hole spacing, a 5/16" lock up dimension and a ring pull for elevated windows. This handle is cast white bronze construction with a brushed nickel finish

Coat Hook 3" Projection X 1-3/4" High

Chrome plated Zamac die cast construction. The hook base measures 1-3/16" wide by 1-9/16" high. The long hook projects out 3" and the short hook projects out 1-1/2". Also known as Bathroom Stall Hook. Manufacture part # 4020.

Bleacher Bolt Fastener Type D-1" Head, 5/16-18 X 1-3/4" Long.

• For automatic closing of doors
• Packed with wood and metal screws

This hinge is not recommended for doors that have a sweep larger than 110 degrees.

Sold in Boxes of 3 Hinges
Shown in brushed brass

Non swivel chair glides for round tubing

7/8" outside diameter
3/4" inside diameter
1-1/16" base diameter
Nickel plated metal base

The 3/4" Q-Ball Floor Protector is for use on 3/4" outside diameter chair and table legs. The adaptor shown on the right fits over your existing glide, and then the Q-Ball slides over the adaptor. Constructed of Gray Plastic.

Tip- Proof Flag Stand - 1 1/4". Cast stand with universal bore. Supplied with adapter sleeves to accommodate various pole diameters. Indoor Flag Stand use only. This flagstand is 10-3/4" diameter and 5-1/2" high. The flag base weighs 9 pounds.

General Top Hinge For 1-1/4" Round Edge Post

Chrome plated Zamac die cast construction. Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Also known as a Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3510.

Shipped with mounting screws.

A=1-7/6"

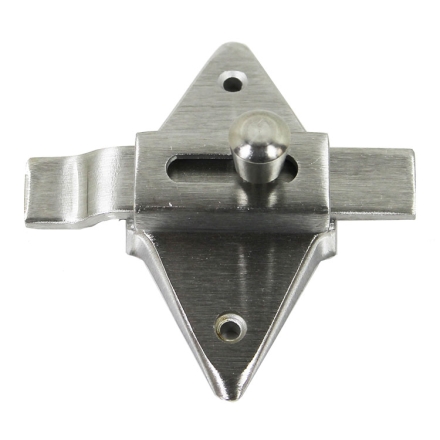

Partition Slide Latch 3/8" Bar To Door, 2-3/4" Between Screws Stainless Steel

Cast stainless steel construction. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/4" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 3/8" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5033.

Shipped with mounting screws.

Plate Top Single Wheel Caster - Swivel - 4" Wheel, 1-3/4" x 3"" Hole Spacing. Ball Bearing Swivel with a zinc finish and black rubber wheel. Available with a tread for carpet and non carpet surfaces.

KK9C51 hard tread for carpet

KK9C52 soft tread for non carpet surface

Alcove Two Ear Bracket Panel Kit for 1/4" Offset. This kit is used for panel to pilaster 1/4" offset and for 1" panel to wall bracket chrome plated. Security screws included. Also known as 615330.

Plastic Chair Tips for  Round Tubing chair legs with a  7/8" Outside Diameter X 3/4" Inside Diameter. Available in Black only.

Plastic Chair Tips for Square Tubing chair leg with a 3/4" Outside Diameter X 5/8" Inside Diameter. Available in Black only.

One Ear Pilaster Bracket Kit for 1-1/4" Post are available for quick deliveries and cast stainless steel plated. Includes security screws for installation. Also known as 615233.

3 Pole Flag Stand - 1 1/4". The cast stand creates creates a display of 1, 2, or 3 flags. Supplied with adapter sleeves for various pole diameters. Not intended for outdoor display. This Flag stand weighs 34 pounds and the color is memorial bronze.

Reinforcing Pivot Hinge - For use with 4-1/2" wide butt hinges

3/4" to center line of 4-1/2" hinge pin.
Pin uses large pin and bushing.
Used to dampen vibration and increase
strength to your full mortise butt hinges.
Constructed of heavy duty cold rolled steel.
Made of Zinc Plated Steel
Supports weights up to 300 lbs

Manufacturer part # B1923
Our part # DR1923 for Right Hand, DL1923 for Left Hand

These hinges are no longer handed, you can select right or left, but the hinges will work both ways.

Cast Stainless Steel Top Hinge for 1-1/4" Sq Edge

Cast Stainless Steel construction. The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3793

a=1-11/16"

also known as general, american sanitary, flush, fiat

Inswing Partition Keeper Bumper For Throw Latch For 1-1/4" Sq Post

Zamac die cast and polished chrome plate construction. The strike and keeper measure 2-1/2" high by 1-7/8" wide with a hole spacing of 1-1/2" on center. The stop is 2-1/2" tall by 3/4" wide with a rubber insert. The slot measures 13/16" high by 1/4" deep. Commonly known as a Bathrrom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5340

Shipped with mounting screws.

TH1114KM Pitco Style Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

Bleacher Bolt Fastener Type C-1" Head, 5/16-18 X 1-1/4" Long.

Push Plate 70

.125" thick with 4 beveled edges. Base material is either aluminum, brass, bronze or stainless steel depending on the finish. This would be considered a premium push plate.

Finishes

The 1-1/4 inch diameter Decorative Cap comes in two different tread sizes 3/8-24 and 5/16-18.  The Cap measures 1 inch diameter by 3/8 inch thick. Stainless Steel base material.

Von Duprin 050532 EL Dogging Rod 4'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 4' designates the model it is used on. The 4' model is used on doors 48" down to 36". The Rod measures roughly 17" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices. Use part # G050531 if your door is equal or under 36".

Von Duprin Part # 050532, Old Part # 110008

Sled Base Felt Stem Glide with a 1/4" insert diameter. The base diameter is 7/8" and the Stem Length is 1/2". This glide works on any diameter sled base chair. This glide gently taps into 1/4" hole on the bottom side of a sled leg. Felt bottom to help protect floors.

Partition panel bracket kits for 3/4" thick panel, One eared bracket that is chrome plated. All bracket kits include security hardware fasteners to mount the brackets. Also known as 615100.
