Angle Base 1-3/8" Window Handle-11/16" Drop

Cast white bronze with a brushed nickel finish

Angle Base 1-3/8" Window Handle-1/2 Drop With Ring Pull

Cast white bronze with a brushed nickel finish

Sargent Hold Open Arm

Sargent part # 25-H

Angle Base 1-3/8" Window Handle

Cast white bronze with a brushed nickel finish

Angle Base 1-3/8" Window Handle

Angle base window is constructed of cast white bronze, and then nickel plated.

Right Hand shown in pictures.

Norton 8301 Door Closer, Sometimes called the Norton 8301 Omni Door Closer

• Adjustable spring sizes 1 thru 6
• Rack-and-pinion design
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Cast aluminum body
• Standard, separate and independent, latch,
  sweep and backcheck intensity valves
• Staked valves
• Molded plastic cover standard

This closer replaces the 8301BF Norton Door Closer. The standard 8301 now meets the Barrier Free Requirements.

Angle Base 1-3/8" Window Handle-1/4" Drop

Cast white bronze with a brushed nickel finish

LCN SEM7830-516 Magnet Core Assembly

Tri Voltage Magnet Core only. 35 pounds of holding force at nominal input voltage. Maximum current draw is .020 A @ 24 volt and 120 volt, and .030 A @ 12VDC.

LCN part number SEM7830-516

7/8" Tube Cap

Round Tubing - 6 prong Tube Caps are pushed in easily and hold securely in 16 or 18 gauge round tubing. Sold individually.

Fits 7/8" outside diameter legs, 7/8" base diameter

Nickel Base Finish

Sargent Hold Open Pa Bracket

Sargent part # 125-PH9

The 594 is constructed of solid brass. The latch bolt is 5/8 inch half round with a 9/16 inch throw.  The bolt ships with mounting screws and strike. The latch bolt has a chamfered end to draw the door in.

7/8" Nail On Glide-Nickel Base

Nail on furniture glide, 7/8" diameter metal base

5/8" Tube Cap

Round Tubing - 6 prong Tube Caps are pushed in easily and hold securely in 16 or 18 gauge round tubing. Sold individually.

Fits 5/8" outside diamter legs, 5/8" base diamter

Nickel Base Finish

Norton 7500 Apollo Door Closer

• Rack-and-pinion design
• Cast aluminum body
• 2-1/8" (54mm) projection
• Staked valves
• Standard, separate and independent, latch, sweep and backcheck intensity valves
• Backcheck positioning valve
• NorGlide® fluid
• Molded plastic cover
• All standard arm applications allow doors to swing 180°, conditions permitting
• Self-drilling screws
• Full-size template
• 10-year limited warranty

We ship Norton 7501 which will work as a replacement for the 7501BF. This closer now meets ADA Handicap codes for Barrier Free Access.

Replacement arm works with the Norton 1600, 9300, 7500, and 8000 series, along with the Yale 50, 2300, 3000 and 4400 friction hold open arms closers. Norton and Yale use the same arm for there Friction Hold Open arms.

Norton Part # 7701-3
Old Norton Part # 1620-3
Yale Part # 400-3

LCN Hold Open Arm Wrench T-1157

This wrench is used to adjust LCN Friction Hold Open Arms,
one side if for the 1-1/2" nut and the other is 1-3/16"

LCN part # T-1157

Angle Base 1-3/8" Window Handle Truth

Also known as the Truth 25.39, this handle is constructed of a die cast metal and powder coated to the desired color. The distance between the screws is 1-3/8" on center. The handle measures 3-3/4" long, base measures 2-1/8" long. The number found on the handle is 45086 for the Right Hand, and 45085 for the Left Hand. We also find U.S. Pat. # 4,930,820

Right Hand is shown in picture.

Corbin Russwin Hold Open PA Bracket

Corbin Russwin part # 509F49

Angle Base 1-3/8" Window Handle

1-3/8" center to center hole spacing with 8-32 threaded holes

Cast white bronze construction with brushed nickel plated finish

7/8" diameter Nylon based Nail On furniture glide. Protect hardwood, ceramic tile, linoleum & hard surfaces from mars & scratches by using this nail on glide.

LCN Door Closer Rod And Shoe

This piece fits into the female part of all LCN Regular Arms. The old style had two concave set screws and a ball pressed into the rod. If the door over rotated the ball would pull out of the concave set screws. The new version has a pin holding the rod to the shoe which is designed to fail if the door is over rotated. This piece will work on the LCN 1260, 1460, 4010, 4020, 4030 and 4040 door closers with regular arms. Some of the really old models have multiple threaded holes, so you might have to drill a hole in the female tube. Part #'s 4040-79, 4040-79LR and 4040-79ELR. The 1260, 1460, 4010, or 4020 could replace the 4040 in those part numbers, they are the same.

Norton 8501 Door Closer, also known as the Norton 8501 Omni Door Closer, or 8501BF Door Closer.
We sometimes find 3301/3501 and 8301/8501 on the inside of the cover, along with the suffix BF (barrier free).

• Adjustable spring sizes 1 thru 6
• Rack-and-pinion design
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Cast aluminum body
• Standard, separate and independent, latch,
  sweep and backcheck intensity valves
• Staked valves
• Molded plastic cover standard

This Norton 8501 replaces the 8501BF. This newer model now meets the ADA Barrier Free requirements.

Non-Swivel Leveler Threaded Stem Glide with metal base. Thread is 3/8-16, Base Diameter is 1 1/4" and the stem length is 1 1/2". This glide screws into a 3/8" threaded leg hole to put a selected height. Use this product to stop wobbling on an uneven floor.

LCN SEM7820-516 Magnet Core Assembly

Tri Voltage Magnet Core only. 35 pounds of holding force at nominal input voltage. Maximum current draw is .020 A @ 24 volt and 120 volt, and .030 A @ 12VDC.

LCN part number SEM7820-516

7/8" Q-Ball Floor Protector with Felt Base for use on 7/8" outside diameter chair and table legs.The adaptor shown on the right fits over your existing glide, and then the Q-Ball slides over the adaptor. Constructed of Gray Plastic. Kit includes: Adaptor for 7/8" Leg, and Q-Ball with Felt Base

Norton Unitrol Hold Open Arm

Used on the Norton 1600, 8000 and 7500 door closers. Parallel Arm mounting only.

Norton # Door Size
6100-1 28-32"
6100-3 33-41"
6100-4 42-48"

Corbin Russwin Door Closer H.D. Hold Open Arm

Recommended for high-use, high-abuse environments, Tamper-resistant, solid forged steel riveted arm, Mounted on push side, and Not available in plated finishes.

Corbin Russwin part # 689F04

Metal Based Swivel Chair Glide for a round tubing chair leg with a  5/8" O.D. X 1/2" I.D. This glide has a clip that holds the glide on by going inside the chair leg. The Chair Glides Base diameter is 1 1/4".

Norton Unitrol Non Hold Open Arm

Used on the Norton 1600, 8000 and 7500 door closers. Parallel Arm mounting only.

Norton # Door Size
6100-11 28-32"
6100-13 33-41"
6100-14 42-48"

The Jackson 20-330 Series Overhead Concealed Closer has been the leader in the industry for more than 35 years. The closer is manufactured in the U.S.A. under strict ISO 9001 guidelines and is designed to give long lasting, maitenance-free performance. One basic closer mechanism allows for single or double acting, center-hung, or offset applications and is non-handed. The adjustable spring power makes this closer suitable for aluminum, wood or steel doors.

Mechanism only, Spindle Length is 1/2"
See Jackson arms for replacement arms.

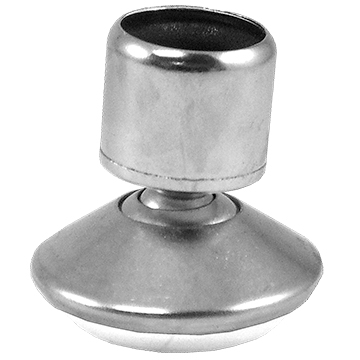

Swivel Based Chair Glide for round tubing with measurements of 7/8" O.D. X 3/4" I.D. This chair glide does NOT feature a Ferrule, This glide has a clip that holds the glide on by going inside the chair leg. The Chair Glides Base diameter is 1 1/4".

Metail Swivel Chair Glide for a chair leg with a 3/4" O.D. X 9/16" I.D.  This chair glide has a Ferrule and Nylon Base. The nylon base is 1 1/4" in diameter. This glide is made for American Seating and Griggs. This Nylon Base Swivel glide has an internal holding clip. Chair glides are very popular in schools and institutions and move easily across smooth or carpeted floors.  Metal base glides are nickel plated and are extremely durable, but when they do wear out, they will scratch the floor.  The glide freely swivels beyond 30 degree angle. Glide grips leg with outside holding clip, meaning it grabs the out side of the leg, see more views for picture of outside holding clip.

Metal based glide that nails into wooden furniture, 1 1/8" diameter base glide. .

Swivel Glide 9/16" O.D. X 7/16" I.D. W Ferrule-Nylon Base. Measurements are for the chair leg. Heywood Wakefield replacement chair feet with nylon base. Base is 1 1/4" in diameter. Metal base glides are very popular in schools and institutions and move easily across smooth or carpeted floors.  Metal base glides are nickel plated and are extremely durable, but when they do wear out, they will scratch the floor.  The glide freely swivels beyond 30 degree angle. Glide grips leg with outside holding clip, meaning it grabs the outside of the leg, see more views for picture of outside holding clip.

Non swivel chair glides for round tubing

7/8" outside diameter
3/4" inside diameter
1-1/16" base diameter
Nickel plated metal base
