Global Partition Complete Solid Phenolic Between 2 Wall Partitions, Overhead braced floor mounted stalls. Standard stalls 36"x60" depth (24" door), ADA stall 60"x60" depth (36" door). All stainless steel hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

Accurate Partitions Stainless Steel Ada Alcove Compartments. Stainless steel overhead braced floor mounted stalls are most commonly used. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. Standard chrome plated alloy hardware included. All toilet stalls ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate color chart

Accurate Instructions

Toilet Partition Top & Bottom Hinge Assembly For 1" Door, 1-1/4" Pilaster Square Edge. Polished chrome plated zamac die cast construction. Kit includes Bottom & Top Hinges, Pintle, Nylon Cam, Top Pin and Bottom & Top Hinge Door Inserts. Hinges measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Manufacture part number 63130 kit. The top hinge wall to center of the 3/8" diameter hole is 1-1/4" which is known as a 3790 hinge. The bottom hinge wall is also 1-1/4" to the center of the 5/16" hole and known as 3290 hinge. The Top Pin is 3/8" x 3-1/2". Screws are also included.

INTERNATIONAL DOOR CLOSER 1803 - FIXED SPRING CLOSER

• Factory tested to meet or exceed ANSI 156.4 Grade 1
• Narrow design permits installation on most modern glass and aluminum doors without adapters
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Standard application for regular arm and Top Jamb installation; optional parallel arm installation (requires optional PA bracket.)
• Slim Plastic Cover or Full Cover (optional)
• Ranges of Sizes
  Back-Check: 1802, 1803, 1804, and 1805
• 5 year warranty
• All Weather Fluid

3/4" X 9-1/16" Hole Spacing

PLACE AN ORDER HERE FOR THE 1803

INTERNATIONAL DOOR CLOSER 1805BC - FIXED SPRING CLOSER

• Factory tested to meet or exceed ANSI 156.4 Grade 1
• Narrow design permits installation on most modern glass and aluminum doors without adapters
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Standard application for regular arm and Top Jamb installation; optional parallel arm installation (requires optional PA bracket.)
• Slim Plastic Cover or Full Cover (optional)
• Ranges of Sizes
  Back-Check: 1802, 1803, 1804, and 1805
• 5 year warranty
• All Weather Fluid

3/4" X 9-1/16" Hole Spacing

PLACE AN ORDER HERE FOR THE 1805BC

Chrome plated inswing door kit for square edge doors and posts. For 1" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 11000.

Cast stainless steel outswing door kit for square edge doors and posts. For 1" doors and 1" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 21343.

Flush Metal Partitions Bottom Door Insert For 7/8" Door

Chrome plated Zamac die cast construction. The door insert measures 2-5/16" wide by 1" wide by 1-3/16" high. The hex shaped hole is 5/8" and the round hole is 7/32" diameter. The material or rim is 5/16" high. Also known as a Bathroom Stall Door Insert Bottom 7/8". Manufacture part # 1530.

Accurate stainless steel free standing stalls floor mounted overhead braced stalls with a smooth surface. Standard stalls are 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate color chart

Accurate Instructions

83 Series Tube Balances - 3/8" Diameter

See Attached pdf, for more information.

Von Duprin 88 Spring Tube Bracket

This bracket holds the hinge case spring tube in place. The screws are included with the bracket.

Von Duprin Part # 050477
Old Part # 969369

Cast Stainless Steel Construction. Used for a Partition door to stop and lock on it.

40-8562306

Global Partition Complete Solid Phenolic Free Standing Partitions, Overhead braced floor mounted stalls. Standard stalls 36"x60" depth (24" door), ADA stall 60"x60"depth (36" door). All Stainless Steel hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

INTERNATIONAL DOOR CLOSER 1804BC - FIXED SPRING CLOSER

• Factory tested to meet or exceed ANSI 156.4 Grade 1
• Narrow design permits installation on most modern glass and aluminum doors without adapters
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Standard application for regular arm, Top Jamb installation and Parallel arm installation.
• Slim Plastic Cover or Full Cover (optional)
• Ranges of Sizes
  Back-Check: 1802, 1803, 1804, and 1805
• 5 year warranty
• All Weather Fluid

3/4" X 9-1/16" Hole Spacing

PLACE AN ORDER HERE FOR THE 1804BC-P

Global Partition Complete Solid Phenolic material in a Corner Partition, Overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). All Stainless Steel hardware included. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

Scranton Products solid plastic Ada Alcove partitions traditionally called Hiny Hider Partitions are great for moisture and high traffic commercial buildings. All plastic material is 1" thick, doors are self closing by gravity 8" aluminum hinges or a continuous spring piano hinge, all hardware is standard aluminum brackets. Offering only Classic color collect on the website, all textures please submit drawings for us to quote with color you are looking for. All doors and panels are 55" ht, pilasters are 82" ht mounted to the floor and an overhead aluminum headrail running across the top to support the top of the pilasters. Alcove stalls include 36" door, 2 pilasters and panel to make up the balance needed.

Scranton Color Chart

Scranton Bathroom Stall Instructions

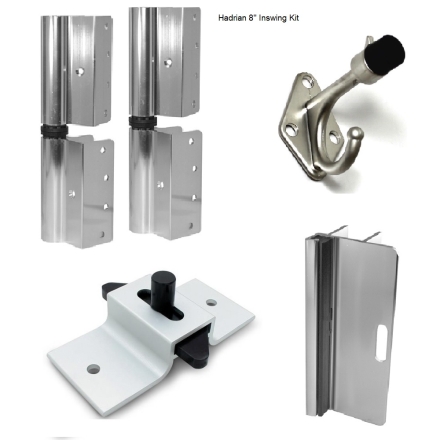

Hadrain Partitions 8" wrap door kit for Solid Plastic material. Comes in anodized aluminum finish and are desgned for 1" thick material only. You will need to choose In or Out swing when ordering. Can be used as right or left hand as hinges are field reversible. To hand handing, this can be done by taking the 3 pieces apart and reconfiguring the opposite swing. See Hadrians part numbers/ known as numbers listed below. Also used with Comtec-Hiny Hiders-Scranton.

Inswing: 261005 and 261025

Outswing: 621006 and 261026

Accurate Partition Corner Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate Steel Color chart

Accurate Steel Instructions

Bobrick B-369 recessed paper towel dispenser and waste receptacle in a satin finish stainless steel. Seamless beveled flange. Dispenses 350 c-fold or 400 multifold towels. knob latch retains door. Removable waste container has a 2 gal. capacity. Rough wall opening 12-5/8"w x 26-5/8"ht x 4" minimum depth.

INTERNATIONAL DOOR CLOSER 1802 - FIXED SPRING CLOSER

• Factory tested to meet or exceed ANSI 156.4 Grade 1
• Narrow design permits installation on most modern glass and aluminum doors without adapters
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Standard application for regular arm and Top Jamb installation; optional parallel arm installation (requires optional PA bracket.)
• Slim Plastic Cover or Full Cover (optional)
• Ranges of Sizes
  Back-Check: 1802, 1803, 1804, and 1805
• 5 year warranty
• All Weather Fluid

3/4" X 9-1/16" Hole Spacing

PLACE AN ORDER HERE FOR THE 1802BC

Plastic Chair Tips Square Tubing for 7/8" Outside Diameter X 3/4" Inside Diameter Leg. Fits square tubing legs with an outside diameter of 7/8" and an inside diameter of 3/4". Available in Black only.

Adams Rite 8800 Exit Device

The 8800 features the Starwheel locking bolt that interlocks door to the door frame.  This device is used exclusively on aluminum framed glass storefront doors.  If your door is 35" wide, then you would order the 36" device.  We want to make sure they device is wide enough to span the glass on the storefront doors.  Replacement parts are available.

Round Black Plastic Chair Tips for Round Tubing chair legs with a 3/4" Outside Diameter X 11/16" Inside Diameter. Available in black only.

Round Black Plastic Chair Tips Round Tubing For 1-1/4" Outside Diameter X 1-1/8" Inside Diameter Chair Legs.

Accurate Commercial Partition Alcove Handicap Stalls in Powder Coated Steel overhead braced floor mounted compartments. The alcove stall includes 36" door, 2 pilasters and panel to make up the distance. Accurate Doors can be either in or out swing. All partition hardware included with standard chrome hardware for the door kits and brackets. All toilet partitions ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate Steel Color chart

Accurate Steel Instructions

Complete HDPE Solid Plastic Alcove Partitions, Solid Plastic overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel. Stall doors can be either in or out swing. All Hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel.
Color Chart

Global Partition compartments In A Corner Stall. Powder Coated Metal Overhead braced floor mounted stalls is most used. Standard stalls 36"x 60" depth (24" door), ADA stall 60"x60"depth (ADA 36" door). All hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60 this adds 24". New Style Integrated Privacy Doors with slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.
Color Chart

Complete Stainless Steel in a Corner Partitions, Stainless Steel Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth (24" door), ADA stall 60"x60"depth includes (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Stainless Steel Color Chart

Plastic Chair Tips Square Tubing for 7/8" Outside Diameter X 13/16" Inside Diameter. Fits square tubing legs with an outside diameter of 7/8" and an inside diameter of 13/16". Available in black.

B-3699 surface mounted towel & waste receptacle. The unit holds up to 350 c-folds and 475 multifold towels. Knob latch retains door. Removable waste container has a 2 gallon capacity. For mounting this unit has a stainless steel skirt for surface mounting.

Bobrick 1550 metro series plastic laminate between wall partition configuration, Plastic laminate overhead braced floor mounted stalls. Standard stalls 36" x 60"depth (24" door), ADA stall 60" x 60" depth (36" door). All hardware included. Doors are either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select (1) ADA 24", plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select (2) standard stalls and (1) ADA stall 24". Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

Global Partitions Bathroom Alcove Stall Partitions, Powder Coated Metal Overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. All Hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.
Color Chart

ADA Partition Slide Latch with Occupied Symbol. Stainless steel door lock surface mounted for 1" doors, this can be used for doors less than 1" if the rod is cut down between the two pieces. All hardware included for installation. This manufactures part number is 50553. Hole spacing is 3-1/2".

Black Round Plastic Chair Tips for Round Tubing chair legs with a 3/4" Oustside Diameter X 5/8" Inside Diameter. Available in black only.

Accurate Toilet Partition Free Standing Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate Steel Color chart

Accurate Steel Instructions
