Door Pull 25 With 3/4" Diameter Handle

This door handle is made of 3/4" round stock in either solid, Aluminum, Brass or Stainless Steel. It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

3/4" diameter
2-3/8" projection
1-5/8" clearance

Finishes

Sanymetal Toilet Partition Keeper Bumper For Concealed Latches 1-1/4" Round Edge Post

Polished chrome plate Zamac die casting construction. Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.

Shipped with mounting screws.

Accurate Partition Corner Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate Steel Color chart

Accurate Steel Instructions

Accurate Toilet Partition Free Standing Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate Steel Color chart

Accurate Steel Instructions

International Door Closer 851 Series

FEATURES

Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating Valves,

Universal application Non-handed for standard top jamb or parallel arm installation. Ships with regular and parallel arm bracket

3/4" x 6-3/8" mounting holes

International Door Closer 852 Series
FEATURES

Two Adjustment Valves: Closing and Latching
speeds controlled by separate regulating Valves,

Universal application Non-handed for standard top jamb or parallel arm installation. Shipped with regular and parallel arm bracket.

3/4" x 7-3/8" mounting holes

Von Duprin 8827 Top Rod Connector

Inserts into rod so the latch can connect to the rod. The top vertical rod does not ship with the top rod connector!

Von Duprin Part # 050279
Old Part # 960577

Peb-Tac Plus Bulletin Boards

Reliable posting surface of tan natural cork laminated to fiberboard. Cork’s natural resilience makes it the ideal material for display purposes. Available in satin-anodized aluminum or solid oak trim.

Von Duprin Strike 1409

This Von Duprin Strike is used for the bottom latch of the 22, 33, 33A, 55, 88 and 99 Rim Devices.  Also known as a Blade Stop.

Lyon Locker Nano Roller Lock bar Catch, Used September 2004 - Current. Used in the Lock bars, This is the part that latches to the frame of the locker. Also known as 6799. Includes the clips and spring,

Republic Steel 60" st Lock Bar -47-7/8" Length, Latch finger 701730 included, uses 700308-700309 handle assembly. Also known as 7134360, 75160, 2860, 70060, rs6048, lr160.

International Door Closer 855 Series-Discontinued.   If you order this door closer the 885 will be sent, it is the same door closer but also features back check.

FEATURES
Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating Valves, Universal application Non-handed for standard top jamb or parallel arm installation.

Ships with regular arm and parallel arm bracket.

3/4" x 9-1/16" mounting holes

Vinyl Stair Treads GS365 with Grit Strip

This is one our highest volume vinyl stair treads. Heavy duty to stand up to most applications with the safety of inlaid grit strips. Made in the USA

SPECIFICATIONS:

Furnish and install No. GS365 Koroseal Vinyl Stair Treads
Grit-Strip rib design stair treads; 7/32" thick, 12" deep; 1-1/4" square nose; two black* 1" wide abrasive Grit-Strips inlaid in tread, 1" from front edge, spaced 1-1/4" apart; contains no asbestos fiber; made of first quality homogenous vinyl, color throughout thickness; free from imperfections which might lessen serviceability. Meets Federal Specs. RR-T-650E Type B. Select standard length of 36", 42", 48", 54", 60", 72", 84" or 96". Select standard solid color of Brown or Gray.

The 1085/1285/2086 is mounted on the frame at the top of the door and in the floor at the bottom.   The Package includes the Strike, Plate, Latch Adjusting Wrench and the Mounting Screws.   Jackson Part Number 30-0846.

• Designed for use on all Type 161 Cylindrical Locks (ANSI 156.2 Series 2000)
  Monolock and Unilock.
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the
  opening between door and frame at latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel.

1-1/2" Wide x 7" High
Stud center to center: 4-1/2"

Adams Rite 22-0430-IP 8700/8800 Strike is used on the rim devices that have the Star Wheel Latching System.  The strike measures 2-3/4" long by 1-3/4" wide and projects out approximately 3/8".

Von Duprin 88 Night Latch Trim

Plate measures 3" wide by 14-3/16" long, with an 1-5/8" bore for cylinder.

Von Duprin part # 880NL-R

Flush Metal Toilet Partition Keeper Bumper For Concealed Latches 1-1/4" Round Edge Post

Polished chrome plate Zamac die casting construction. Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.

Shipped with mounting screws.

Bobrick SCRC solid phenolic partition free standing layout with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall are 60" x 60" depth (36" door). All standard stainless steel hardware included with option of full stainless channels and piano hinges. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must add Ada to add 24" to a standard stall of 36" to create 60" width, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and add Ada 24". 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

Von Duprin 33/3547 99/9947 Ratchet Lever Spring (2)

One of two springs located in the 33/3547 and 98/9947 Top Latch 050492.  Sold in packages of 2.

Von Duprin Part # 090069

Penco Locker Double Tier lock bar, for a 60" ht locker, 21" length. Used 1996 - current. Used with the recess handle or the vanguard locker handle (2-piece assembly). Also known as 626572c in gray color. 2 Nylon Latch Clips and springs included.

Cal Royal A2200 Series Rim Device

Grade 1
Non handed
3/4" latch bolt throw
Heavy gauge steel, painted

Devices available for 32" and 24" wide doors. Please call 1-800-642-2403 for more information

International Door Closer 883 Series
FEATURES

Three Adjustment Valves: Closing and Latching
speeds controlled by separate regulating Valves,
and back check

Universal application Non-handed for standard top
jamb or parallel arm installation.

Direct replacement for the older style Norton 1602 and 1603, and Yale 52 and 53

3/4" x 8-3/16" mounting holes

The Adams Rite EX88 and EX89 End Caps are for the EX Series Interlocking and Pullman Rim Devices.  The package includes the hinge side and latching side covers, along with the mounting screws.

The Corbin Russwin 650F54 is used on the ED4400, ED4800, ED5400 and ED5800 Surface Vertical Rod Devices as the Top Latch Strike. The Strike used to have a roller on it, they no longer have the roller.

Penco Locker Single Tier lock bar, for a 72" ht locker, 62-1/2" length. Used 1966 - current. Used with the recess handle or the vanguard locker handle (2-piece assembly). Also known as 61828c in gray color. 3 Nylon Latch Clips and spring included.

Dor-o-Matic 1690/1990 Top rod. Connects panic bar to the bottom latch

Doromatic Part # 4270100017 PB24

This rod is 35" tall

Dor-o-Matic 990/1990 Repair Parts Breakdown

Dor-o-Matic 1690 Repair Parts Breakdown

Doromatic 1990/1690 Hex Bottom Bolt

Bottom bolt measures 3" long and is constructed of 1/2" hex stock. Threads onto bottom latch. We also call this GPB352.

Doromatic part # 4270101830

Von Duprin 8827-F Special Hex Stud Kit

The Von Duprin Special Hex Stud mounts on the upper and lower latches.  The cover attaches to the Hex Stud, it is like a spacer.

Von Duprin Part # 050478
Old Part # 961218

Bobrick SCRC solid phenolic partition between walls layout with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall are 60" x 60" depth (36" door). All standard stainless steel hardware included with option of full stainless channels and piano hinges. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must add Ada to add 24" to a standard stall of 36" to create 60" width, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and add Ada 24". 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

Penco Products door frame assembly are the whole front face of the lockers. Includes door, frame and all latching with handle choice. This takes 6-8 weeks delivery. These doors are standard louvered known as the vanguard lockers. These lockers are typically in the hallways of schools.

color chart

Ives RL32 Nylon Roller RLPART.1045

This replacement Nylon Roller and Rivet Package is for the Ives RL32 Roller Latches.  The Roller measures 3/4" high by 5/8" diameter.  The Rivet measures 15/16" long and is threaded on one side.

Ives Part # RLPART.1045

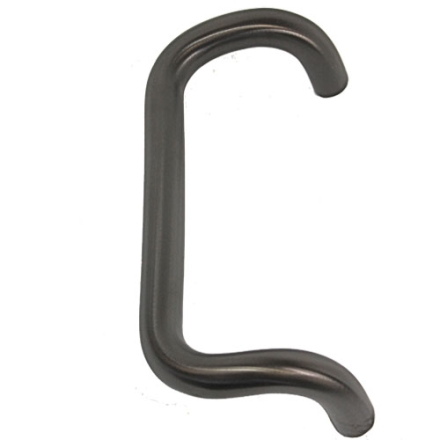

Door Pull Offset 1" Diameter PH-4000

1" Diameter Solid Aluminum Round 3-1/4" Offset Door Pull, usually used on aluminum frame glass doors. This handle offers three different mounting options, one is surface mounted, where the handle is mounted over a mounting stud and then you tighten the set screw to hold the handle in place. The second method is thru bolted, the bolt goes all the way thru the door. And the third is back to were you have two handles mounted back to back.

Projection 3 -1/4"
Door Clearance 2 -1/4"
Center To Center 9". 10' and 12"
Anodized Finishes Aluminum or Dark Brown
Mounting Hardware Included
