Friction Ring Twin Wheel Caster - 2-3/8" Wheel - 7/16" Stem Diameter, 7/16" stem diameter, 7/8" stem length. Chrome hook with black wheels. Available with treads for carpet and non carpet areas.

KK6721 hard tread for carpet

KK6722 soft tread for non carpet

Reinforced Rubber Chair Tips For 7/8" Outside Diameter Round Legs

One of the biggest problems with rubber chair tips is the metal leg punching through the rubber feet. This happens because the metal chair legs are sharp and blunt. By installing a chair tube cap first, the rubber chair leg has more of a surface area to displace the weight.

Part # - Color
RCT87BTC - Black
RCT87GTC - Gray

Medart Locker Door Jamb RH, We Manufacture this part in the USA. Also known as 50305, 1125, 80033, me5510, lmd925.

The 5/8" Q-Ball Floor Protector is for use on 5/8" outside diameter chair and table legs. The adaptor shown on the right fits over your existing glide, and then the Q-Ball slides over the adaptor. Constructed of Gray Plastic.

Outdoor American 5' X 8' Flag.  Rich, lustrous appearance with superb wearing strength and breath-catching beauty. 100% nylon material, originated for flags-durable fast colors, washable, won't shrink with sewn special thread. Sheds water, flies well, even in the rain. Polyester canvas headings with spur-type brass grommets or roped headings with galvanized metal thimbles.

Toilet Partition Continuous Two Ear Wall Bracket For 3/4" Panel X 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 57" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 14" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2089.

LCN Door Closer 4040SE Track Assembly 4040SE-3038

Complete replacement LCN Sentronic Track.
Replaces all Sentronic tracks for the 3130SE, 4010SE, 4110SE and 4040SE Closers.
Track includes the roller, 4040SE-3034 and new mounting screws. The replacement track measures 21-3/4" on center for the mounting screws, which may be different then the 3130SE, 4010SE, 4110SE and older 4040SE Tracks.
Specify voltage, and color when ordering.

LCN Part # 4040SE-3038

Toilet Partition U Bracket For 7/8" Thick Panel Cast Stainless Steel

Cast stainless steel construction. Bracket base is 1-3/8" x 1-5/32" with two mounting screw holes. Bracket legs project out 1-3/8" with the thru hole at 1" on center from the bottom of the base. Also known as a Bathroom Partition Stall U-Bracket or Wall Bracket 7/8". Manufacture part number 1903

Shipped with mounting screws

3/8" Spline Window Operator T Handle.

Converts existing crank handle to a compact T handle. Also known as a Butterfly Handle

Accurate Door Kit Old Style, Used January 1-2013 to September 2021. This door kit includes all you see and the security screws. Also known as 50-8511505. Chrome Plated.

These hinges will not replace previous version of Accurates old style hinges that are no longer available.

Folding Bleacher 4" wheel axle. 3/8" axle x 1-13/16" length. This axle is also used with Hussey bleacher Company. Includes clips. Also known as 1001133. The grooves are 1-9/16" between.

The Barracuda DSO-PB is for use on Out Swinging 36" Doors with Exit Devices.  It is constructed of heavy duty steel with a durable powder coated finish.  The bar goes across the door frame and grabs the mounting cleat with an adjustable clamp.  To secure the door, simply turn the handle until it is secured.  They currently offer two models, one for jambs up to 5-3/4" and one for jambs greater than 5-3/4".  This device ships with all of the hardware and a wall mounting rack for storage.

Friction Ring Single Wheel Caster - 2" Wheel - 3/8" Stem Diameter, 1" stem length, 2" wheel diameter. Zinch finish with black rubber wheel. Chair casters available with hard tread for carpet and soft tread for non carpet.

Casement Window Handle-2-3/8"

Cast white bronze with a brushed nickel finish

Hager 5400 Series Door Closer

This Hager Door Closer is a Grade 2 closer.  The hole spacing is 3/4" x 9-1/16" center to center.  The closer comes with the ability to go left or right, push, pull or top jamb mounting.

We ship the 5400MLT04, aluminum is in stock, Dark Bronze has a 3 week lead time

Solid offset door pull 1-1/4 inch diameter round stock.  Handle has a 4 inch offset with a 2 inch clearance and 3 1/4" projection. Available in 12 or 18 inch centers.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Toilet Partition Continuous Alcove "H" Bracket For 1" Panel x 54" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Bracket is 1" x 3-1/2" x 54" long. Legs project out 1-3/4" with the thru hole at 1-3/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Alcove Bracket or "H" Bracket. Manufacturer part # 2859.

Shipped with screws.

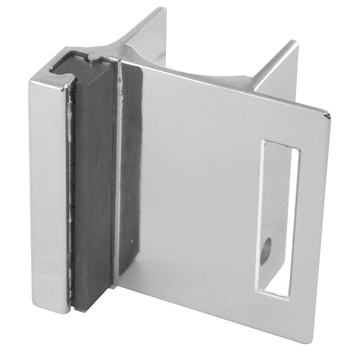

Chrome Plated Keeper Bumper For 1-1/4" Inswing Round Edge Post

Zamac die cast and polished chrome plate construction. The strike and keeper measure 2-1/2" high by 1-7/8" wide with a hole spacing of 1-1/2" on center. The stop is 2-1/2" tall by 3/4" wide with a rubber insert. The slot measures 1-9/16" high by 5/16" deep. Commonly known as a Bathrrom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5310

Shipped with mounting screws.

Lyon Box Locker Door Pull, Hole spacing 2-3/16" between outer holes. Used November 1958 - Current, also known as 6719.

Global partitions new style door kits, used September 2021 to current. This door kit includes cast stainless steel hardware, hinges and associated parts, slide latch with indicator and door keeper, coat hook. The adder is for outswing doors that included double door pulls, stainless steel top pin and 2" door stop. All security screws included. Factory part number 8263513 for inswing parts and 8263514 for the adder which is double door pulls and door stop. The hinges have been used for over 30 years.

To order out swing version you must order both parts as pictures shown for complete door kit.

Cal Royal 7760 Surface Vertical Rod Exit Device

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement. ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs. Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing. Trims are thru bolted for additional security. Conforms & Meets ADA Regulations. UL Listed for Panic and ULC10C, UBC 7-2-1777 codes. UL Listed for Fire Exit Hardware.

Templating matches the Von Dupin 99 and 98

Republic steel escutcheon plate/door pull, current. 2-1/4" hole spacing. 7134872

FEATURES

• Please note the factory will only sell in quantities of 10.
• Ergonomic dial with grip ring and non-slip coating
• Fully retracting automatic spring latch with standard 5/16” bolt
• 7 pre-set combinations for extended usage
• Supervisory key control
• Nut channels for easy installation
• Automatic locking
• 3-digit dialing combination with 5-pin tumbler key plug
• All Built-in Combo Locks have a 10 year warranty from time of shipment
• 72 hour shipping available


APPLICATIONS

• Fits all standard single point or box lockers
• Model 1955 is for use with locker door hinged on left; similar in operation to Master Lock 1655

5" Kickdown Door Holder / Stop FS452

Features:

• Units provide simple hold and release, activated with a touch of the foot.
• Cast brass or aluminum construction.
• Stainless steel spring.
• Non-marring rubber shoes have corrugated bottoms to provide secure grip.
• Shoes are easily replaced when worn.
• FS452-5 has a door-to-floor clearance up to 3".
• Packed with sheet metal screws.

Ives Part # FS452

Berlin Bleacher Used Wheel, 1-1/4" x 3/8" x 4"

Replacement Rubber Shoe For The Door Stop / Holder GJ6A

This shoe is for replacement of the 4" Kick Down Door Holder Deluxe, made by Grand Specialties.

The shoe has a 9/16" wide slot, included the screw.

Threaded Stem Twin Wheel Caster -2" Wheel -3/8-16 Thread, 1 1/2" long stem. Chrome hood with black wheels. Available with tread for carpet and non carpet areas.

 KK8411 for hard tread for carpet

KK8412 for soft tread for non carpet surfaces

Global Complete ADA Door Kit . This door kit includes all you see and the security screws. Also known as 40-8513512. Chrome Plated. For complete door kit add 9G4000 kit. This was used up until October 2021.

Republic Steel 60" st Lock Bar -47-7/8" Length, Latch finger 701730 included, uses 700308-700309 handle assembly. Also known as 7134360, 75160, 2860, 70060, rs6048, lr160.

The Russwin 100, 110 and 120 in no longer available. They have been replaced by the DC6210, which has the same hole spacings and arm. You will not have to redrill or modify your door to make the DC6210 work in place of your existing 100, 110 or 120 door closers. The DC6210 has a little bit larger body due to the increased functionality of this closer. This new closer will meet all the ADA requirements.

Uses the same mounting bracket as the 100, and 2800 series.

Older models may have SL72 or MS93 cast on the cylinders. You may also find Clarksdale, MS cast on the cylinder also.

Republic Steel Locker Door Hinge, Overall width 1-1/2" x 2"ht. Used with other Locker Manufactures also 7693259, 70026, bu0116, lr341. Also used with Lyon Metal Lockers.

The 1-1/8" Q-Ball Floor Protector is for use on 1-1/8" outside diameter chair and table legs. The adaptor shown on the right fits over your existing glide, and then the Q-Ball slides over the adaptor. Constructed of Gray Plastic.

Falcon Spring-n-Stop Hold Open Arm, non handed, extra duty forged parallel arm includes an integral spring stop and non-adjustable forearm assembly for high volume traffic or abusive conditions.

Function is the Doromatic/Falcon Door Closer Model

Rubber Shoe For Grand Standard Kickdown Door Stops / Holders

Replacement shoe for the GJ604, 605, 605,
606, 608, 610, and 612 Grand door stops.
Includes screw

Pull Plate 5025

The plate is a solid .050" wought plate of solid aluminum, brass or stainless steel depending on the finish. The Door Pull GHE25 has 6" centers and is constructed of solid aluminum, brass or stainless steel, and is 3/4" in diameter, handles come with thru bolts. The plate come predrilled with counter sunk holes and sheet metal screws in matching finiish.

Finishes
