Truth Entrygard 11.42 Awning Operator

Numbers usually found on this operator are 31545

arms measure 12" across when in the closed postition

Truth part # 11.42.00.001

Truth Single Arm Window Operator. This new style replaces the older tradiational size shown in the diagrams.

To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.

We sometimes find the number 45251 cast on the housing, and 40049 and 40050 stamped on the arms.   This operator has a Nylon Wheel or Roller.

Left hand shown. The Wi11454 handle in matching color is included

Truth 22.17 Awning Window Operator

Surface mounted Truth Awning Window Operator.  The arms span 13-1/4” from rivet to rivet.  The mounting holes measure 6-7/8” on the outside screws center to center, and 6” center to center on the two inside mounting screws.

Truth Part # 22.17

Truth 23.02 Window Operator

13-1/2" long arm. Rear Mounting. Ships with matching handle.

Casement Window Operator 11" Arm

Die cast housing with steel arm. The hole spacing of the window operator housing is 4-3/4" on the outside screws and 3-7/8" on the inside two screws. The arm is 11" from the roller to the center of the window operator housing. This operator uses a 5/16" spline operator, part #Ro169516.

Pella Window Operator Crank Handle. Fits all Pella Operators.

3/8"-11 Spline

Truth Window Operator Surface Mount 11"

This Truth Surface Mounted Window Operator is usually used on commercial aluminum windows. It features an 11" long arm, measured from the center of the housing to the center of the metal roller. The outside mounting screw holes are 4-3/4" a part and the inter screws are 3-7/8" on center.

Right Hand Shown, in Aluminum

Right Hand Aluminum Wi36223AL
Left Hand Aluminum Wi36222AL
Right Hand Bronze Wi36223BR
Left Hand Bronze Wi36222BR
Right Hand White Wi36223W
Left Hand White Wi36222W

Truth 11.30 Single Pull Awning Window Operator.

11-3/8" spread when in closed position.

Includes sash hook and matching handle.

5/16" Spline Window Operator Handle.

Truth Split Arm Operator.

White and Bronze only. Ships with matching handle.

Common numbers found on this operator is 30866

Roto Split Arm Operator Pin Up

The housing is 4-1/2" wide, and the linkage arm has an overall length of 4-3/8"

Left Hand shown in the picture

Truth Entrygard 10339 Left Hand Bracket

This bracket is usually used on the Entrygard Dual Arm Operators. This bracket is what the linkage arm attaches to on the hinge side of the with.

Truth Entrygard 10498 Left Hand Bracket

This bracket is usually used on the Entrygard Dual Arm Operators. This bracket is what the linkage arm attaches to on the hinge side of the with.

Truth Entrygard 10795 Left Hand Bracket

This bracket is usually used on the Entrygard Dual Arm Operators. This bracket is what the linkage arm attaches to on the hinge side of the with.

Truth Split Arm Window Operator 15.26

To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator. Ships with matching handle.

White and Bronze only

We only have the Traditional Housing for the Right Hand Bronze operator.

Truth Manual Skylight Operator Replacement Chain

Chain is 14" overall length

Common numbers found on chain are 30955, 30821, 30658, and 40470

Truth Part # 11537

Truth 51.00 Maxim Awning Window Operator-Discontinued, we do have some stock left, but will be shipping the Wi5110, in its place with matching color cover and handle.

Manufactured since 1999-May 2019. 14-1/2" spread when in the closed position. We sometimes find the numbers 41013 and 41016 stamped on the underside of the 12" long arms. Ships with matching handle.

As of 7-30-2019 we are out of the original 5100's, and will be shipping the Wi5110 with Wi21614 Folding Handle and Cover

Color Chart

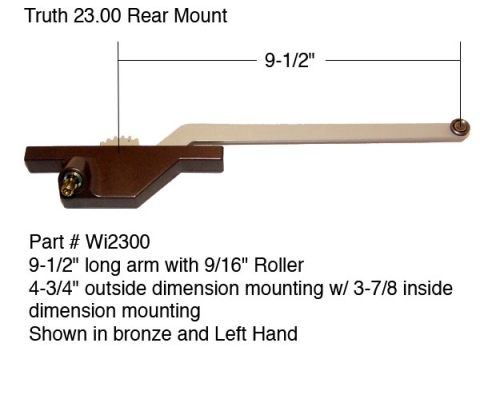

Truth 23.00 Single Arm Window Operator, rear mounting

9-1/2" arm, rear mounting, Ships with matching handle.

Truth 22.10 Awning Window Operator.

Surface mounted Truth Awning Window Operator. The arms span 24-7/8" when in the closed postion. The mounting screws are 7" on center on the outside screw holes and 6" on center on the inside holes. Plastic Glides are not available separately, they are riveted in place.

Truth Part # 22.10

Truth Awning Operator Sash Clip

Usually used on the Truth Awning Operators. Clip attaches to window the and operator clips onto it.

Truth Part # 20008

The Truth 11577 is used on the Encore and Maxim Awning Operators, Models Wi5100 (51.00) and Wi5110 (51.10). The operator is attached to the track by the 11647 Slide Shoe. The track measures 16 inches long by 5/8 inches wide and 5/16 inches deep.

Brackets designed to mount plexiglass/acrylic sheets to desk surface edge when creating separation/barrier. Brackets are adjustable for thickness from 1/8" to 3/8". It is recommended for use of 1/4" Thick material. Sold as a Pair. Made of Aluminum Alloy. Screws and inserts included. Uses a 5mm/3/16" Allen Key(Not Included) to install screws These are available in either Silver or Black Finish. Silver Finish are readily available while Black Finish may have an extended leadtime depending on quantities being ordered.

Measurements

Height: 2-1/2"

Width: 1-3/4"

Depth: 5/8"

Weight:About 1.3lb

Top to Bottom: 3-5/8"

Plate Width: 1-3/4"

Plate Length: 5-3/4"

Plate Height: 3/16"

Gap/Spacing: 1"

Replacement Hope's Window Operator.

Die cast construction with steel arm. The arm measures 9-1/2" long for the roller to the center of the housing.

The Truth 11.10 Awning Operator is the most common of all the Truth Awning Operators. The arms stretch 21-1/2" in the closed position. If you arms stretch 16-1/8" order Wi1112. If your arms stretch 11-3/8" order the Wi1130.

Common numbers sometimes found on this operator are 40510, 40511, 31703 30895, 30895a and 31704. You may see just one or a couple of them on it.

The Wi11454 handle in matching color is included with the operator along with the Sash Hook Wi20008.

Truth 11" Surface Rear Mounted Operator

This Truth Surface Mounted Window Operator is usually used on commercial aluminum windows. It features an 11" long arm, measured from the center of the housing to the center of the metal roller.

The Truth 23.49 is a Dyad Operator is rear mounted. The linkage arm is 9-1/4 inches overall length, 8-3/4 inches hole to hole. The rear mounting holes are 5 inches on centers.

3/8" Spline Window Operator T Handle.

Converts existing crank handle to a compact T handle. Also known as a Butterfly Handle

Truth 22.29 Awning Operator

The Truth 22.29 is the rear mount awning operator, meaning the screws to mount it come in from the outside of the window frame. This usually means it is used on aluminum or vinyl clad windows. The arms measure 16-1/2" across in the closed position, or 16" elbow joint to elbow joint. The mounting screws are 7" on center. Common numbers found on the arms are 31254, 31255, and 30896. We only offer this operator in white.

Truth Part # 22.29.32.002

Vent Arm Operator 10"

Replacement vent arm Operator.

This product is usually used in aluminum frame windows.

The package includes 10" vent arm, handle loop, and all brackets shown in the diagram.

Truth 15.62 Dyad Casement Operator. The 15.62 is no longer manufactured, we can not get the Right Hand anymore, but have a decent supply of Left Hand's.

Same as the Wi1511, but linkage arm is off set up

Linkage arm stamped 20810A, gear stamped 31367L, base stamped 45108

Truth 22.21 Single Pull Awning Window Operator

The arms stretch 21-1/2" across in the closed position. The housing is front side mounted with 4 screws. The spacing on the outside screws are 7" on center, and 6" on the inter screws. We find the number 30895 or 30895A stamped on the arm.

The Wi11454 handle in matching color is included with the operator along with the Sash Hook Wi20008.

Truth Manual Skylight Operator- Straight Drive Easy to install on wood, metal or vinyl skylights. Gear reduction provides needed lift for sash weights up to 140 lbs. Steel chain is detachable at the sash for easy maintenance.

Replacement Pella Single Arm Operators.  The arms are roughly 10 inches long.

Truth Maxim Operator Track 11576

14-1/2" long

Truth part # 11576
