Corbin Russwin DC3210 Door Closer

The mid-priced, cost-effective choice for high-traffic situations. Corbin Russwin DC3000 Series Door Closers fulfill security and life safety requirements by ensuring reliable latching for access control and fire code compliance, along with ease of operation and precise adjustability for barrier-free code compliance. Ideal for virtually all door openings and draft conditions in both new construction and renovations.

Fits on the same bracket as the 100, 110, 120, 2800, 2810 and 2820 Corbin Russwin Door Closers

Idea for interior doors.

Norton 1600BF Barrier Free Door Closer

• ANSI A156.4, Grade 1
• 10-year warranty
• Non-handed
• Rack-and-pinion design
• Cast aluminum body
• Standard, separate and independent, latch, sweep
  and backcheck intensity valves
• 2-7/8" (73mm) projection
• Tri-Packed- packed for regular arm, top jamb and
  parallel arm installations.

3/4" x 9-1/16" hole spacing

Older models may be stamped with Scoville or Eaton, which are the companies that used to own Norton.
We sometimes find 20-1624-4001, or 20-1604-4001 stamped on the back of the closer. If your door closer is stamped 20-1603-4001 or 20-1623-4001, you might want to double check the hole spacing. The 20-1603-4001 usually has a hole spacing of 3/4" x 8-3/16", you could use the International Door Closer 853 as a replacement.

We ship the 1601 Norton Door Closer, which is a non size (meaning you can adjust the spring tension), which will work in place of the 1603BC, 1604BC, 1605BC and 1606BC.

Yale 3300 Door Closer

• Adjustable spring sizes 1 thru 6
• Rack-and-pinion design
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Cast aluminum body
• Standard, separate and independent, latch,
  sweep and backcheck intensity valves
• Staked valves
• Molded plastic cover standard

This door closer replaces the older 3301BF closers. The new version is Barrier Free Complaint.
3/4" x 12" hole spacing, the cylinder is sometimes cast 20-3301-1001 on the back of the cast aluminum
cylinder.

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Square edge for Plastic Laminate
All Hardware included

Norton Door Closer 9300

• Spring size 2, 3, 4, 5
• Separate and independent valve for sweep speed and latch speed
• Adjustable backcheck standard
• Regular, top jamb, parallel mount
• Friction hold open arm optional
• UL listed and compliant with UL10C for positive pressure
• 5-year limited warranty
• ANSI/BHMA A156.4 Grade 3

3/4" x 9-1/16" Hole Spacing

In April of 2023 Norton Yale have discontinued the 2300 and 9300.  The Norton 1600 will be sent in place of the 2300.   Same Hole Spacing, but adjustable spring tension.

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

INTERNATIONAL DOOR CLOSER 1802 - FIXED SPRING CLOSER

• Factory tested to meet or exceed ANSI 156.4 Grade 1
• Narrow design permits installation on most modern glass and aluminum doors without adapters
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Standard application for regular arm and Top Jamb installation; optional parallel arm installation (requires optional PA bracket.)
• Slim Plastic Cover or Full Cover (optional)
• Ranges of Sizes
  Back-Check: 1802, 1803, 1804, and 1805
• 5 year warranty
• All Weather Fluid

3/4" X 9-1/16" Hole Spacing

PLACE AN ORDER HERE FOR THE 1802BC

Doromatic SC90 Door Closer

3/4" x 6-3/8" Hole Spacing,
Non-handed, Tri Pack Mounting- push-pull or top jamb mount.
Adjustable Closing, Latching and Power valves.
Grade 3 Closer

We ship the SC91 Rw/PA

Yale 3500 Door Closer

• Adjustable spring sizes 1 thru 6
• Rack-and-pinion design
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Cast aluminum body
• Standard, separate and independent, latch,
  sweep and backcheck intensity valves
• Staked valves
• Molded plastic cover standard

We ship the model # 3501, this closer replaces the 3501BF. The new version meets the Barrier Free compliance codes.

Sargent ET Locking Slide Kit for 706 Controls

Kit includes everything shown in picture.  Separate components are not sold separately.

Sargent Part # 607-2

Doromatic SC70 Door Closer - Same Hole Spacing as the Norton 7500 and Yale 4400
2-3/8" x 6-3/4" hole spacing

ANSI/BHMA A156.4, Grade 1
■ UL Listed
■ ADA compliant
■ 1-1/2” diameter piston
■ Hinge side, top jamb and parallel arm configuration standard with SC71 Rw/PA
■ Adjustable size 1-6
■ Single piece cast aluminum body
■ Staked valves
■ Separate adjustable general speed, latch speed, backcheck and backcheck position
■ Non-handed for left and right swinging doors
■ 10 year warranty

We ship the SC71 Rw/PA

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

Norton / Yale Door Closer Regular Arm

Replacement arm works with the Norton Doors 9300, 1600, 7500, and 8000 series closers. And the Yale 2300, 50, 3000 and 4400 Door Closers

Norton Part # 1620-1 or 7701-1 and Yale 400-1

Yale 50 Series Door Closer

• ANSI A156.4, Grade 1
• 10-year warranty
• Non-handed
• Rack-and-pinion design
• Cast aluminum body
• 1-3/8" (35mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Standard, separate and independent, latch, sweep
  and backcheck intensity valves
• 2-7/8" (73mm) projection
• Tri-Packed- packed for regular arm, top jamb and
  parallel arm installations.
• All standard arm applications allow

Older models may be stamped with Scoville or Eaton, which are the companies that used to own Norton
We some times find 20-0054-4001 or 20-0254-4001 stamped on the back of the closer

Norton Door Closer Covers

Replacement Norton Door Closer Covers, made of impact resistance plastic.  Covers are available for the 1600, 7500, 8300, and 8500 Series Door Closers.

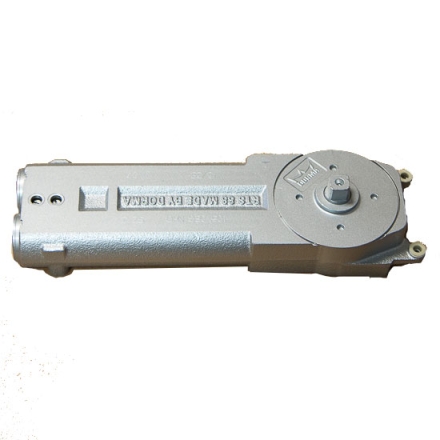

Dorma RTS88 Series overhead concealed door closer for both
single and double-acting doors. The RTS88 will consist of a steel
cam, rollers, and springs housed in a compact cast iron body.
Closers will be capable of being installed in minimum 1-3/4" x 4"
headers. RTS88 will have maximum door opening to 90º or 105º,
trim conditions permitting. Sweep and latch speed will be
controlled by two noncritical adjustment valves from 90º or 105º
to closed. Built-in pressure relief valve will protect the closer from
abuse caused by forced closing. A mechanical backcheck
combined with a positive stop at 90º or 105º will be provided to
protect the door and frame. The RTS88 closer will be available
with hold open at 90º or 105º, or without hold open. The product
shown here is just the replacement cylinder.

LCN Door Closer Regular Arm

Specify your current closers model number when ordering. Not all
of the LCN closers have the same shape spindle on the door closer
cylinder. The LCN Part #'s on this Regular Arm is: 1260-3077, 1460-3077, 4010-3077, 4020-3077, 4040-3077

Yale 4400 Door Closer

• Non-handed
• Rack-and-pinion design
• Cast aluminum body
• 2-1/8" (54mm) projection
• 1-1/2" (38mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Staked valves
• Standard, separate and independent, latch, sweep and
  backcheck intensity valves
• Backcheck positioning valve
• NorGlide® fluid
• Molded plastic cover
• All standard arm applications allow doors to swing 180°,
  conditions permitting
• Self-drilling screws
• Full-size template
• 10-year limited warranty

2-3/8" x 6-3/4" hole spacing. This door closer replaces the 4400BF. This newer version is Barrier Free Compliant.

The ALREX hinge is a full function hydraulic door closer hinge. It contains all the features of a door closer, closing and latching speed control, power adjustment, and optional hold open feature. They are available in 4, 4.5 and 5 inch (leaf height), and are currently available in Stainless and Black finishes.

Package includes 2 hydraulic closer hinges and one dummy, for a standard 3 x 7 foot door, 100 pound door.

Door Handing:

The NortonSeries 78-B/F Traditional Surface Closers represent a combination of traditional styling and modern closer features. All closer sizes are contained within a single size aluminum alloy shell. Templates for installing this closer are the same for all closer sizes.

The CRL PR90 is a Grade 1 door closer, the heaviest rating possible.  The template is the same as the LCN 4040 with the same features, latching speed, closing speed, back check and power adjustment from size 1 ADA compliant to size 6.

We offer the Standard Cylinder PR90 and also the Delayed Action PR92. Delayed Action will hold the door open for 15-20 seconds to allow handicap individuals to clear the opening before the door closes.

Plastic Cover

Specify your current closers model number when ordering. Not all
of the LCN closers have the same shape cover on the door closer
cylinder.

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Square edge for Plastic Laminate
All Hardware included

Safway Bleacher Slide Arm Nose Guide./p>

3 Prong 5/8" Slide For Wood Furniture

5/8" base diameter. Metal base slide for wood furniture. You should use a diameter that aproximately half the diameter of furniture leg.

3 Prong 7/8" Slide For Wood Furniture

7/8" base diameter. Metal base slide for wood furniture. You should use a diameter that aproximately half the diameter of furniture leg.

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Thick Doors- Square Edge for Plastic Laminate
All Hardware included

ADA Concealed Latch Fix it Kits for metal partitions. For 1" thick doors with a round edge. All Partition security hardware included. ADA Stainless Steel Slide Bolt Latch with Indicator, Keeper and with Stainless Steel "U" Shape cover for both sides of door. Also known as 126629.

Sargent 1330 Door Closer

Grade 1 requirement, non sized and non handed, heat treated rack and pinion for longer life, separate closing, latching, back check and power adjustments, and a 10 year warranty. The aluminum color is in stock, dark bronze finish may take a few days to ship.

We ship the 1331-JUO
3/4" x 12" hole spacing

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

International Door Closer 5000 Series

1. ADA (Handicap) multi-sized closer with adjustable spring power
2. Adjustable spring power 8 1/2 lbs to Size 5; Adjustable after installation
3. Rack and pinion mechanism is contained in a high tensile precision cast aluminum housing
4. Finishes available in Aluminum (AL), Hardware Bronze - Storefront Bronze (DU)

Ships with regular arm and parallel arm bracket

Hole spacing 3/4" x 12"

LCN Door Closer 4050 Rw/PA

This new LCN Door Closer is a direct replacement for the Norton 7500 and Yale 4400 Door Closers.  It features, a cast aluminum cylinder, 2-3/8” x 6-3/4” hole spacing, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Cal Royal 700 Series Door Closer

Adjustable closing and latching speeds
3/4" x8-3/16" for sizes 2 and 3, and 3/4 x 9-1/16" for size 4 holes spacing
Powder Coated Painted Finishes
5 year warranty
