Stainless Steel #14 x 5/8" Screw 6 Lobe(T-27), 7/16" diameter head, also known as 92199. This uses a Torx bit to drive screw.

Fits most manufactures like Global, Hadrian, Accurate Toilet Partitions. Also known as a Bathroom Stall 8" Top Repair Kit. These might not fit exactly. Shave off two sides to make smaller. The configuration is the same for all manufactures, some just a little wider in the diameter.

Manufacture part # 8465

Torx driver bit T27 for toilet partition security screws. These torq heads screws are used with brackets that hold the partitions together. This torx bit is for a T27 size and is hollow for a screw with a pin sticking out in the middle of head of the screw and uses a 1/4" shank bit.

Stainless Steel #10 x 5/8" Long Screw 6 Lobe(T-27), 7/16" diameter head, Also known as 90969. This uses a Torx bit to drive the screw.

International 89L Escutcheon Trim

Clutched lever trim for use with the 8000 Series International Door Closer Exit Devices. Escutcheon measures 8-27/32" high by 2-15/16" wide by 15/16" thick. Trim is non handed and easily converted in the field. We offer 3 functions, Classroom, Passage and Storeroom.

Classroom - cylinder (not included) locks and unlocks lever handle
Passage - no cylinder hole, lever always active
Storeroom (Night Latch) - cylinder (not included) unlocks lever, but lever is always locked when key is removed.

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1-1/4" - 1-5/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stainless steel unplated and uses a 6 lobe head torque. Both pieces included.

#6 X 3/4" Stainless Steel Sheet Metal Screws furnished.

Screw holes are slotted for adjustment

Extruded aluminum, with nylon brush

#6 X 3/4" Stainless Steel Sheet Metal Screws furnished.

Screw holes are slotted for adjustment

Extruded aluminum, with nylon brush

Toilet Partition Higne Set, Rh Inswing, Lh Outswing Stamped Stainless Steel

Stainless Steel construction, 1/8" thick. Outside dimensions of the hinge are 3-5/16" wide by 2-7/8" high. The screw spacing is 2-5/16" wide by 1-1/2" high. The mounting holes are 1/4" diameter. For use on a right hand inswing door, or left hand outswing door. See "More Veiws" for the handing diagram. Also known as a Bathroom Stall Gravity Hinge Set, or Toilet Partition Surface Mounted Hinge Set. Manufacture part # 7093.

Shipped with mounting screws.

• Partition Door Privacy Strip are aluminum construction
• 1-1/8" x 60" ht.
• Also known as 121974.
• Partition Door Privacy strips are designed to eliminate any gaps between door and pilaster. Add your own self threading screws to complete the job, includes 1 privacy strip
• This product ships in an oversize box ground.

ASI Matte Black twin hide a roll toilet paper dispenser is surface mounted. This unit holds two rolls (5-1/4") diameter roughly 1800 sheets. Designed so that when bottom roll is used top roll should drop down in place. Product comes with theft resistant spindles. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

6″ x 12″ x 6 1/2″ (152 x 305 x 165 mm)

Chair Glide for a square leg chair with tubing outer diameter 3/4" and inner diameter of 5/8". 1 1/16" Base diameter. This glide does not have a ferrule.

Black Round Plastic Chair Tips for Round Tubing chair legs with a 3/4" Oustside Diameter X 5/8" Inside Diameter. Available in black only.

Global Partitions Top Hinge Pin

Zinc plated steel construction. The hinge pin is 3/8" diameter by 3-3/4" long. Also known as a Bathroom Stall Door Hinge Pin. Manufacture part # 98544.

Bobrick B-369 recessed paper towel dispenser and waste receptacle in a satin finish stainless steel. Seamless beveled flange. Dispenses 350 c-fold or 400 multifold towels. knob latch retains door. Removable waste container has a 2 gal. capacity. Rough wall opening 12-5/8"w x 26-5/8"ht x 4" minimum depth.

Corbin Russwin ED4200 Active Head

Used on the Corbin Russwin ED4000 Rim Devices, for non fire rated doors. A non fire rated door is a door were you can use your allen wrench to dog, or lock, the door in the open position during business hours.

Corbin Russwin part # 650F37-8

The Hub Position for the ED4200

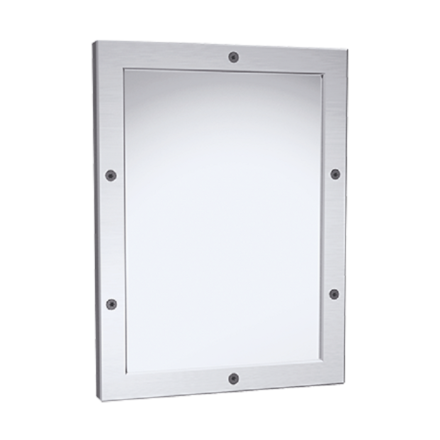

Framed Mirror 20 Gauge, #8 Polished Stainless Steel Front Mount. Frame 14 Gauge type 304 stainless steel finish. All corners are welded and ground to smooth finish. Front mounting furnished with Torx head vandal-resistant 1/4-20x2(150mm) machine screws. Designed in mind for Behavioral Health and Detention Centers.

Dimensions

12″ x 16″ x 5⁄8″ (305 x 406 x 16 mm)

The Detex V40xNS is designed for Narrow Stile Doors with a stile width of at least 2". The 36 inch is 34-7/8 inches wide overall, and the 48 inch device is 46-7/8 overall.

Partition U Bracket For 3/4" Thick Panel Cast Stainless Steel. Cast stainless steel construction. Bracket base is 1-3/8" x 1" with two mounting screw holes. Bracket legs project out 1-3/8" with the thru hole at 1" on center from the bottom of the base. Also known as a Bathroom Partition Stall U-Bracket or Wall Bracket 3/4". Manufacture part number 1893. Shipped with mounting screws.

Square Chair Turing Metal Swivel Glide with a Square Tubing measurement of 7/8" O.D. X 3/4" I.D. This metal swivel glide has a 1 1/6" base diameter and also has a ferrule.

American Sanitary Partitions Top Hinge Pin

Zinc plated steel construction. The hinge pin is 3/8" diameter by 3-3/4" long. Also known as a Bathroom Stall Door Hinge Pin. Manufacture part # 98544.

Dor-o-matic 1790 Center Case Cover Screw

For devices shipped before September, 2004

Doromatic part # SCREW.1025 or PB324

Dor-o-Matic 1790 Repair Parts Breakdown

Von Duprin 5547 Top Rod Kit

Von Duprin 050053 5547 Top Rod Kit for doors 6'8" to 8' tall.

Von Duprin Part # 050053
Old Von Duprin Part # 104759

If your toilet partition (bathroom stall) wall bracket is stamped 1630, then chances are you have the Two Ear Wall Bracket for 7/8″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-1/2″ long with 2-3/4″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket.

Torque Head Barrel Nut Shoulder Screw for 7/8" - 1-3/16" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe  head torque. Both pieces included.

Foot Pull

The Foot Pull is a device for public restroom doors that allows one the option of opening the door using their foot instead of their clean hands. The Foot Pull has been installed in thousands of schools, hospitals, restaurants and office buildings across the US and Internationally, and a 99.95% approval rating, the Foot Pull is truly a "why didn't I think of that" idea with a wide open future. The pull measures 8" across by 7" tall with a 3-3/8" projection. The plate is made of die cast alumunum with a distressed finish.
Package Includes:
1 Foot Pull, Instructions, door signs and all
hardware needed for installation.

Napkin Disposal w/o Shelf Stainless Steel Surface mount 16 gauge utility shelf. Overall Size 7 1/2" x 10" x 3 7/8".  Surface Mounted Sanitary Napkin Disposal shall have top cover door and cabinet of 22 gauge type 304 stainless steel alloy 18-8. All exposed surfaces shall be satin finish and be protected during shipment with PVC film easily removable after installation. Capacity shall be 1.2 gal (4.5L). Top cover is attached to cabinet with a full length 3/16" diameter (Ø4.8) stainless steel multi-staked piano hinge. Structural assembly of body and door components shall be of welded construction. American Specialties 0852 stainless steel napkin disposal unit.

The International 8000 Series End Cap is used on the hinge side of the the exit device.  This cap includes the mounting bracket and the mounting screws.   It is constructed of a die cast metal for years of service.  The piece measures 2-3/8" by 2-1/4" by 1-1/2".  This end cap is used on the International Door Closer models, 8510S, 8610S, 8710S, 8810S, 8620S, 8530S, and 8650S devices, along with the same devices ending in F.

Metal Swivel based Chair Glides for Heywood Wakefield Chairs. This Chair glide is used on a round tubing chair leg with a  9/16" O.D. x 7/16" I.D. This glide is With Out a Ferrule. The base of this glide is 1 1/4". This glide has a clip that holds the glide on by going inside the chair leg.

If your toilet partition or bathroom stall wall bracket is cast with the number 1940 on the back, then you have the “U” Wall Bracket for 1-1/4″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/2″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

Torque Head Barrel Nut Shoulder Screw for 1-1/4" - 1-5/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe  head torque. Both pieces included.

Back to Back mounted 1 inch diameter stock.  One handle will be threaded and the other will be a female fitting that snugs the handle with a set screw.  The standard Stud that ships with the handle is for an 1-3/4 thick door.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Flush Metal Partitions Pintle 5/8" Diameter For Steel Doors

Steel and white nylon construction. The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.

Shipped with nut and lock washer.
